This page allows you to view the exploded diagrams for the Yamaha 40xmhl - 2016 2-stroke engine and easily identify the compatible parts for your engine.

Yamaha is a recognised brand in the outboard engine industry. It offers engines designed to meet the needs of recreational and professional users, with ranges suited to maintenance, repairs and operation in marine environments.

Un doute?  > contact us

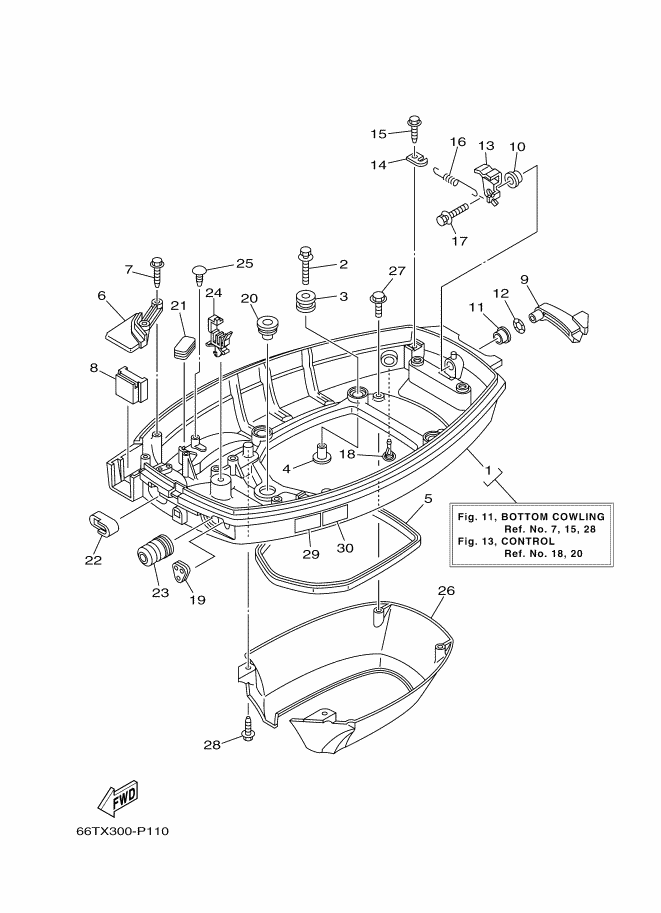

Select an exploded diagram for your Yamaha 40xmhl - 2016 2-stroke engine

Yamaha 40xmhl - 2016 engine 40 HP 2-stroke

Yamaha 40xmhl - 2016

The Yamaha 40xmhl - 2016 produces a maximum output of 40 HP at 5,000 rpm. This 2-stroke outboard engine features two in-line cylinders, a displacement of 703 cm³ and bore and stroke dimensions of 80.0 and 70.0 mm respectively.

Its full-throttle operating range extends from 4,500 to 5,500 rpm. The carburettor fuel system works alongside CDI ignition and an NGK BR7HS spark plug, while starting, tiller-handle control and engine tilting are all operated manually.

By separating the engine into its individual assemblies and components, the exploded diagrams make servicing procedures easier to prepare. They help confirm the location of each item, locate the correct compatible parts and identify the required references before completing a repair or replacement.

Yamaha 40xmhl - 2016 engine features
  • In-line two-cylinder engine operating according to a 2-stroke cycle
  • Maximum output of 29.4 kW equivalent to 40 HP delivered at 5,000 rpm
  • 703 cm³ displacement with an 80.0 mm bore and a 70.0 mm stroke
  • Tiller-handle control combined with manual starting and a manual tilt system
  • Premixed lubrication using a specified fuel-to-oil ratio of 100:1

View exploded diagrams Yamaha 40xmhl - 2016
