Parts and exploded diagrams for Yamaha 40vmhol - 2022 2-stroke engine

Parts and exploded diagrams for Yamaha 40vmhol - 2022 2-stroke engine

Yamaha logo

This page allows you to view the exploded diagrams for the Yamaha 40vmhol - 2022 2-stroke engine and easily identify the compatible parts for your engine.

Yamaha is a well-known brand in the outboard engine industry. It offers engines designed to meet the requirements of recreational boaters and professionals, with ranges suited to maintenance, repair and marine use.

Un doute?  > contact us

Select an exploded diagram for your Yamaha 40vmhol - 2022 2-stroke engine

Yamaha 40vmhol - 2022 engine 40 HP 2-stroke

Yamaha 40vmhol - 2022

The Yamaha 40vmhol - 2022 is a 40 HP 2-stroke outboard engine built around an in-line two-cylinder design. Its 703 cm³ displacement and 80.0 x 70.0 mm bore and stroke enable it to produce a maximum propeller shaft output of 29.4 kW (40 HP) at 5,000 rpm.

Fuel is supplied through a carburettor, while lubrication requires the fuel and oil to be mixed beforehand. Depending on the model configuration, the engine may feature manual or manual and electric starting, remote or tiller handle controls, and either manual tilt or Power Trim & Tilt.

The exploded diagrams provide a clear view of the assemblies and individual components involved in servicing or repairing the engine. They help users locate the correct compatible part references for the Yamaha 40vmhol - 2022 while taking its configuration and transom height into account.

Yamaha 40vmhol - 2022 engine features
  • 40 HP output produced at the propeller shaft at 5,000 rpm
  • In-line two-cylinder engine with a total displacement of 703 cm³
  • Carburettor fuel system used to supply the air and fuel mixture
  • Pre-mixed lubrication requiring fuel and oil to be combined before use
  • Several available configurations for the controls, starting system and tilt mechanism

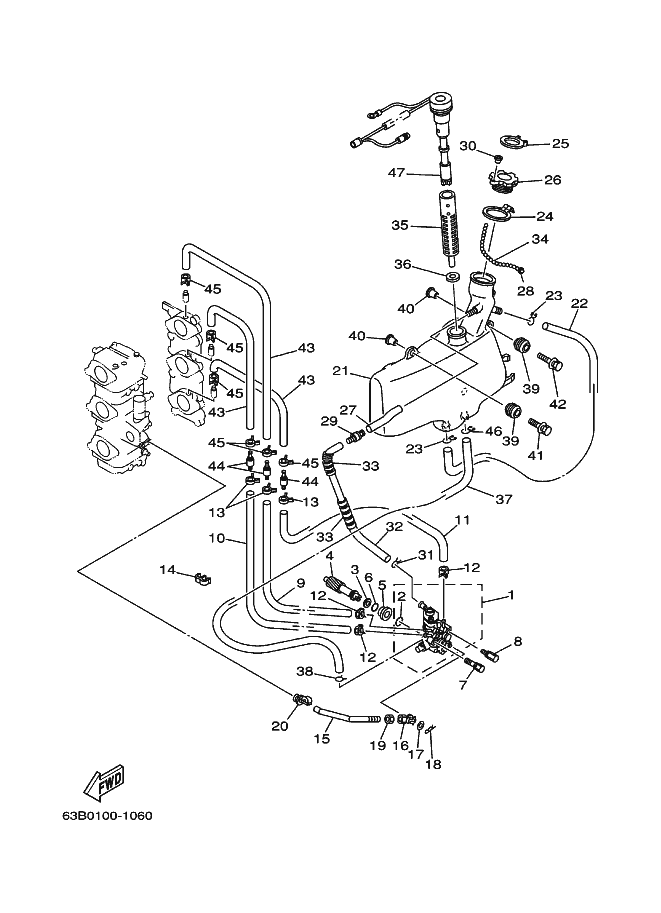

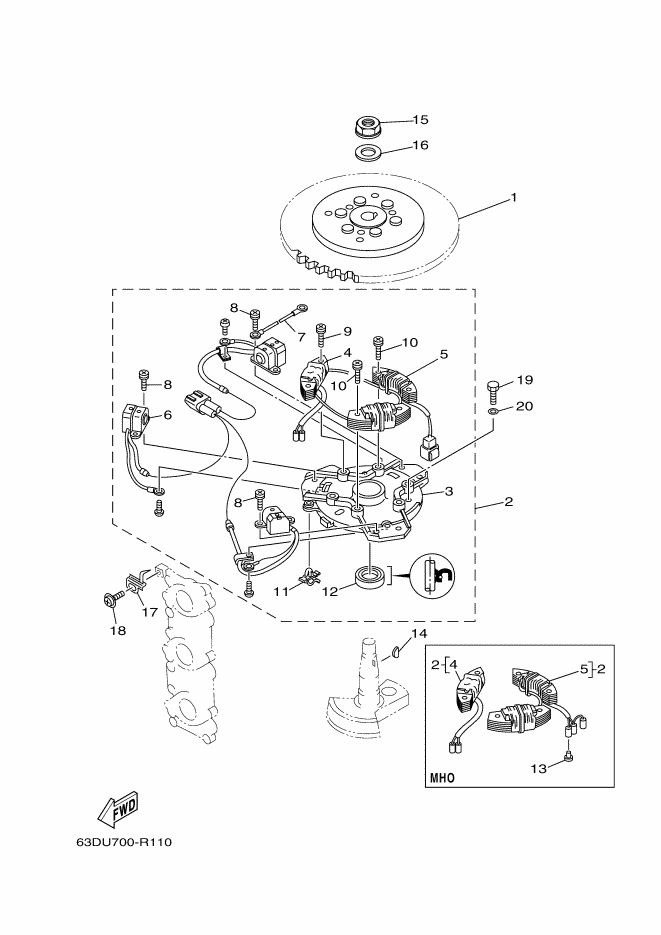

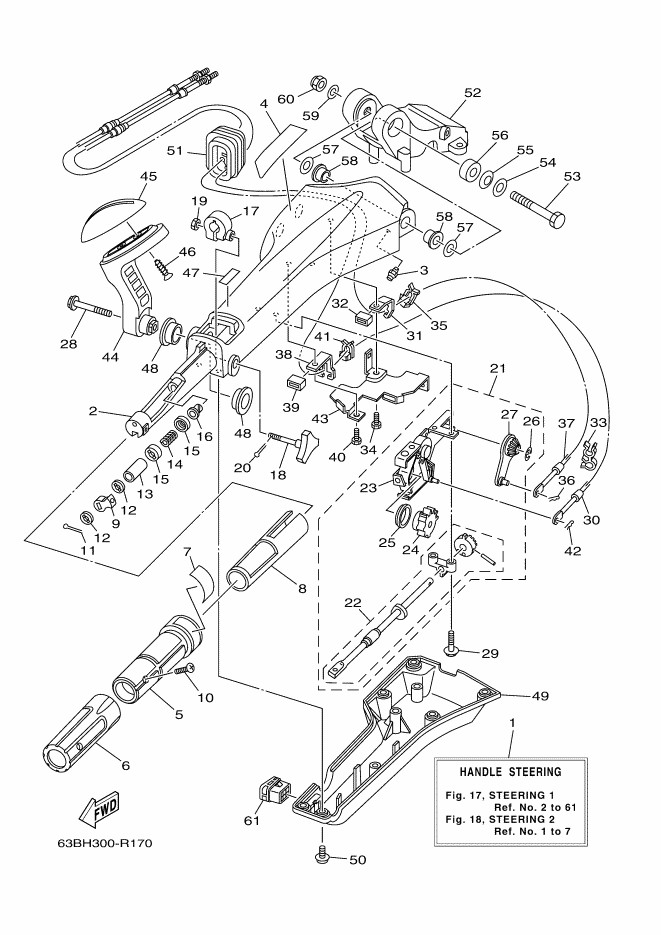

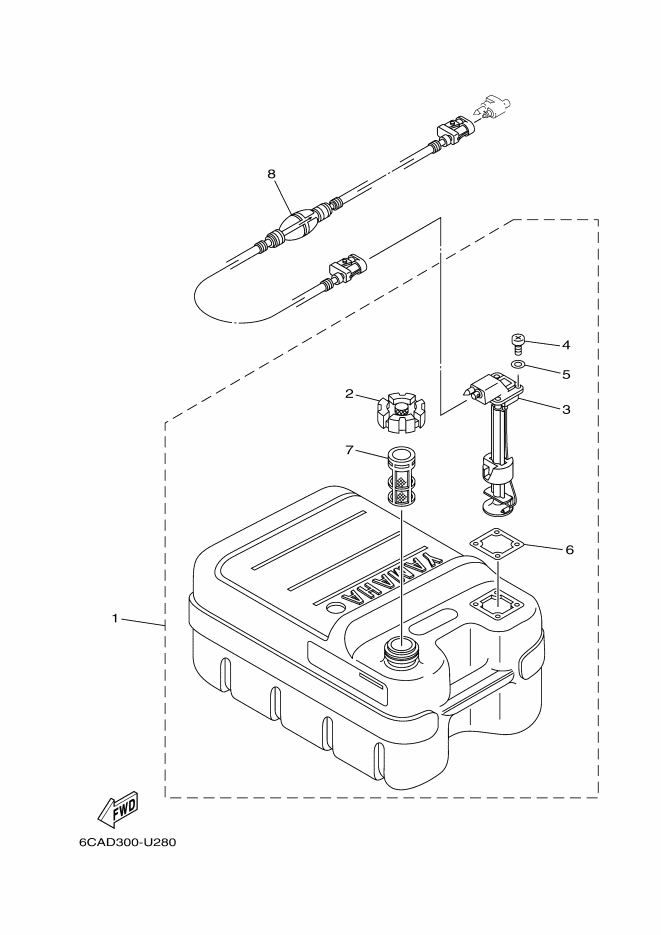

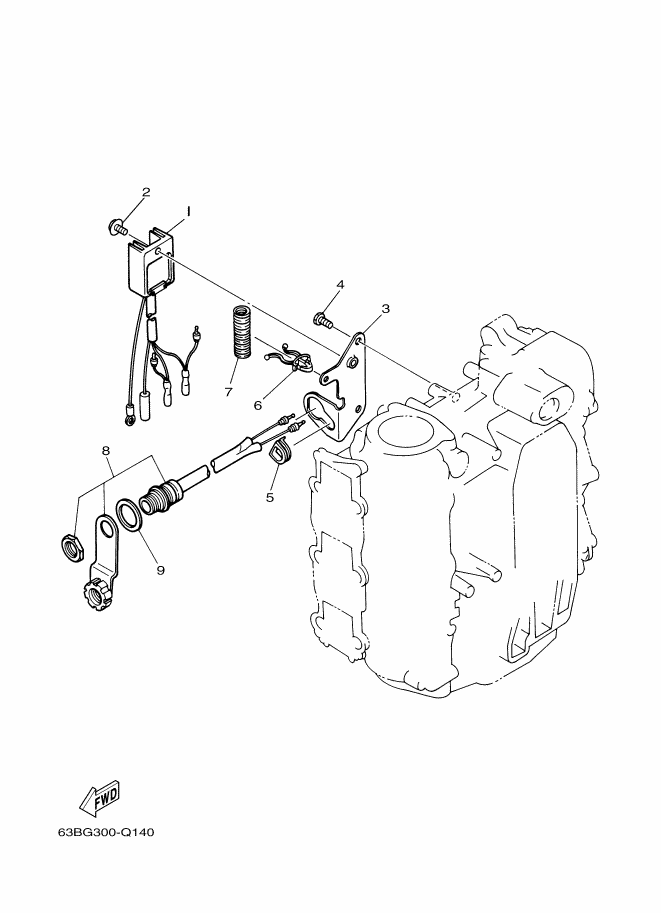

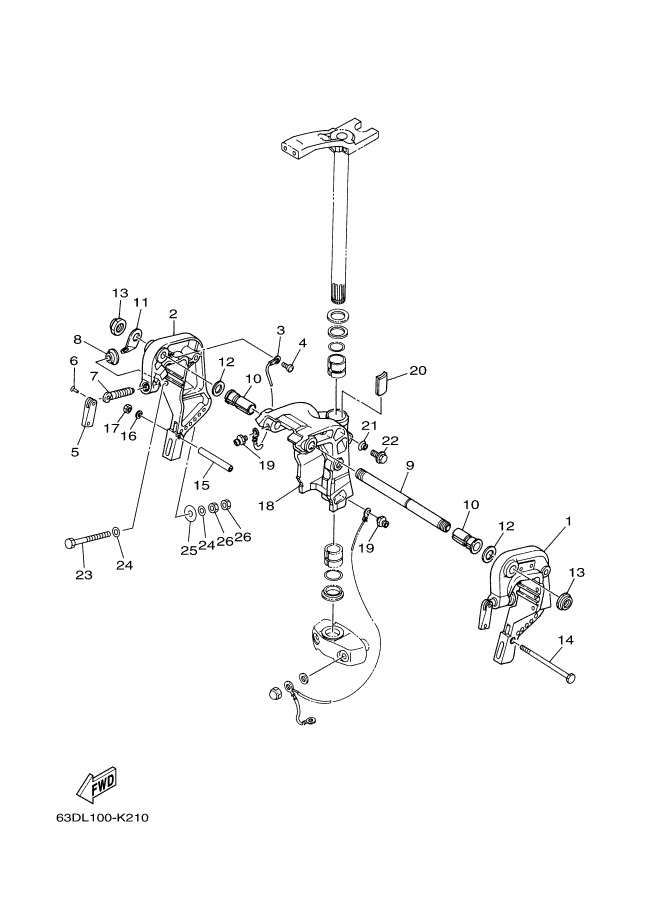

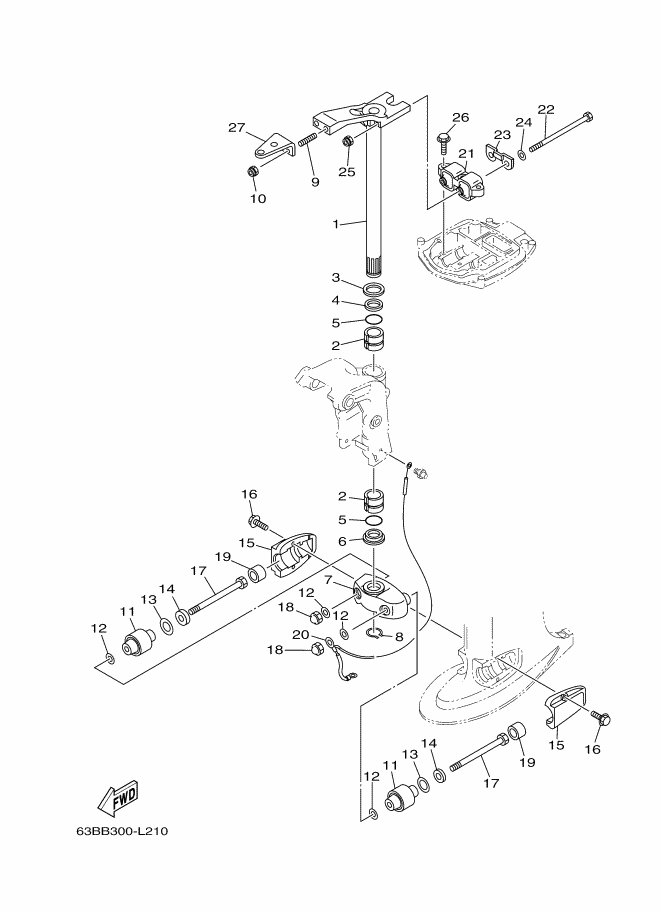

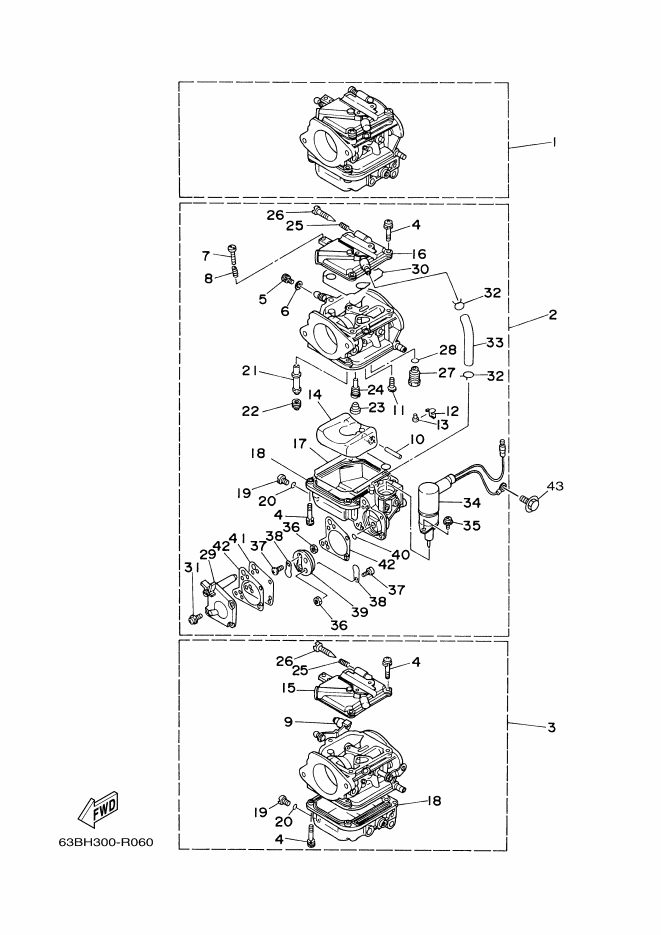

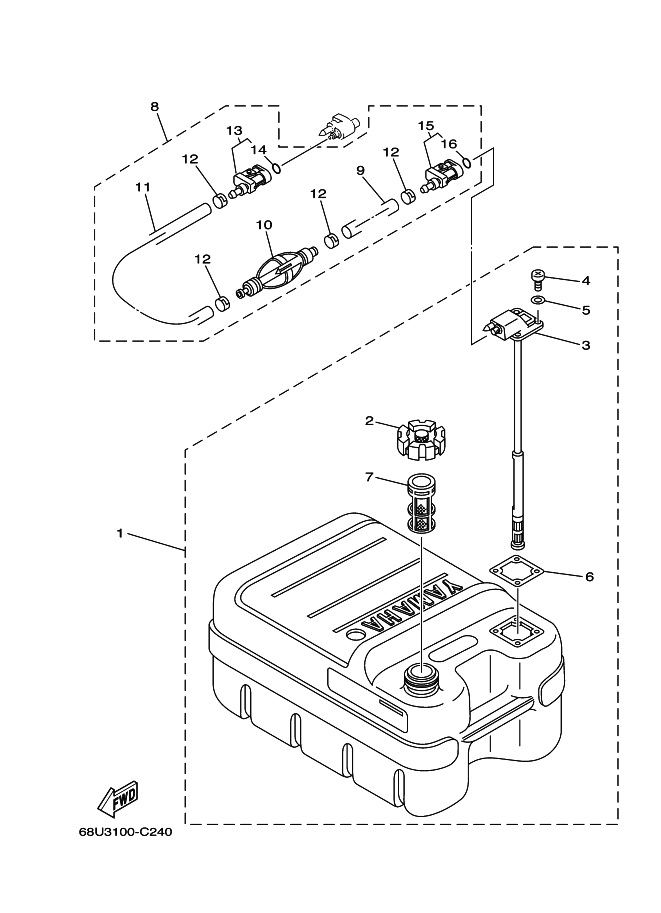

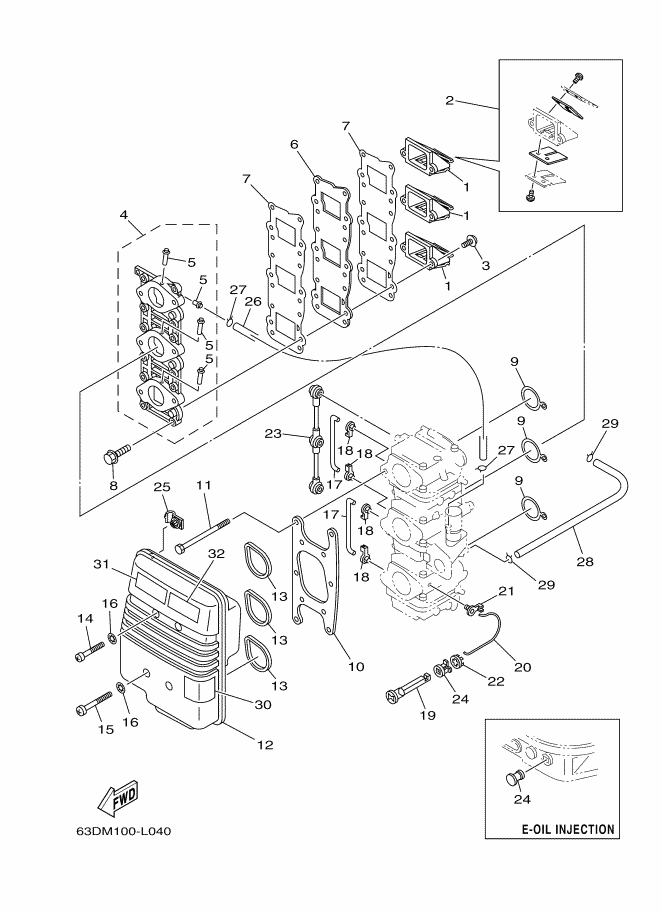

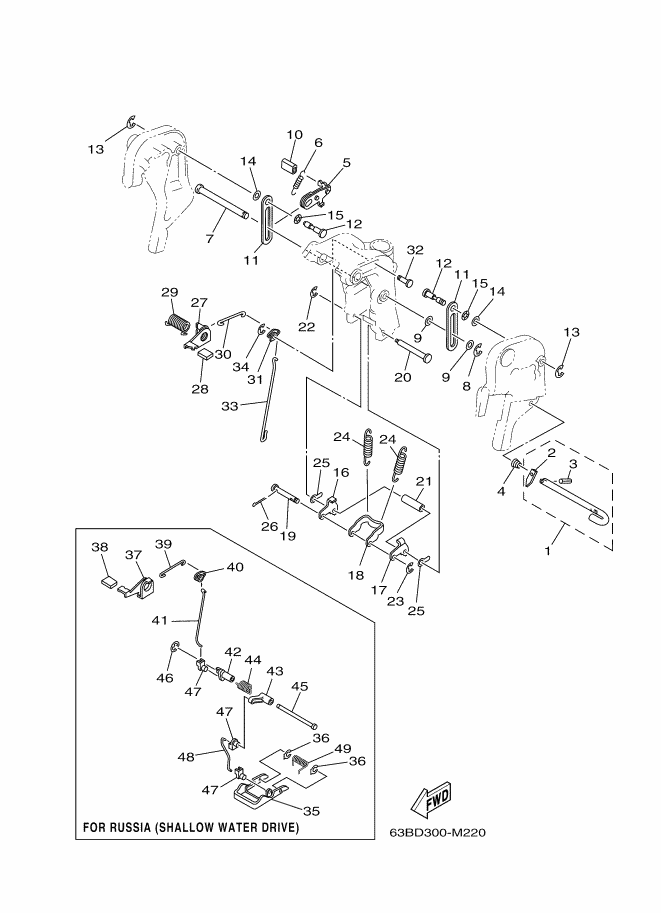

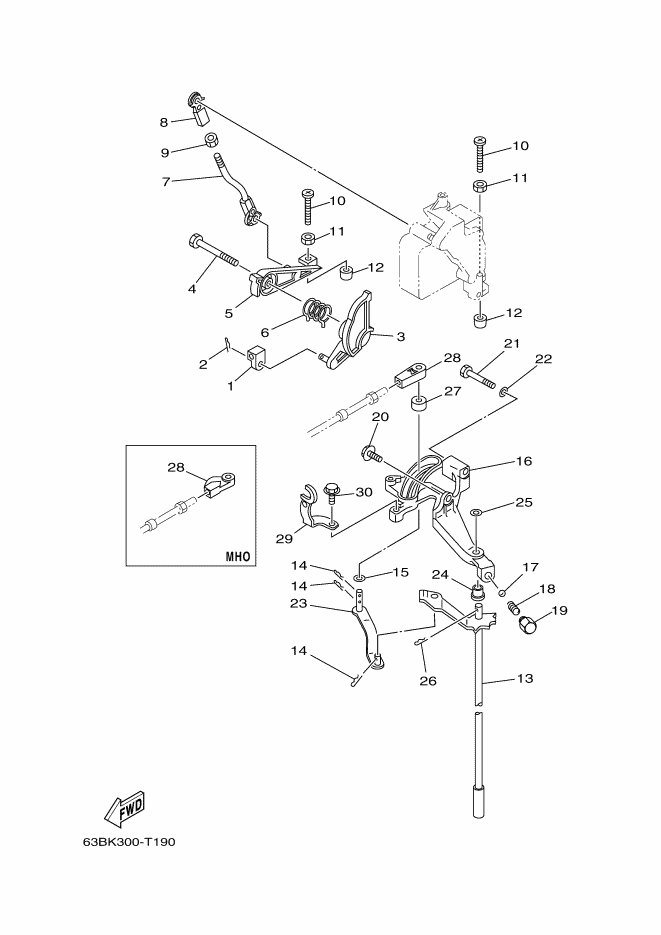

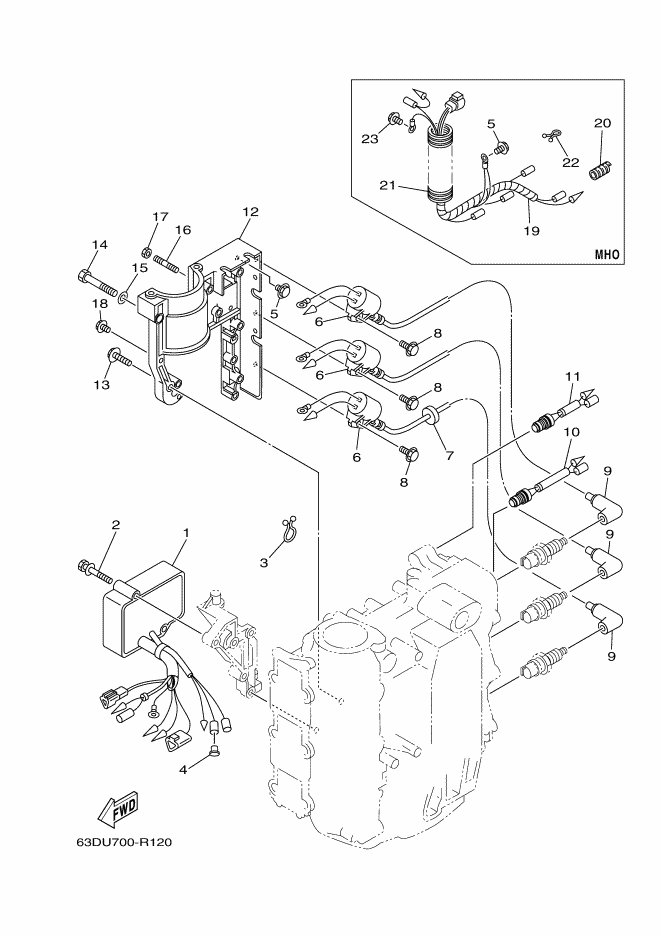

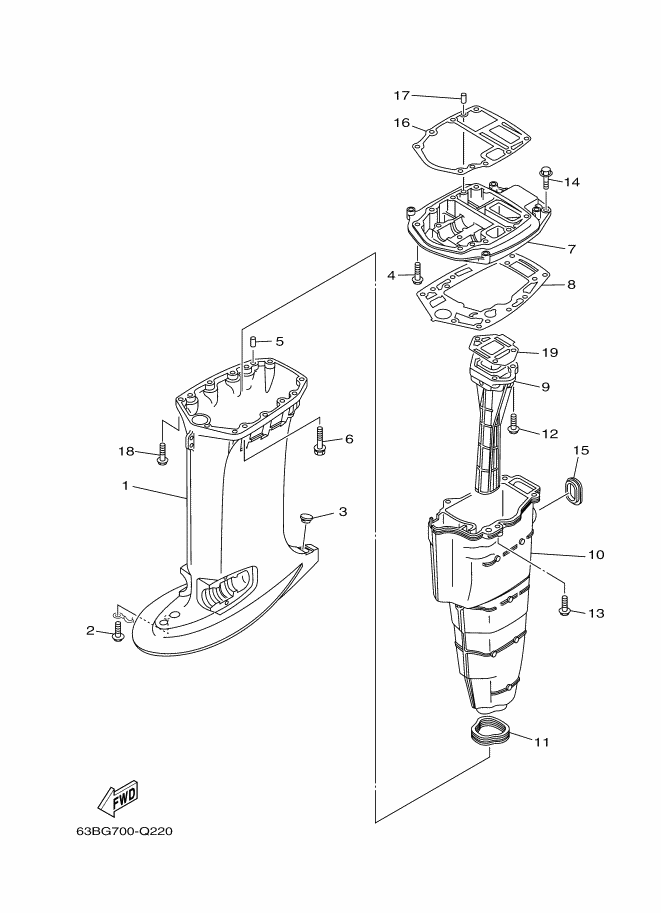

View exploded diagrams Yamaha 40vmhol - 2022

View all compatible parts

Exploded views
