This page allows you to view the exploded diagrams for the Yamaha 40vmhol - 2019 2-stroke engine and easily identify the compatible parts for your engine.

Yamaha is a recognised brand in the outboard engine industry. It offers engines designed to meet the needs of both recreational boaters and professionals, with ranges suited to maintenance, repairs and use in marine environments.

Un doute?  > contact us

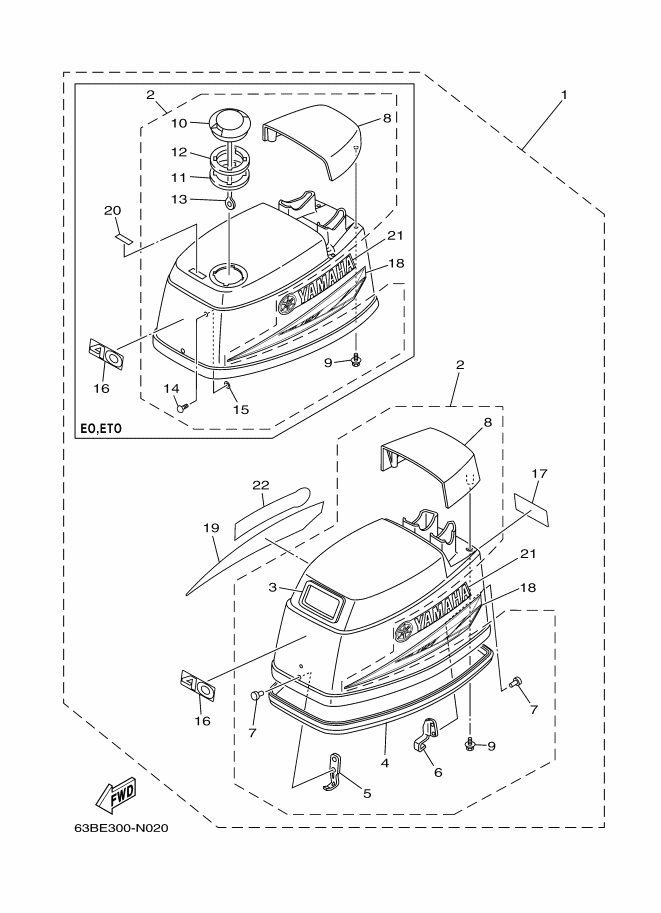

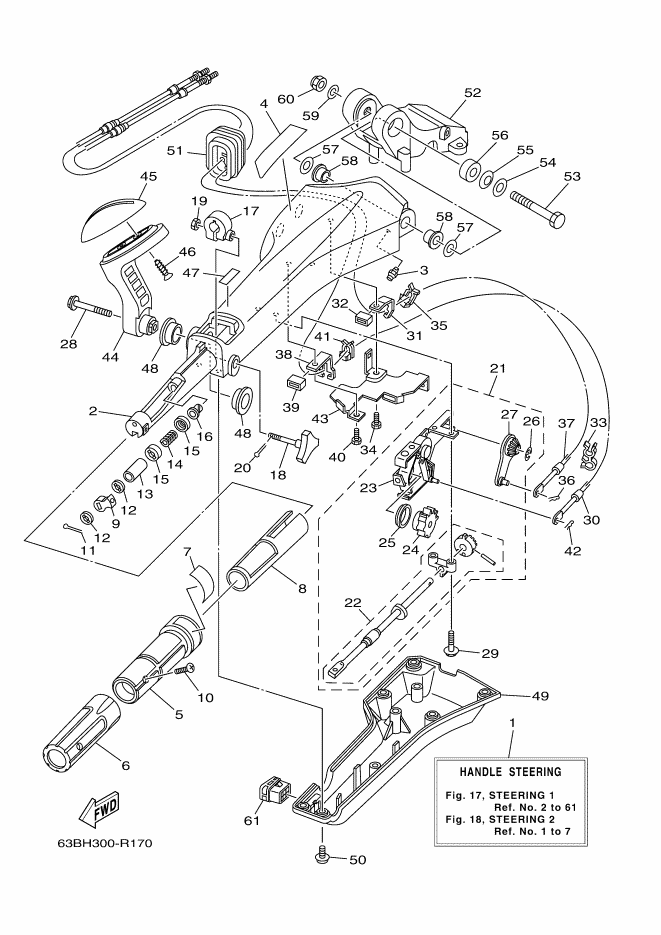

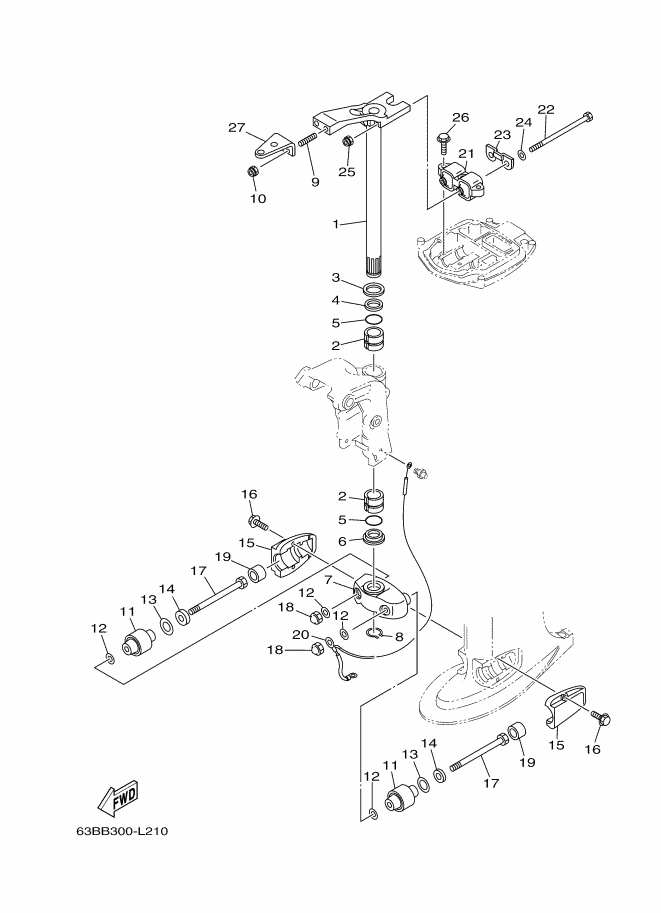

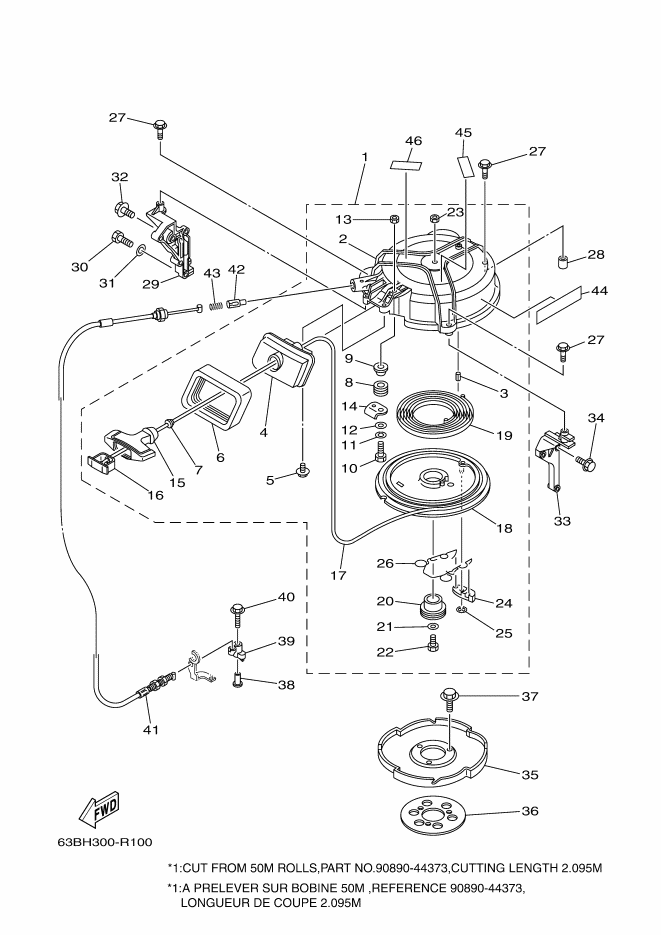

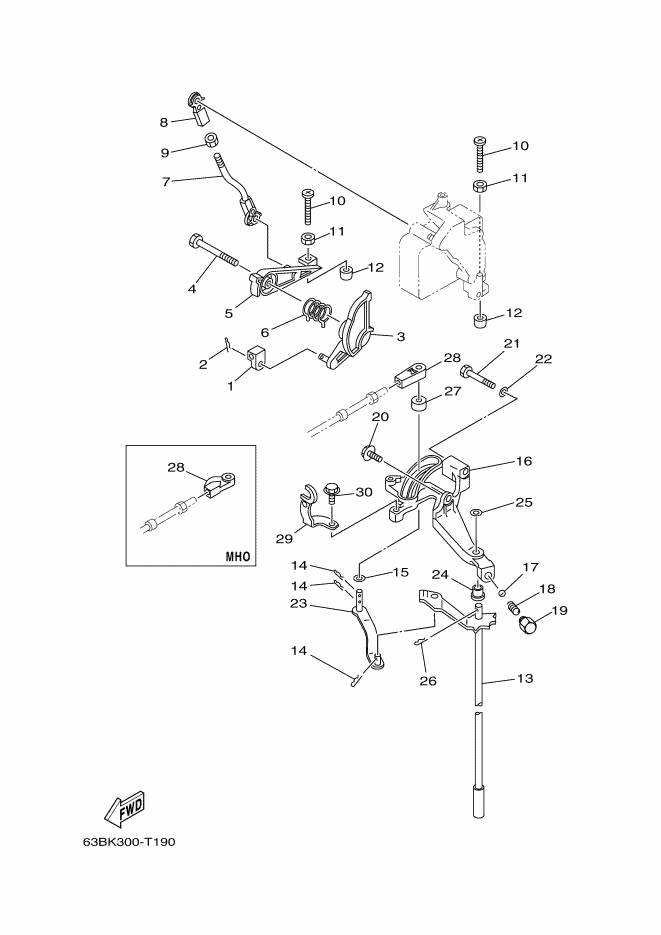

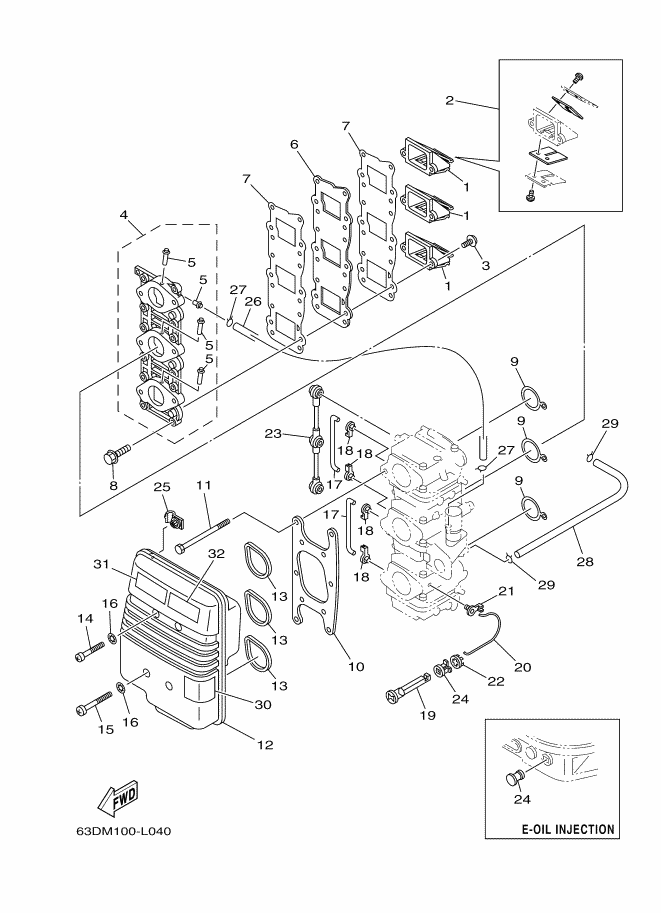

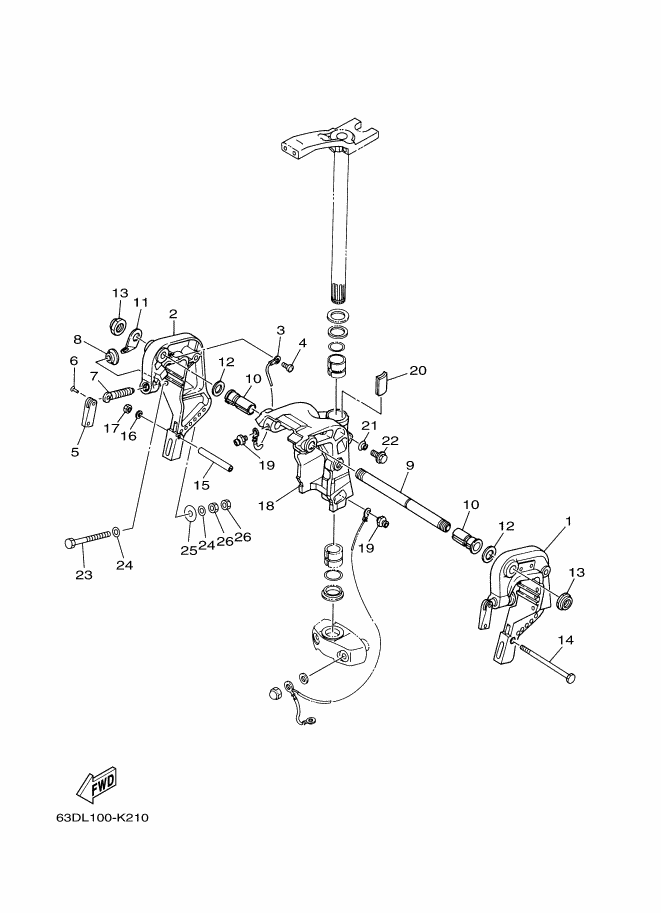

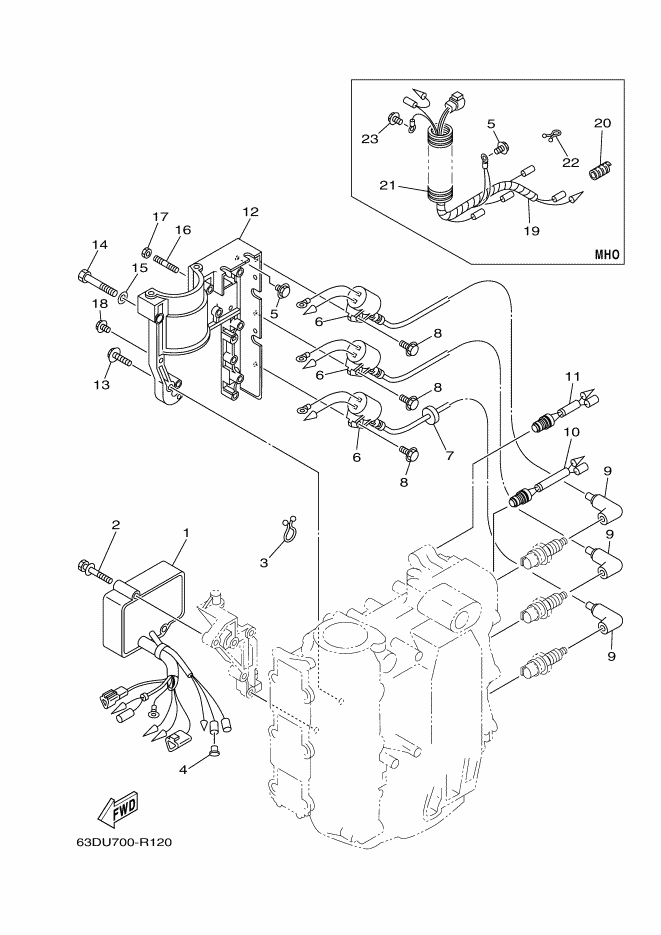

Select an exploded diagram for your Yamaha 40vmhol - 2019 2-stroke engine

Yamaha 40vmhol - 2019 40 HP 2-stroke engine

Yamaha 40vmhol - 2019

The Yamaha 40vmhol - 2019 is a 40 HP 2-stroke outboard engine with a maximum output of 29.4 kW at 5,000 rpm. It features an in-line twin-cylinder block with a displacement of 703 cm³, an 80.0 mm bore and a 70.0 mm stroke.

Its full-throttle operating range extends from 4,500 to 5,500 rpm, while the neutral idle speed is set at 1,000 ± 50 rpm. Its configuration combines carburettor fuel delivery, CDI ignition, NGK BR7HS spark plugs and lubrication provided by a pre-mixed combination of fuel and oil.

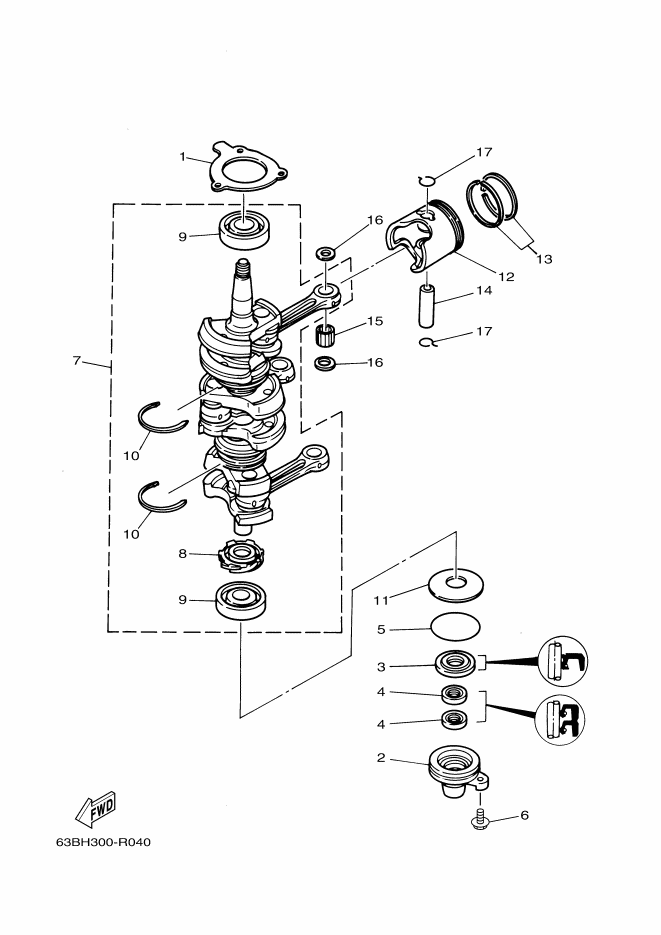

The exploded diagrams make it possible to inspect each engine subassembly and locate the different parts. They simplify the search for references corresponding to the Yamaha 40vmhol - 2019, compatibility checks and the preparation of maintenance or repair procedures.

Yamaha 40vmhol - 2019 engine specifications
  • Maximum output of 29.4 kW corresponding to 40 HP delivered at 5,000 rpm
  • In-line twin-cylinder 2-stroke block featuring a total displacement of 703 cm³
  • 80.0 × 70.0 mm bore and stroke defining the engine’s internal dimensions
  • Carburettor and CDI ignition combined with NGK BR7HS spark plugs featuring a 0.6 to 0.7 mm gap
  • 2.00 reduction ratio with forward, neutral and reverse positions

View exploded diagrams Yamaha 40vmhol - 2019
