This page allows you to view the exploded diagrams for the Yamaha 40veol - 2003 2-stroke engine and easily identify the compatible parts for your engine.

Yamaha is a recognised brand in the outboard engine industry. It offers engines designed to meet the needs of both recreational boaters and professionals, with ranges suited to maintenance, repairs and use in marine environments.

Un doute?  > contact us

Select an exploded diagram for your Yamaha 40veol - 2003 2-stroke engine

Yamaha 40veol - 2003 40 HP 2-stroke engine

Yamaha 40veol - 2003

The Yamaha 40veol - 2003 is powered by a 40 HP 2-stroke outboard engine producing 29.4 kW at 5,000 rpm. It features an in-line two-cylinder layout, a displacement of 703 cm³ and an 80.0 × 70.0 mm bore and stroke.

The recommended full-throttle range extends from 4,500 to 5,500 rpm, while the neutral idle speed is 1,000 ± 50 rpm. Its operation combines carburettor fuel delivery, CDI ignition, NGK BR7HS spark plugs and lubrication through a pre-mixed fuel-and-oil system.

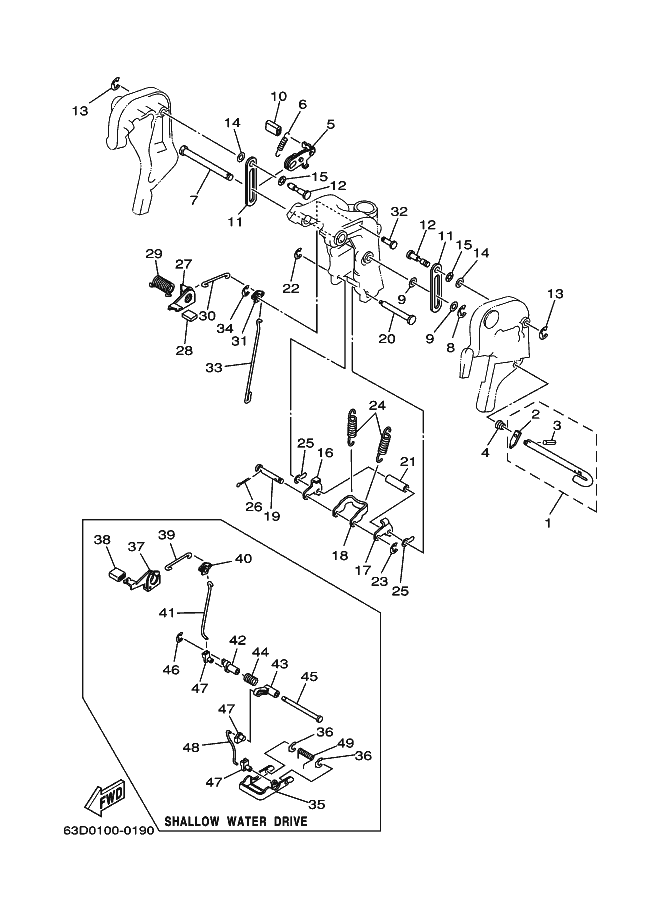

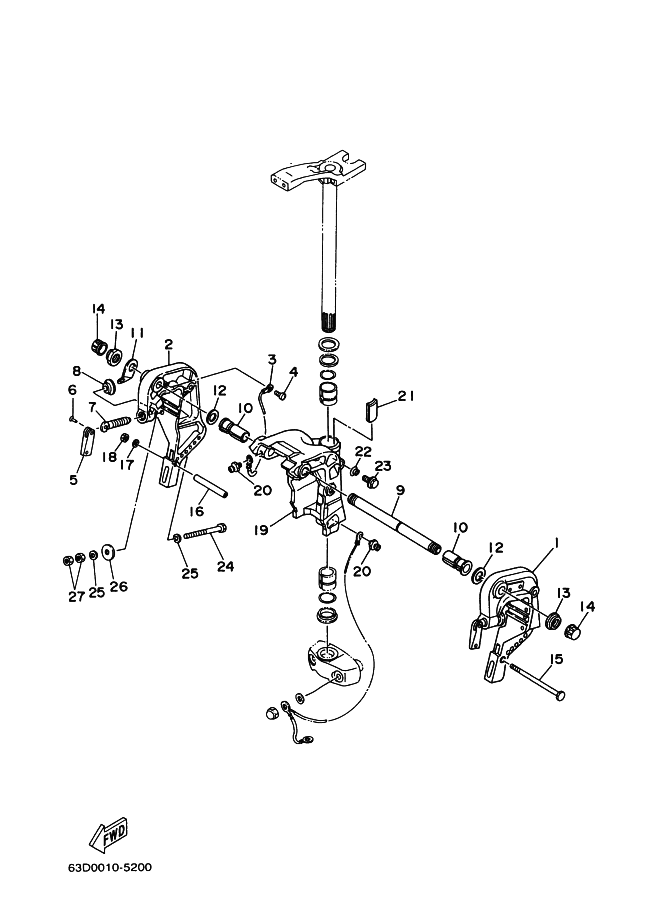

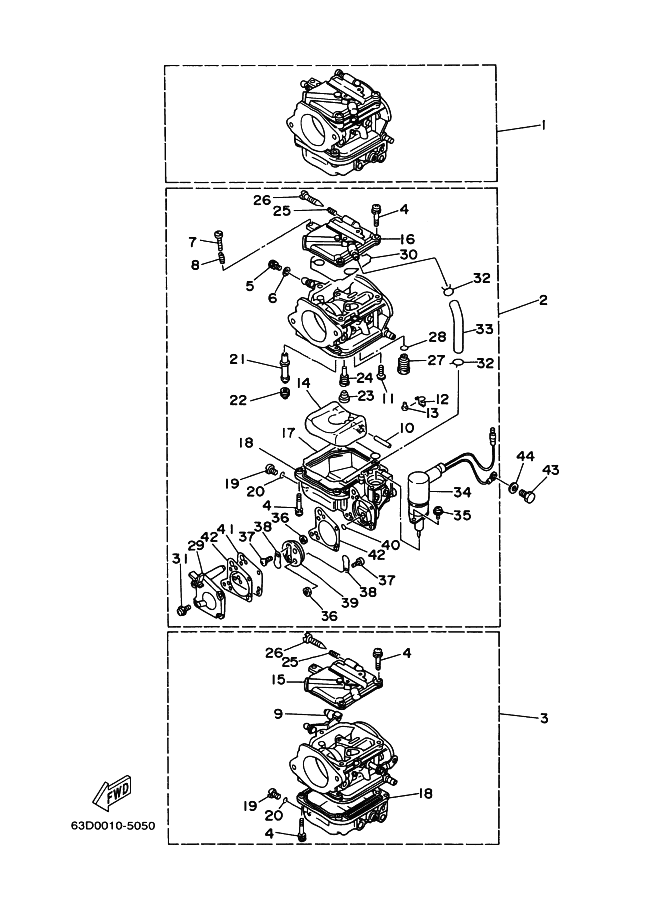

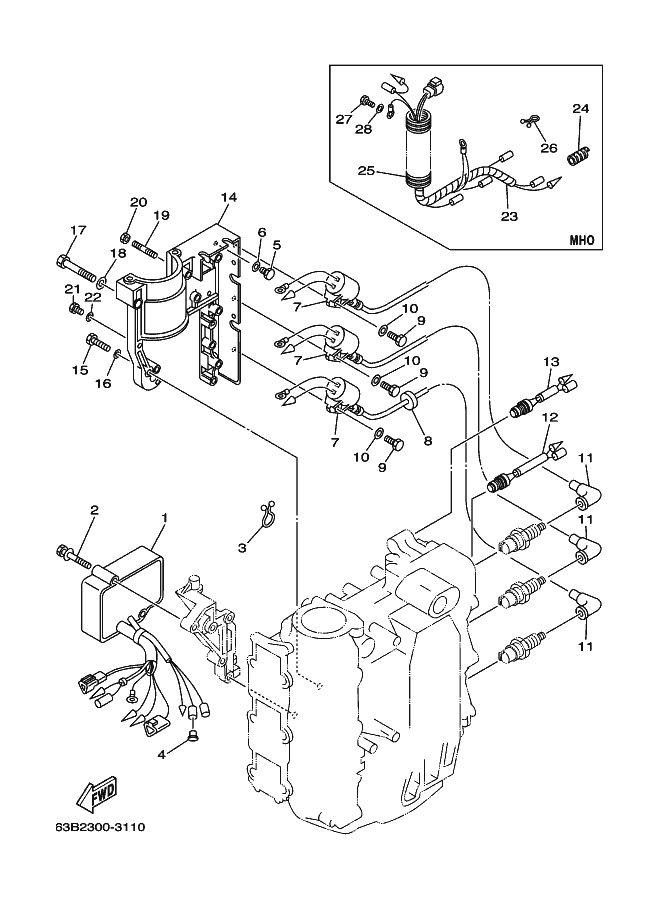

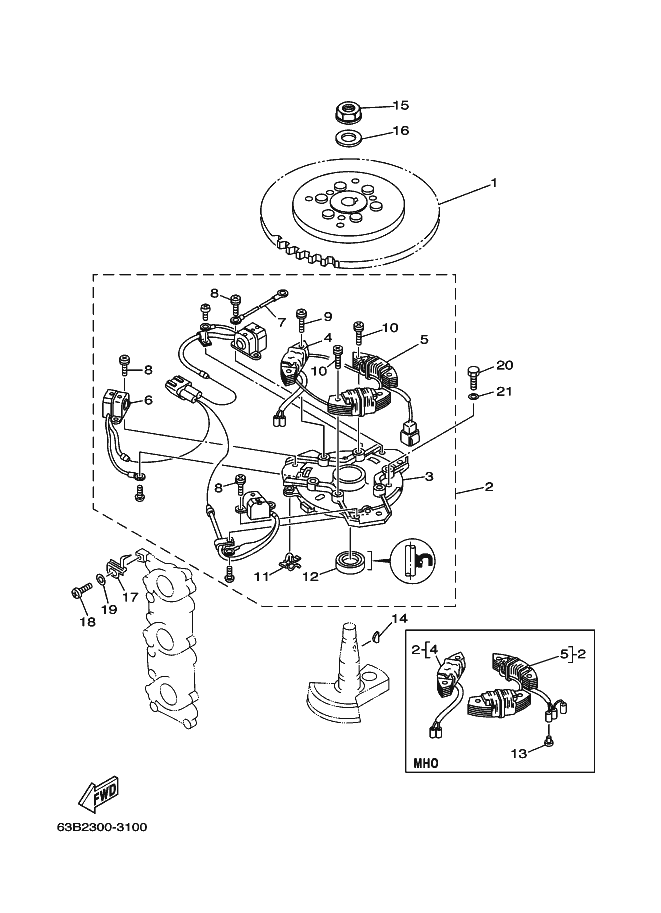

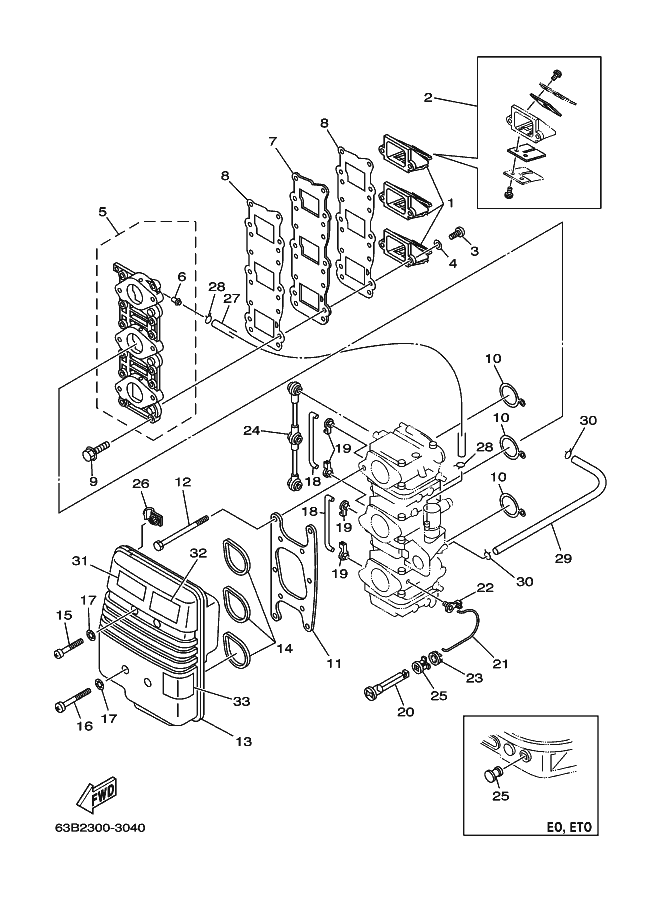

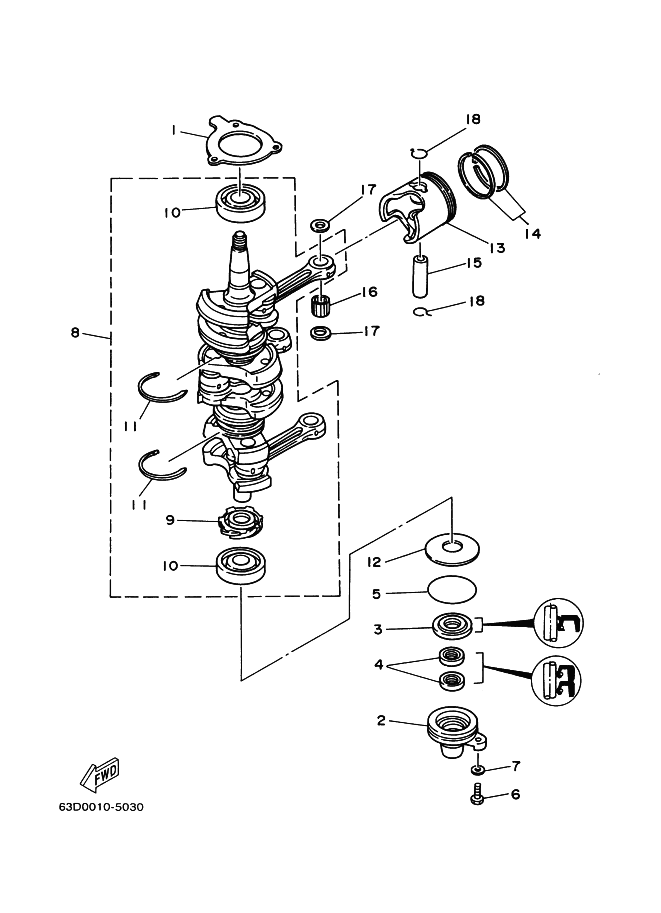

To locate a component or prepare a repair, the exploded diagrams display the main assemblies and their individual parts separately. They help check component positions, find references corresponding to the Yamaha 40veol - 2003 and select the compatible parts required for maintenance.

Yamaha 40veol - 2003 engine specifications
  • Maximum output of 40 HP equivalent to 29.4 kW produced at 5,000 rpm
  • In-line twin-cylinder 2-stroke engine with a total displacement of 703 cm³
  • Full-throttle range of 4,500 to 5,500 rpm with a neutral idle speed of 1,000 ± 50 rpm
  • Carburettor fuel system and CDI ignition completed by NGK BR7HS spark plugs with a 0.6 to 0.7 mm gap
  • Transmission with a 2.00 reduction ratio featuring forward, neutral and reverse positions

View exploded diagrams Yamaha 40veol - 2003

View all compatible parts

Exploded views
