Parts and exploded diagrams for Yamaha 30h - 2007 2-stroke engine
This page allows you to view the exploded diagrams for the Yamaha 30h - 2007 2-stroke engine and easily identify the compatible parts for your engine.
Yamaha is a recognised brand in the outboard engine industry. It offers engines designed to meet the needs of recreational boaters and professionals, with ranges suited to maintenance, repairs and use in marine environments.
Select an exploded diagram for your Yamaha 30h - 2007 2-stroke engine
Yamaha 30h - 2007
The Yamaha 30h - 2007 is a 30 HP 2-stroke outboard engine designed with two cylinders arranged in line. Its displacement is 496 cm³, while its internal dimensions include a bore of 72.0 mm and a stroke of 61.0 mm. It delivers a maximum propeller-shaft output of 22.1 kW (30 HP) at 5,000 rpm.
The mixture required for operation is prepared by a carburettor, while lubrication uses pre-mixed fuel and oil. Depending on the engine version, starting may be manual or may combine manual and electric systems. It can be operated with a tiller handle or remote control and uses a manual tilt system to adjust the outboard position.

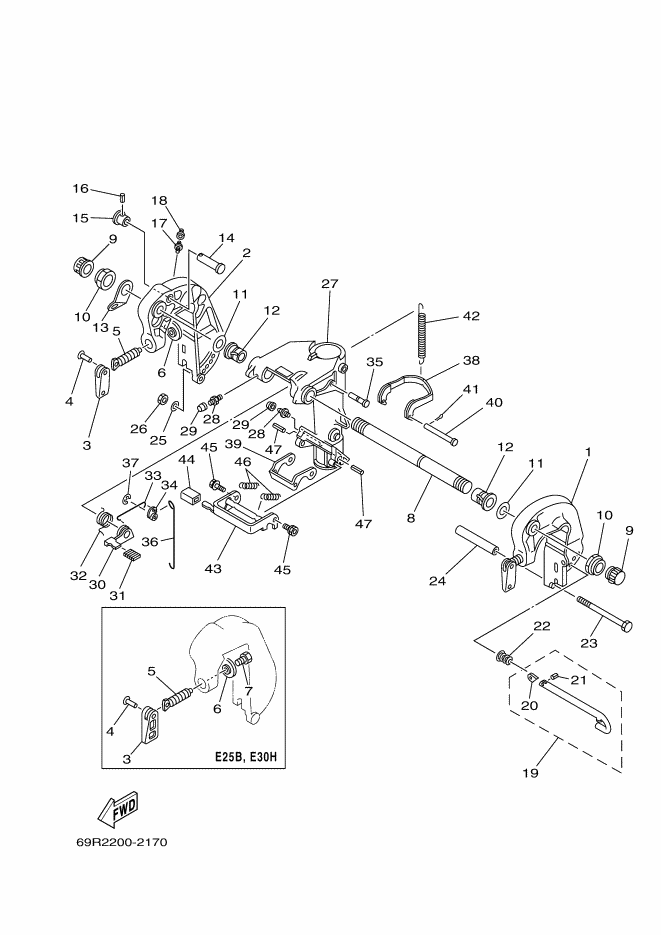

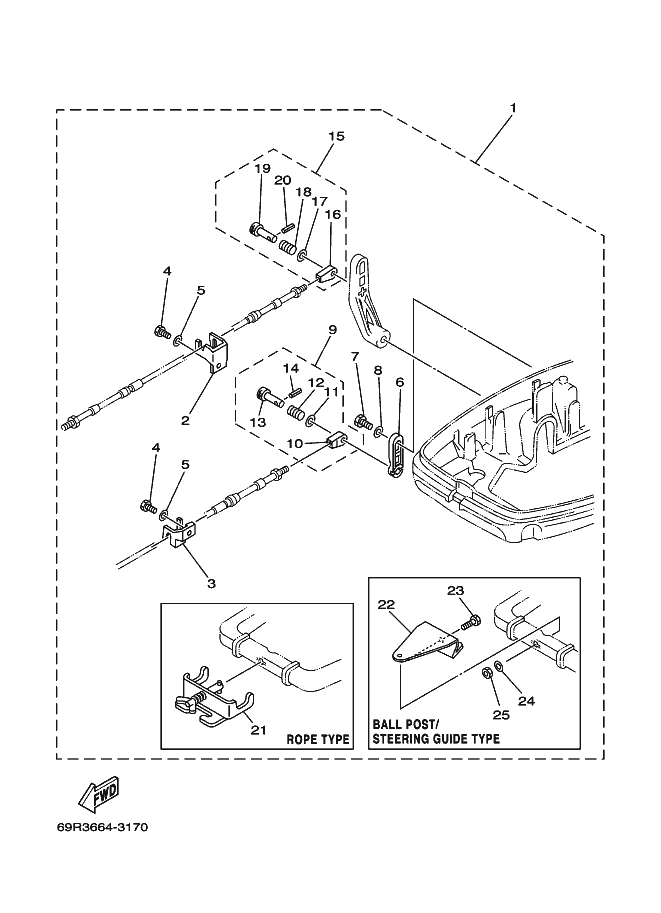

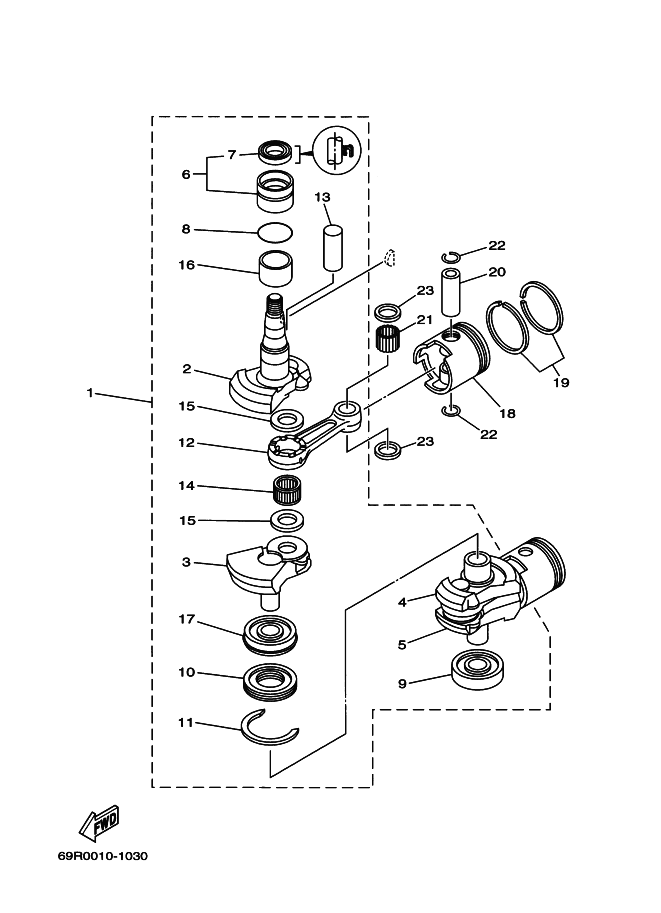

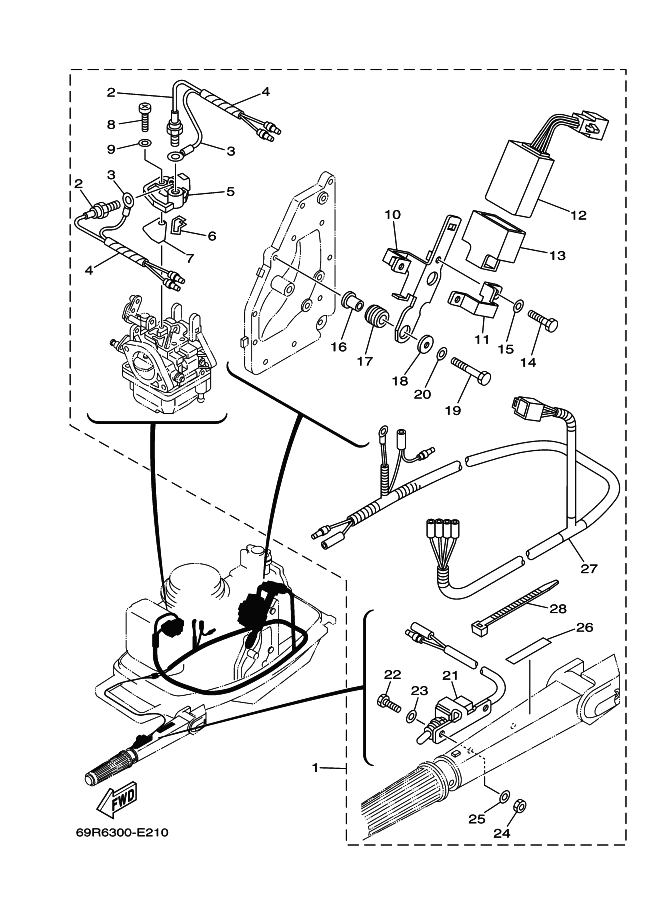

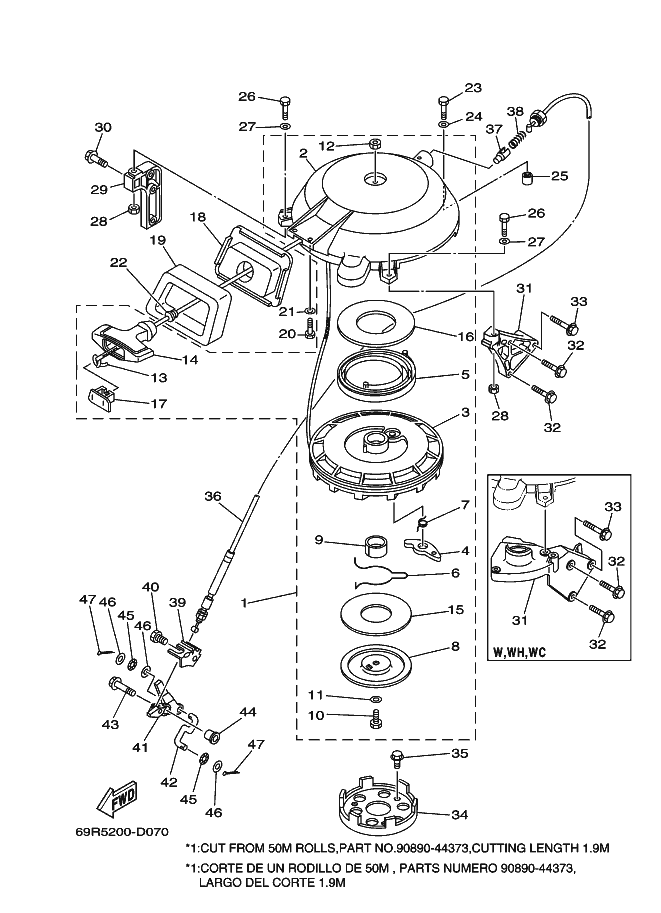

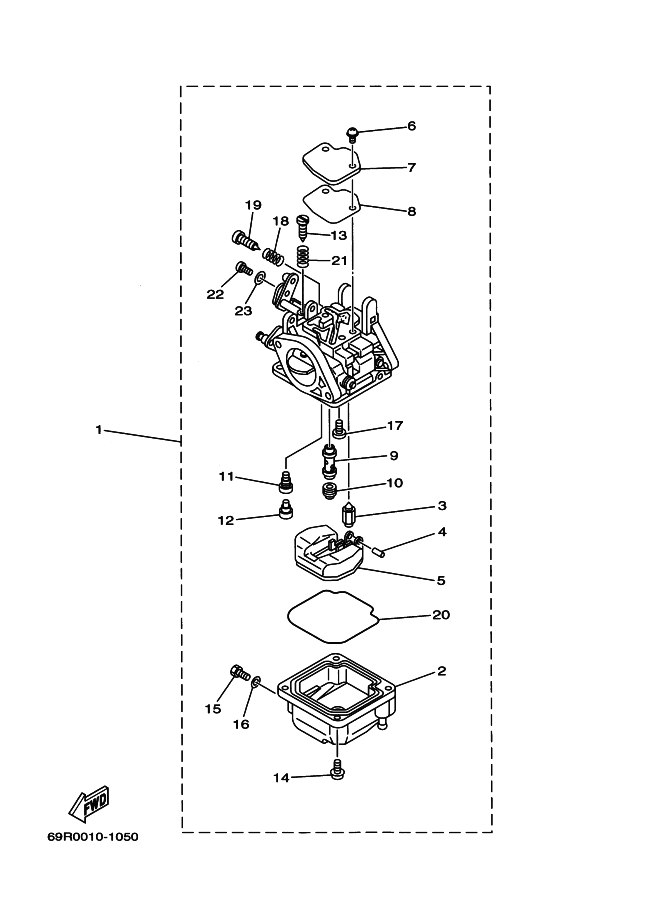

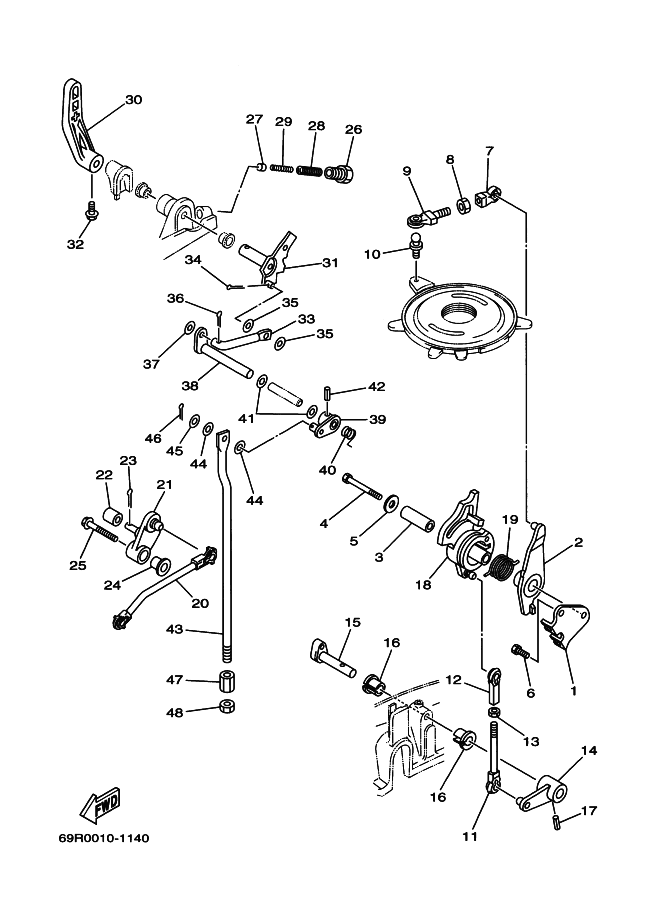

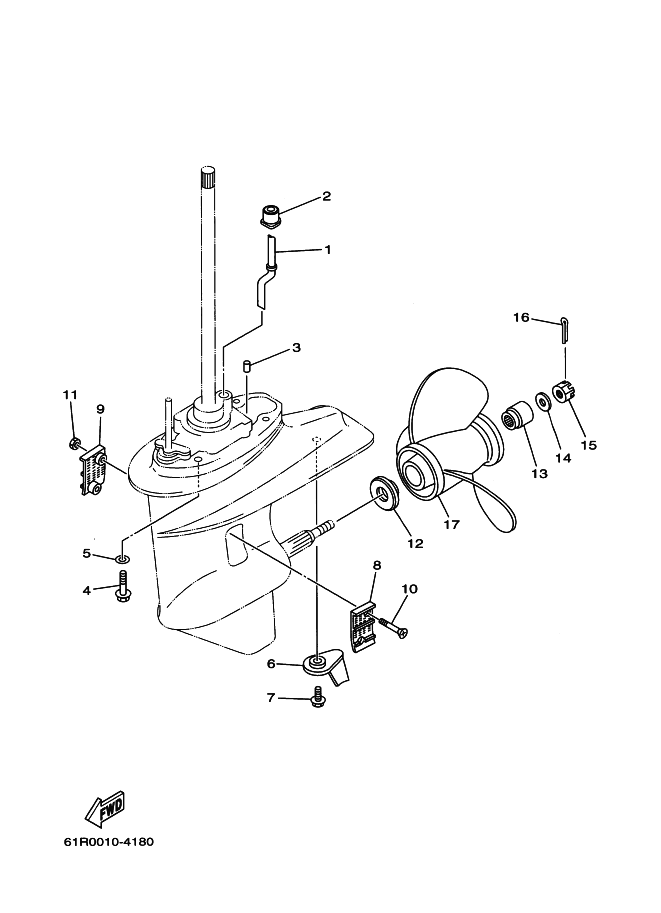

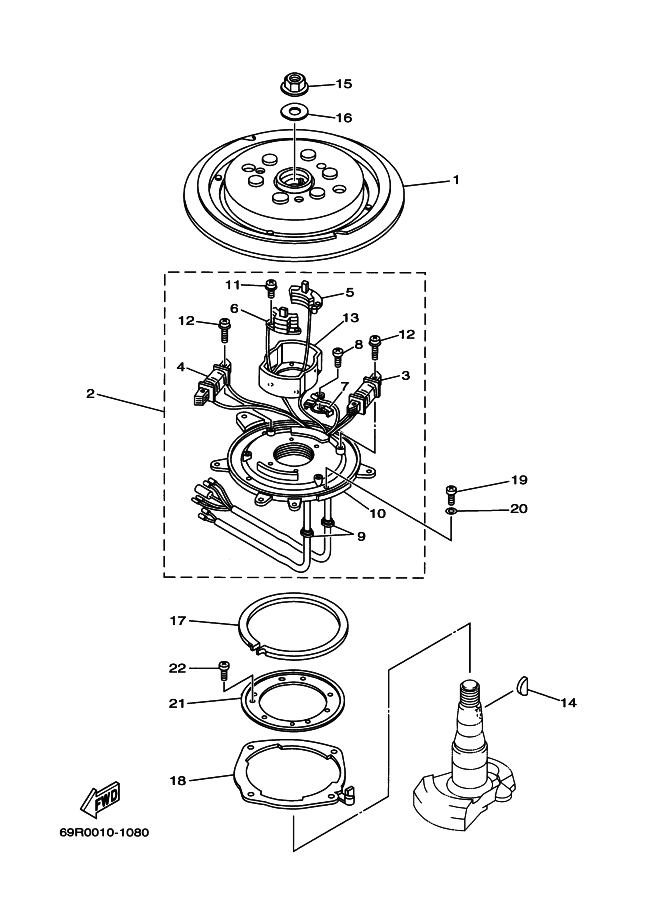

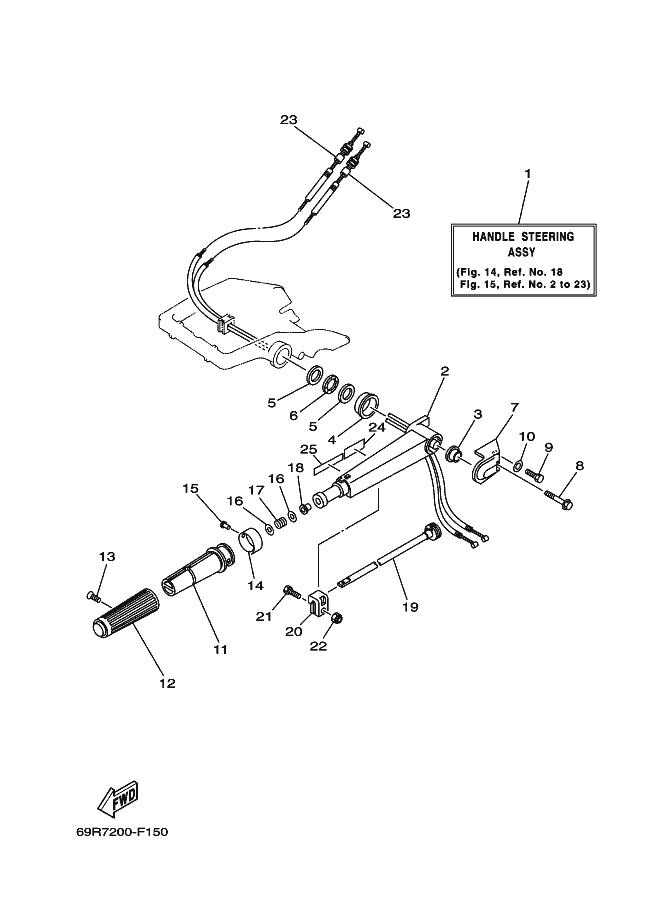

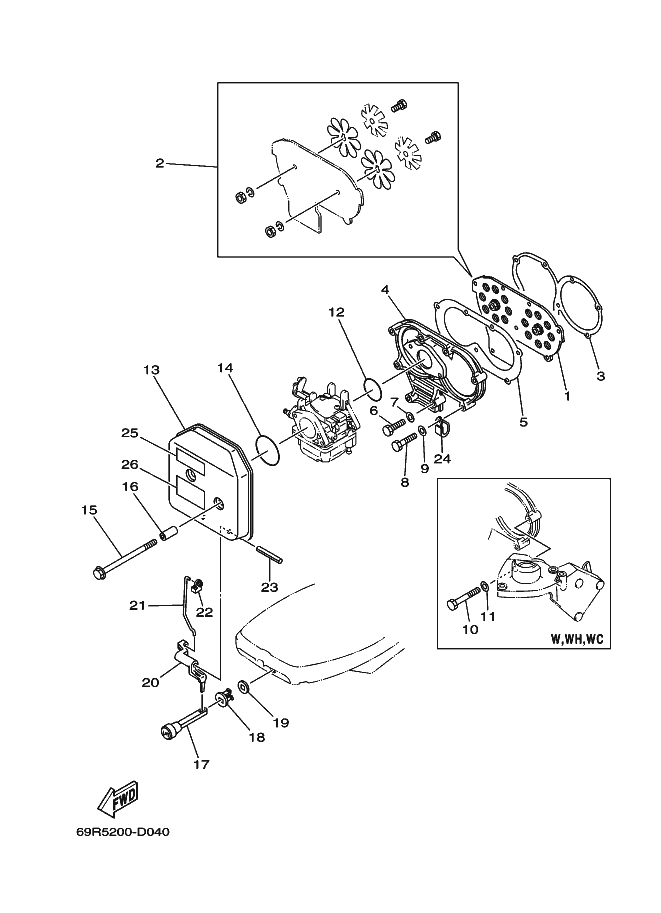

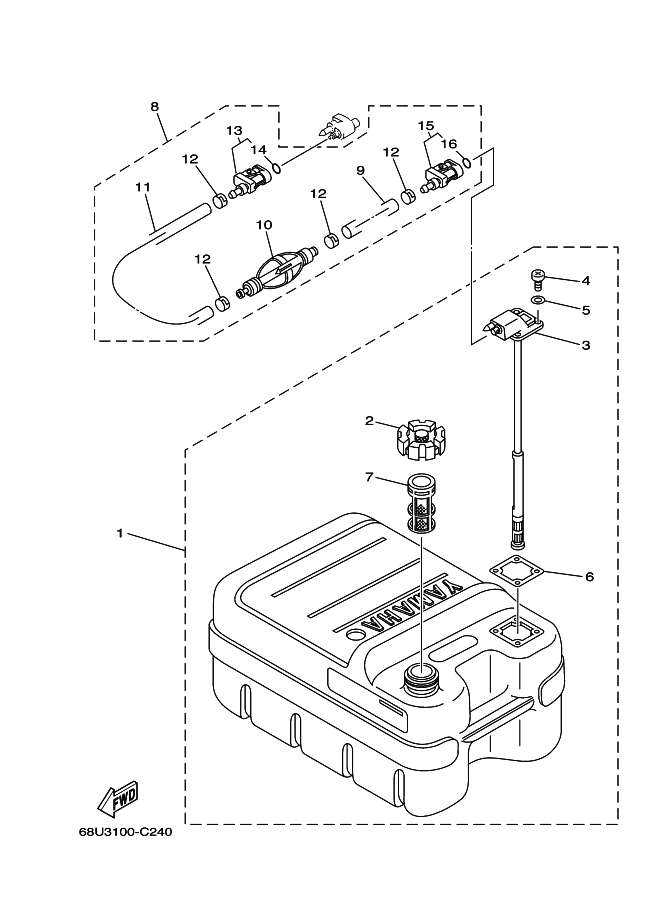

The exploded diagrams for the Yamaha 30h - 2007 show how the components are arranged within each mechanical assembly. They help prepare an intervention, locate the correct references and select the compatible parts required to inspect, maintain or repair the relevant section of the engine.
Yamaha 30h - 2007 engine specifications- 30 HP output: maximum output of 22.1 kW delivered to the propeller shaft at 5,000 rpm
- Two in-line cylinders: mechanical layout incorporated into a 2-stroke outboard engine
- 496 cm³ displacement: total engine capacity distributed across both cylinders
- Carburettor fuel system: system responsible for preparing the mixture used by the engine
- Dry weight from 53 to 58 kg: weight varies according to the configuration and fitted equipment
View exploded diagrams Yamaha 30h - 2007
