This page allows you to view the exploded diagrams for the Yamaha 225detol - 2003 2-stroke engine and easily identify the parts compatible with your engine.

Yamaha is a well-known brand in the outboard engine industry. It offers engines designed to meet the needs of recreational and professional users, with ranges suited to maintenance, repairs and use in marine environments.

Un doute?  > contact us

Select an exploded diagram for your Yamaha 225detol - 2003 2-stroke engine

Yamaha 225detol - 2003

With an output of 225 HP, the Yamaha 225detol - 2003 is based on a six-cylinder 90° V 2-stroke outboard configuration. It produces a maximum output of 165.5 kW at 5,500 r/min and has a displacement of 2,596 cm³, with a 90 × 68 mm bore and stroke.

The engine operates within a full-throttle range of 5,000 to 6,000 r/min. Its design includes microcomputer-controlled CDI ignition, electric starting, remote control and a power trim and tilt system.

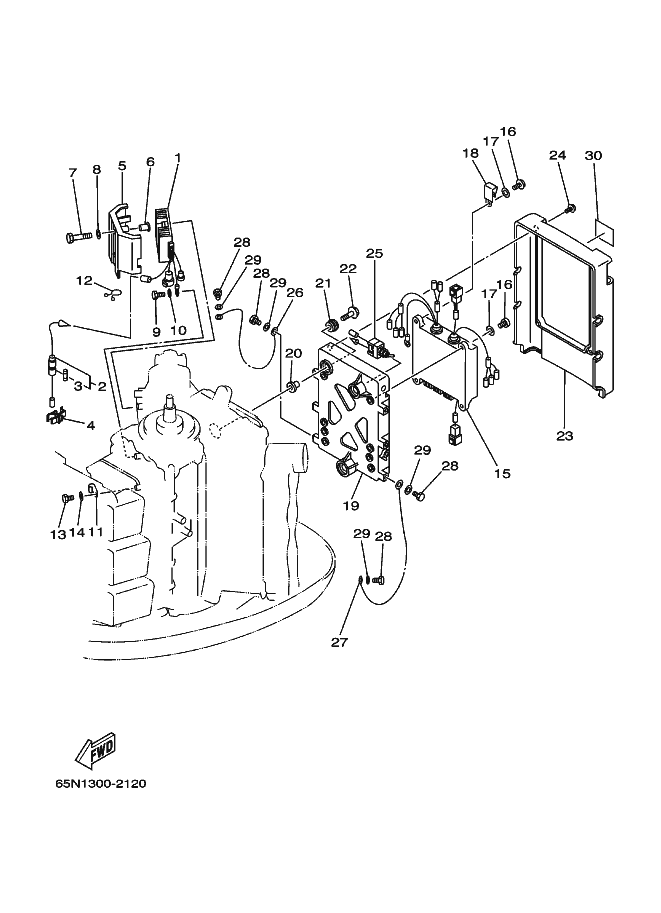

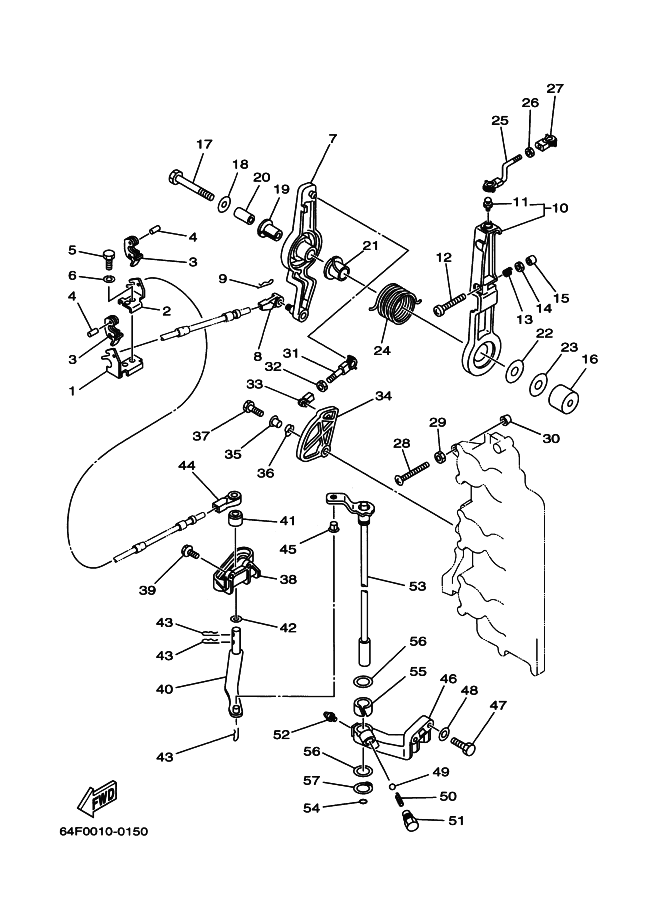

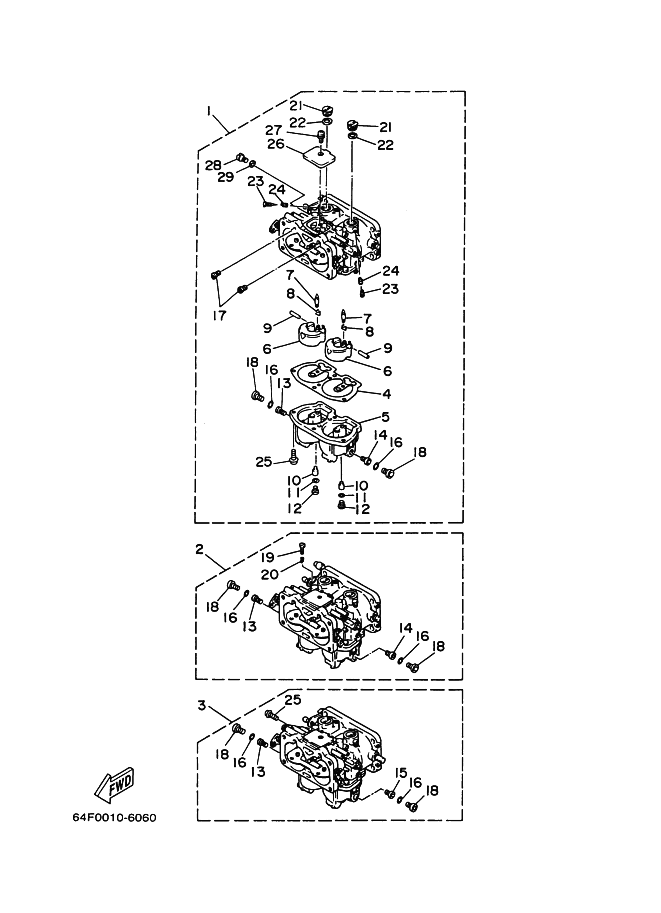

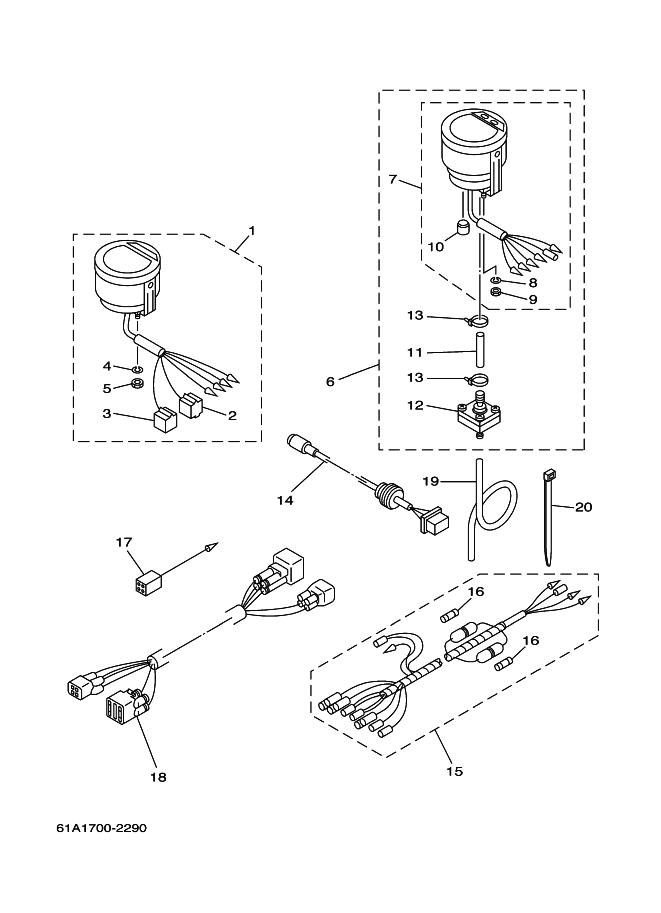

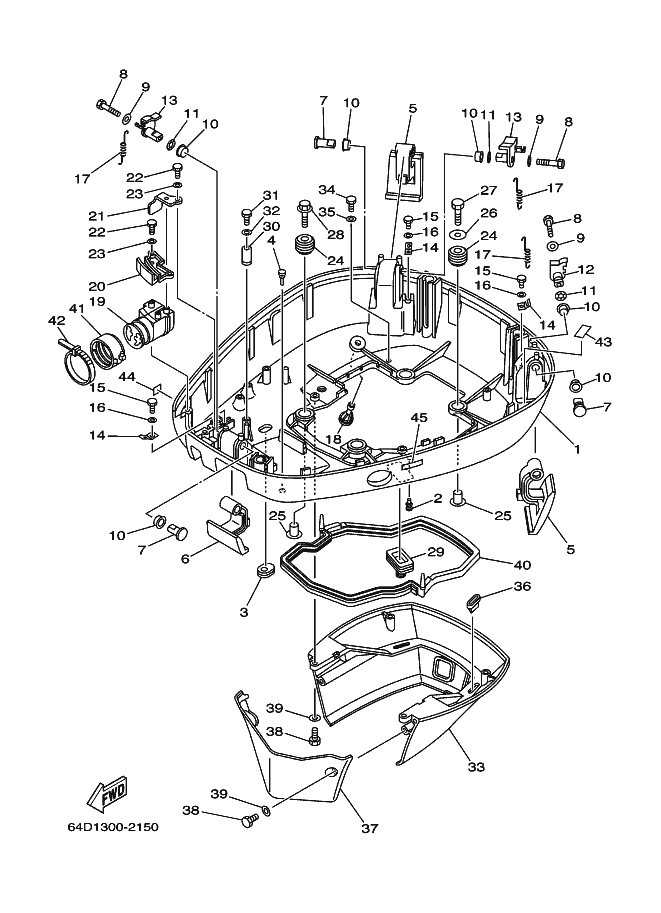

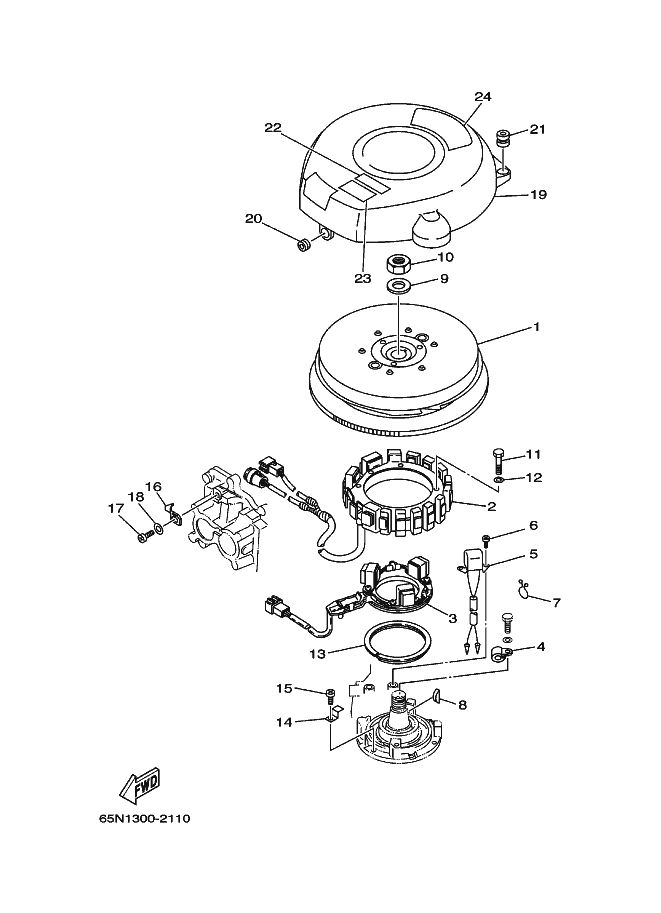

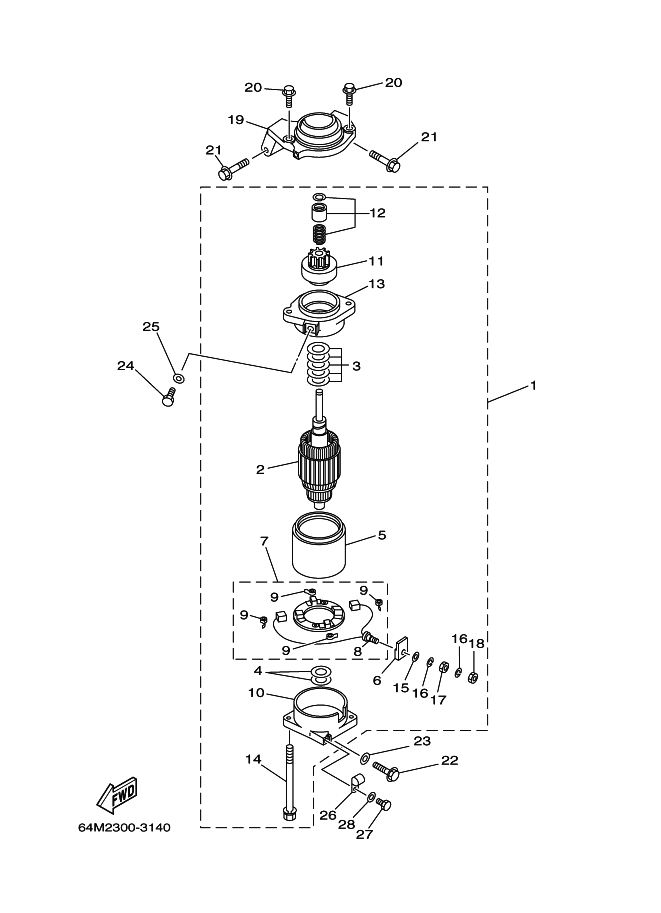

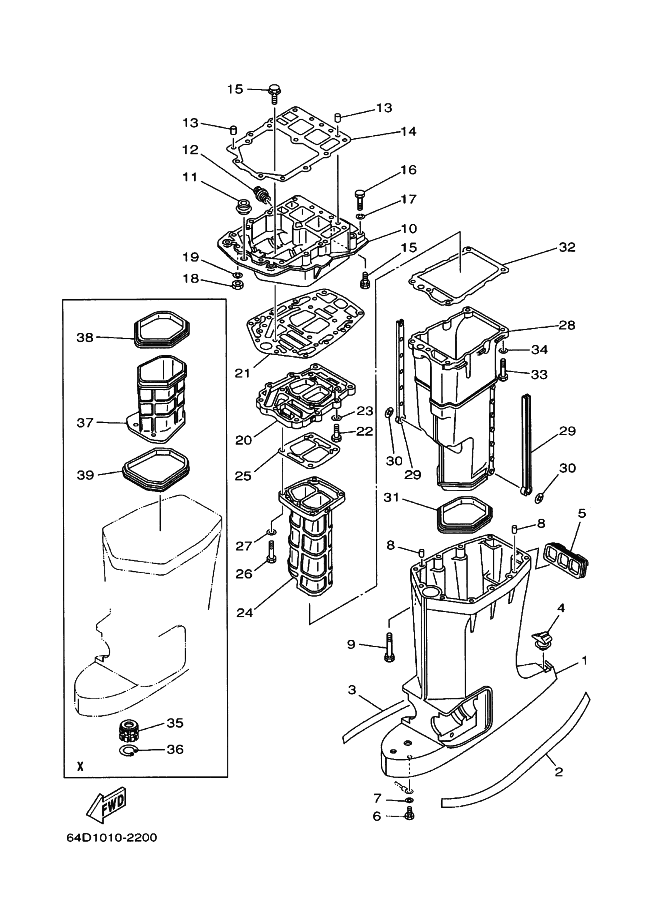

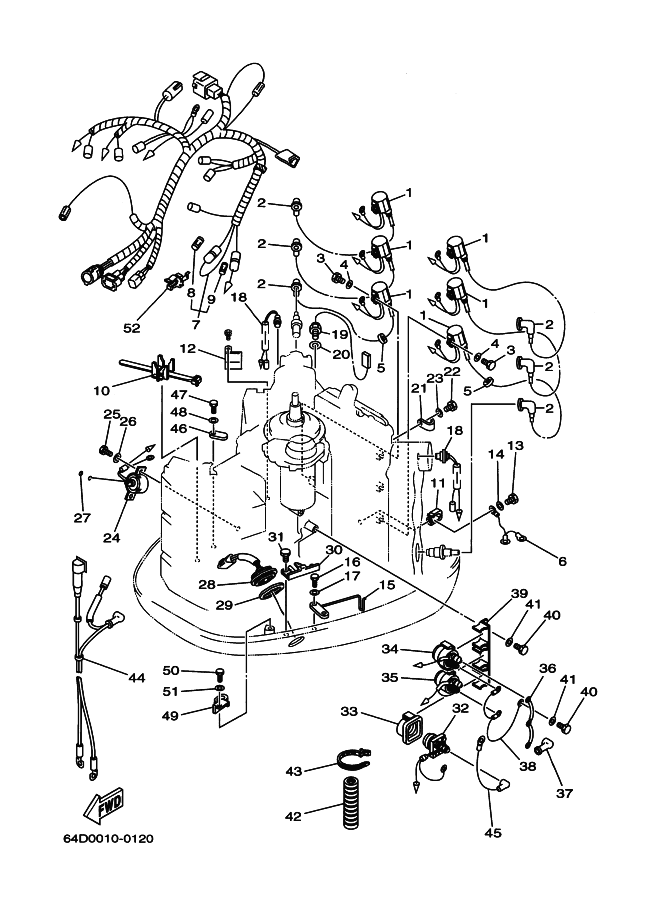

The exploded diagrams for the Yamaha 225detol - 2003 display the different mechanical assemblies separately and show the exact position of the parts. They make it easier to identify compatible references before maintenance or repair work involving the ignition, transmission, lubrication system or other engine components.

Yamaha 225detol - 2003 engine specifications
  • 225 HP output corresponding to a maximum output of 165.5 kW at 5,500 r/min
  • Six-cylinder 2-stroke design based on a 90° V architecture
  • 2,596 cm³ displacement combined with a 90 × 68 mm bore and stroke
  • Microcomputer-controlled CDI ignition operating with NGK BR8HS-10 spark plugs
  • 1.86 (26/14) reduction ratio with forward, neutral and reverse positions

View exploded diagrams Yamaha 225detol - 2003

View all compatible parts
