This page allows you to view the exploded diagrams for the Yamaha 200g - 2001 2-stroke engine and easily identify the compatible parts for your engine.

Yamaha is a well-known brand in the outboard engine industry. It offers engines designed to meet the needs of recreational boaters and professionals, with ranges suited to maintenance, repair and use in marine environments.

Un doute?  > contact us

Select an exploded diagram for your Yamaha 200g - 2001 2-stroke engine

Yamaha 200g - 2001 200 HP 2-stroke engine

Yamaha 200g - 2001

The Yamaha 200g - 2001 delivers 200 HP at 5,000 rpm from a 90-degree V6 2-stroke outboard engine. Its 2,596 cm³ block has a bore of 90.0 mm and a stroke of 68.0 mm, with a maximum propeller-shaft output of 147.1 kW.

This engine uses a carburetor fuel system and lubrication based on oil being pre-mixed with the fuel. It is equipped with electric starting, remote controls and Power Trim & Tilt for adjusting trim and tilt. Depending on the configuration, the transom height is 516 mm for the L version or 642 mm for the X version.

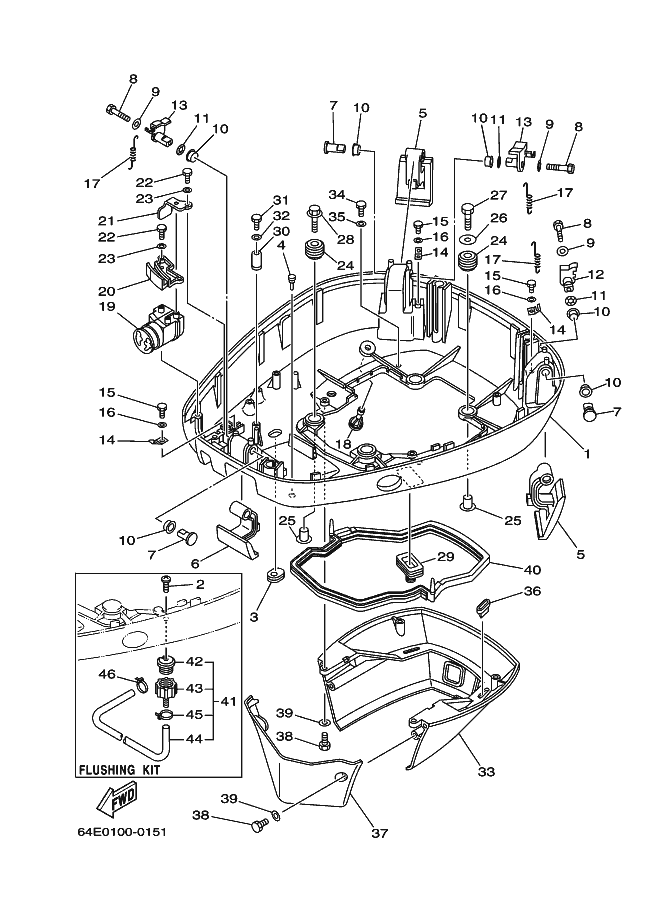

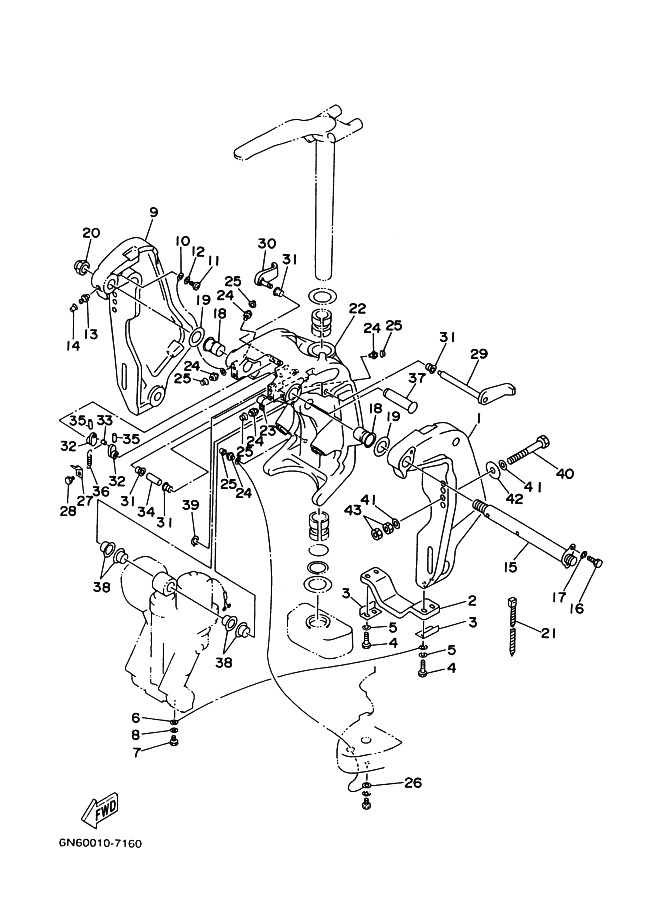

The exploded diagrams make it easier to examine the arrangement of the Yamaha 200g - 2001 components. They help identify the part involved in a repair, confirm its reference number and find the correct compatible parts required for engine servicing or maintenance.

Yamaha 200g - 2001 engine features
  • 90-degree V6 engine providing a total displacement of 2,596 cm³
  • 200 HP output corresponding to 147.1 kW at 5,000 rpm
  • Carburetor fuel system supplying the 2-stroke engine
  • Electric starting and remote controls for operation from the helm
  • L and X transom heights specified at 516 mm and 642 mm respectively

View exploded diagrams Yamaha 200g - 2001

View all compatible parts

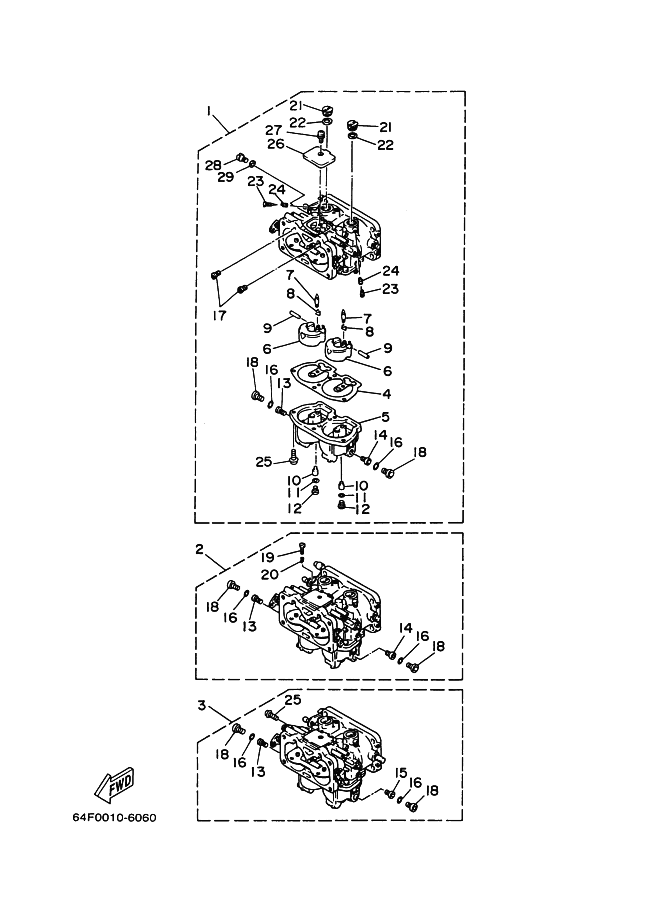

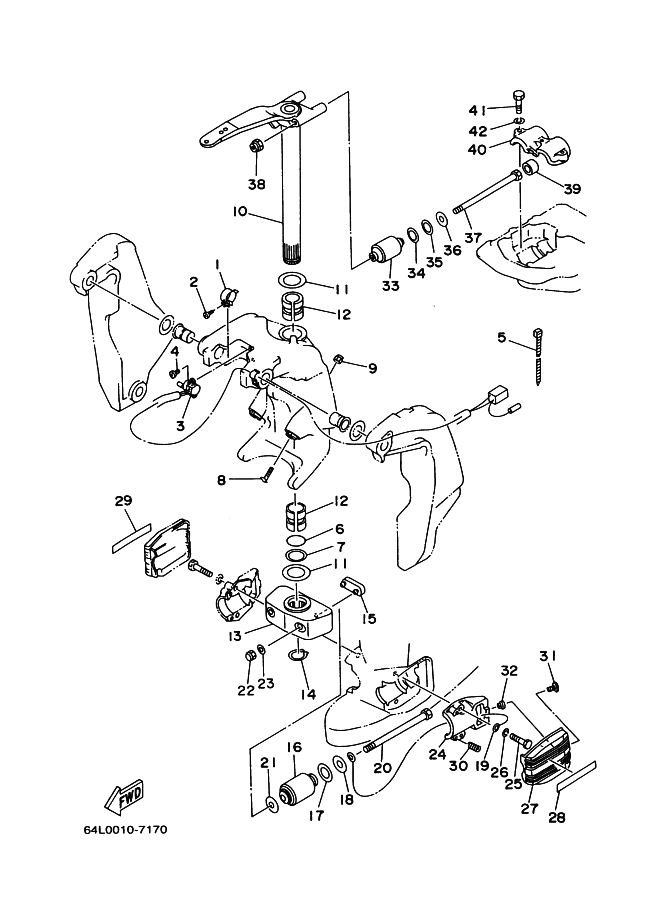

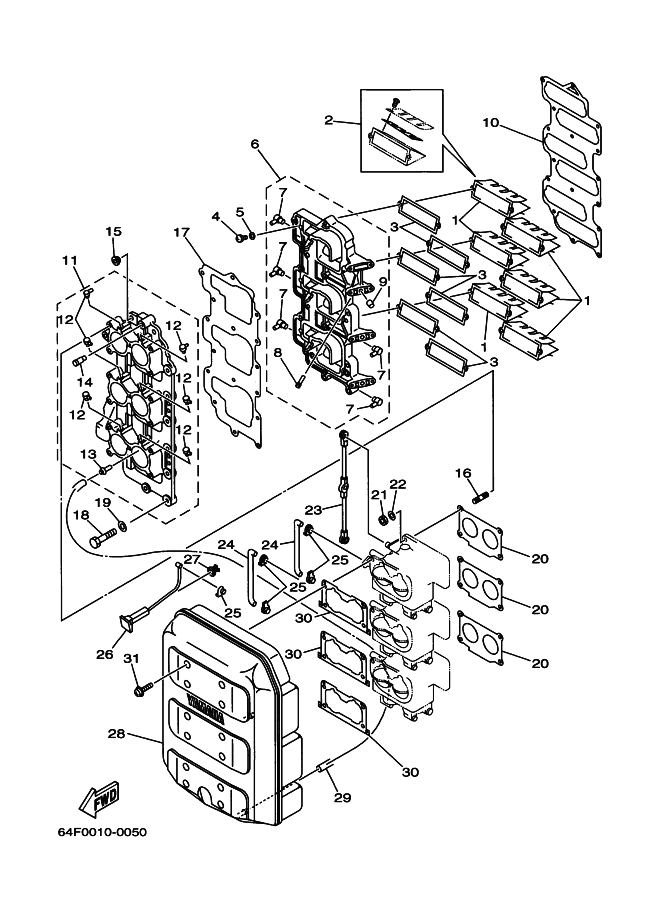

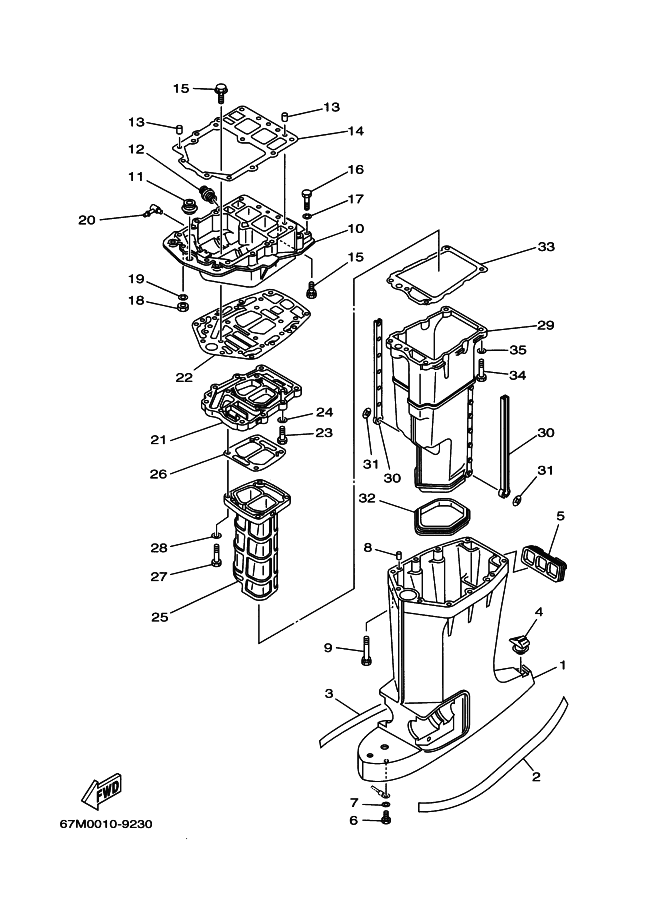

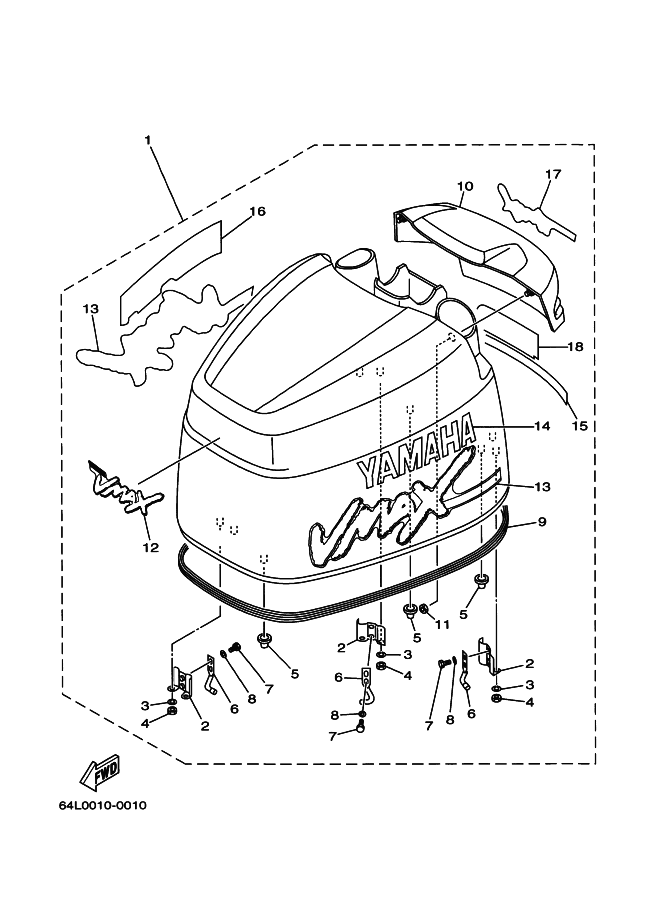

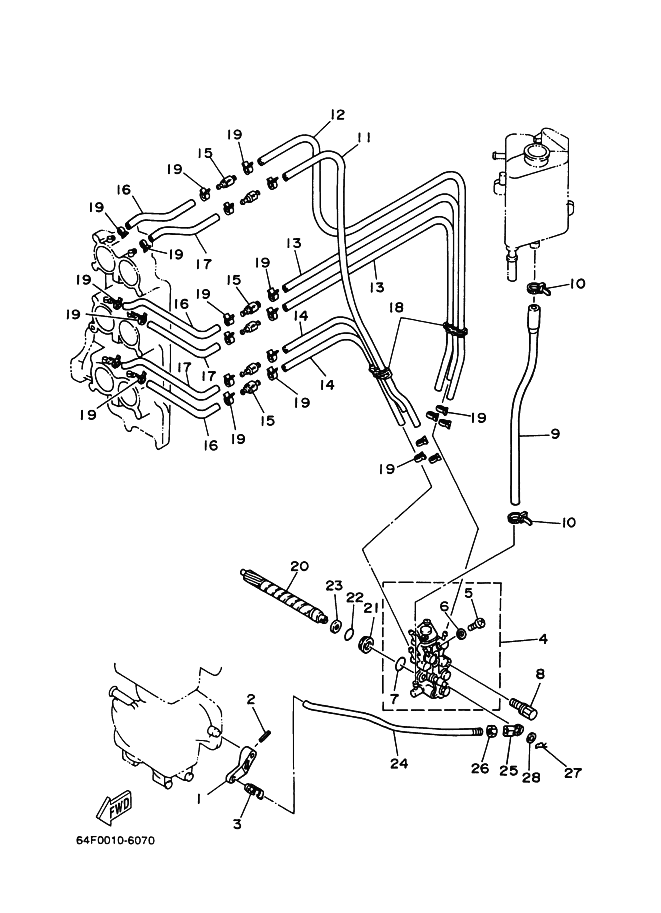

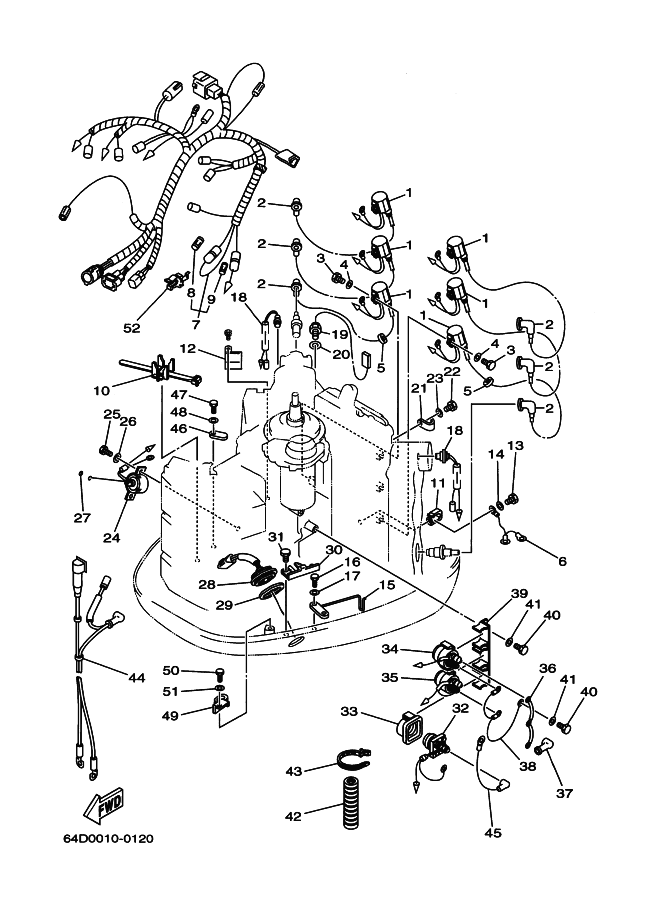

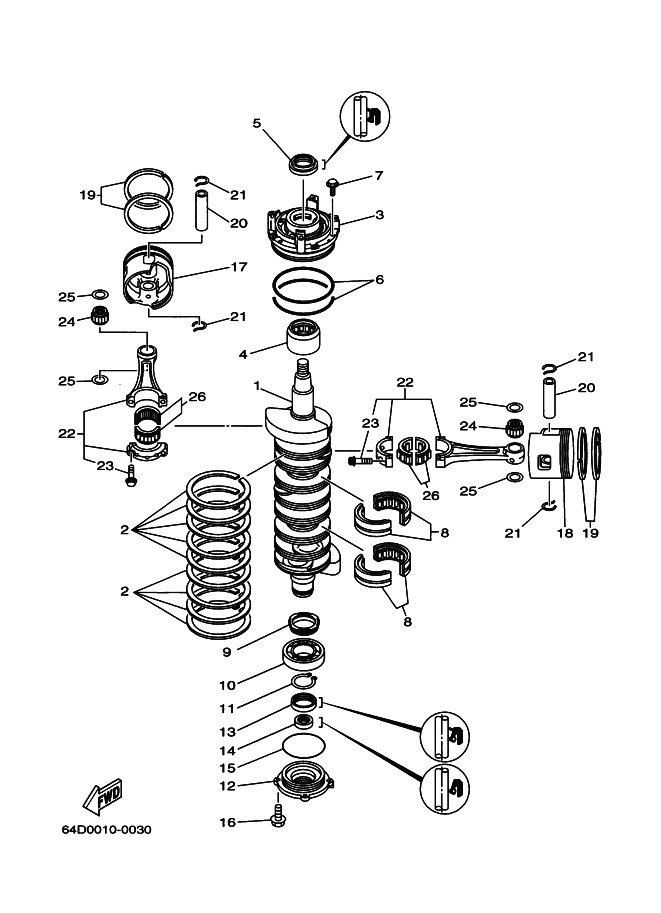

Exploded views
