This page allows you to view the exploded diagrams for the Yamaha 115c - 2000 2-stroke engine and easily identify the compatible parts for your engine.

Yamaha is a recognised brand in the outboard engine industry. It offers engines designed to meet the needs of recreational boaters and professionals, with ranges suited to maintenance, repairs and use in marine environments.

Un doute?  > contact us

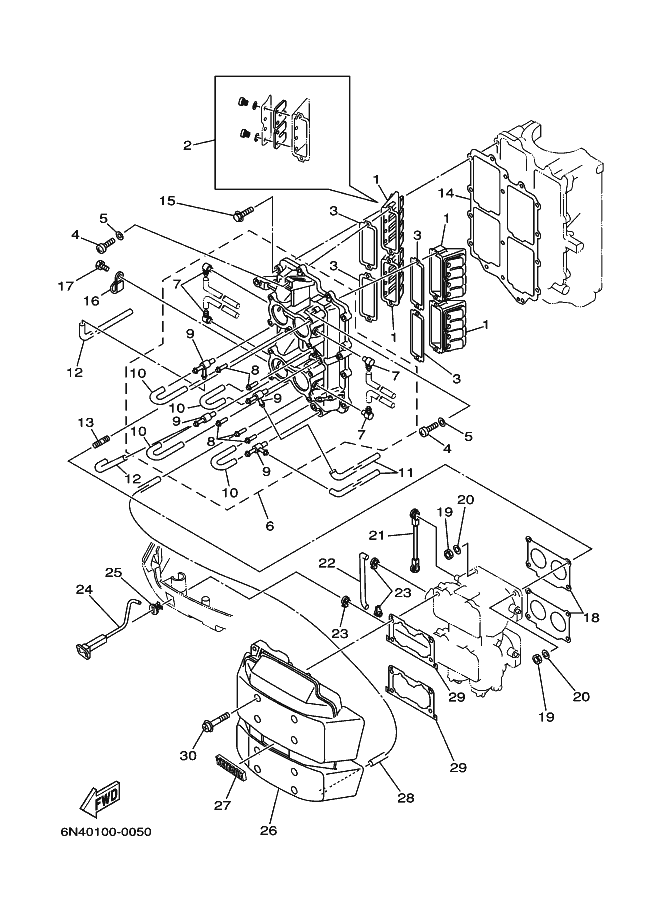

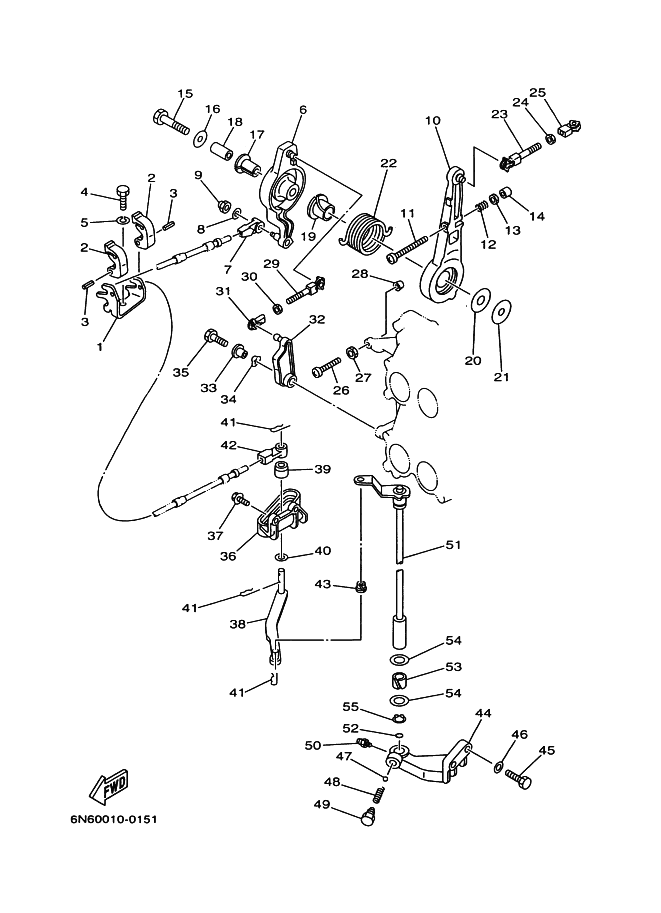

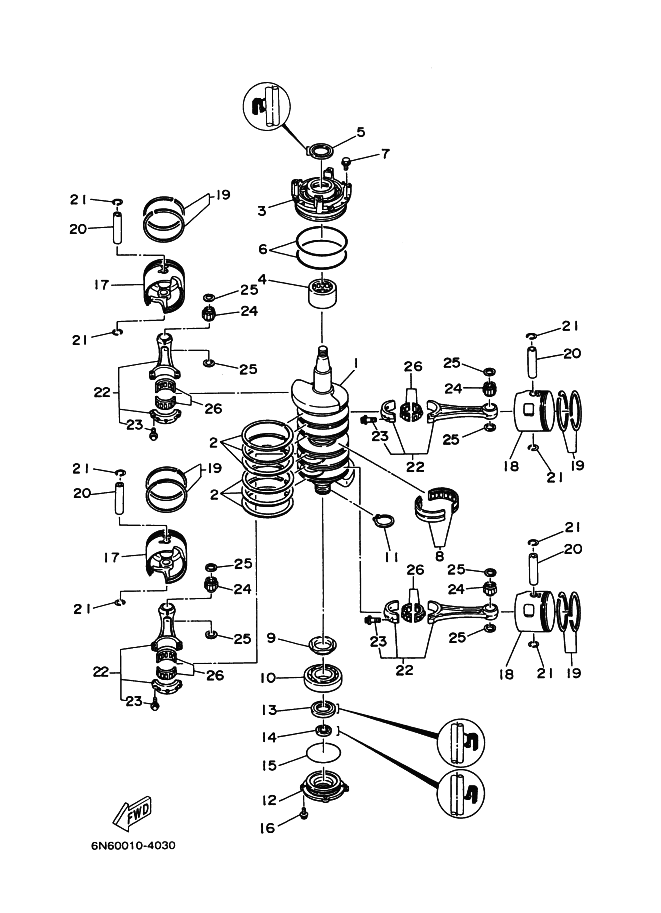

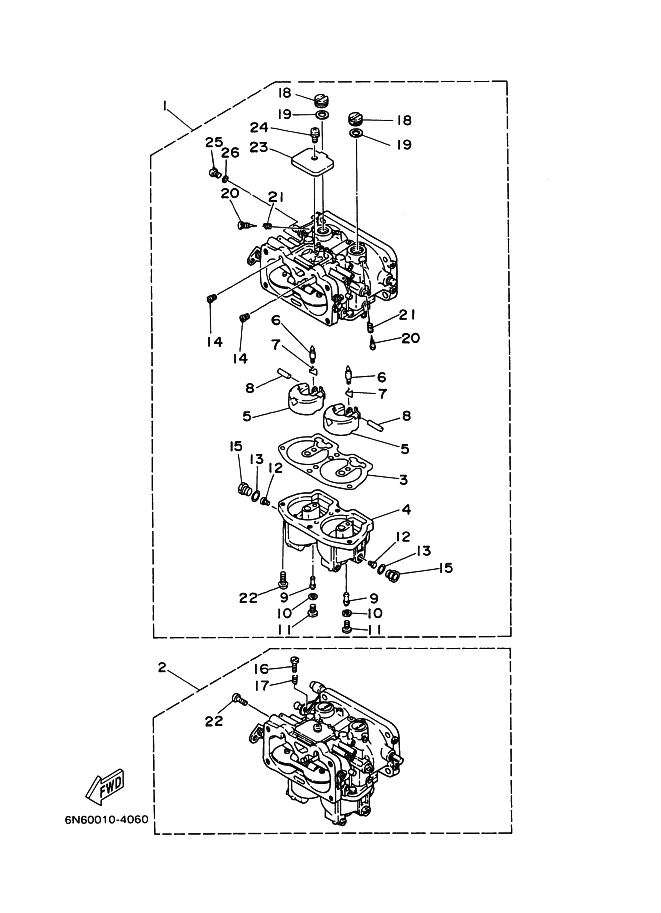

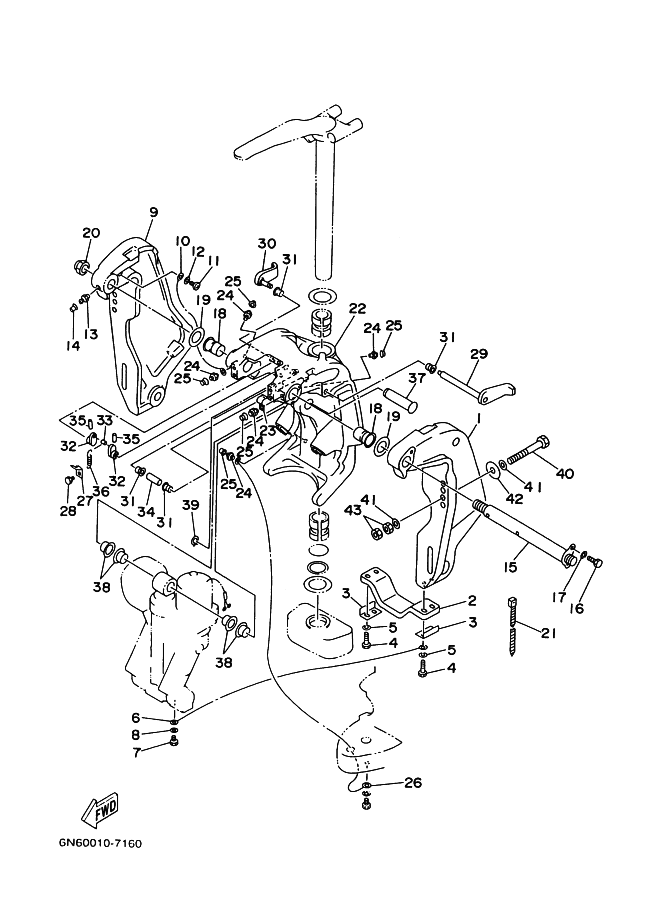

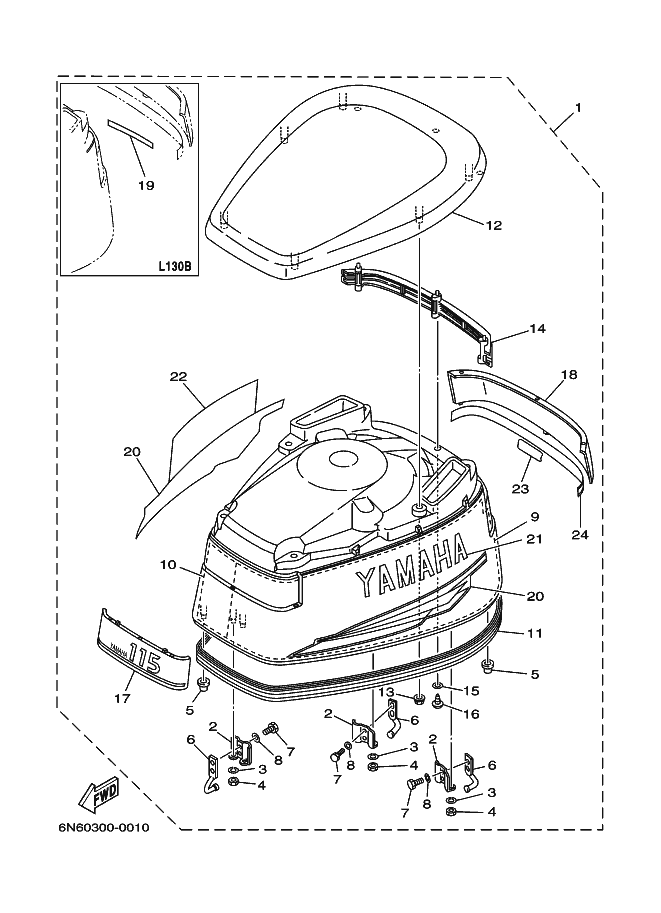

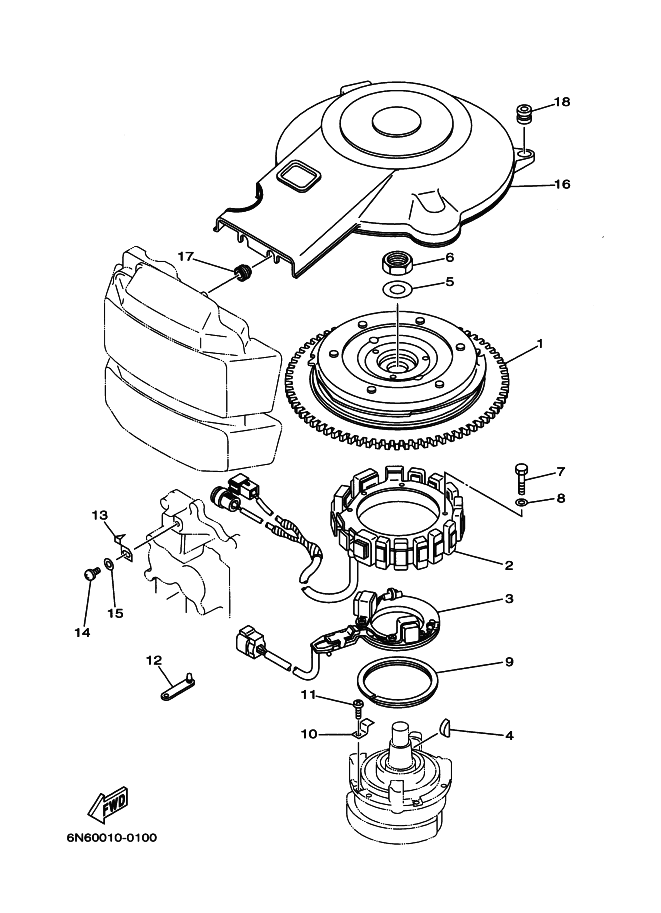

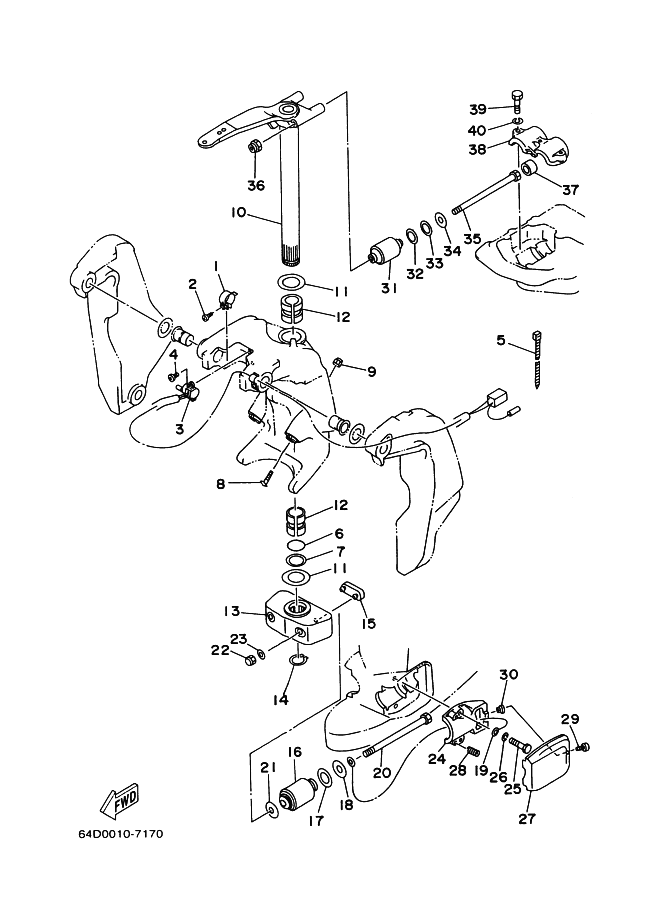

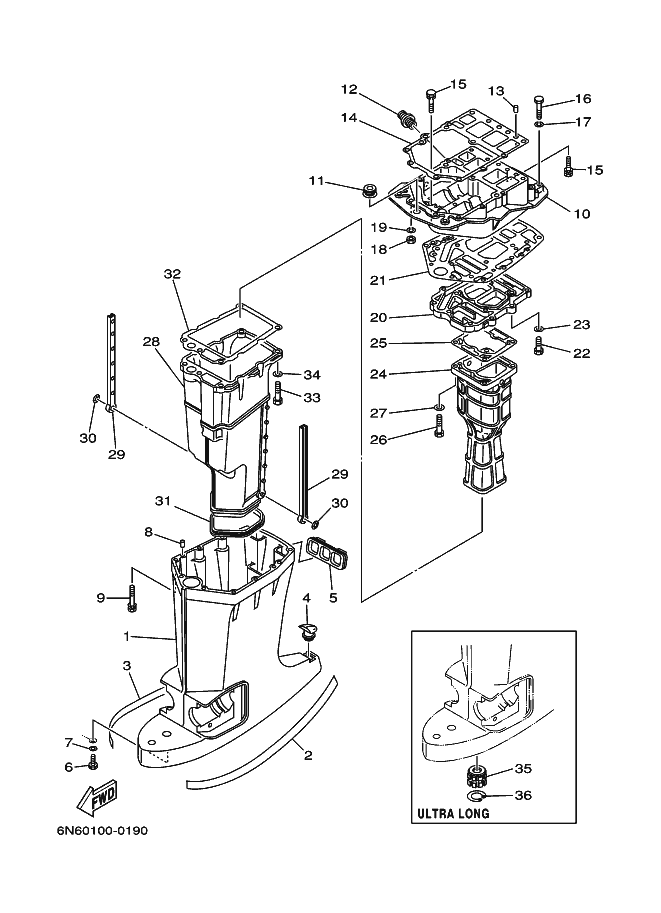

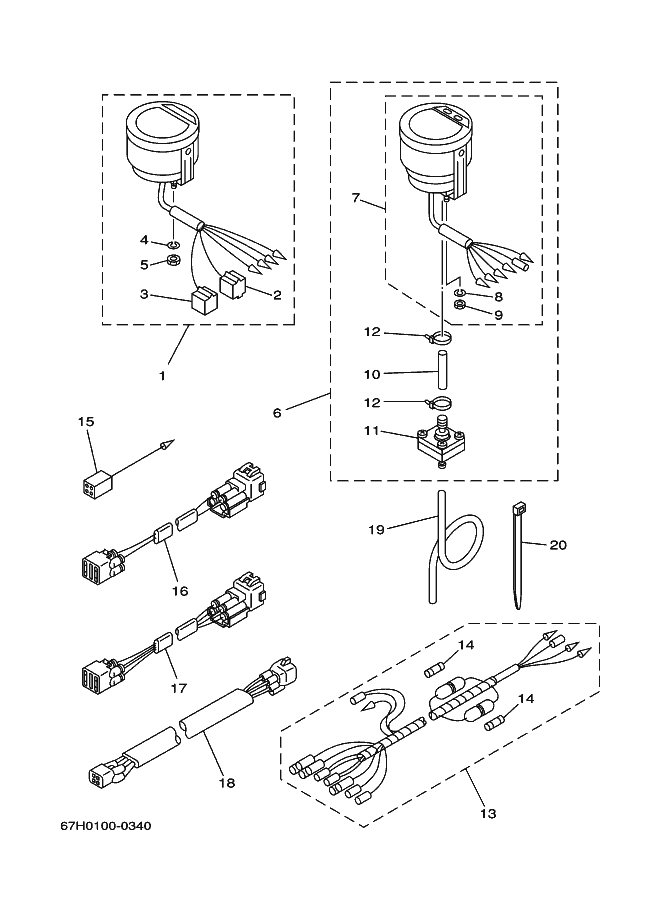

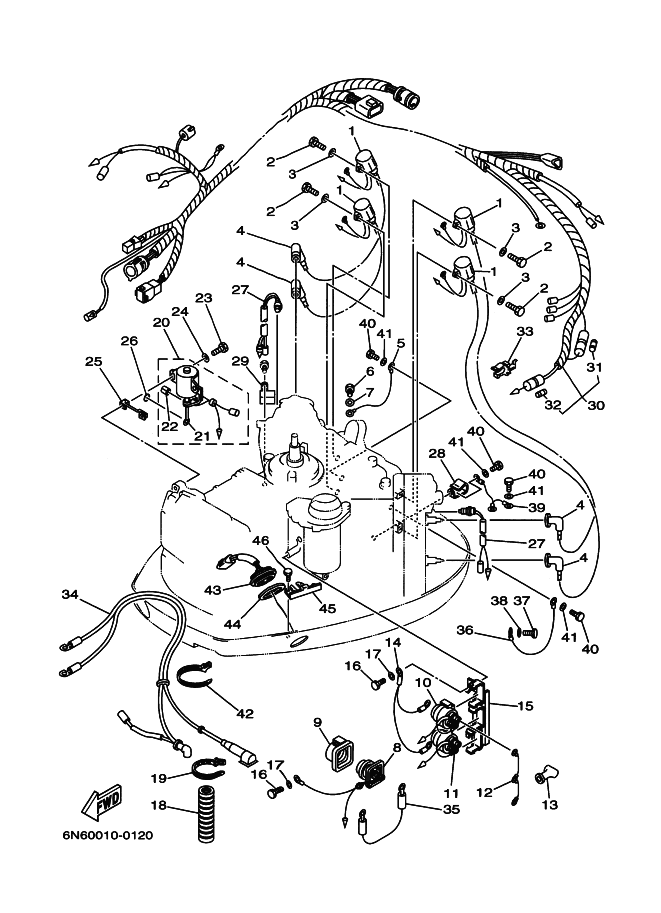

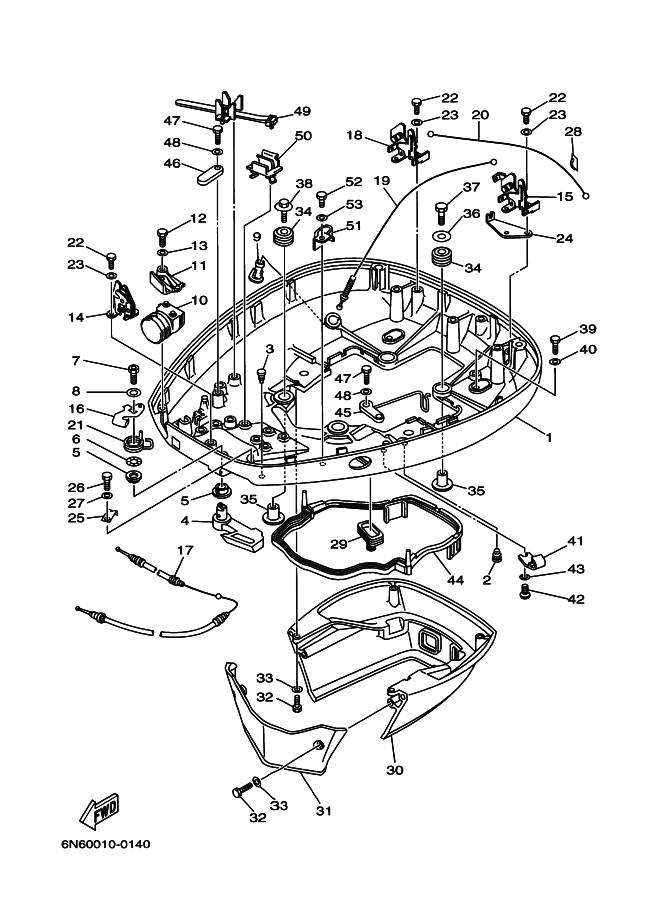

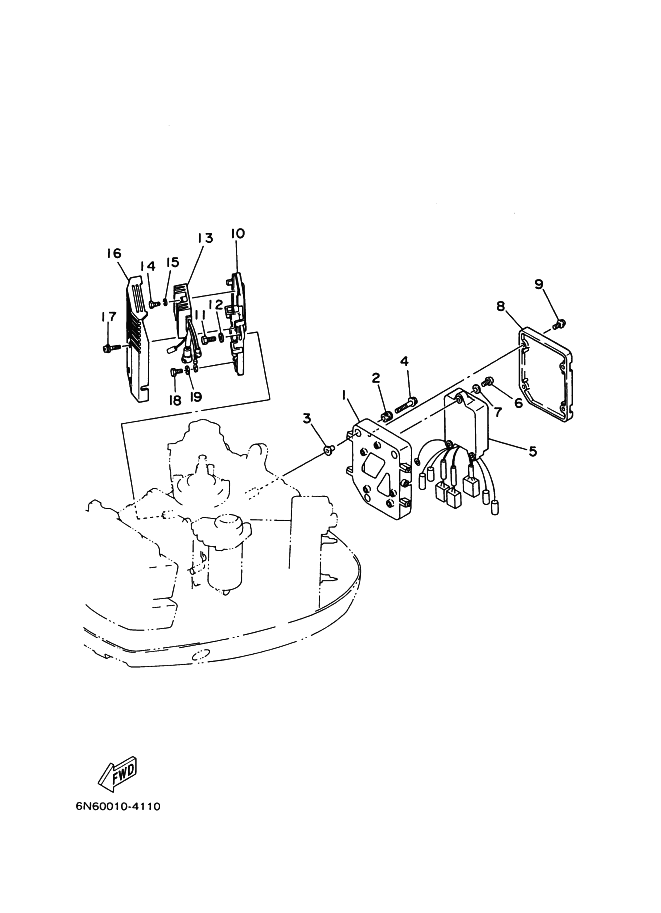

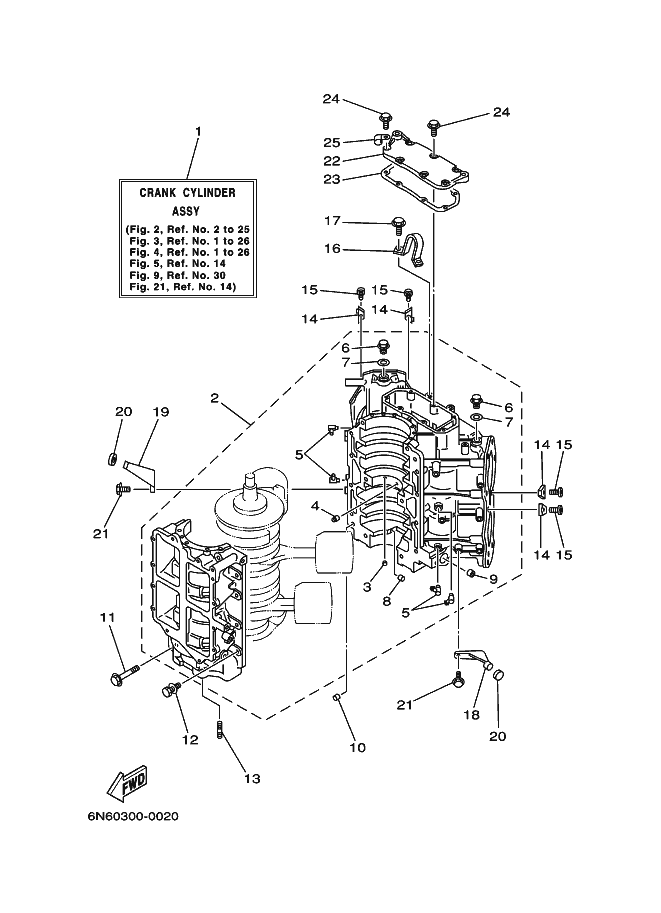

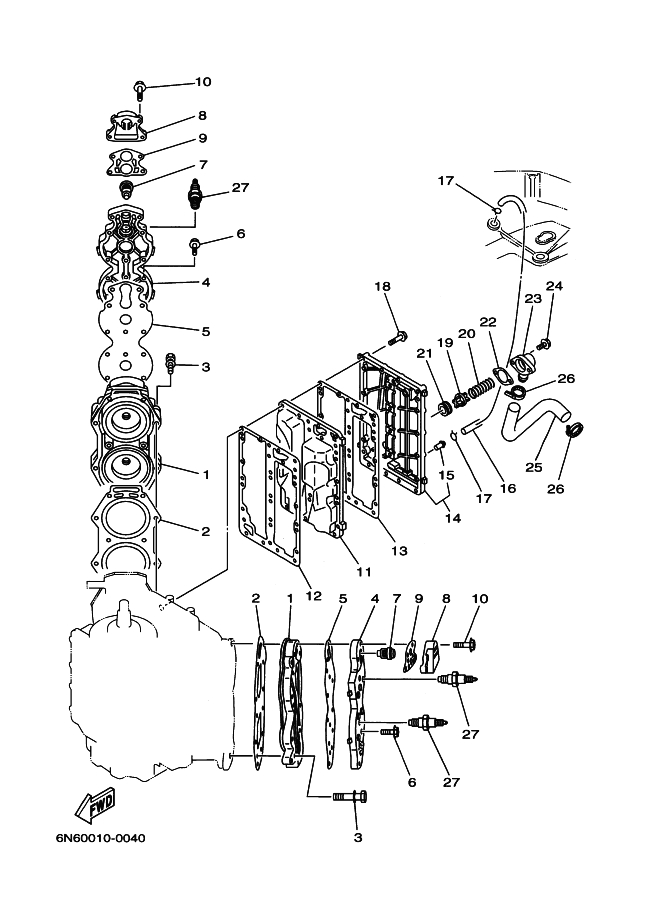

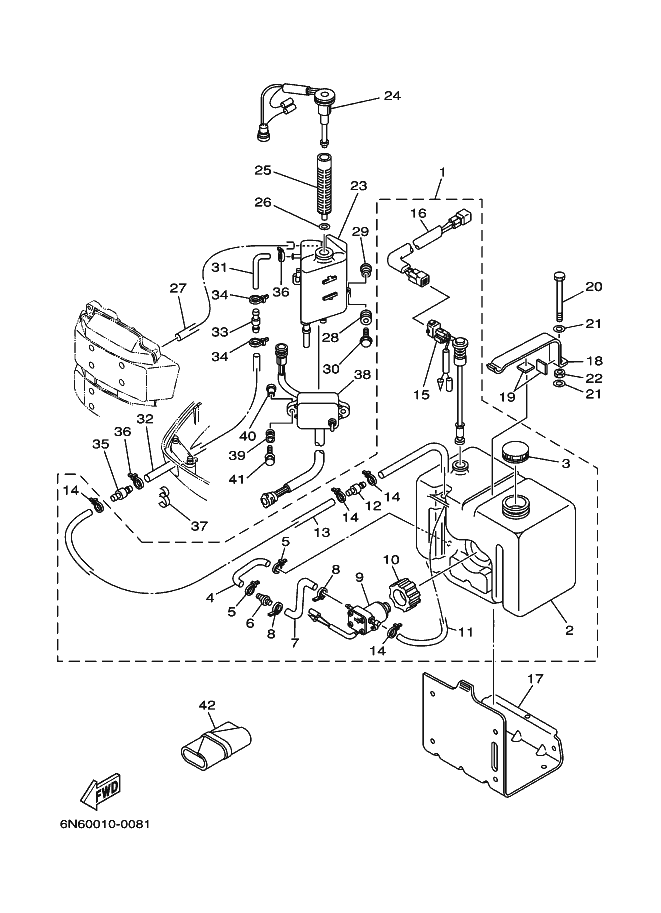

Select an exploded diagram for your Yamaha 115c - 2000 2-stroke engine

Yamaha 115c - 2000

The Yamaha 115c - 2000 produces 115 HP through a 2-stroke outboard engine with four cylinders arranged in a 90° V configuration. Its 1,730 cm³ displacement is combined with a 90 mm bore, a 68 mm stroke and a full-throttle operating range of 4,500 to 5,500 rpm.

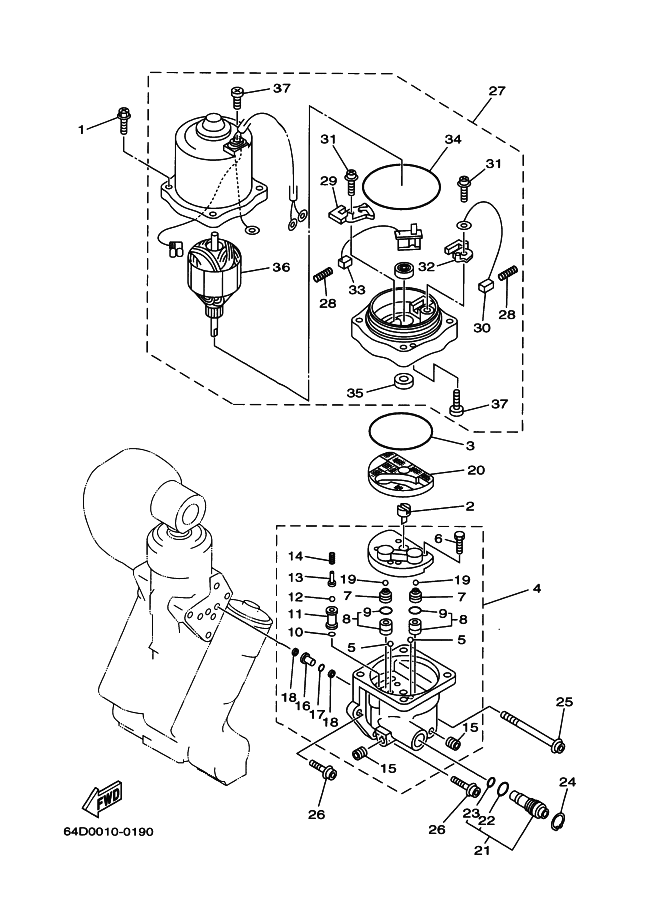

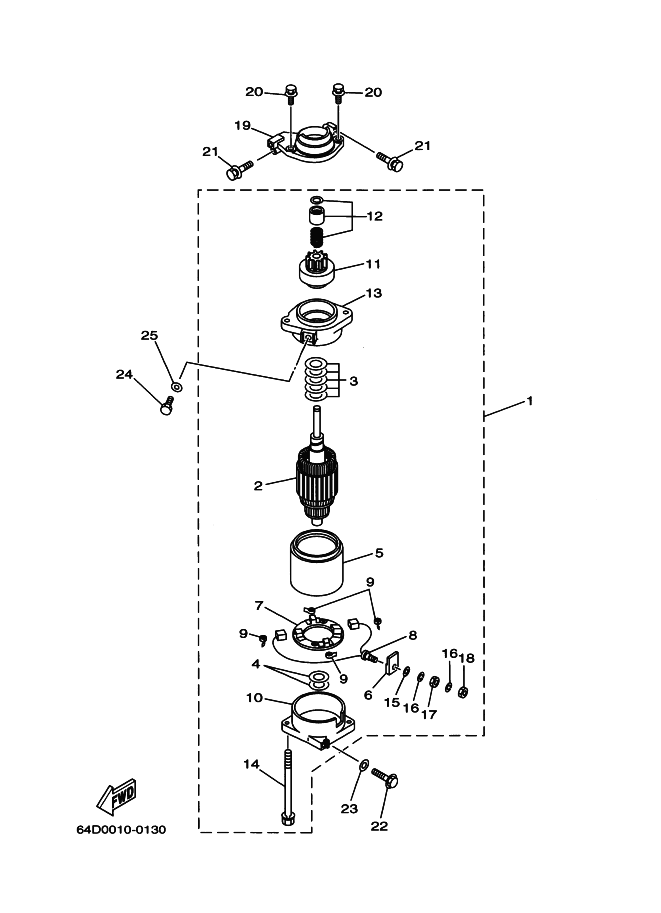

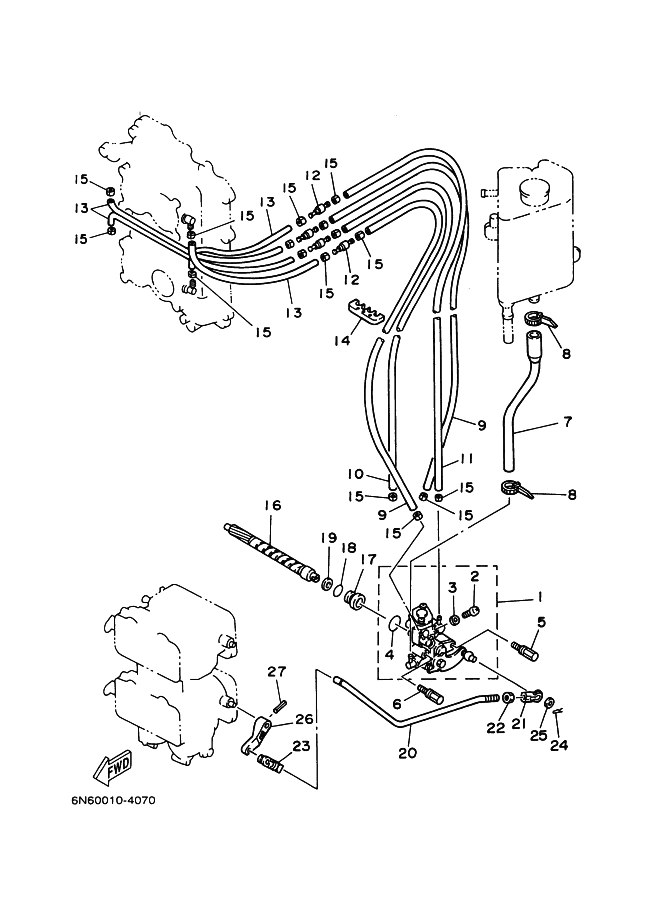

This model combines electric starting, remote control and a CDI ignition system. Yamaha Autolube automatically distributes oil to the engine, while the power trim and tilt system allows the outboard position to be adjusted according to the boat’s running angle.

When preparing maintenance or repair work, the exploded diagrams show how the parts and mechanical assemblies are organised. They simplify component location, part-number verification and the selection of the correct compatible parts for the engine.

Yamaha 115c - 2000 engine specifications
  • 115 HP output suited to a boat rated for this engine capacity
  • Four-cylinder 2-stroke engine built in a 90° V configuration
  • 1,730 cm³ displacement with internal dimensions of 90 × 68 mm
  • CDI ignition system combined with electric starting and remote control
  • Yamaha Autolube system providing automatic oil delivery to the engine

View exploded diagrams Yamaha 115c - 2000

View all compatible parts
