Parts and exploded diagrams for Volvo penta td100crc engine
This page allows you to view the exploded diagrams for the Volvo penta td100crc Inboard engine, belonging to the 6-cylinder category, and easily identify the compatible parts for your engine.
Volvo Penta is a brand specializing in marine propulsion solutions. These exploded diagrams help identify the components and references required for the maintenance and repair of Inboard engines.

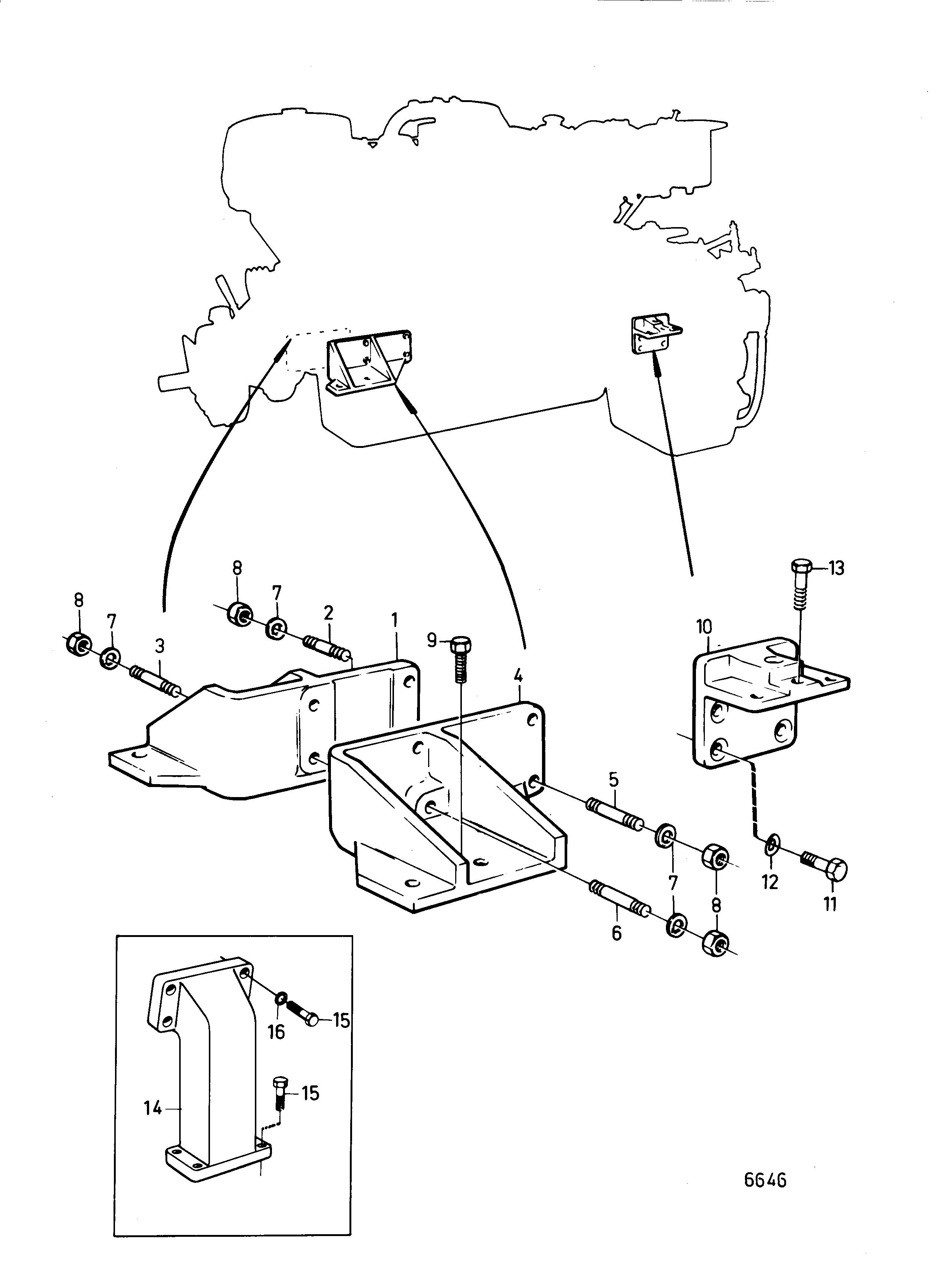

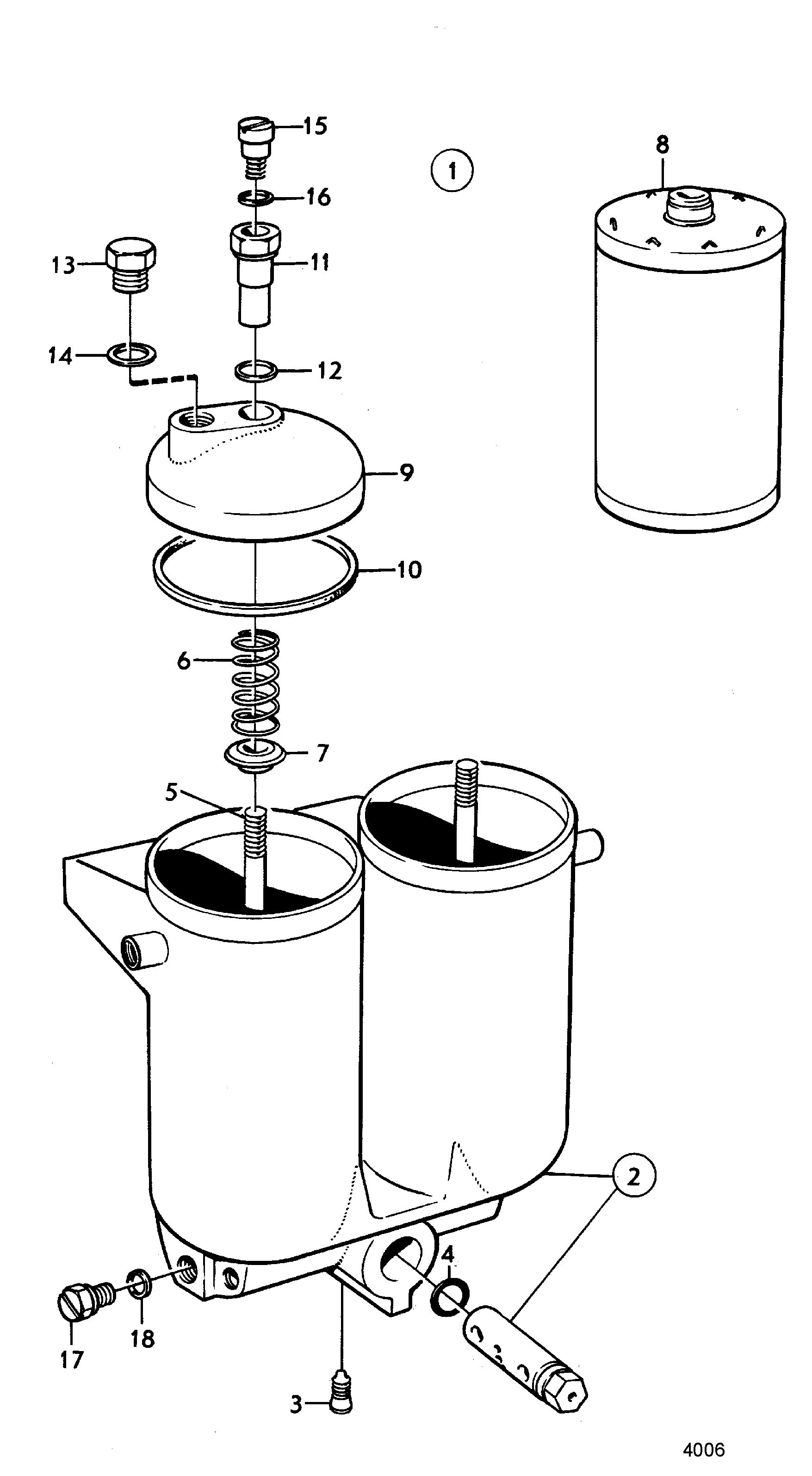

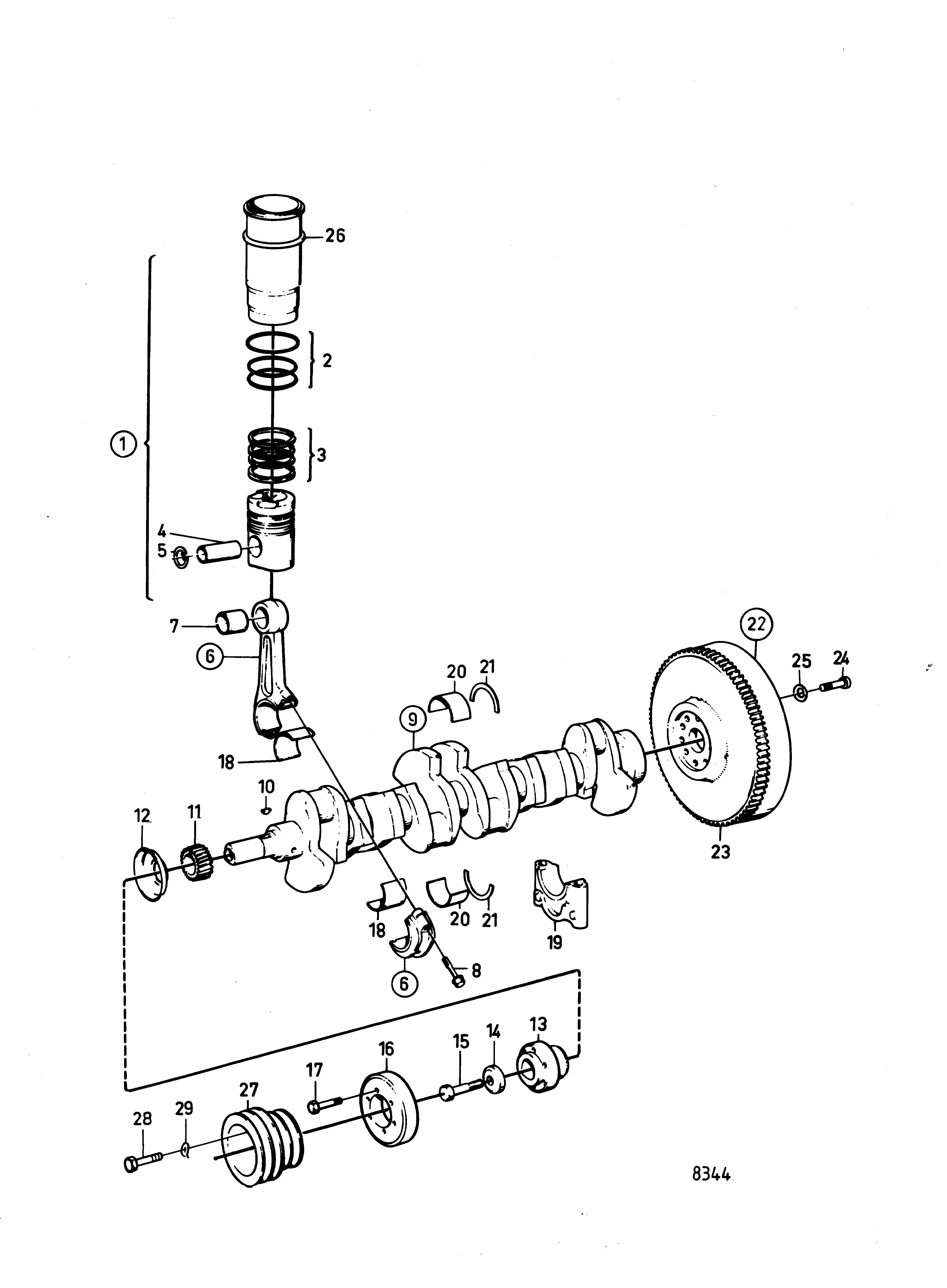

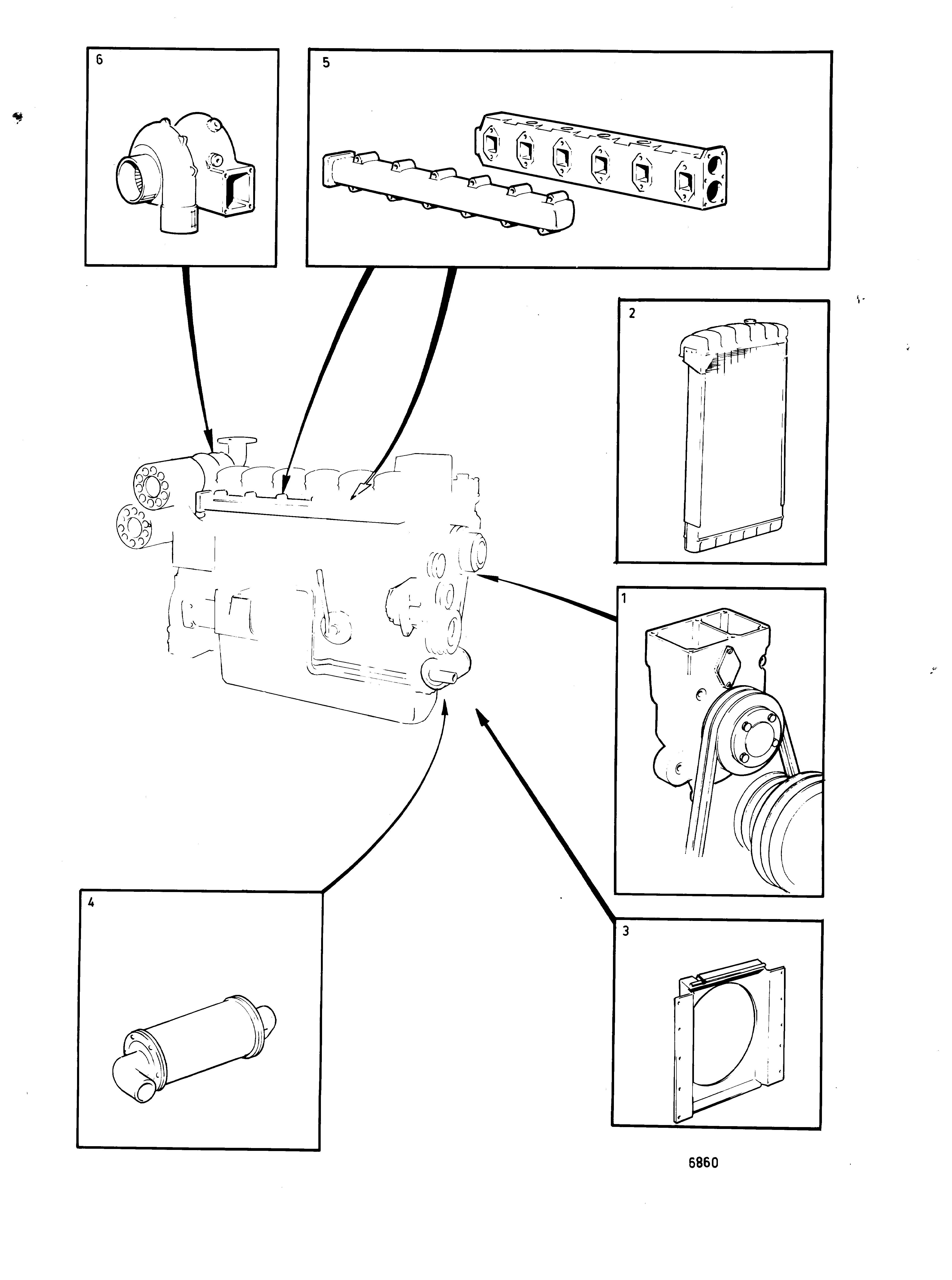

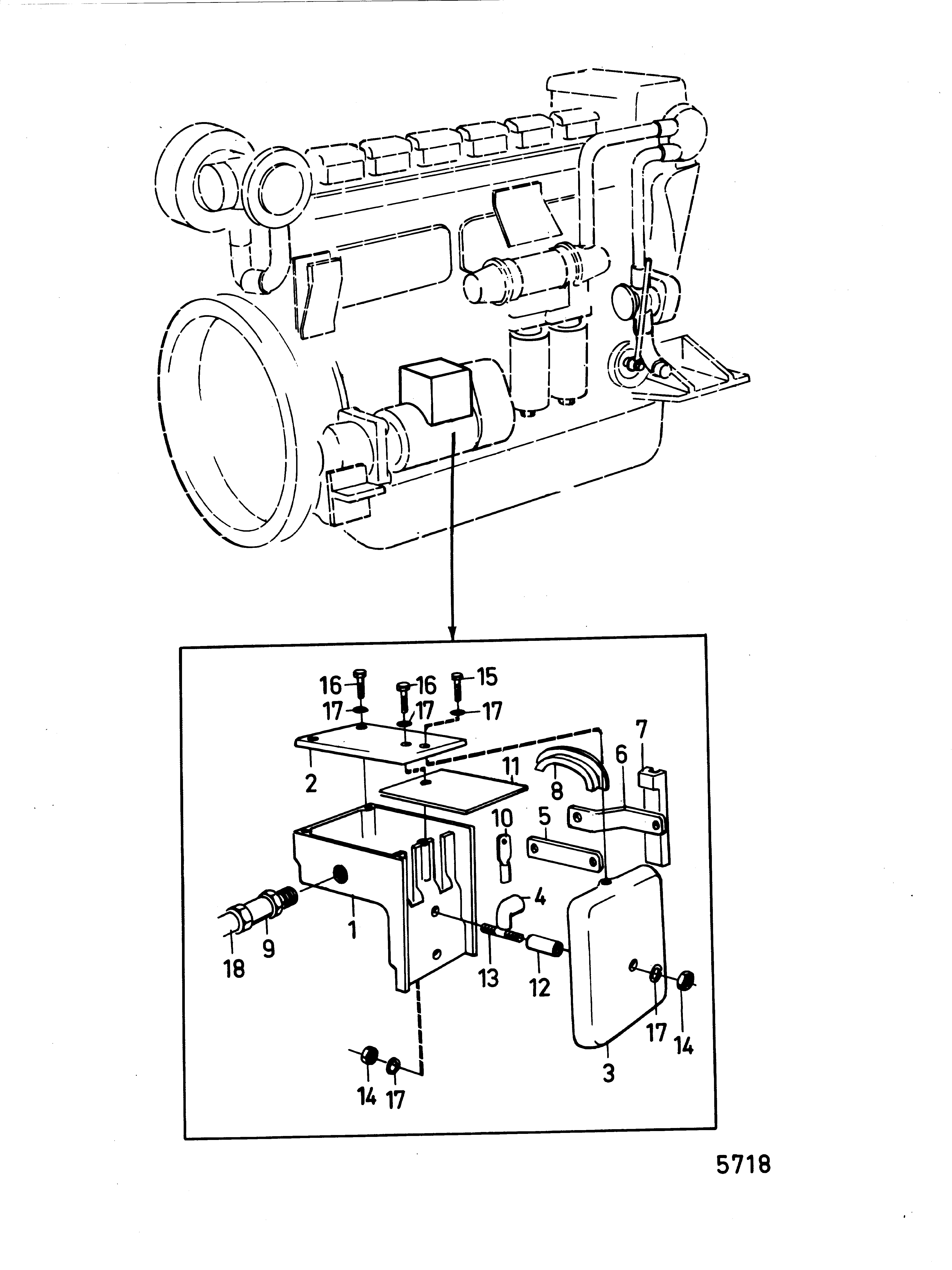

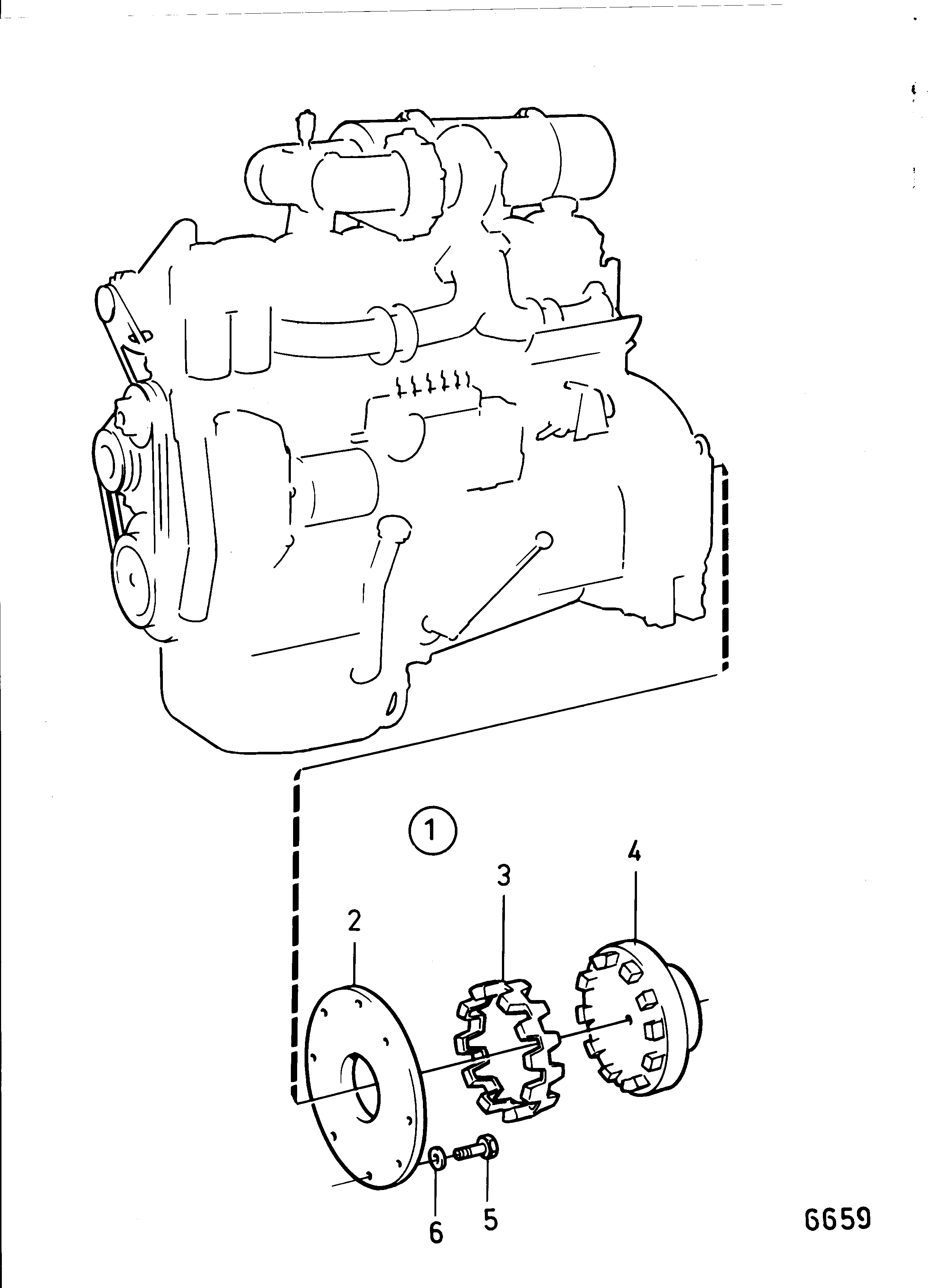

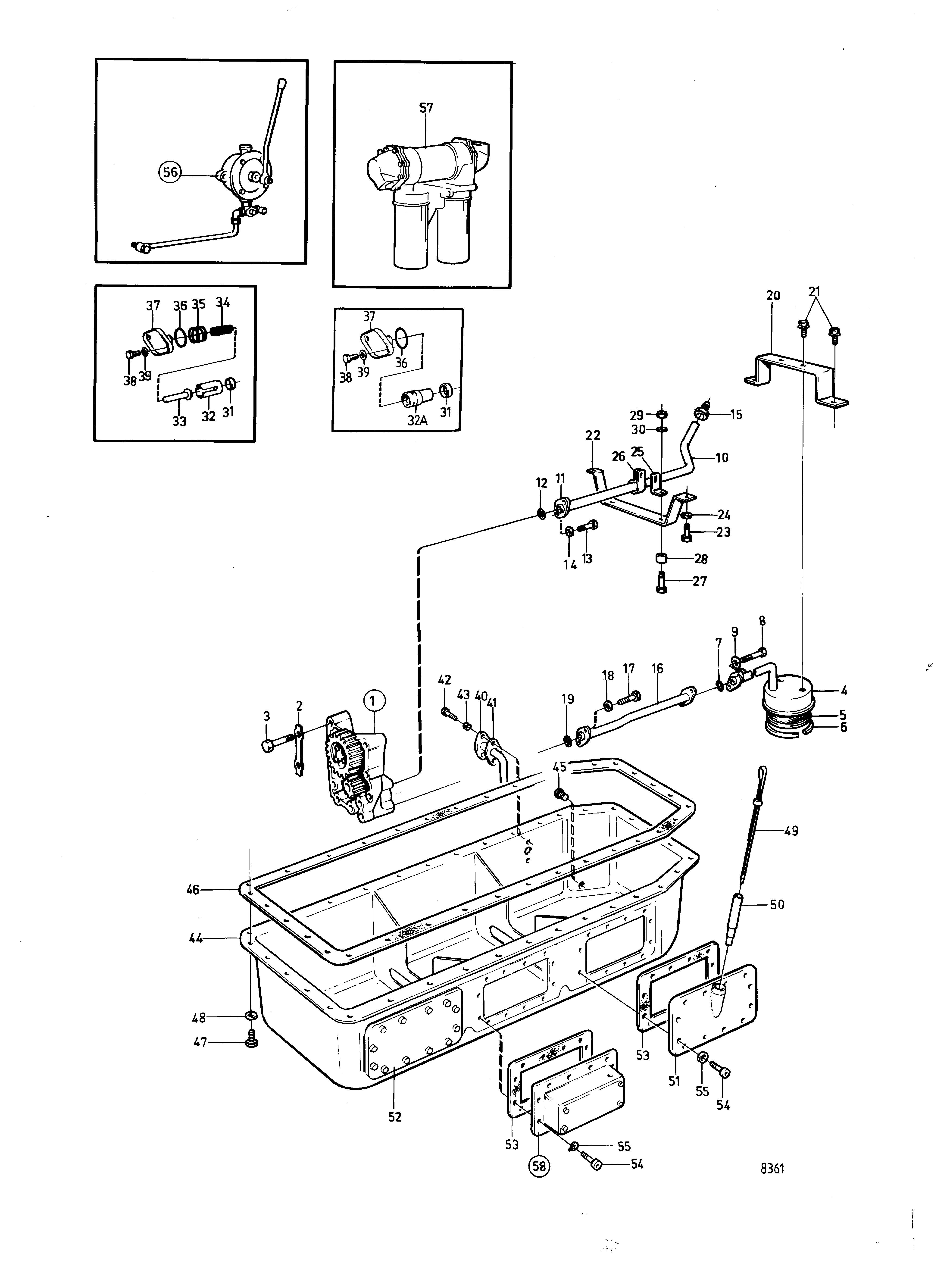

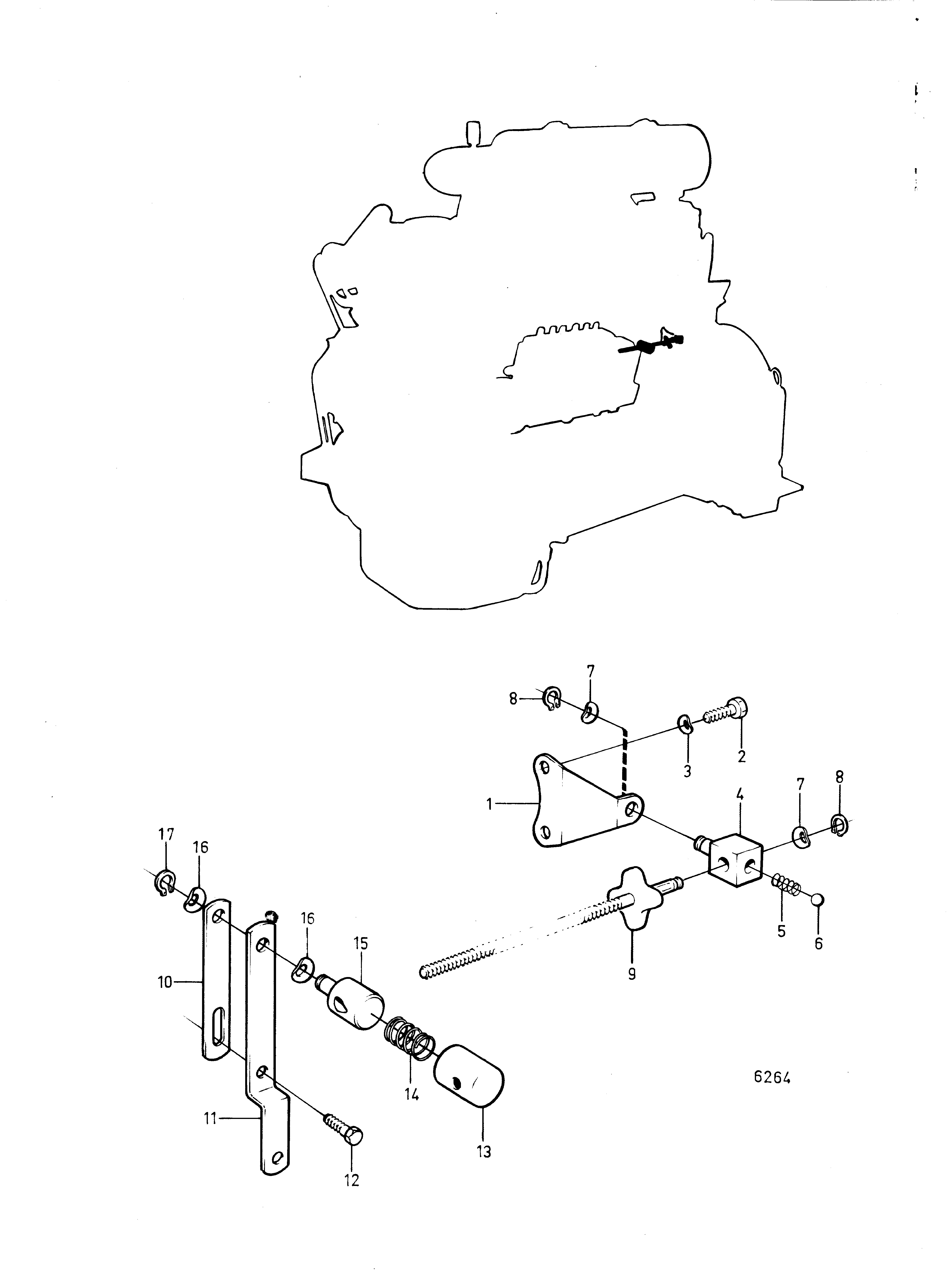

Select an exploded diagram for your Volvo penta td100crc inboard engine
Volvo penta td100crc
The Volvo penta td100crc is an Inboard engine in the 6-cylinder category. The supplied technical information specifies a power type of 240 at a rated speed type of 1800 rpm, with an SAE-1 flywheel housing and a 14 inch flywheel.
Confirmed equipment includes a 1 x 12v starter and a mechanical governor. Its exhaust system is specified as dry, as is the turbo, while the cooling system is keel cooled, helping distinguish the main assemblies when carrying out servicing operations.
Exploded diagrams for the Volvo penta td100crc make it possible to locate components and match each assembly with the relevant references. This simplifies the selection of compatible parts and the identification of items required before maintenance or repair work.
Volvo penta td100crc engine features- Rated speed type: 1800 rpm according to the supplied technical data
- Flywheel housing: SAE-1 with a 14 inch flywheel

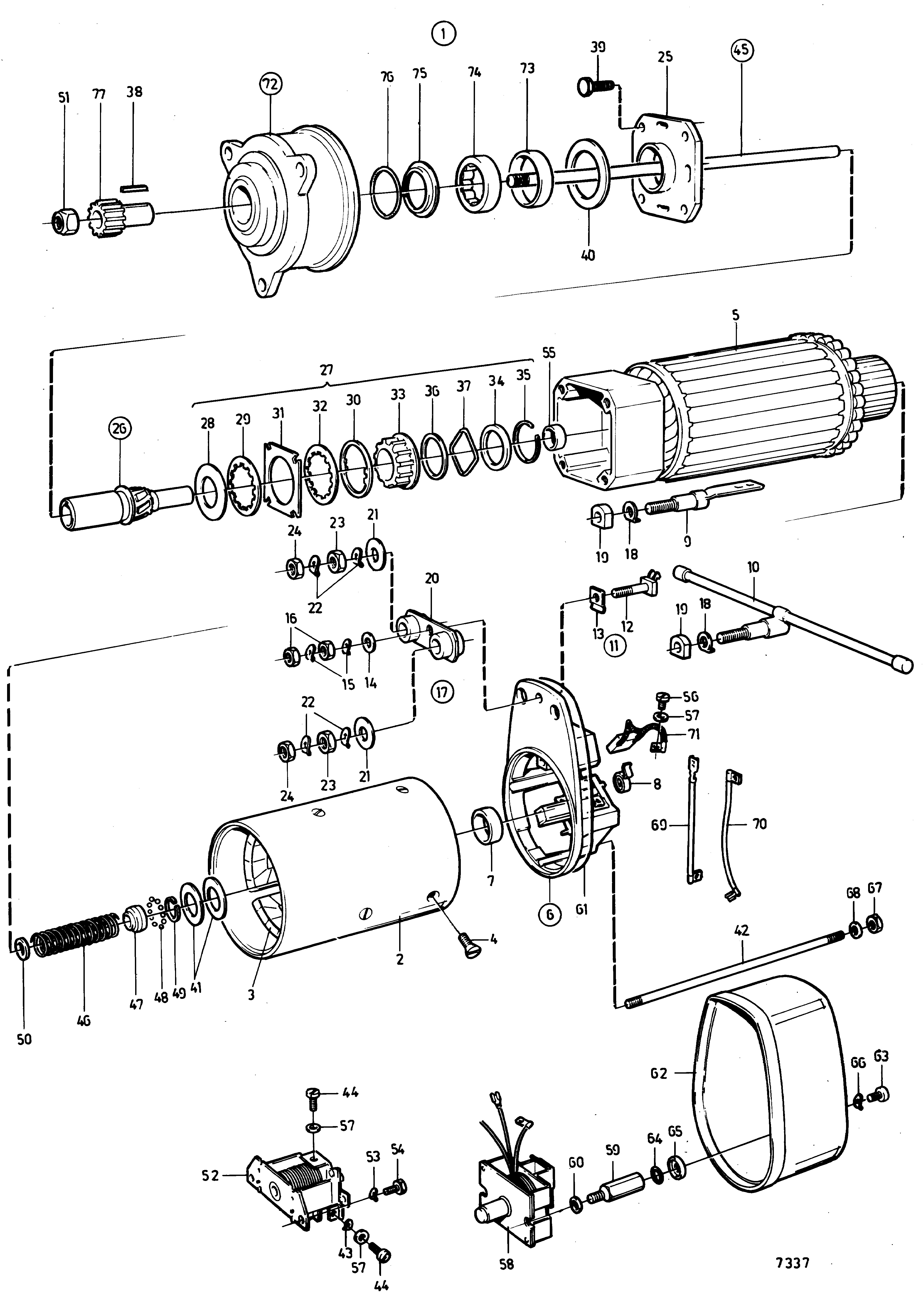

- Starter: 1 x 12v according to the stated configuration
- Governor: mechanical among the confirmed engine equipment
- Cooling: keel cooled combined with a dry exhaust system and dry turbo
View exploded diagrams Volvo penta td100crc
