Parts and exploded diagrams for Volvo penta td100ag engine
This page allows you to view the exploded diagrams for the Volvo penta td100ag Inboard engine, belonging to the 6-cylinder category, and easily identify the compatible parts for your engine.
Volvo Penta is a brand specializing in marine propulsion solutions. These exploded diagrams help identify the components and references required for the maintenance and repair of Inboard engines.

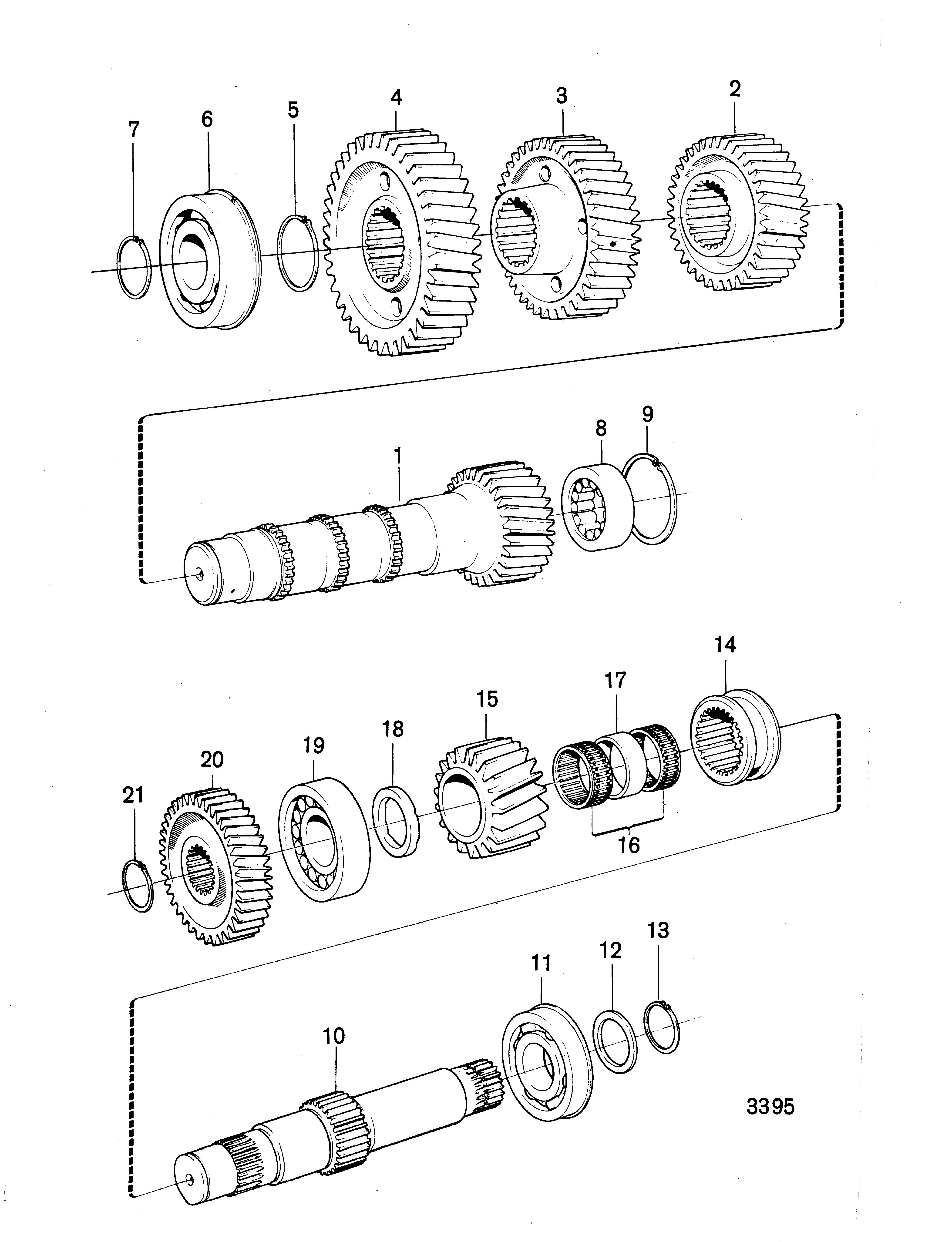

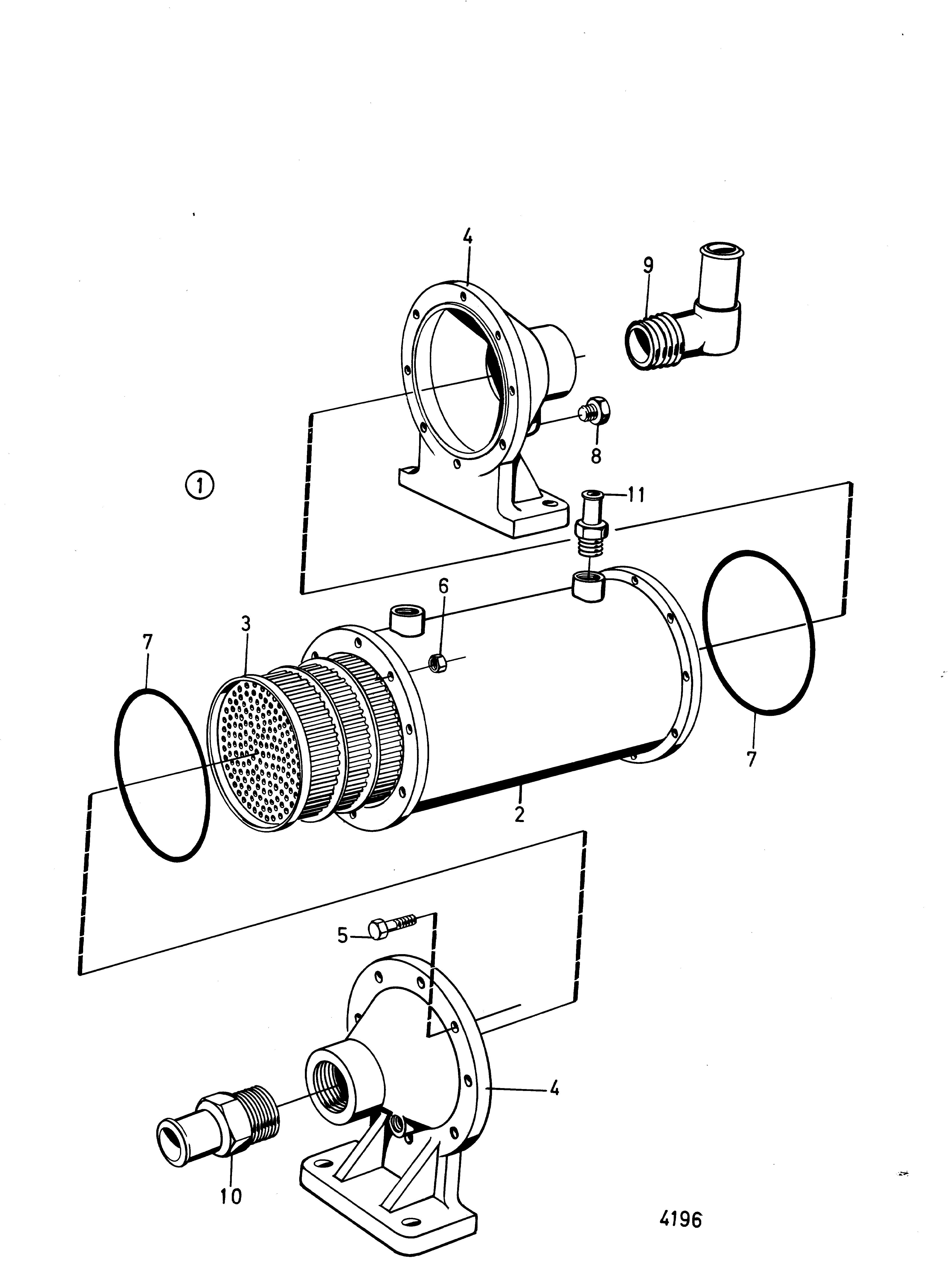

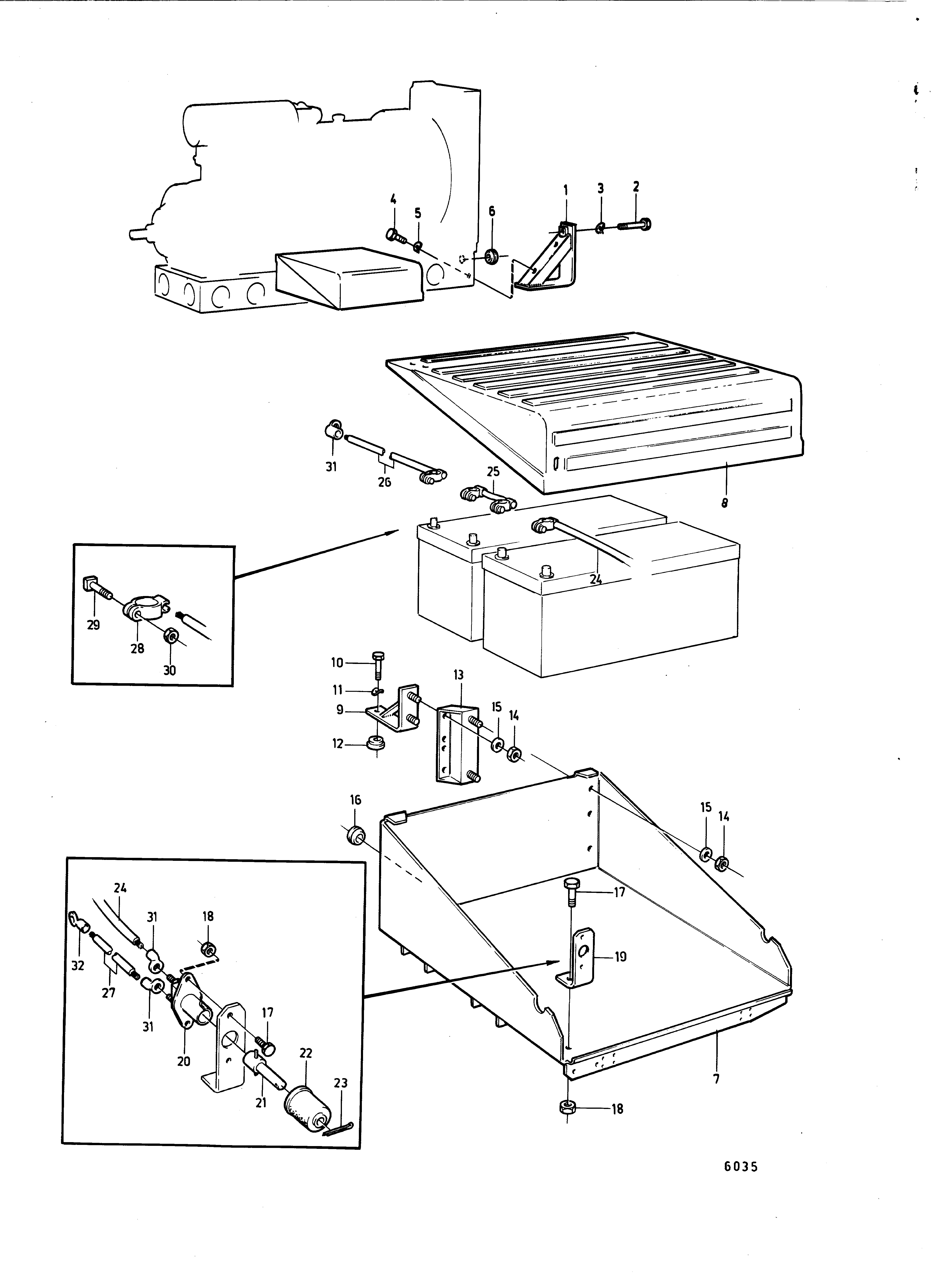

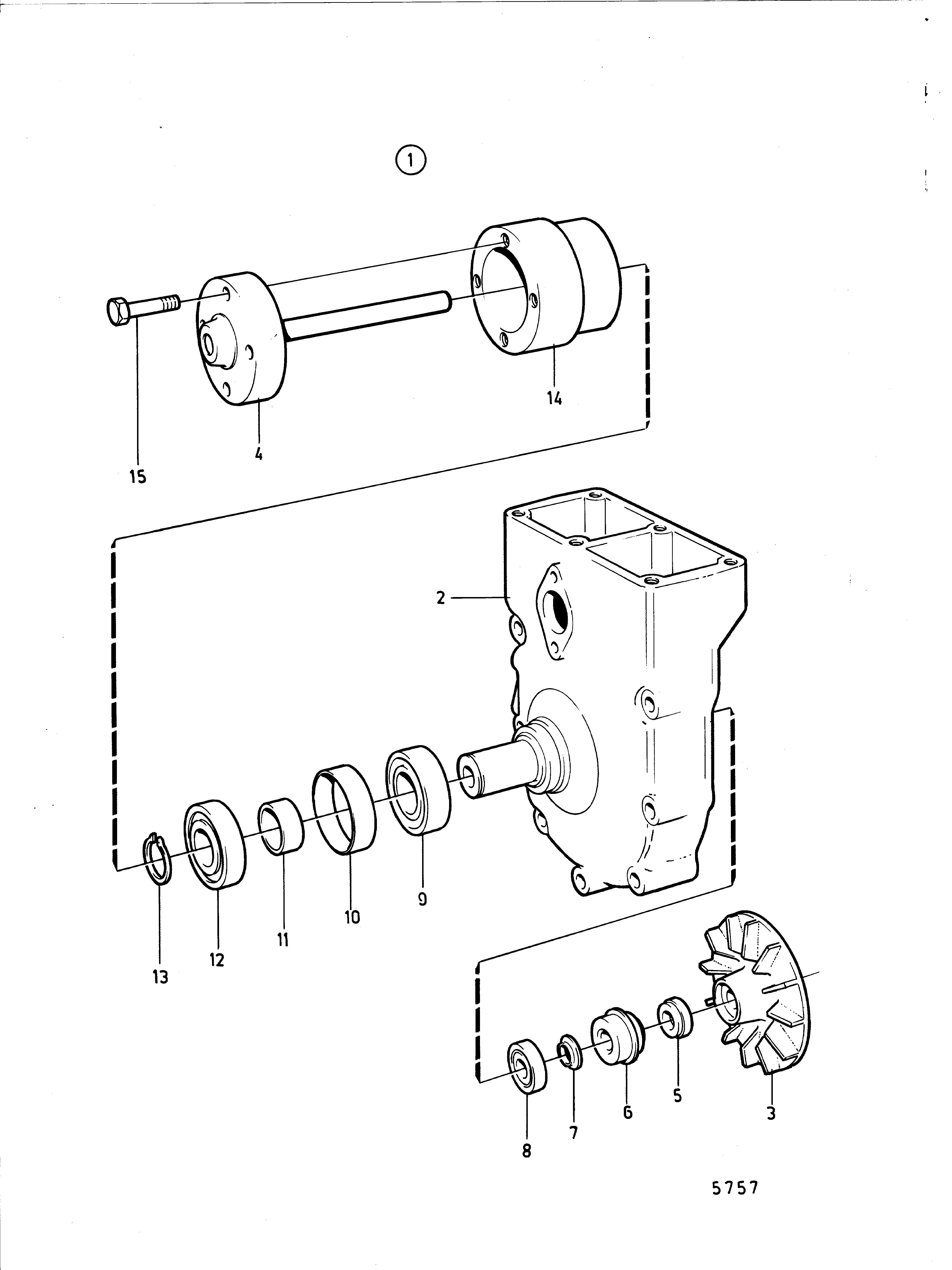

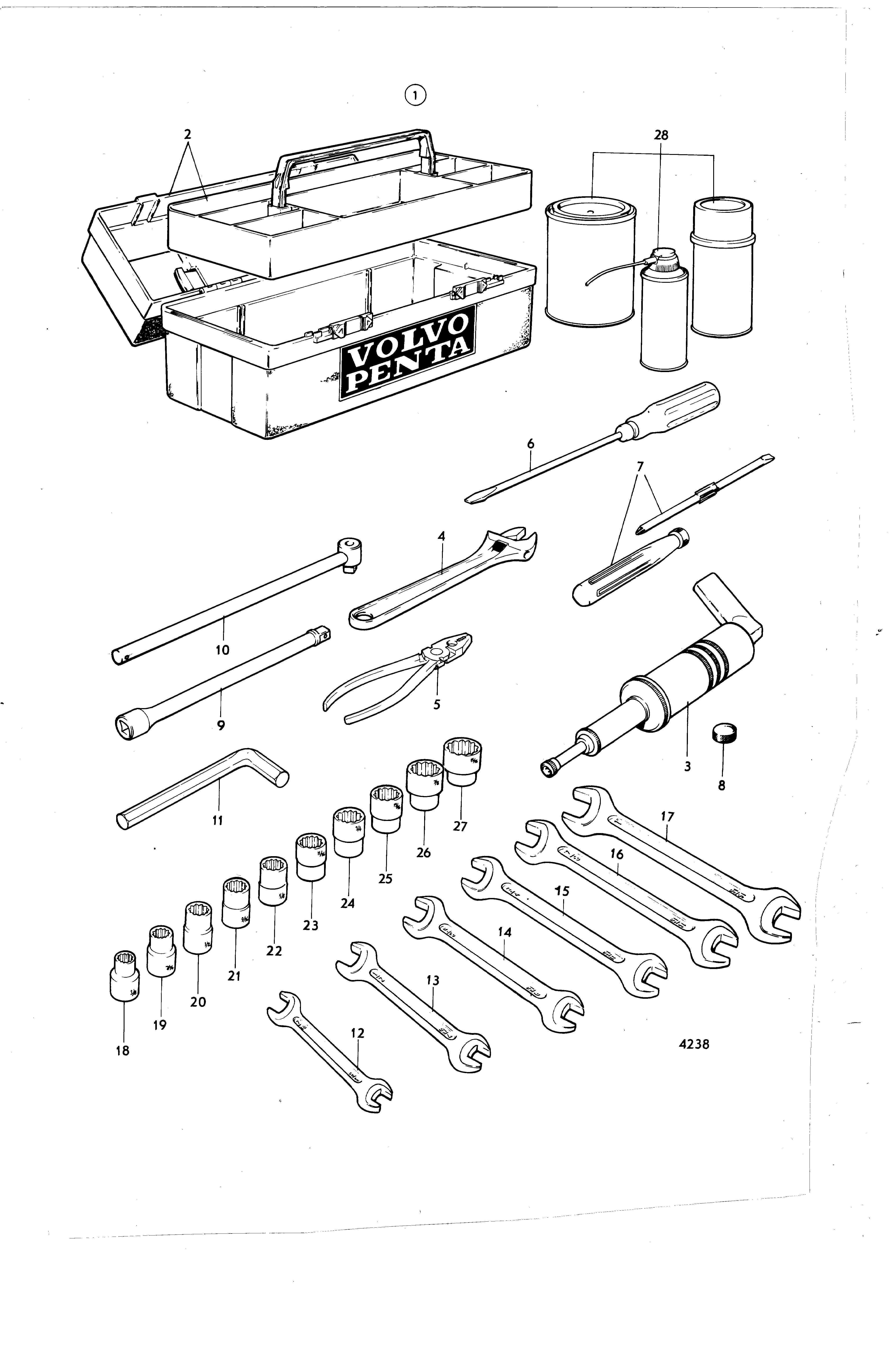

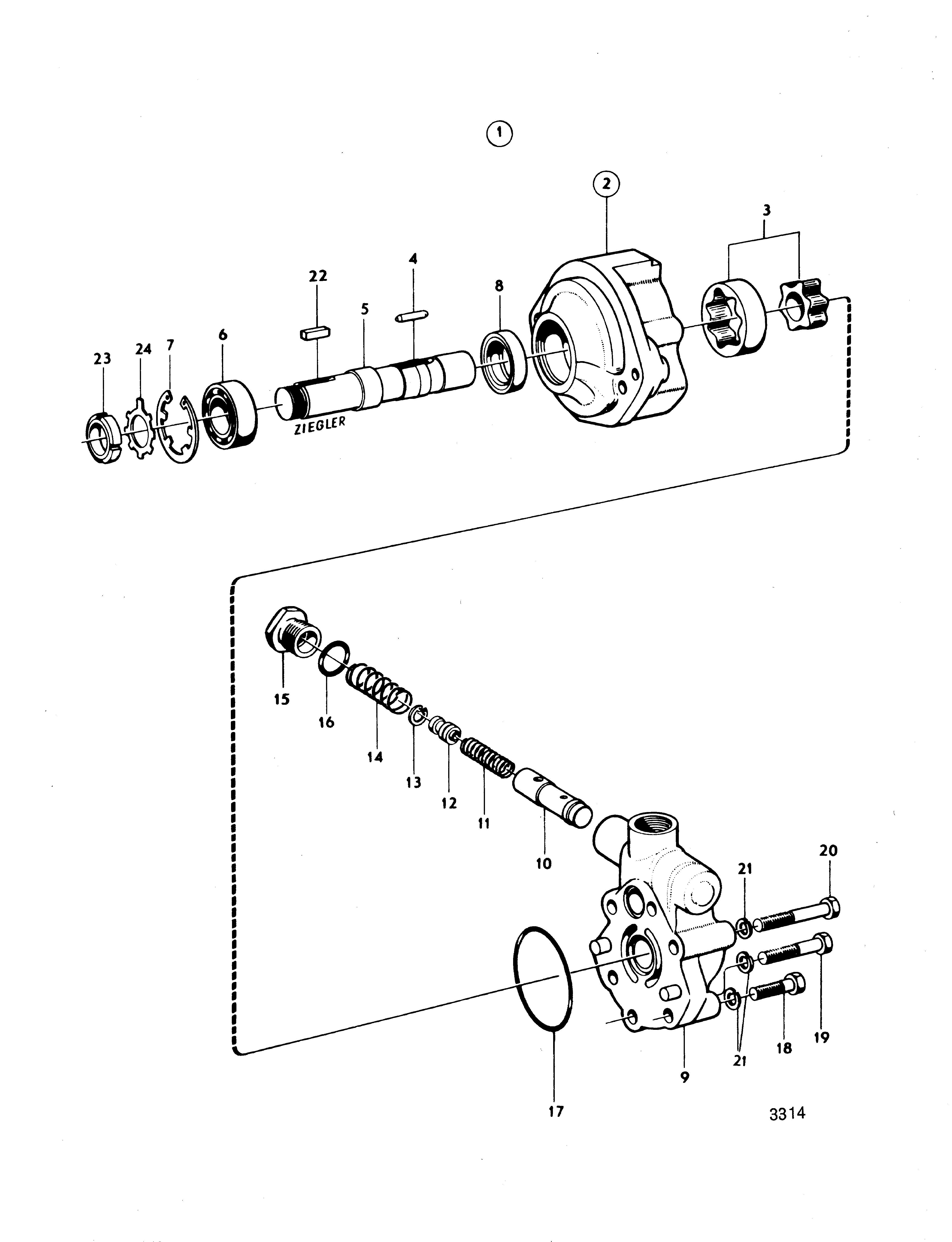

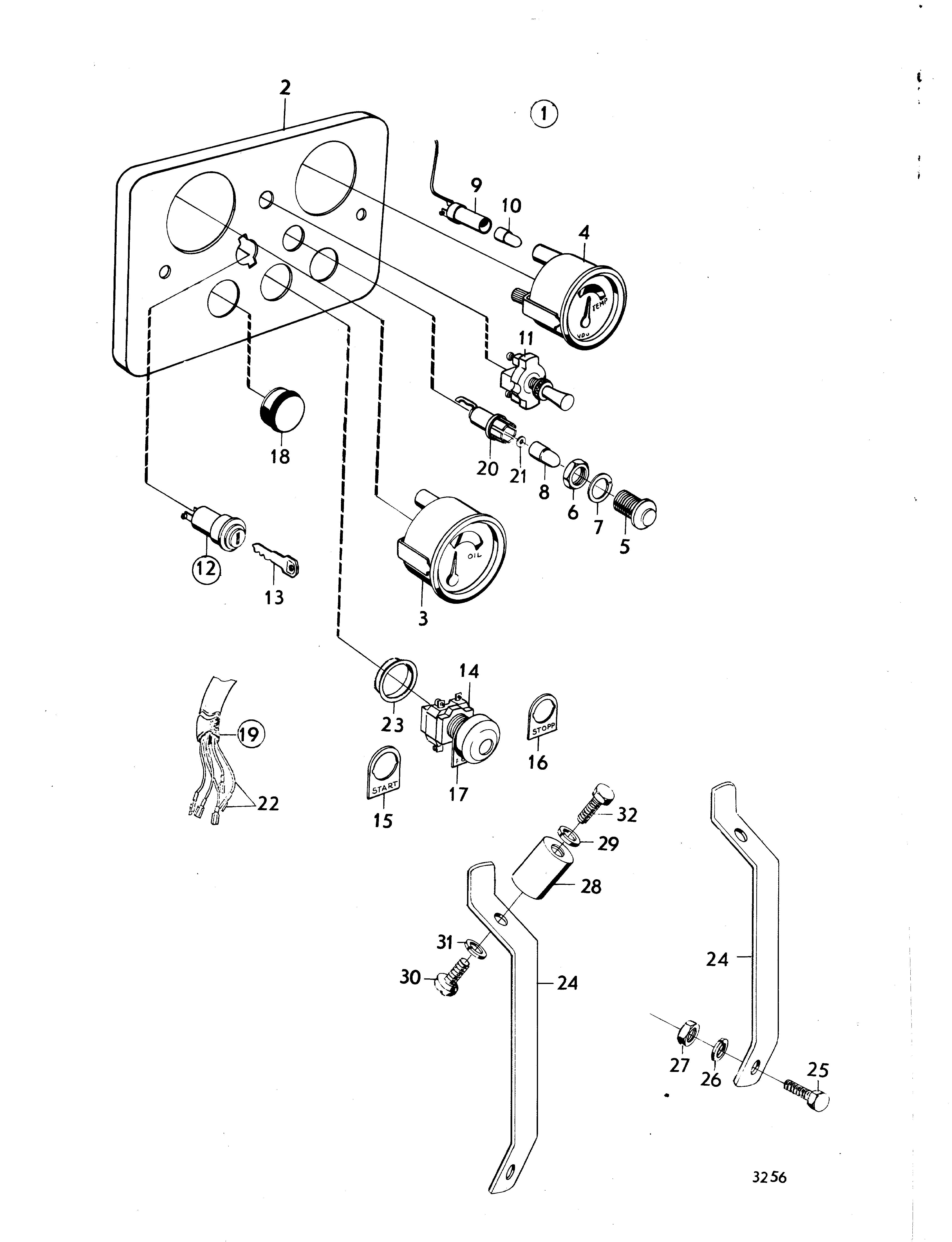

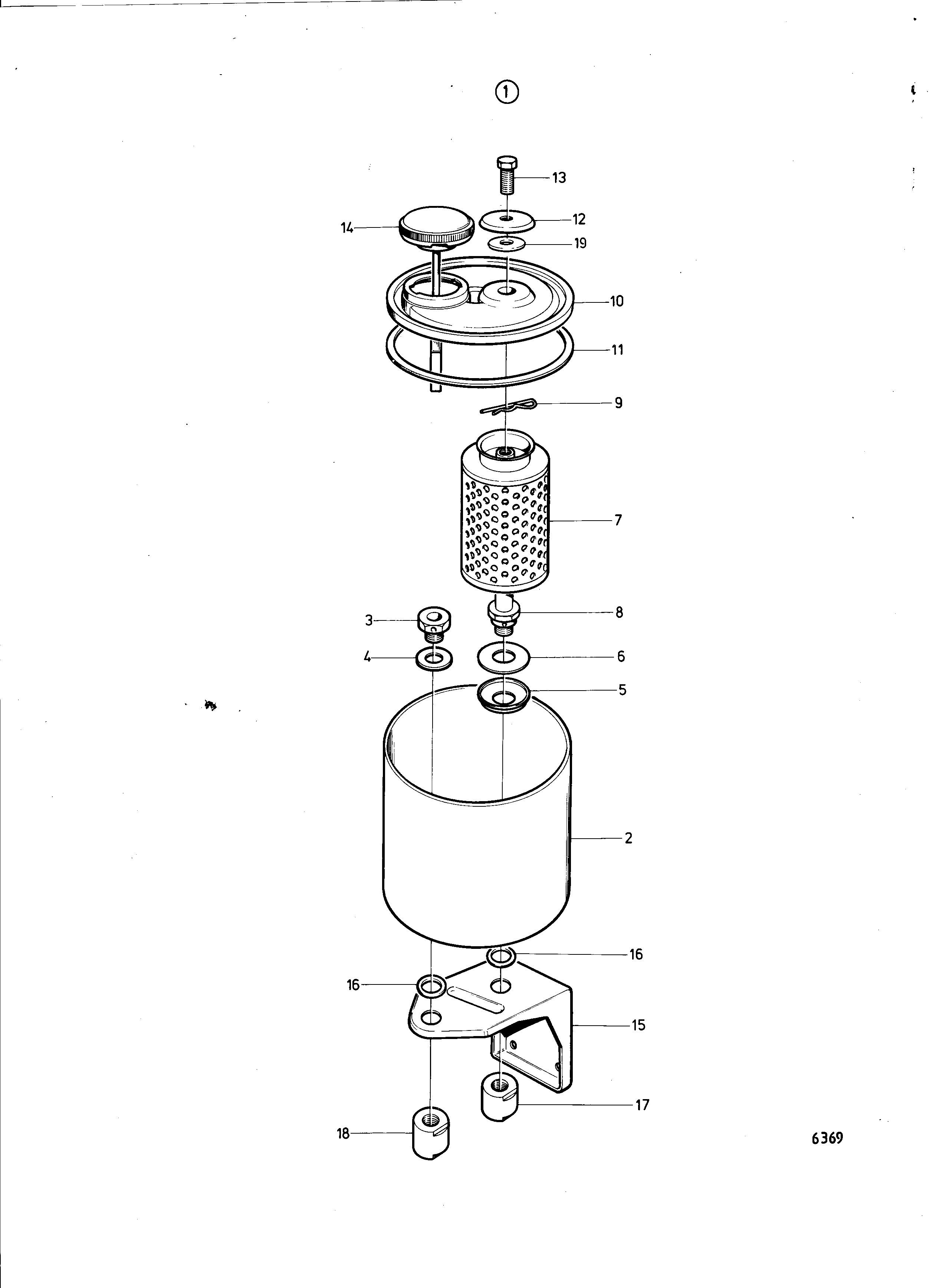

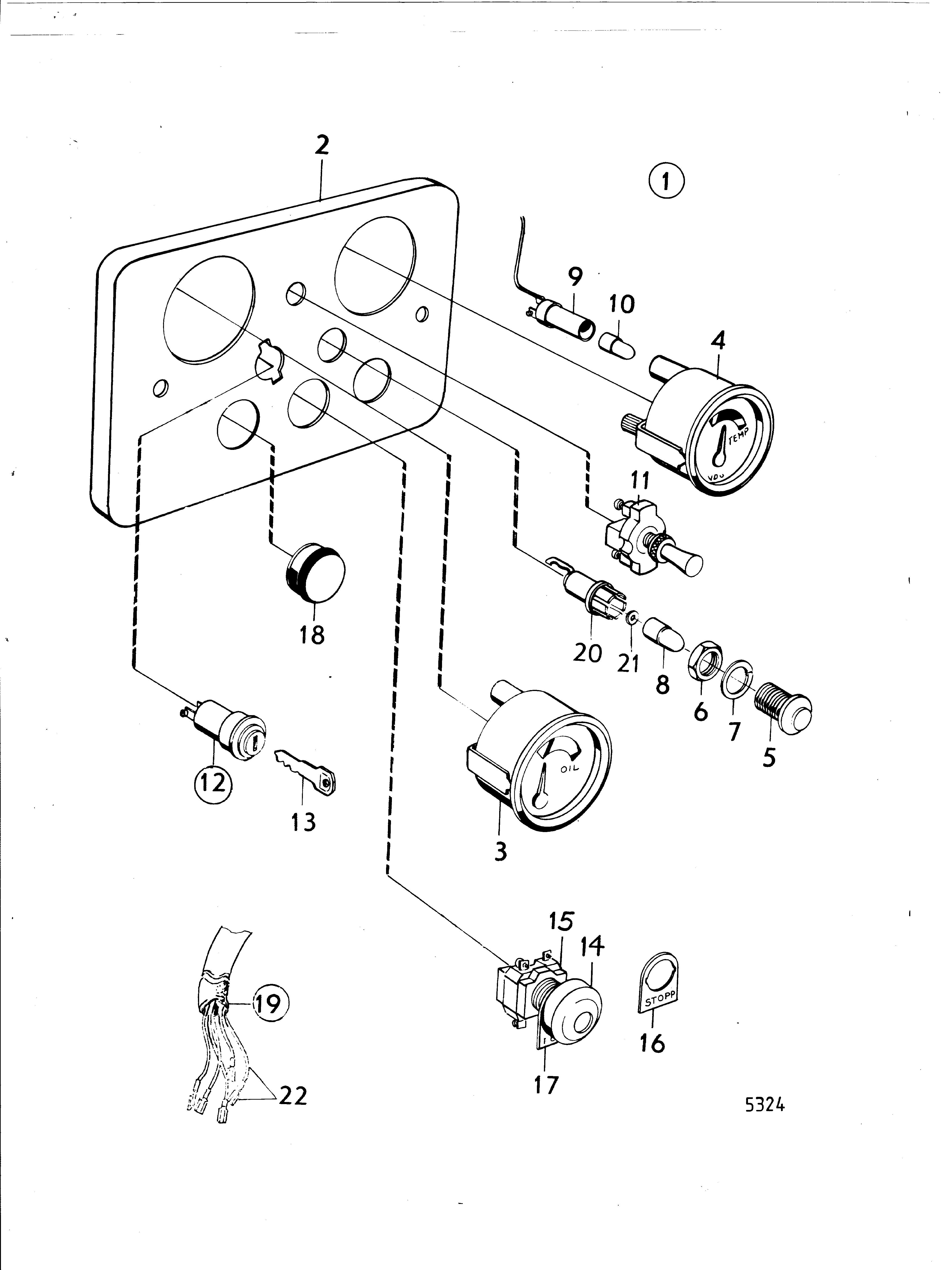

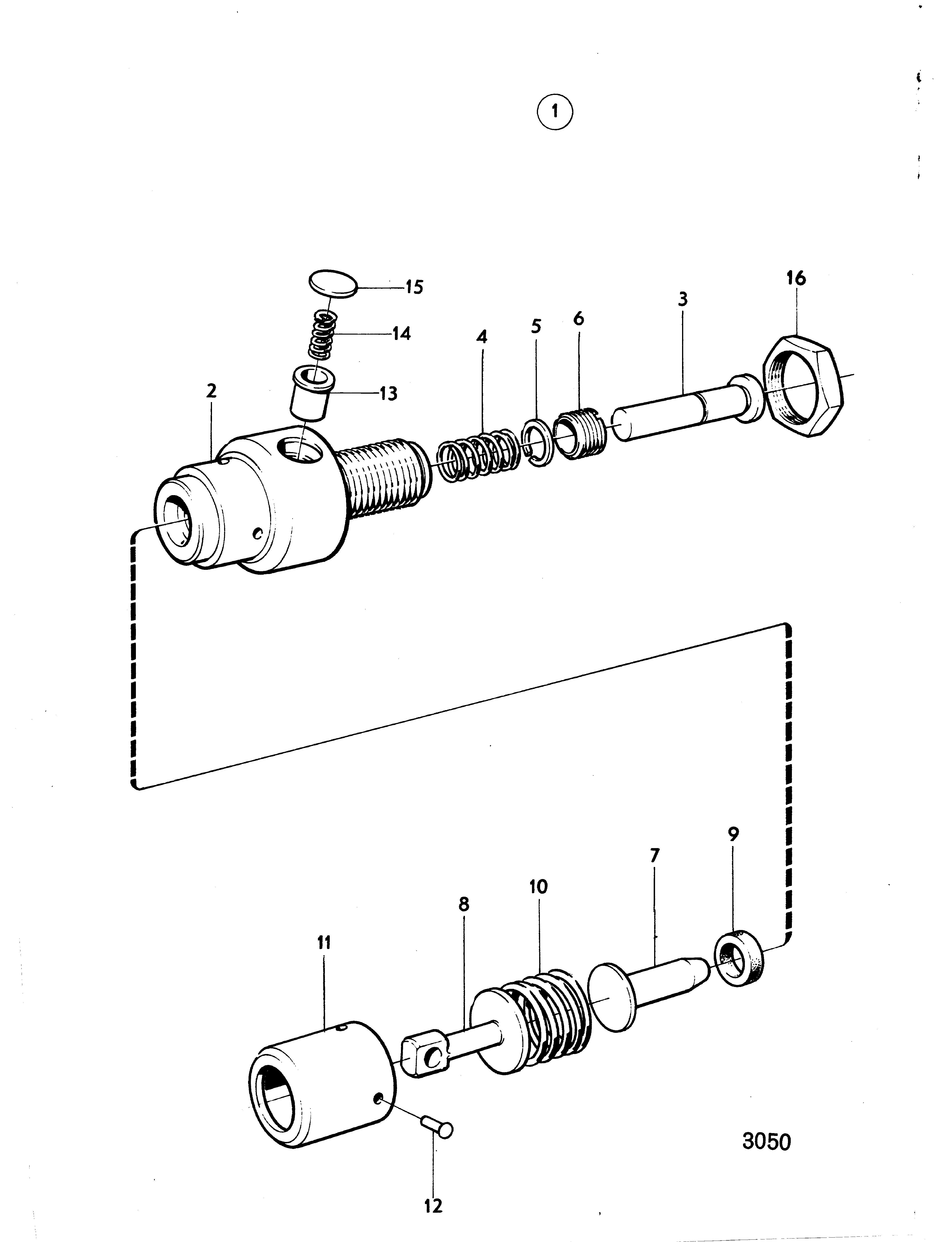

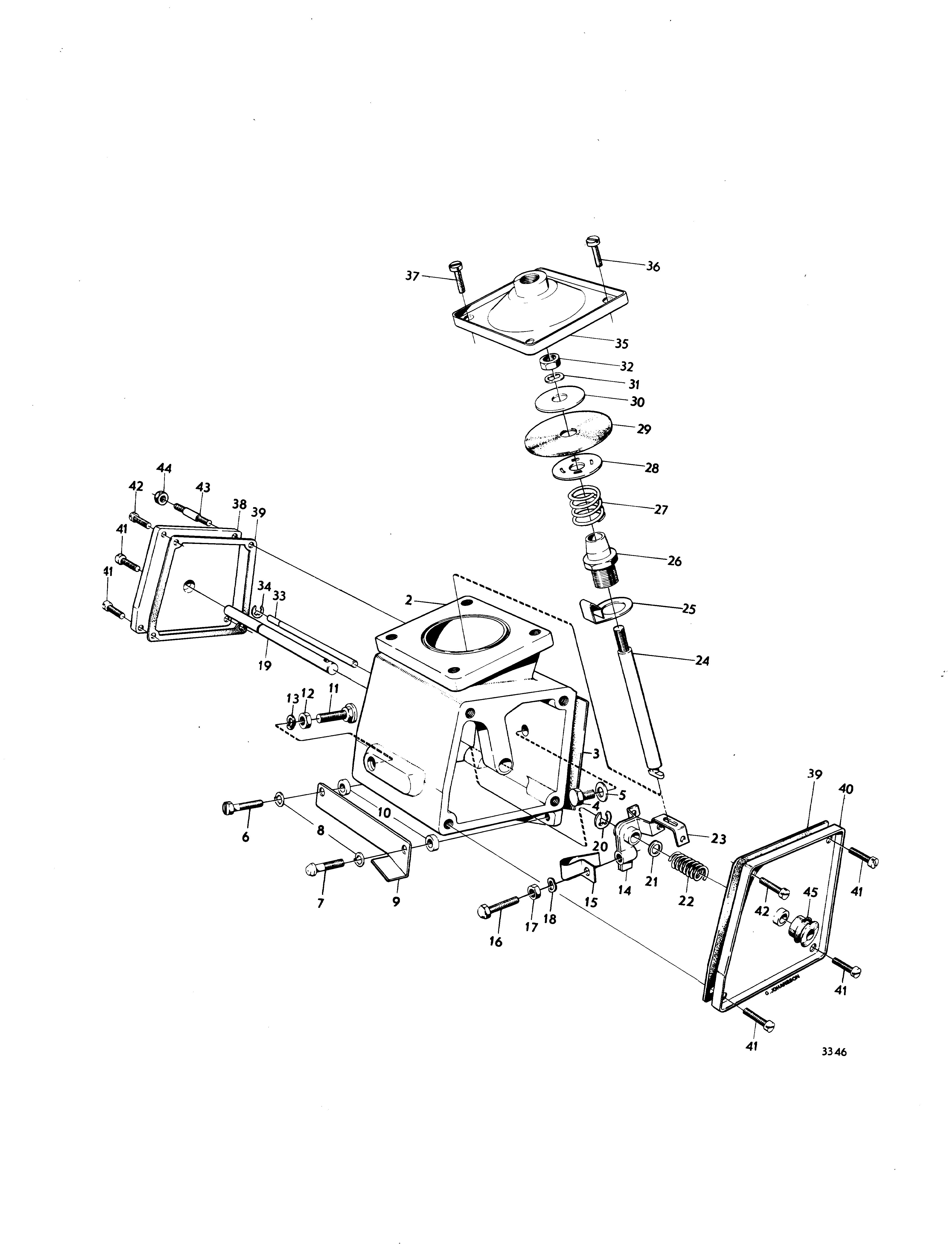

Select an exploded diagram for your Volvo penta td100ag inboard engine
Volvo penta td100ag
The Volvo penta td100ag is an Inboard engine in the 6-cylinder category, with available specifications indicating a power type of 240 at a rated speed type of 1800 rpm. It is also fitted with an SAE-1 flywheel housing combined with a 14 inch flywheel.
The supplied configuration includes a 1 x 12v starter together with a mechanical governor. Both the turbo and exhaust system are specified as dry, while cooling is provided by a keel cooled system, useful information when identifying technical assemblies during servicing.
Exploded diagrams for the Volvo penta td100ag allow the individual engine components to be examined and the references linked to each assembly to be located more easily. This helps simplify the search for compatible parts and reduces identification errors when preparing maintenance or repair work.
Volvo penta td100ag engine features- Category: 6-cylinder corresponding to the stated cylinder count for this range
- Rated speed type: 1800 rpm according to the available technical data
- Flywheel: 14 inch fitted with an SAE-1 flywheel housing
- Governor: mechanical according to the supplied configuration
- Cooling: keel cooled with a dry turbo and dry exhaust system
View exploded diagrams Volvo penta td100ag
