Parts and exploded diagrams for Volvo penta tamd162c engine
This page allows you to view the exploded diagrams for the Volvo penta tamd162c Inboard engine, belonging to the 6-cylinder category, and easily identify compatible parts for your engine.
Volvo Penta is a brand specializing in marine propulsion solutions. These exploded diagrams make it easier to identify the components and references required for the maintenance and repair of Inboard engines.

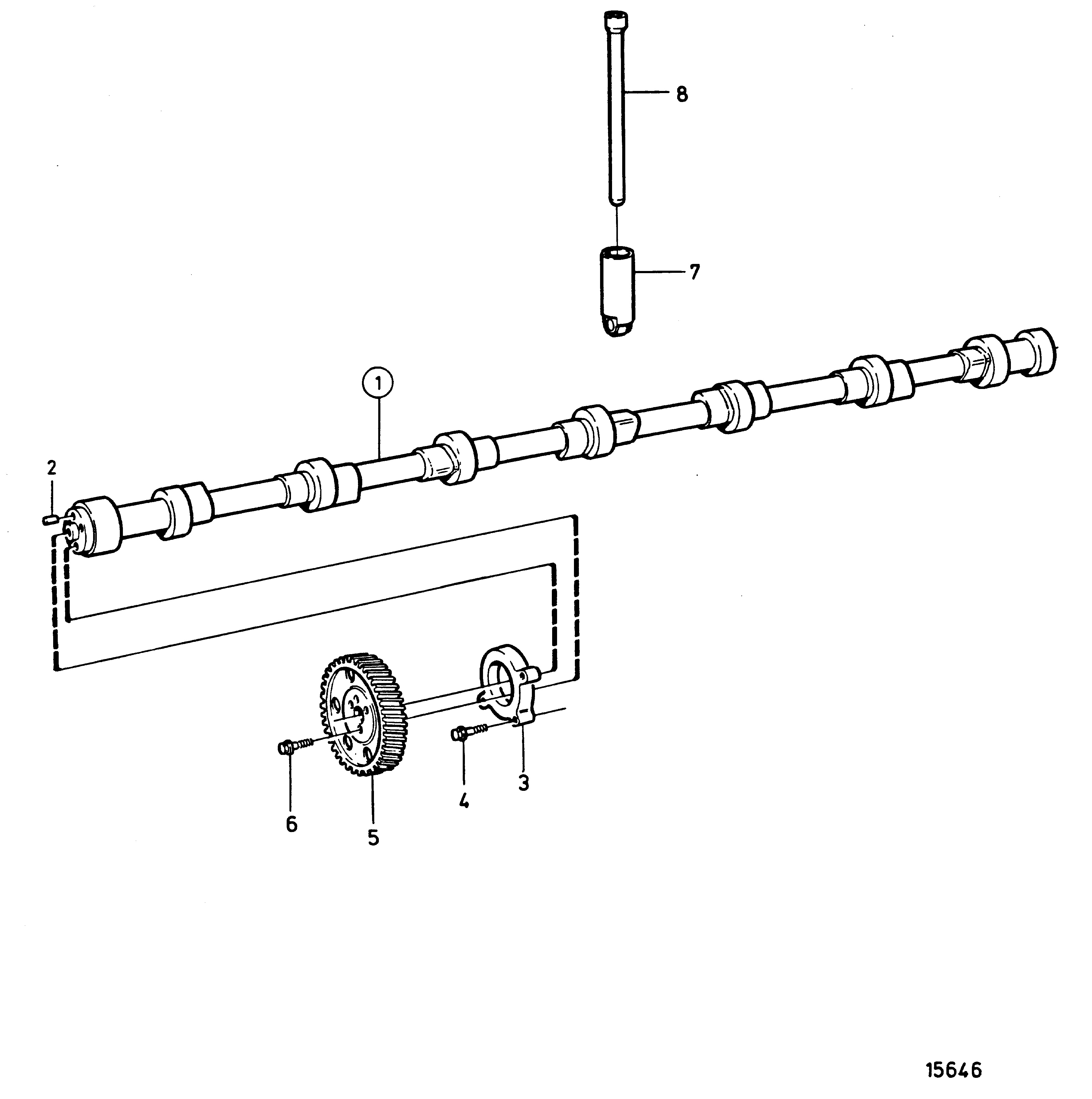

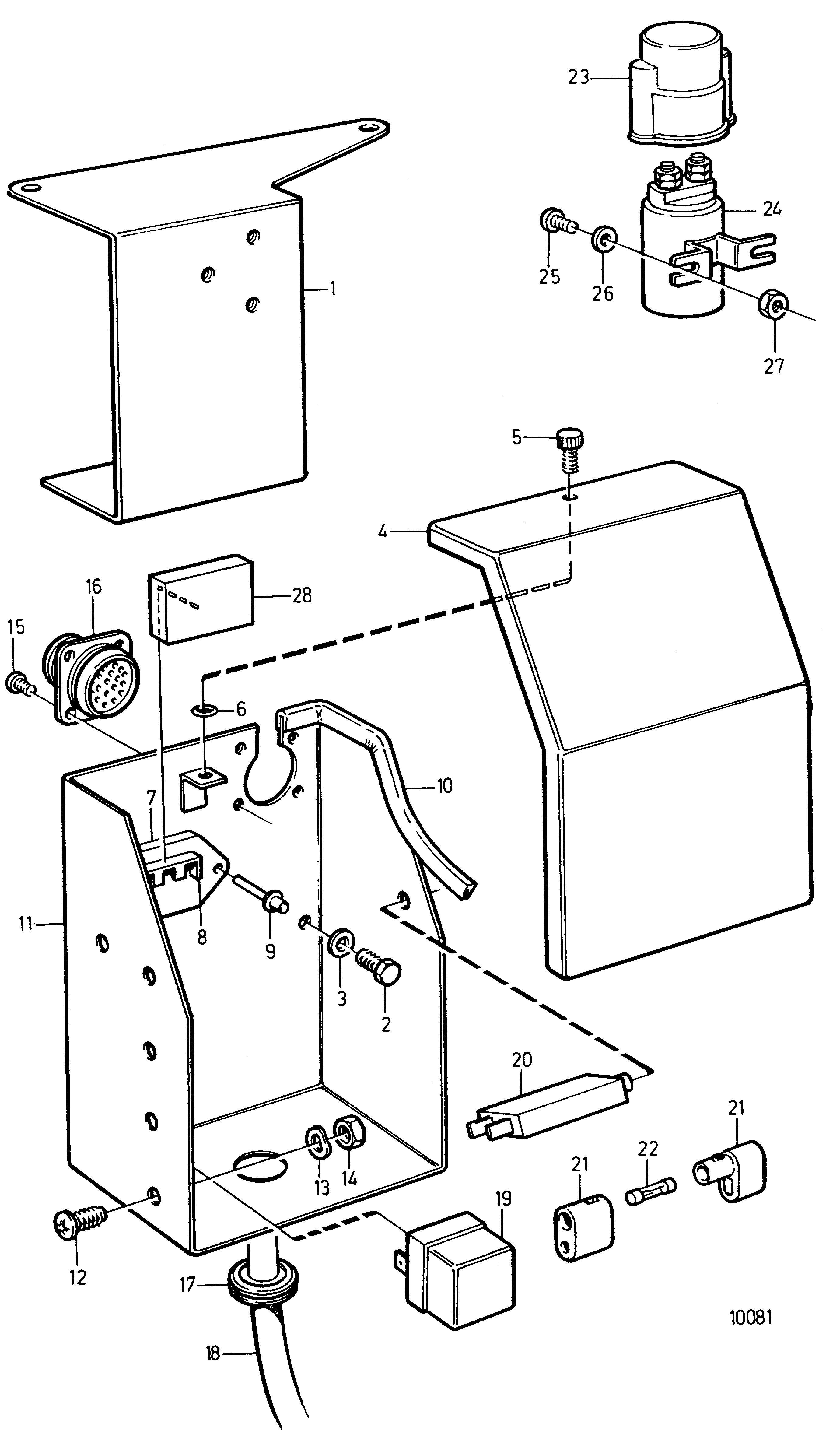

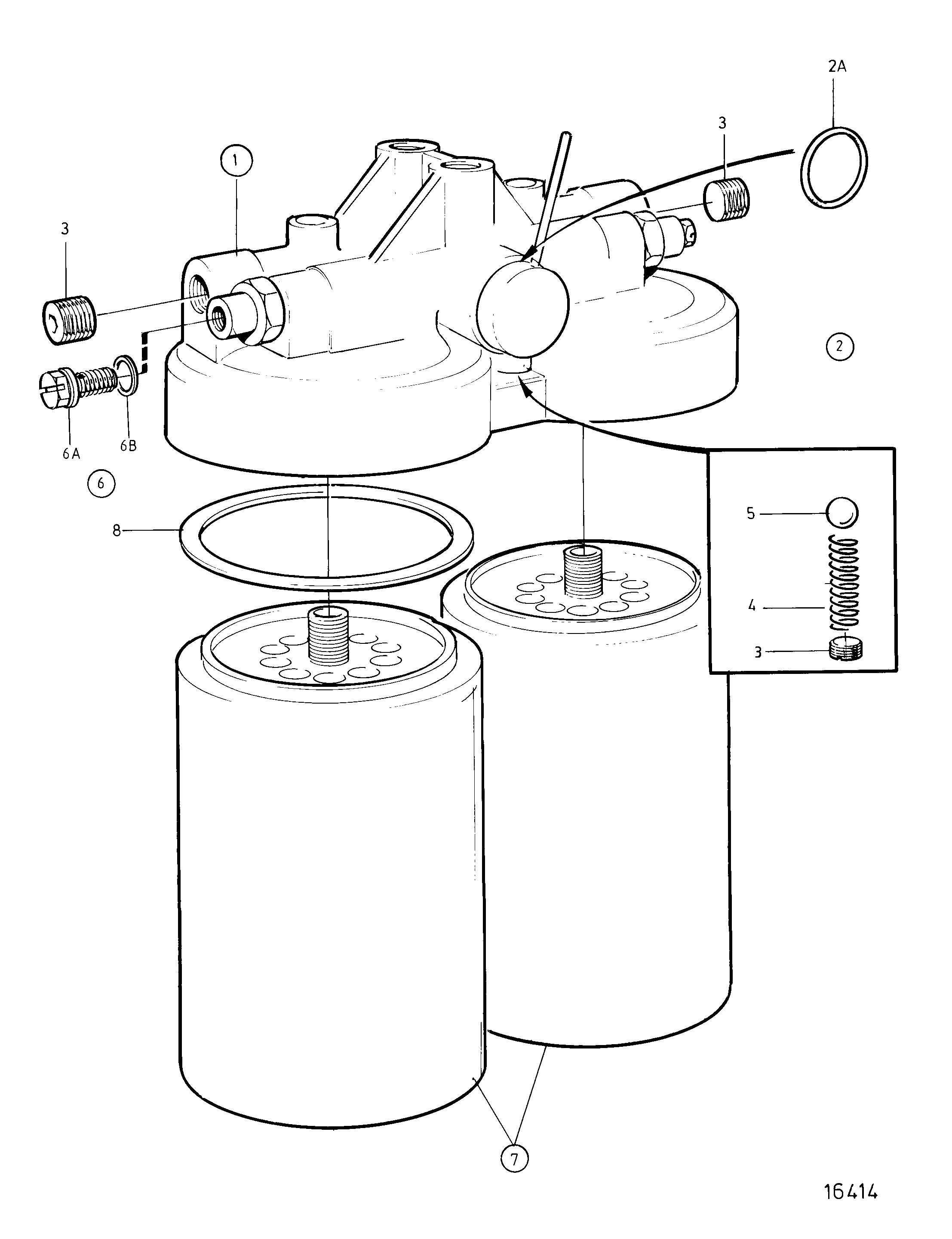

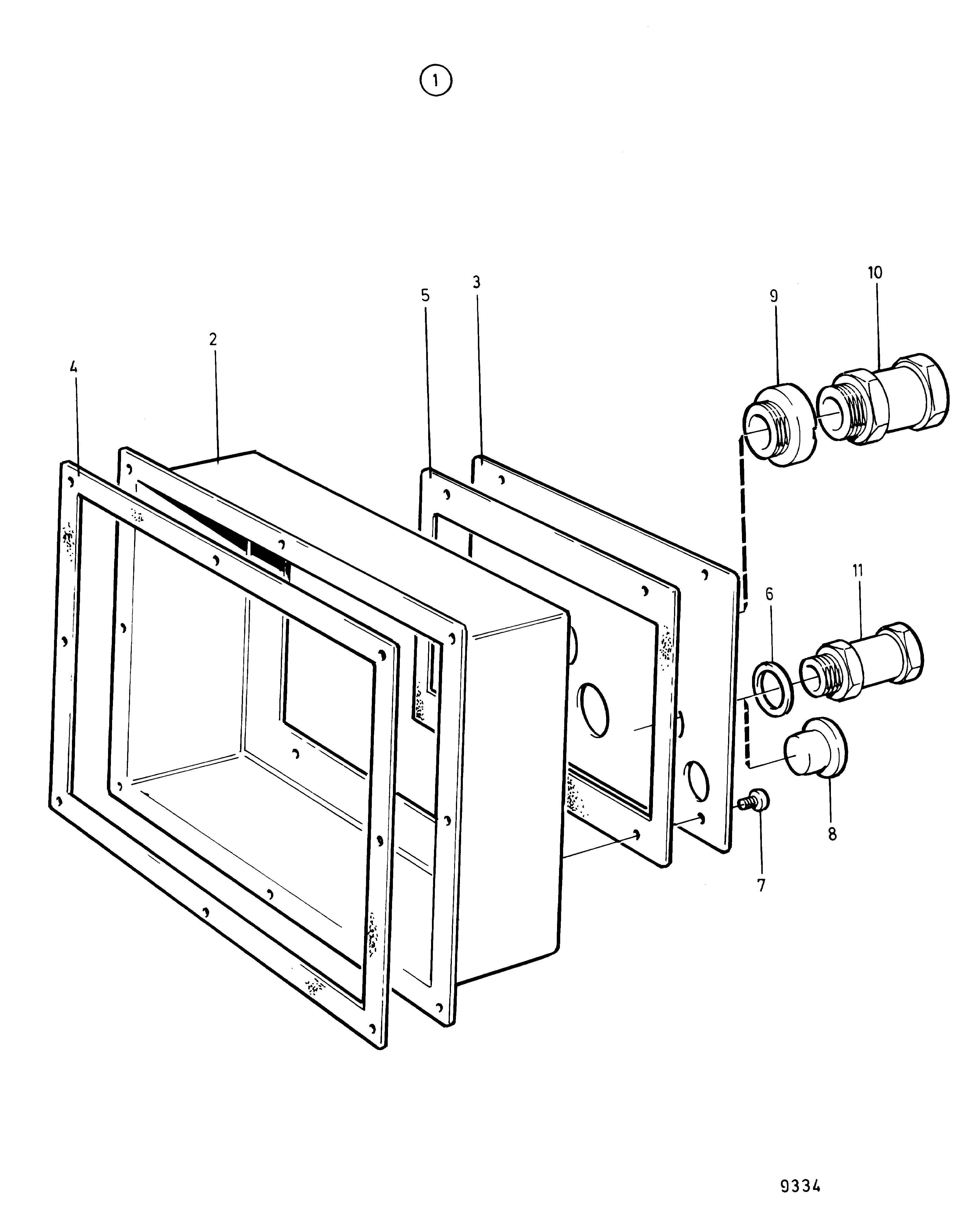

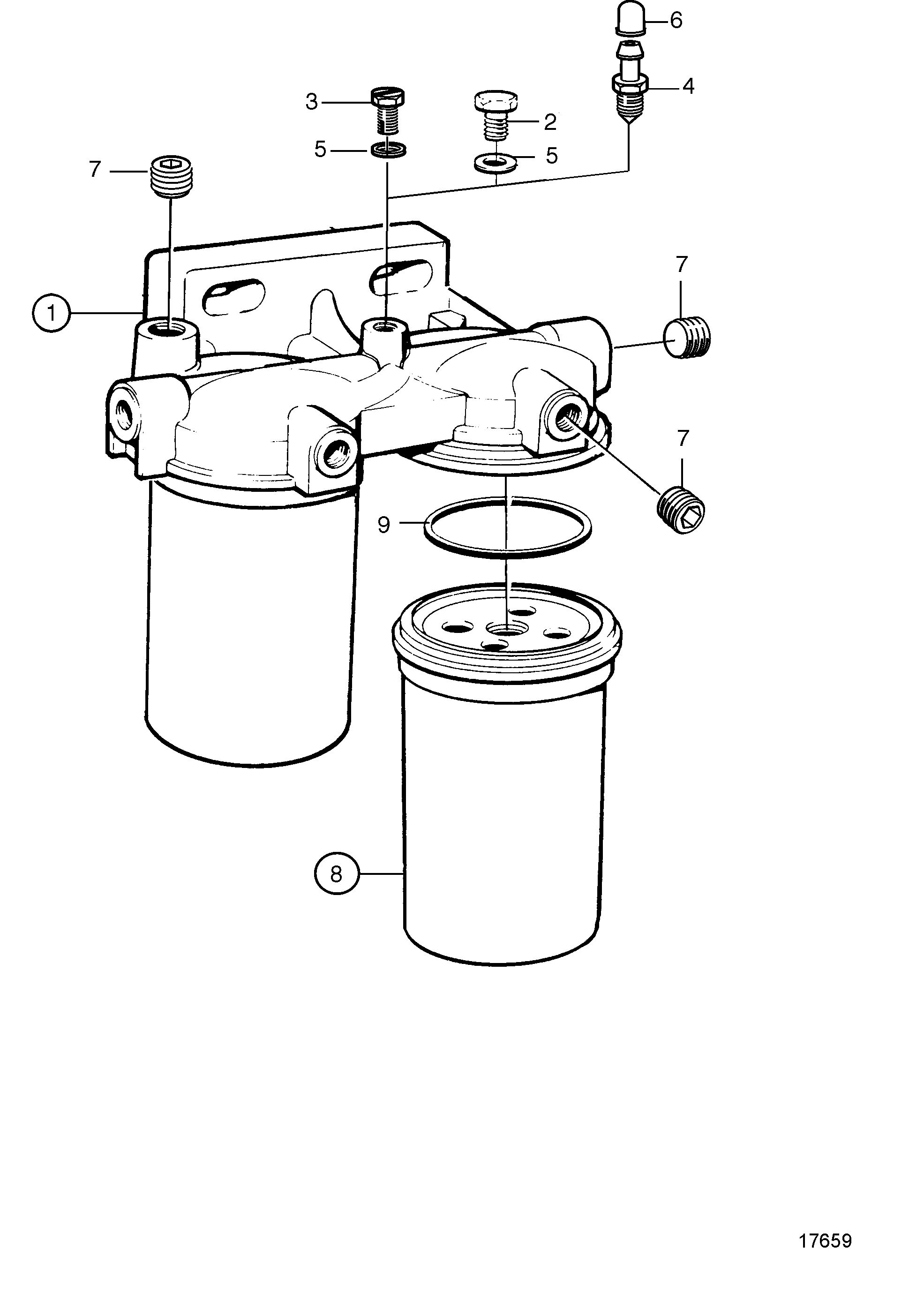

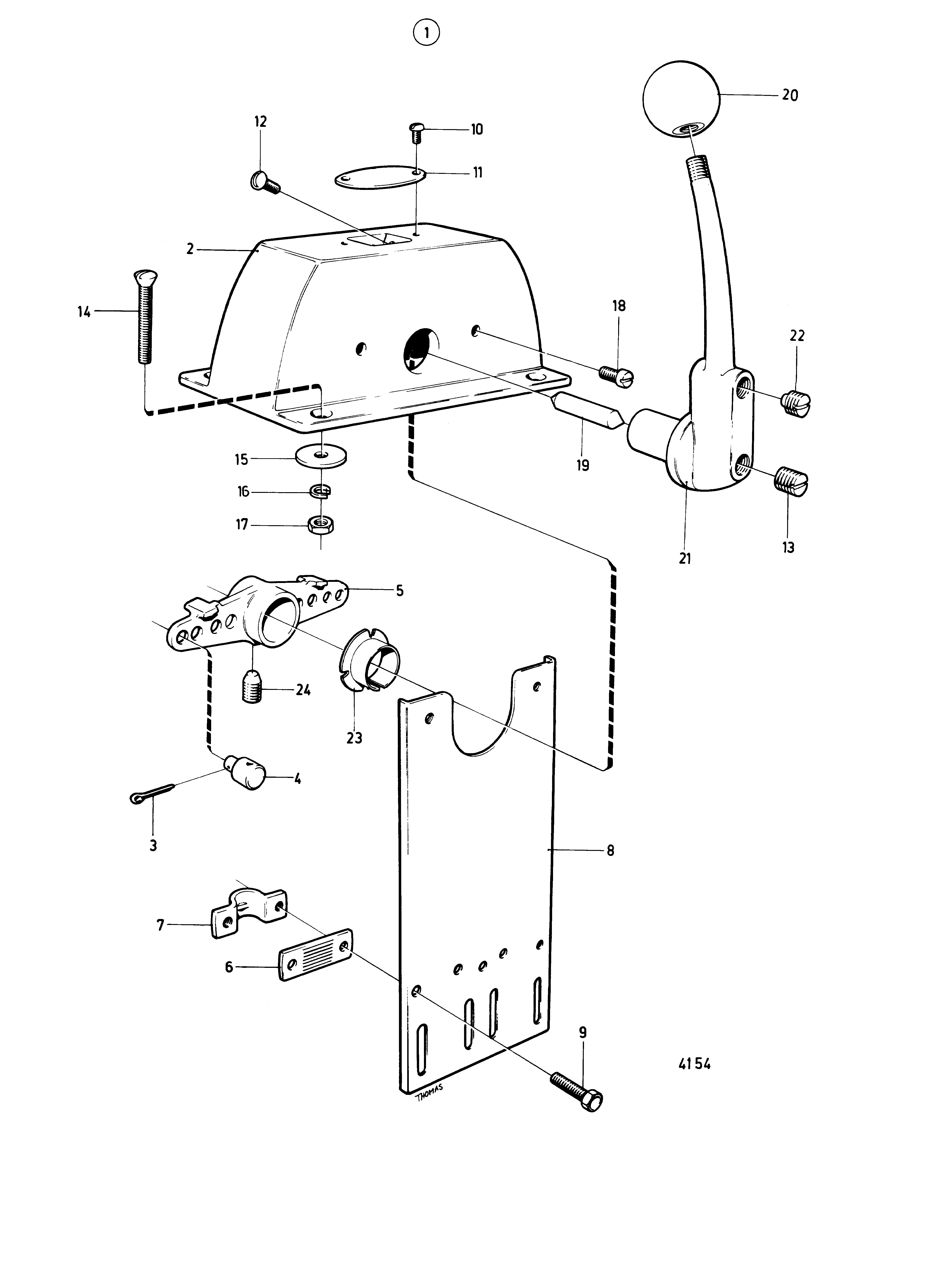

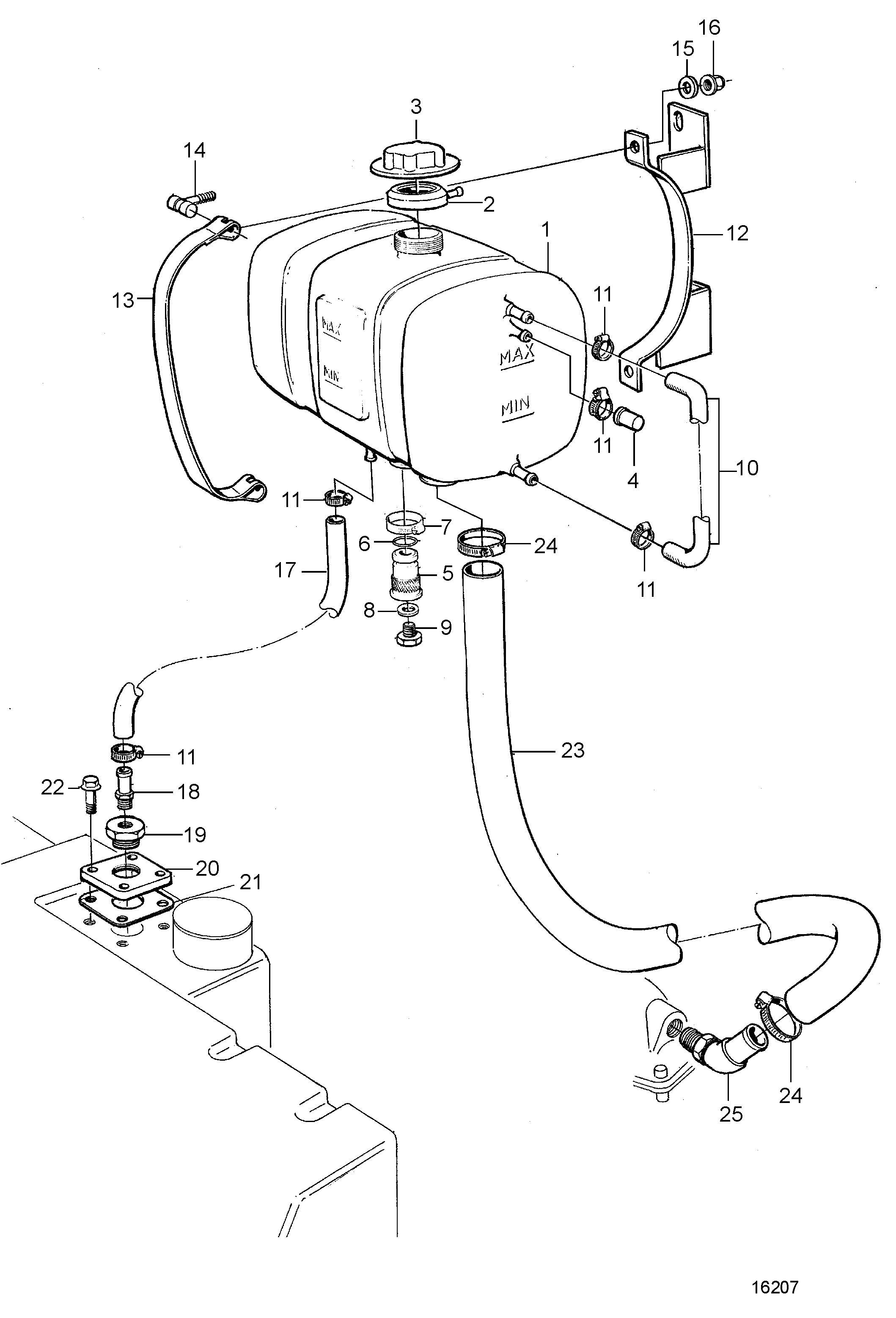

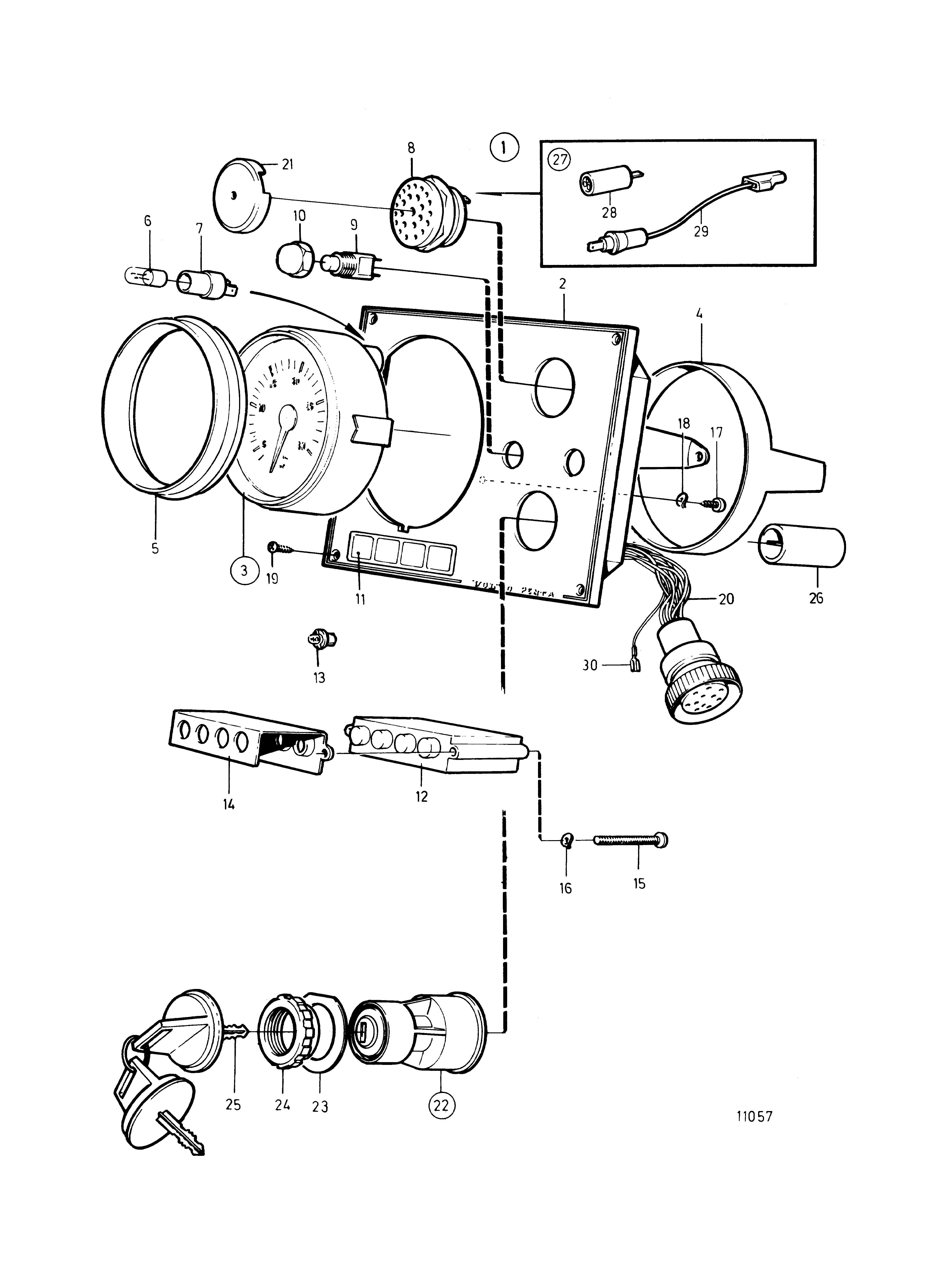

Select an exploded diagram for your Volvo penta tamd162c inboard engine
Volvo penta tamd162c
The Volvo penta tamd162c Inboard engine is part of the 6-cylinder category. It features an in-line six-cylinder arrangement, a displacement of 16.123 liters and direct fuel injection, while lubricating oil is used to cool the pistons.

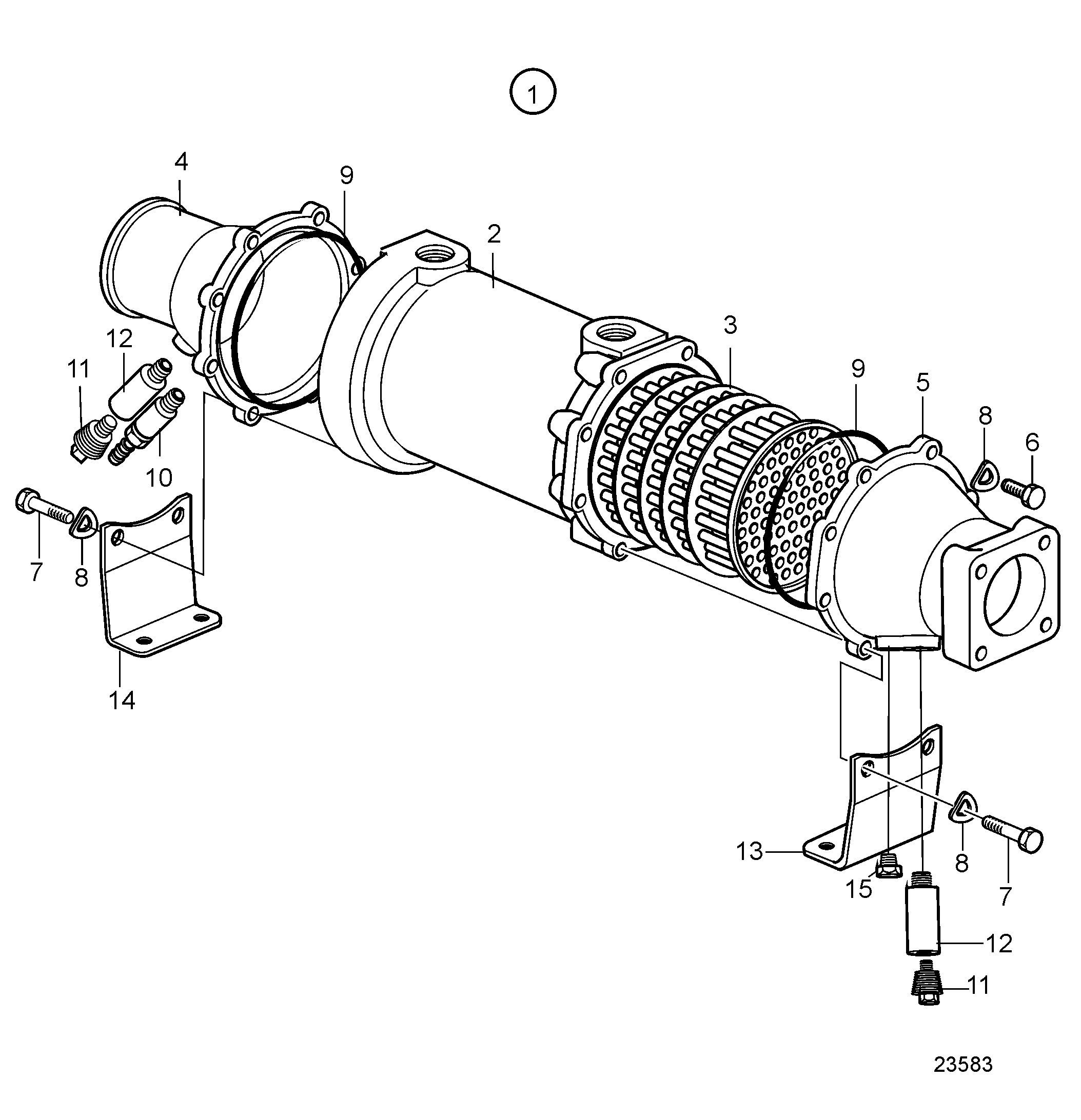

Its thermal management system includes a seawater-cooled charge air cooler that lowers the temperature of the air compressed by the turbocharger. The design also uses one separate cylinder head for each cylinder, four valves per head and replaceable wet cylinder liners to support servicing operations.

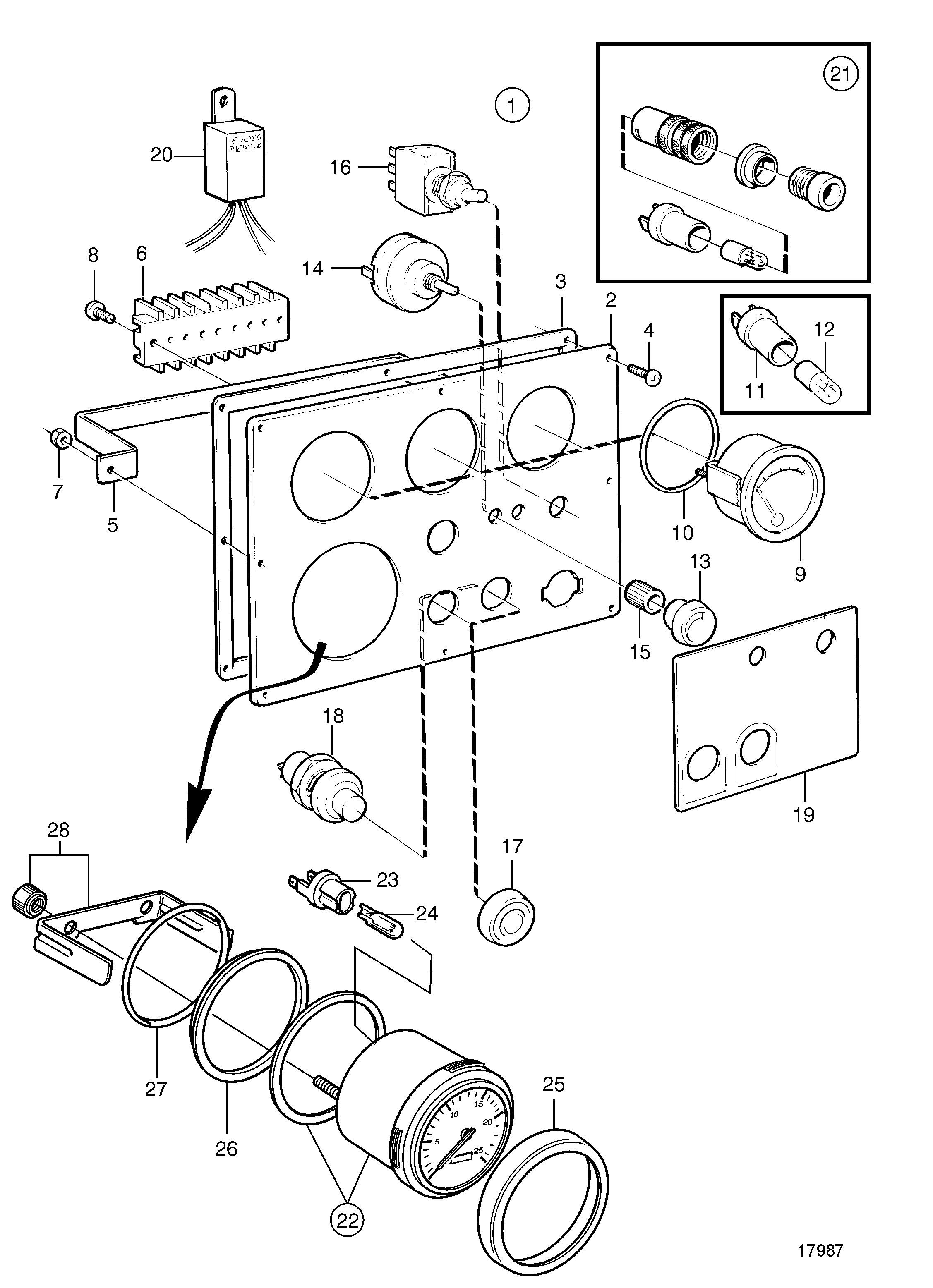

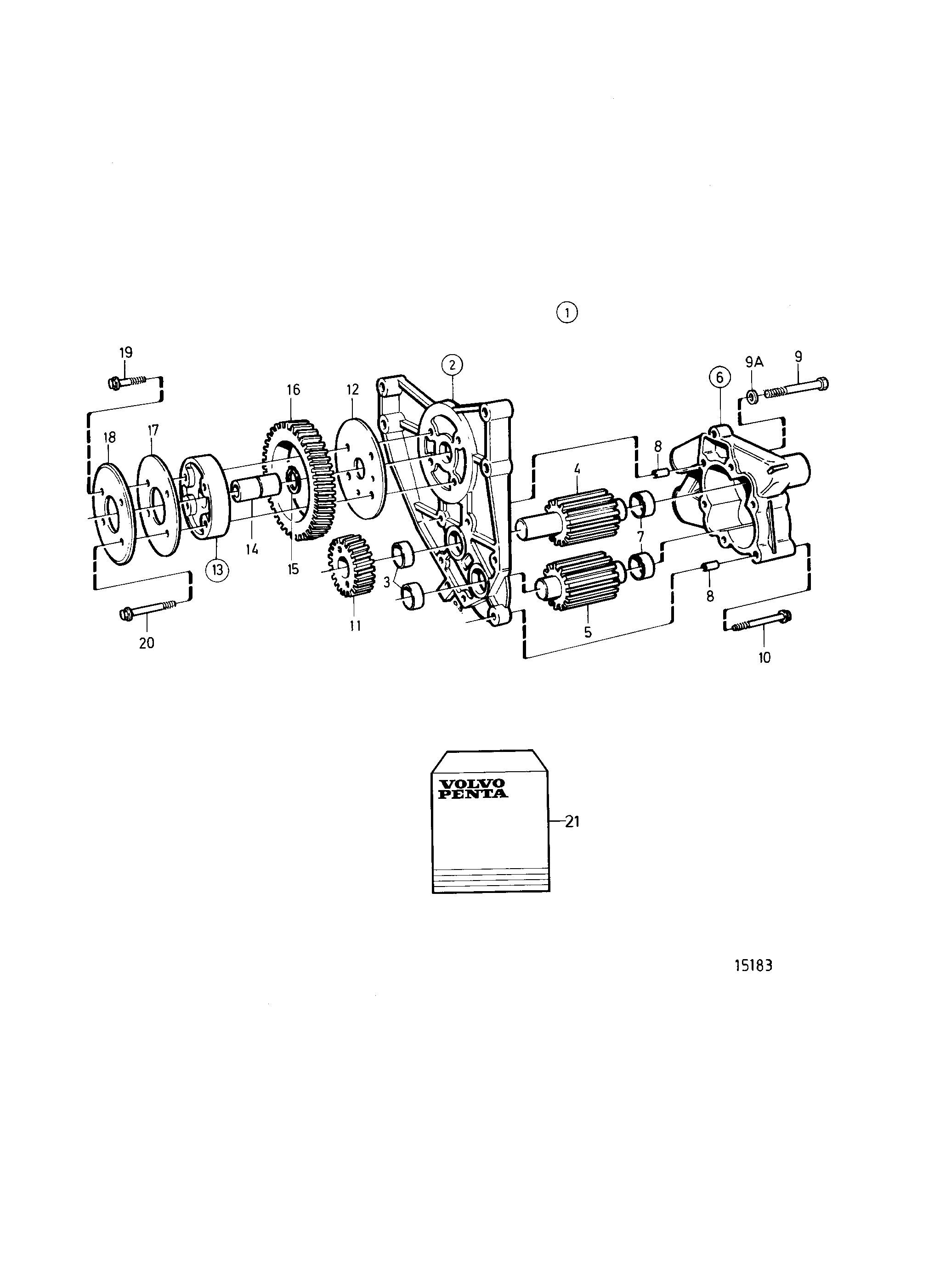

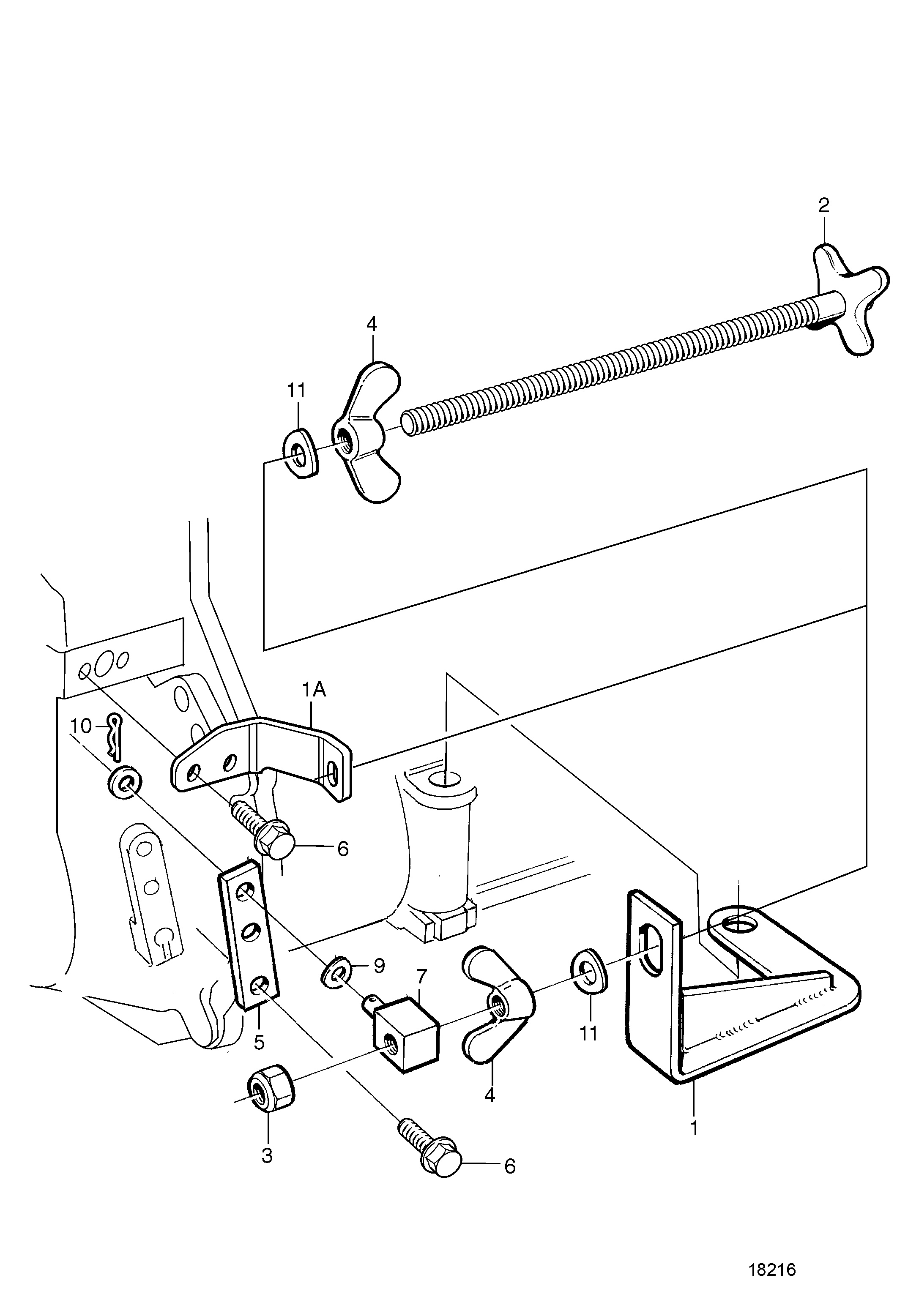

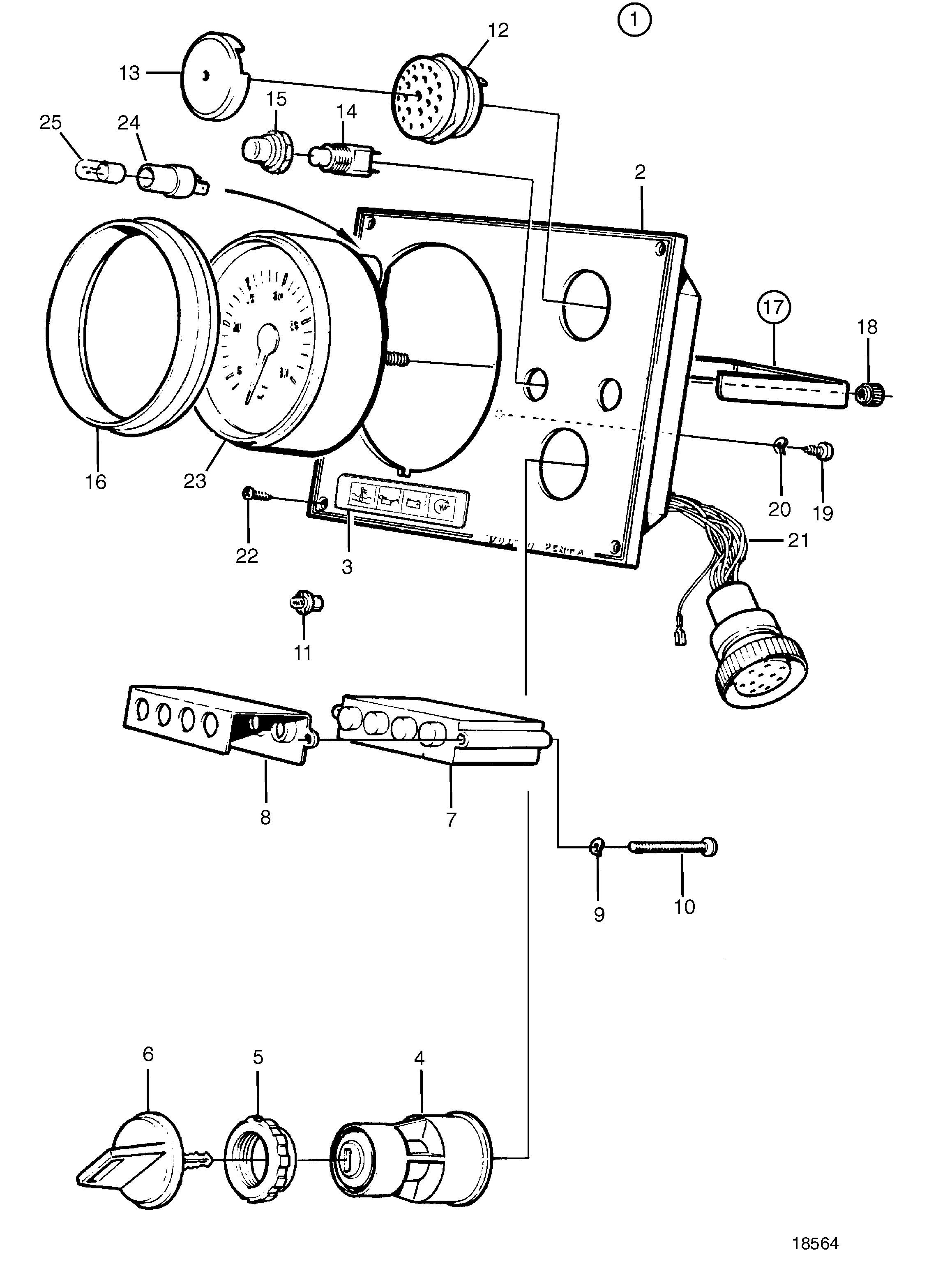

For maintenance or repair work on the Volvo penta tamd162c, exploded diagrams provide a detailed view of the engine assemblies and individual components. They make it easier to identify compatible parts and locate the correct references before carrying out work on the engine.
Volvo penta tamd162c engine features- Configuration: 6-cylinder corresponding to the technical category assigned to this engine
- Displacement: 16.123 liters as specified for the TAMD162C engine
- Direct fuel injection incorporated into the engine fuel system
- Oil-cooled pistons using dedicated jets located in the engine block
- Four valves per cylinder head with two intake valves and two exhaust valves
View exploded diagrams Volvo penta tamd162c
