Parts and exploded diagrams for Volvo penta tamd162a engine
This page allows you to view the exploded diagrams for the Volvo penta tamd162a Inboard engine, belonging to the 6-cylinder category, and easily identify compatible parts for your engine.
Volvo Penta is a brand specializing in marine propulsion solutions. These exploded diagrams make it easier to identify the components and references required for the maintenance and repair of Inboard engines.

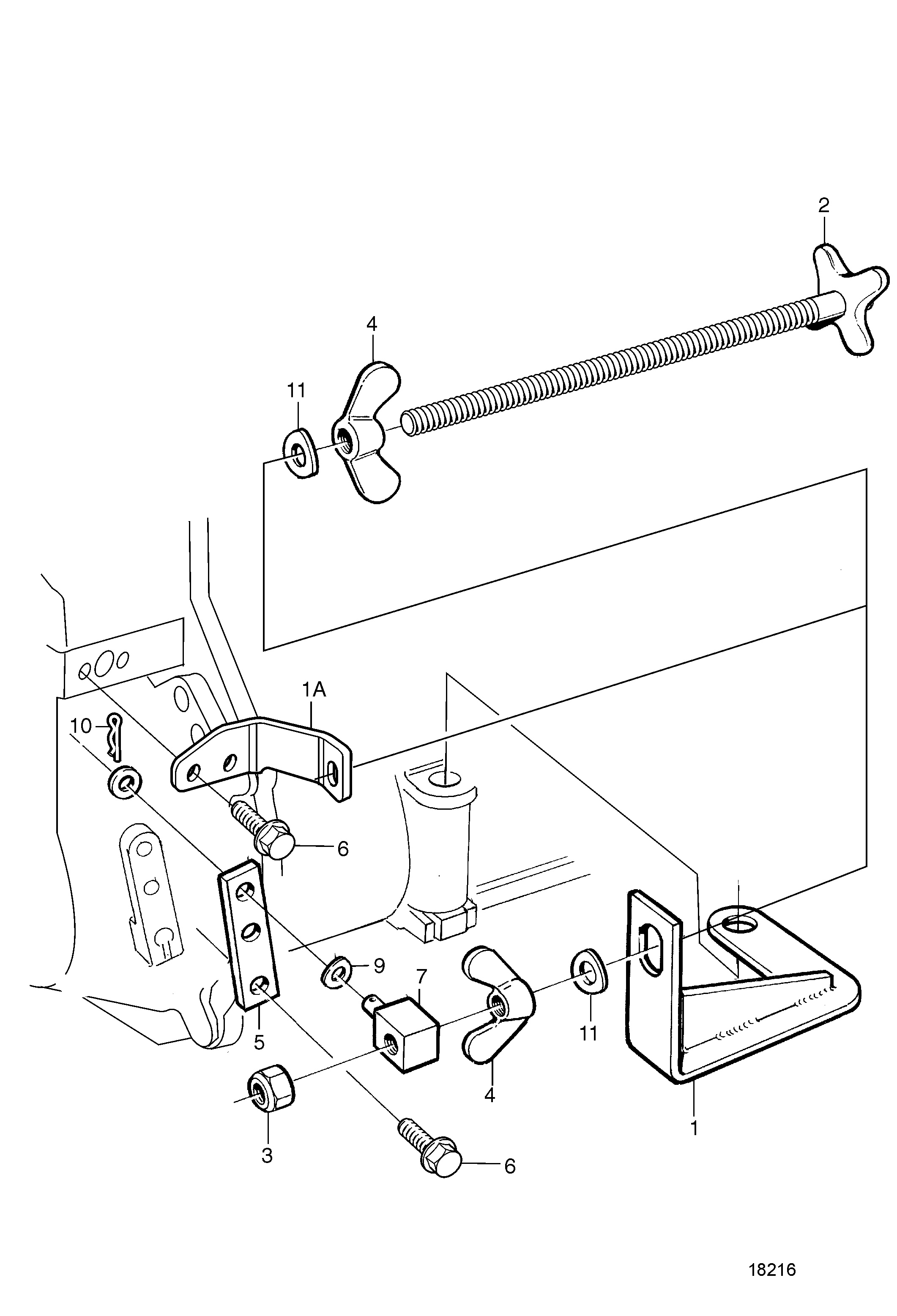

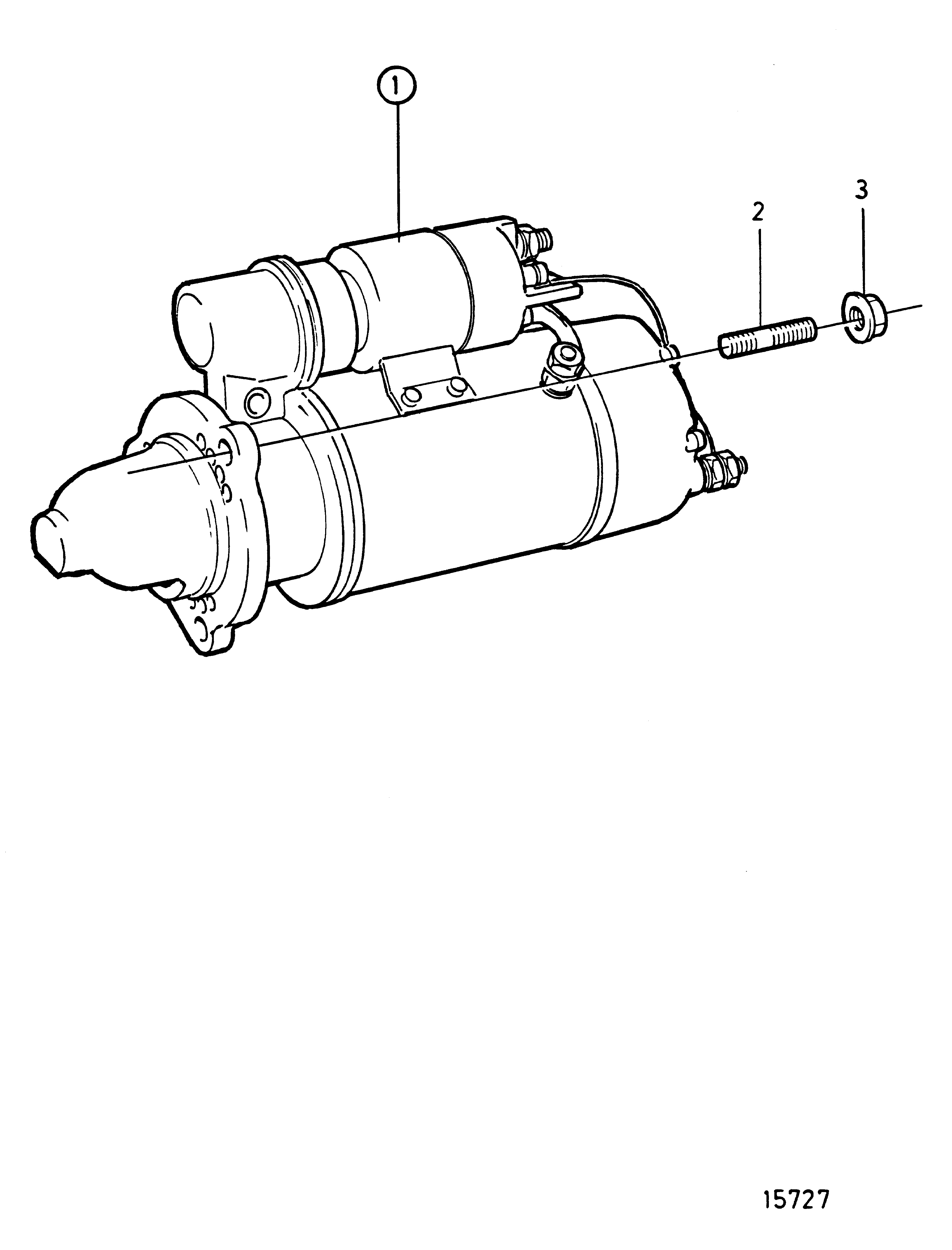

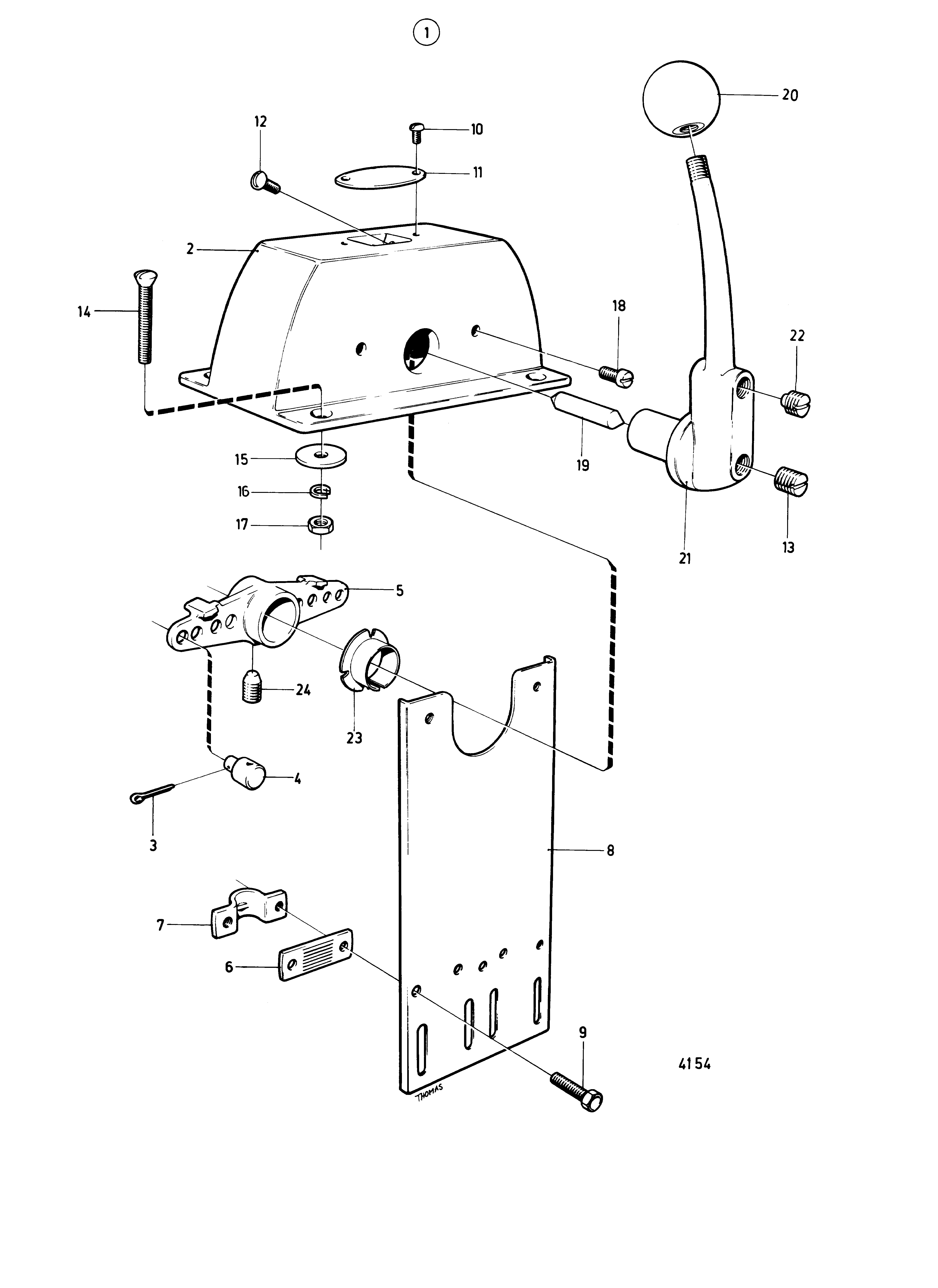

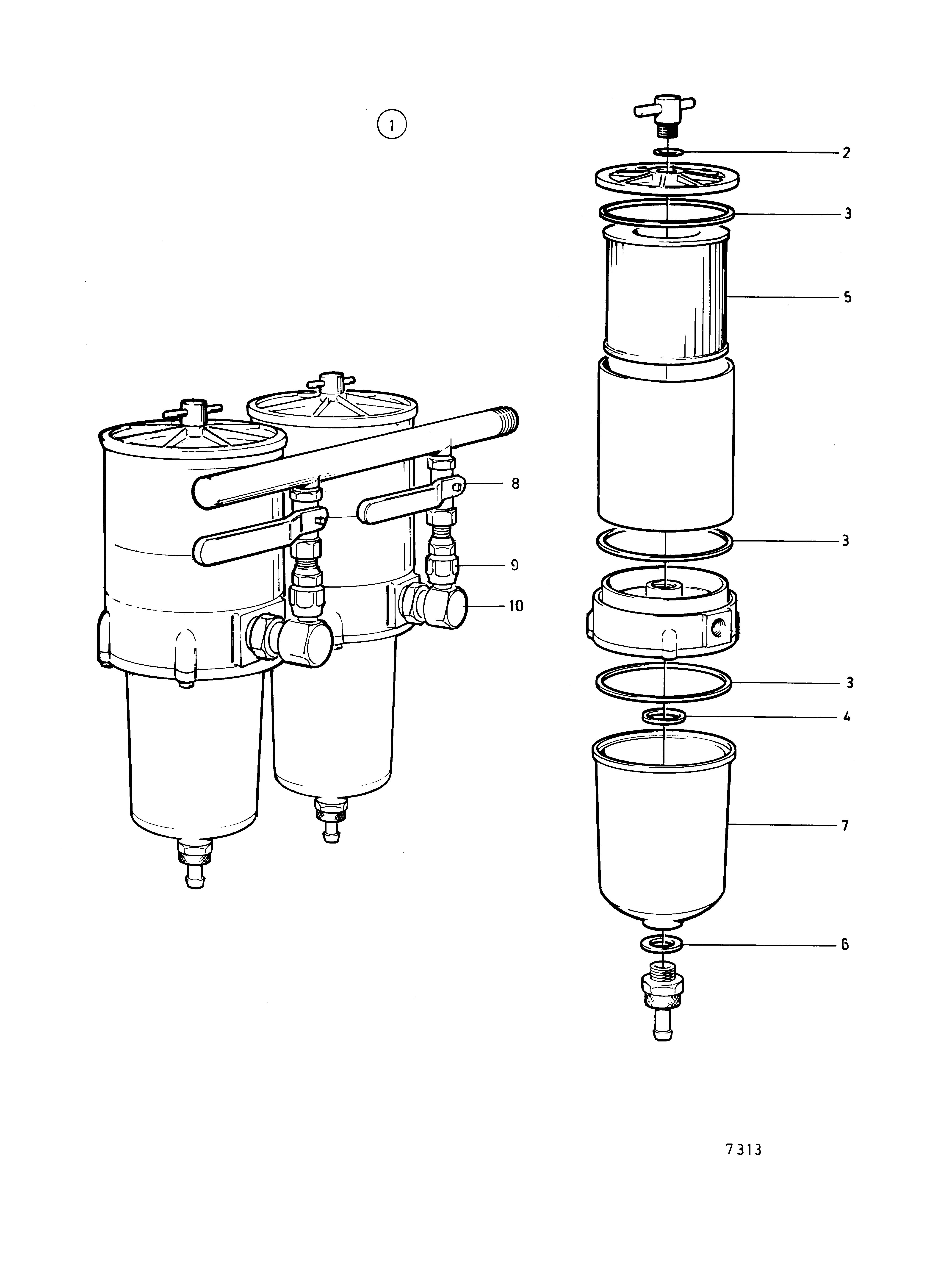

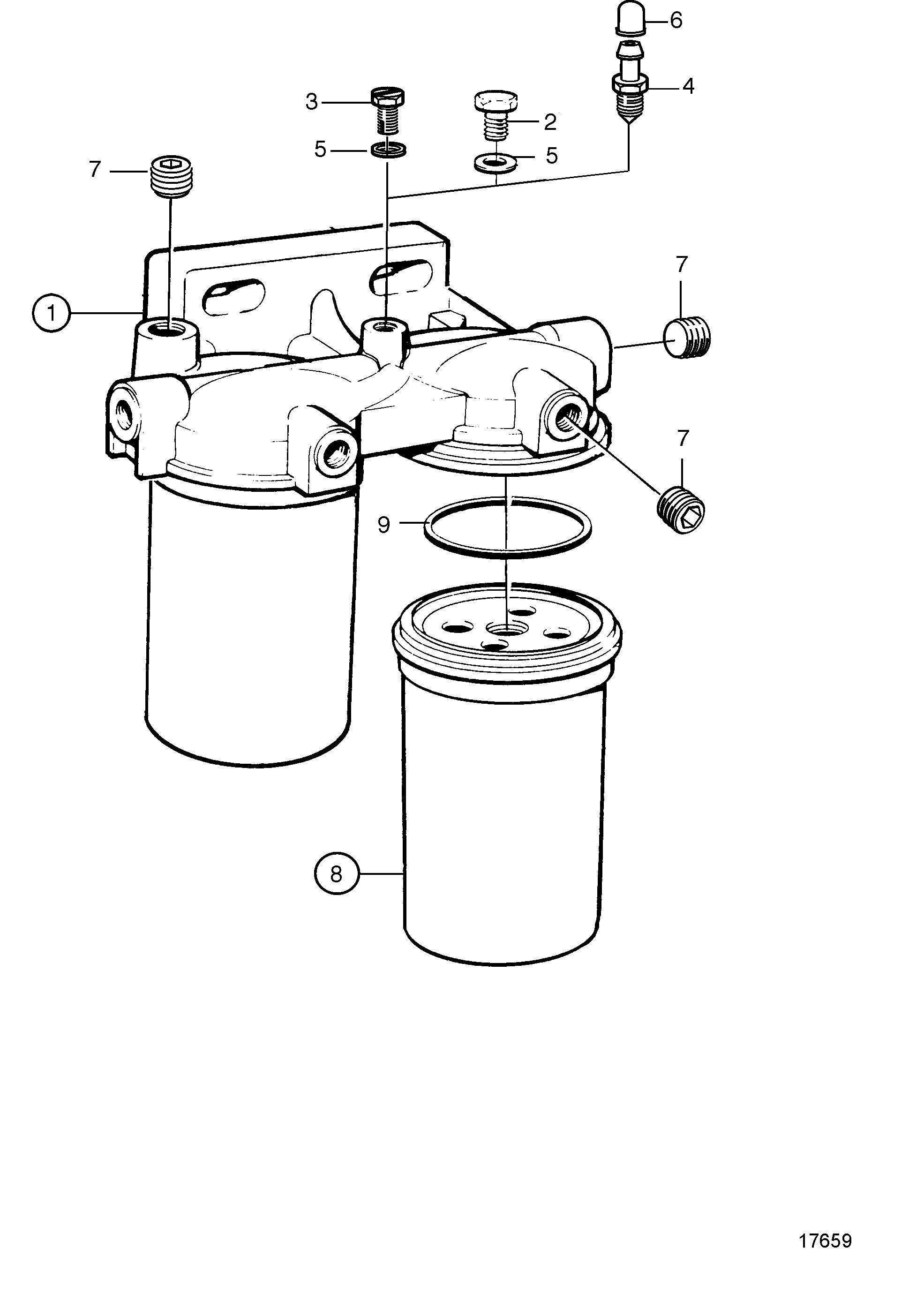

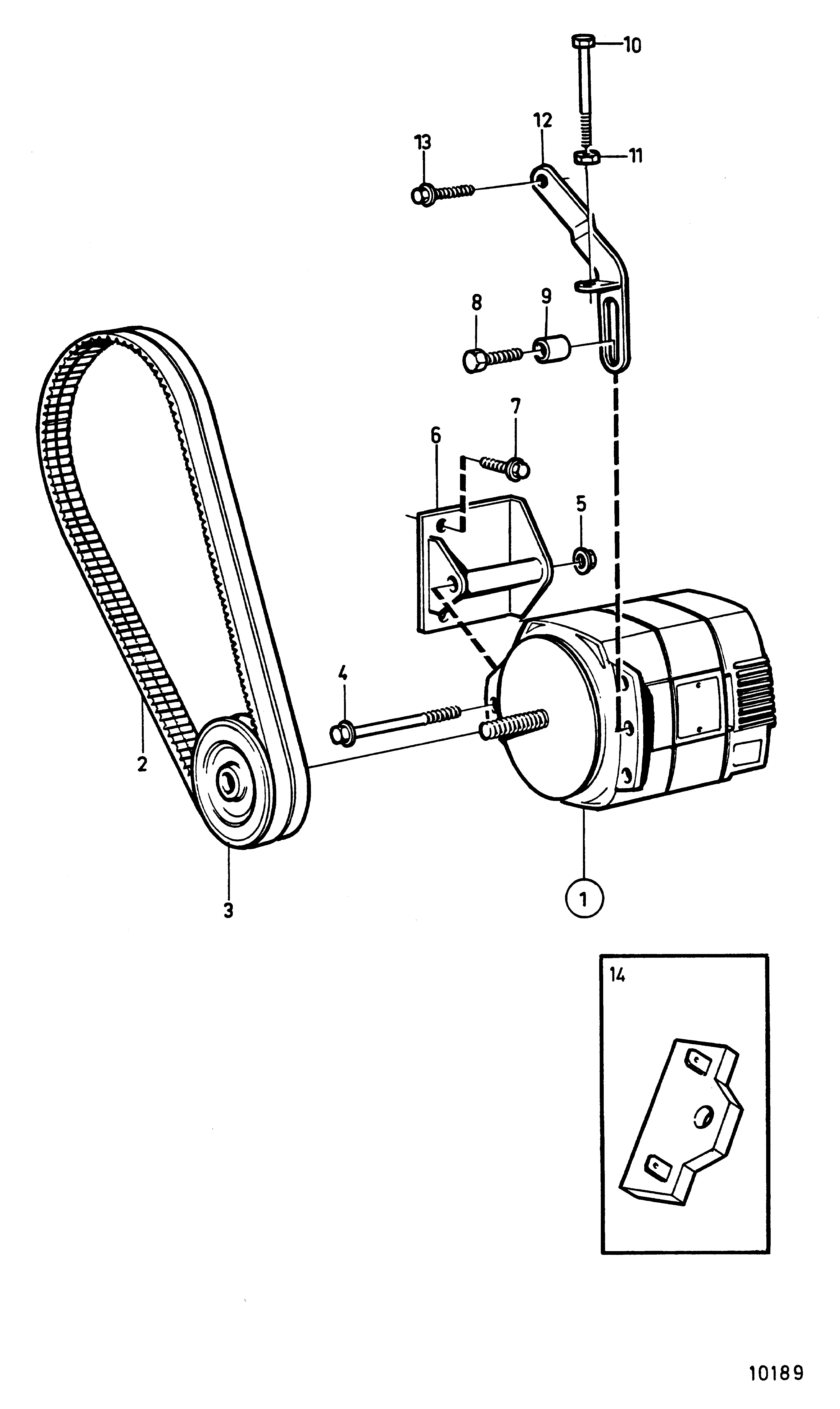

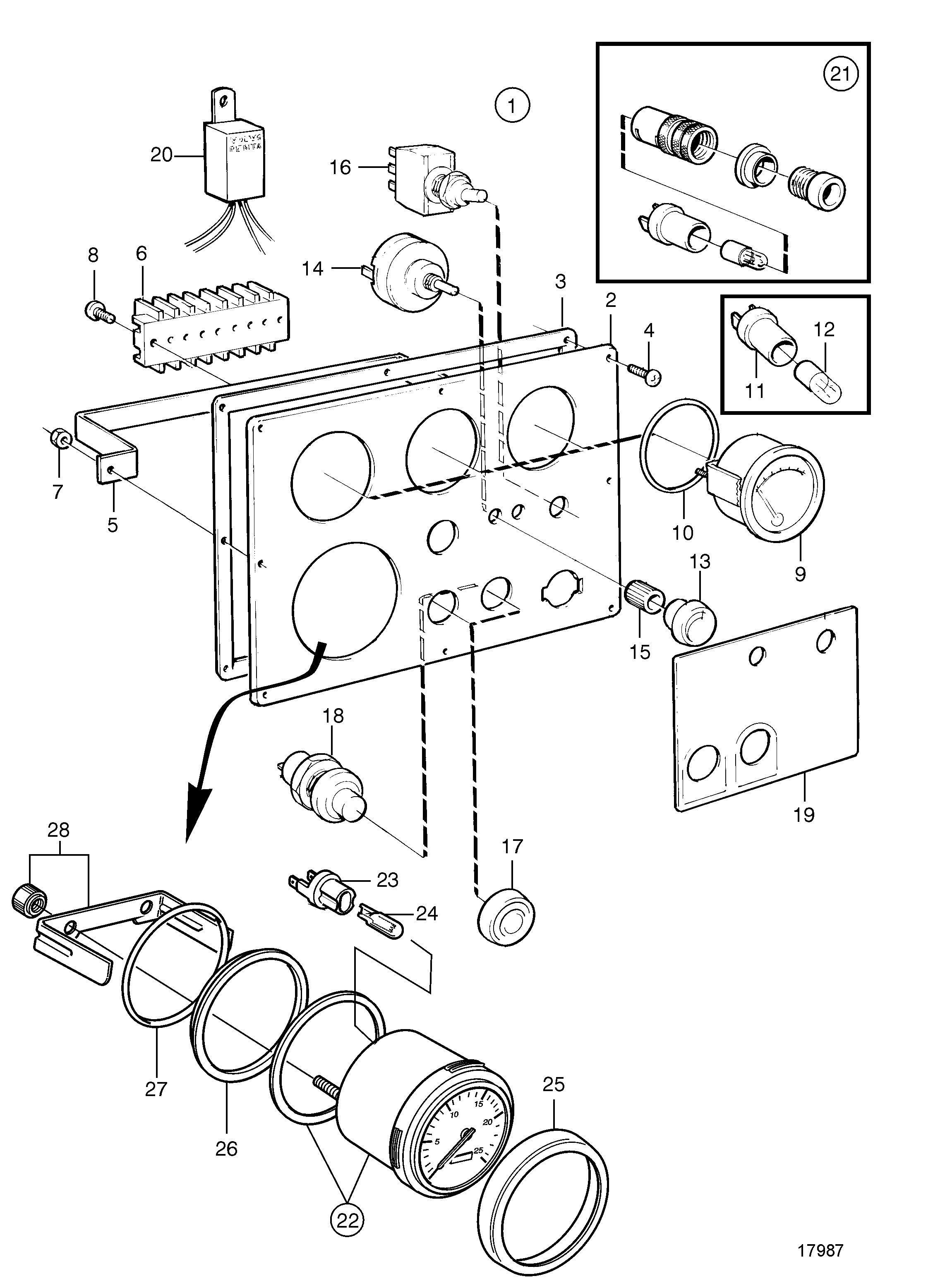

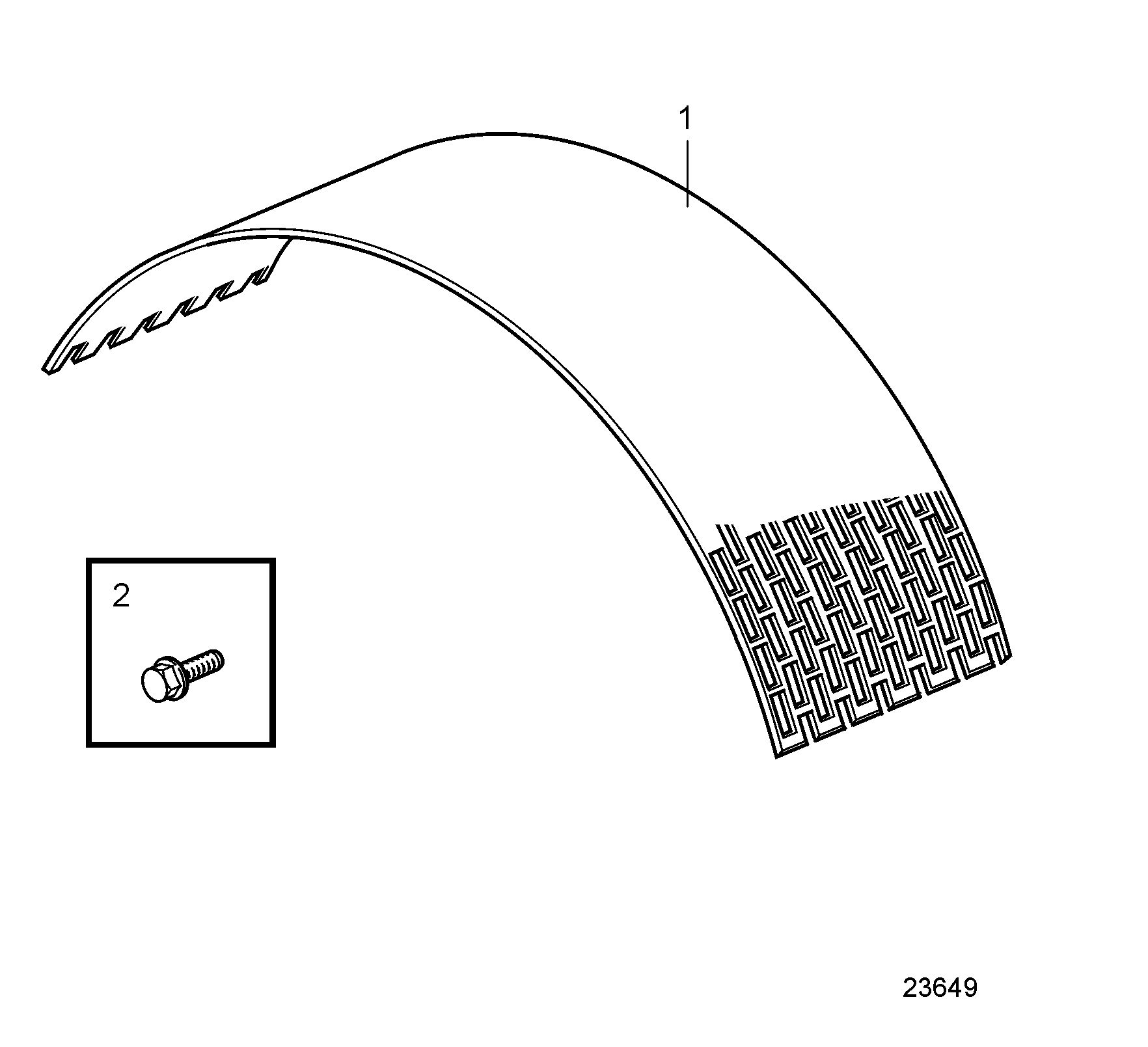

Select an exploded diagram for your Volvo penta tamd162a inboard engine
Volvo penta tamd162a
The Volvo penta tamd162a Inboard engine belongs to the 6-cylinder category and uses an in-line six-cylinder configuration. Its design combines a 16.123-liter displacement with direct fuel injection and piston cooling provided by lubricating oil.
Air compressed by the turbocharger passes through a seawater-cooled charge air cooler to reduce its temperature. The engine also features a separate cylinder head for each cylinder, four valves per head and replaceable wet cylinder liners, all of which are relevant to its construction and servicing.
Exploded diagrams for the Volvo penta tamd162a provide a clear view of the main mechanical assemblies and help locate individual components before servicing. They are therefore useful for finding compatible parts and identifying the references required for maintenance or repair work.
Volvo penta tamd162a engine features- Category: 6-cylinder corresponding to the engine cylinder count
- Displacement: 16.123 liters according to the supplied technical specifications
- Direct fuel injection used for the engine fuel supply
- Charge air cooling provided through a seawater-cooled system
- Replaceable wet cylinder liners designed to be renewed during mechanical servicing
View exploded diagrams Volvo penta tamd162a
