Parts and exploded diagrams for Volvo penta tamd122a engine
This page allows you to view the exploded diagrams for the Volvo penta tamd122a Inboard engine, belonging to the 6-cylinder category, and easily identify compatible parts for your engine.
Volvo Penta is a brand specialising in marine propulsion solutions. These exploded diagrams help identify the components and references required for the maintenance and repair of Inboard engines.
Select an exploded diagram for your Volvo penta tamd122a inboard engine
Volvo penta tamd122a
The Volvo penta tamd122a is an Inboard engine in the 6-cylinder category. The available specifications state an output of 610 HP at 2250 rpm, with dimensions of 190 x 100 x 120 cm and a listed weight of 1402 kg.
Its configuration includes an SAE-1 flywheel housing paired with a 14-inch flywheel, together with a 1 x 24 V starter and electrical governing. The turbo and exhaust system are water-cooled, while a raw-water pump and expansion tank are also included in the listed equipment.

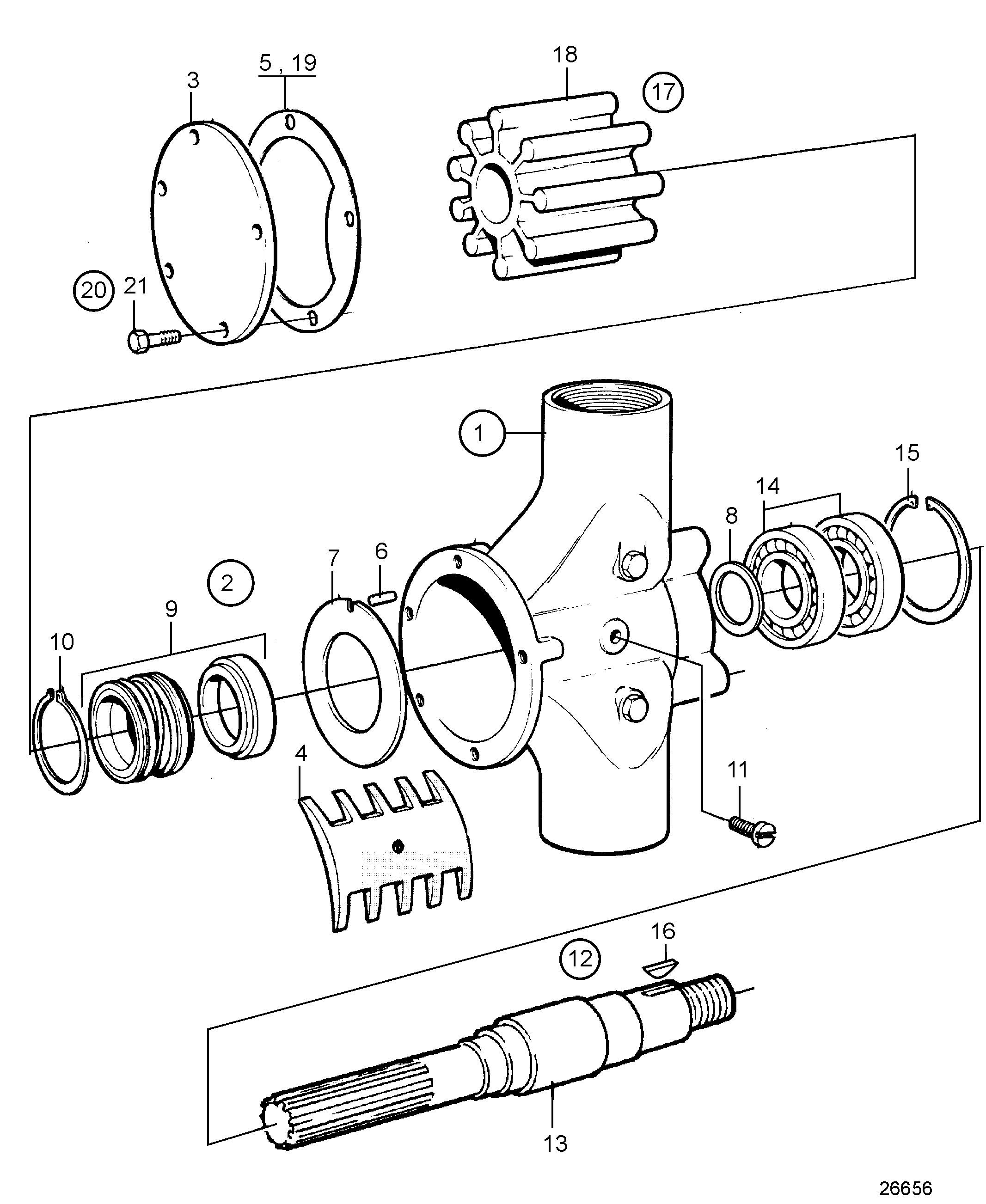

The exploded diagrams for the Volvo penta tamd122a provide a practical way to locate mechanical assemblies and individual components before servicing. Matching the parts shown in each diagram with their references helps identify compatible components for engine maintenance and repair.
Volvo penta tamd122a engine specifications- Category: 6-cylinder for this Inboard engine configuration
- Power: 610 HP at the specified speed of 2250 rpm
- Dimensions: 190 x 100 x 120 cm with a listed weight of 1402 kg
- Flywheel: 14 inches combined with an SAE-1 flywheel housing
- Water cooling used for the turbo and exhaust system
View exploded diagrams Volvo penta tamd122a
