Parts and exploded diagrams for Volvo penta d100brc engine
This page allows you to view the exploded diagrams for the Volvo penta d100brc Inboard engine, belonging to the 6-cylinder category, and easily identify compatible parts for your engine.
Volvo Penta is a brand specializing in marine propulsion solutions. These exploded diagrams make it easier to identify the components and references required for the maintenance and repair of Inboard engines.
Select an exploded diagram for your Volvo penta d100brc inboard engine
Volvo penta d100brc
The Volvo penta d100brc is an Inboard engine in the 6-cylinder category. The available technical data for this series specifies a total displacement of 9.6 dm3 (litres), together with a 120.65 mm bore and a 140 mm stroke, useful values for identifying the engine's main internal components.
Its operating configuration includes a 1–5–3–6–2–4 firing order as well as wet, removable cylinder liners. These design features assist with identifying the relevant components during inspection, dismantling and engine overhaul procedures.

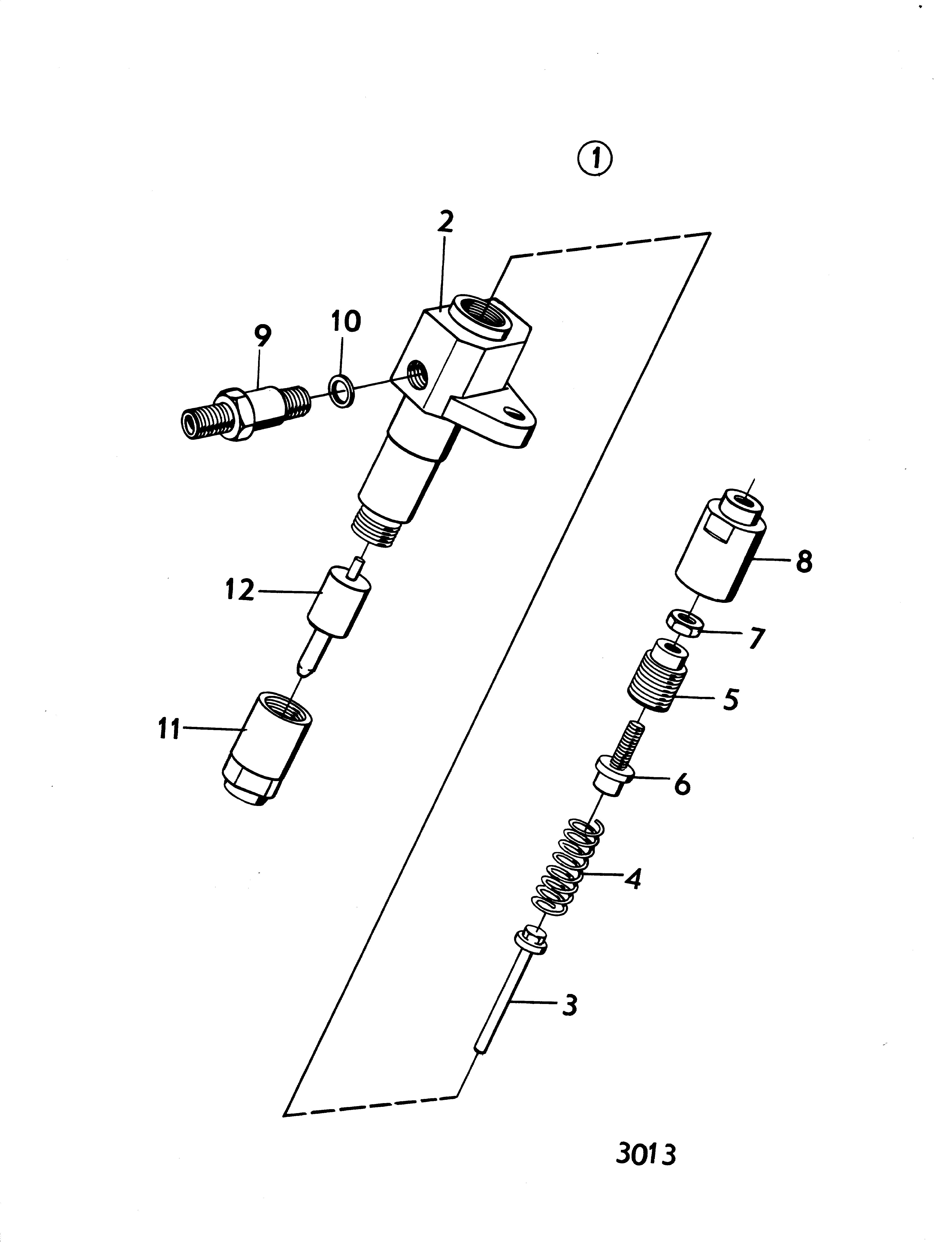

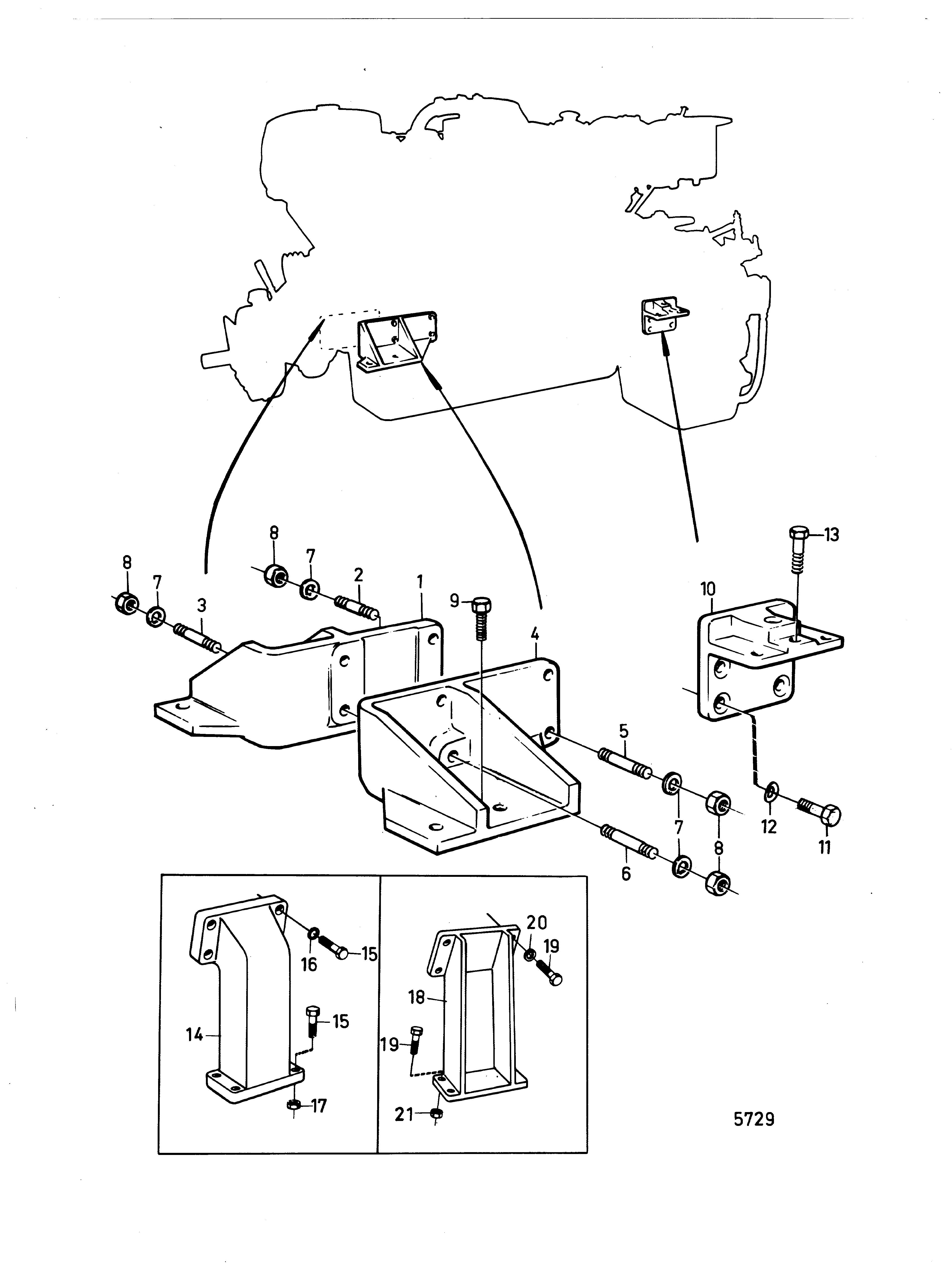

For maintenance of the Volvo penta d100brc, exploded diagrams provide a detailed view of the different assemblies and make it easier to locate suitable references. They help identify component positions, prepare repair work and check part compatibility before replacement.
Volvo penta d100brc engine specifications- Bore: 120.65 mm, the cylinder dimension specified for this series
- Stroke: 140 mm, the stated piston travel measurement
- Total displacement: 9.6 dm3 (litres), the total capacity listed in the technical specifications
- Firing order: 1–5–3–6–2–4, the specified cylinder operating sequence
- Category: 6-cylinder, identifying the engine according to its number of cylinders
View exploded diagrams Volvo penta d100brc
