Parts and exploded diagrams for Volvo penta aqd70b engine
This page allows you to view the exploded diagrams for the Volvo penta aqd70b Inboard engine, belonging to the 6-cylinder category, and easily identify compatible parts for your engine.
Volvo Penta is a brand specialising in marine propulsion solutions. These exploded diagrams make it easier to identify components and references required for the maintenance and repair of Inboard engines.

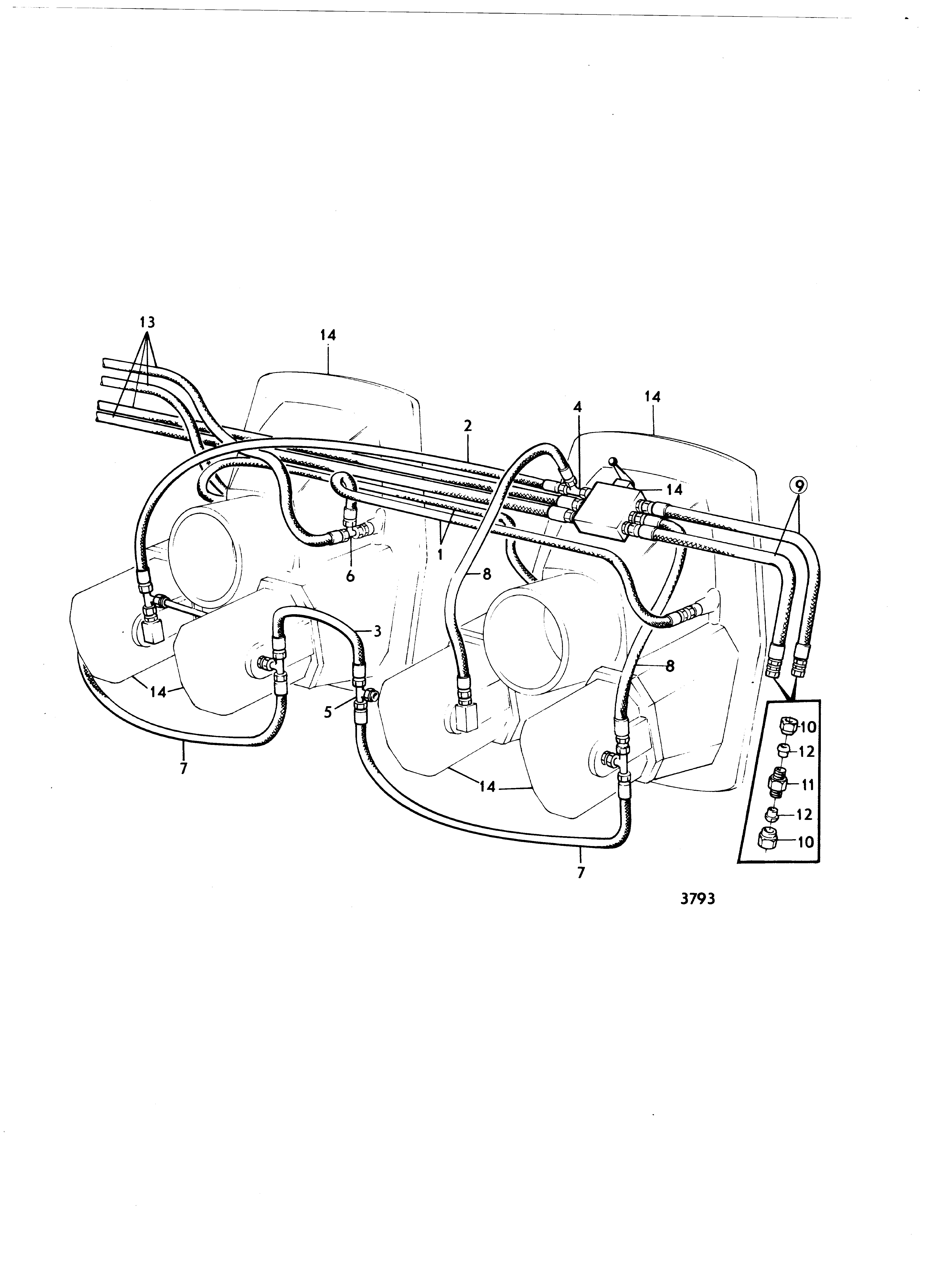

Select an exploded diagram for your Volvo penta aqd70b inboard engine
Volvo penta aqd70b
The Volvo penta aqd70b is a marine Inboard engine in the 6-cylinder category. The supplied information specifies a displacement of 6.73 litres and an output of 184 kW (250 HP). This four-stroke diesel engine is part of the Volvo Penta 70 Series covered by the technical documentation.
Its design uses direct fuel injection and a thermostatically controlled cooling system. On the marine engines covered by this series, cooling combines a freshwater circuit with a seawater circuit through a heat exchanger. Components listed for the aqd70b include the turbocharger, fuel system, injectors, pumps and various cooling-system components.
The exploded diagrams for the Volvo penta aqd70b help locate mechanical assemblies and individual components before maintenance or repair work. They simplify the search for references relating to the engine, fuel system, cooling, lubrication and electrical equipment, making it easier to identify compatible parts accurately.
Volvo penta aqd70b engine specifications- Category: 6-cylinder corresponding to the stated number of cylinders for this engine
- Power: 184 kW (250 HP) according to the information supplied for the aqd70b
- Displacement: 6.73 l for the engine's total displacement
- Fuel: diesel with four-stroke operation
- Direct injection used for the engine's fuel supply
View exploded diagrams Volvo penta aqd70b
