Parts and exploded diagrams for Volvo penta aq311b engine
This page allows you to view the exploded diagrams for the Volvo penta aq311b Inboard engine, belonging to the 8-cylinder category, and easily identify the compatible parts for your engine.
Volvo Penta is a brand specialising in marine propulsion solutions. These exploded diagrams make it easier to identify the components and part numbers required to maintain and repair Inboard engines.
Select an exploded diagram for your Volvo penta aq311b inboard engine
Volvo penta aq311b
Designed for Inboard marine propulsion, the Volvo penta aq311b is an 8-cylinder petrol engine producing 307 HP, equivalent to 225 kW. Its total displacement of approximately 5.735 dm³ is paired with a full-throttle operating range of 4,600 to 5,200 rpm.
Its design incorporates a four-barrel, two-stage carburettor and a breakerless electronic ignition system. Thermostatically controlled seawater cooling uses an impeller pump and a separate circulation pump to maintain an even temperature throughout the engine block.

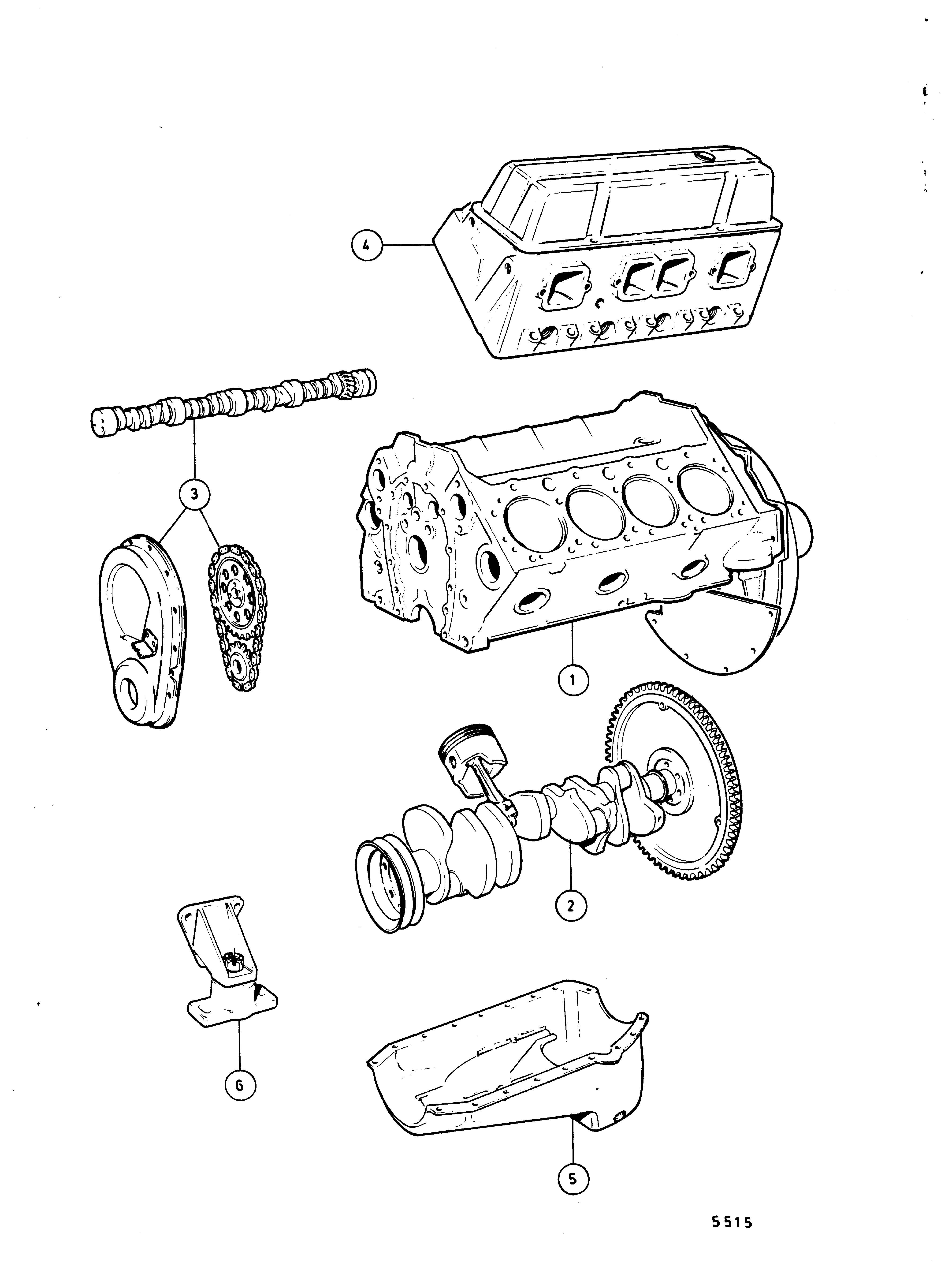

When servicing the fuel, ignition or cooling systems and internal engine components, the exploded diagrams provide a clear way to locate each item. They help users compare part numbers and choose the compatible parts required for maintenance or repairs on the Volvo penta aq311b.
Volvo penta aq311b engine specifications- Category: 8-cylinder, a configuration designed to provide consistent power in marine applications
- Power: 307 HP (225 kW), measured at the crankshaft
- Displacement: approximately 5.735 dm³, corresponding to 350 cu in in the technical data
- Fuel: petrol, with a minimum rating of 91 RON and compatibility with unleaded petrol
- Seawater cooling, featuring thermostatic control and dedicated circulation through the engine block
View exploded diagrams Volvo penta aq311b
