Parts and exploded diagrams for Volvo penta aq271d engine
This page allows you to view the exploded diagrams for the Volvo penta aq271d Inboard engine, belonging to the 8-cylinder category, and easily identify the compatible parts for your engine.
Volvo Penta is a brand specialising in marine propulsion solutions. These exploded diagrams make it easier to identify the components and references required to maintain and repair Inboard engines.

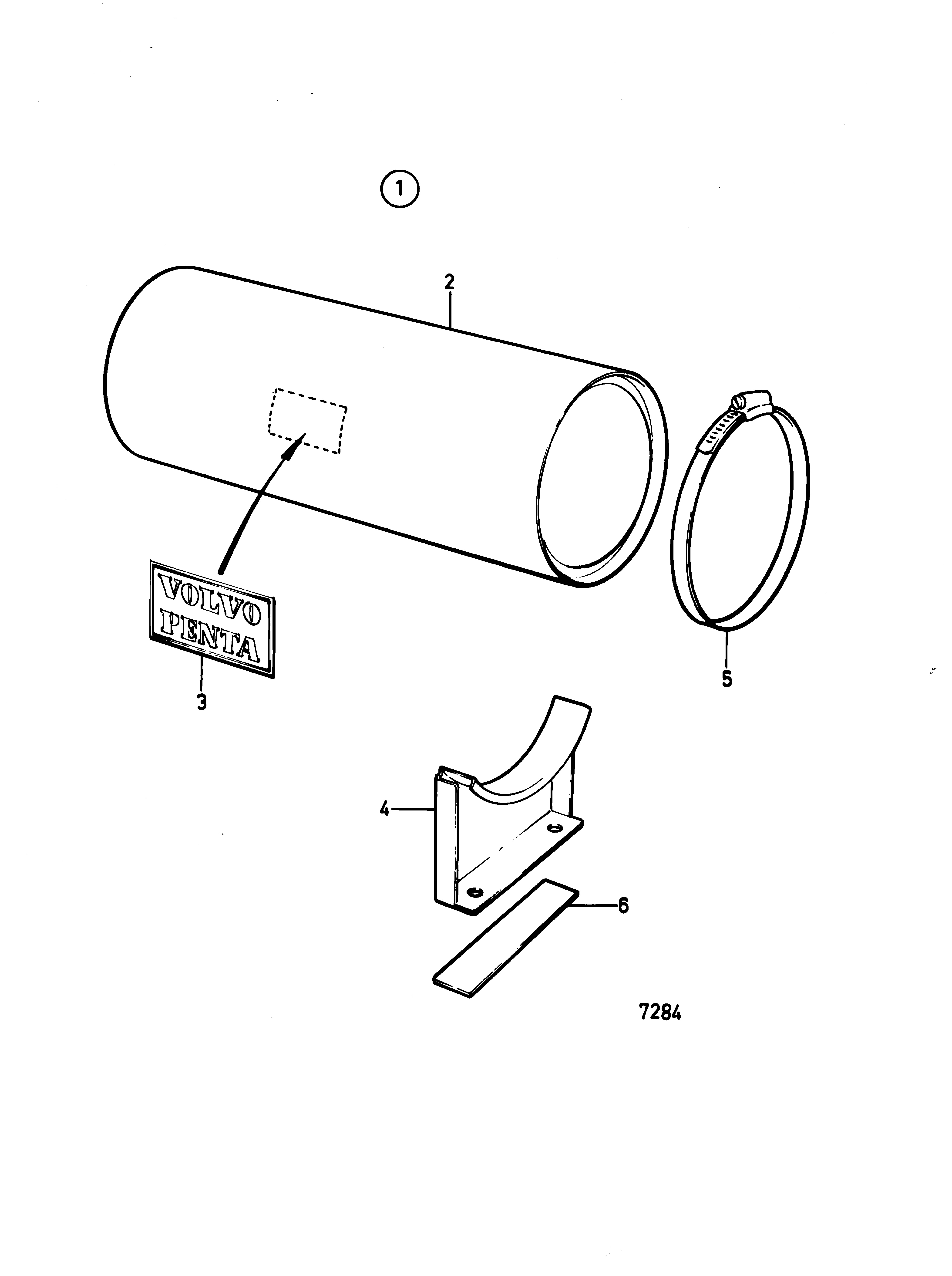

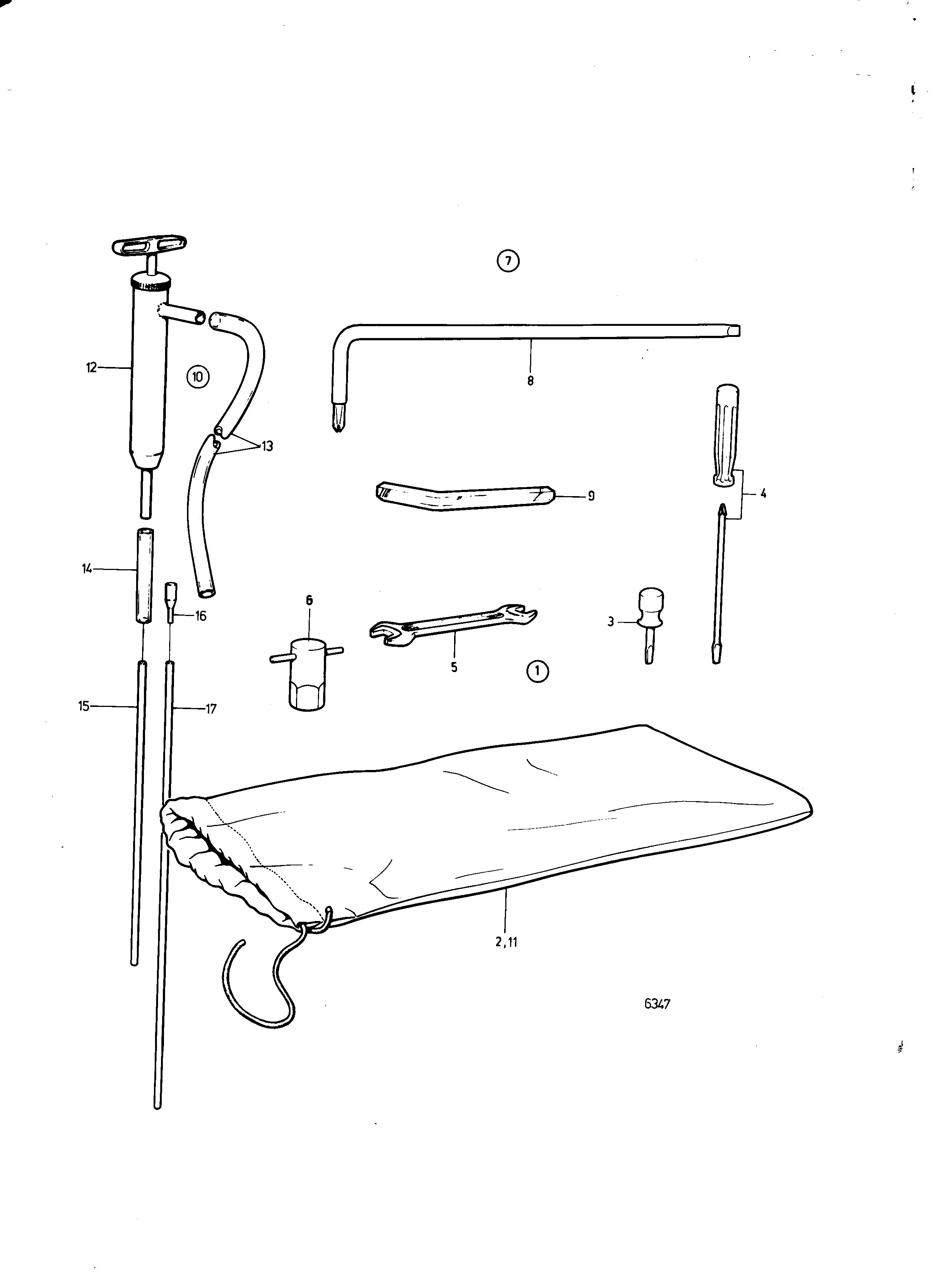

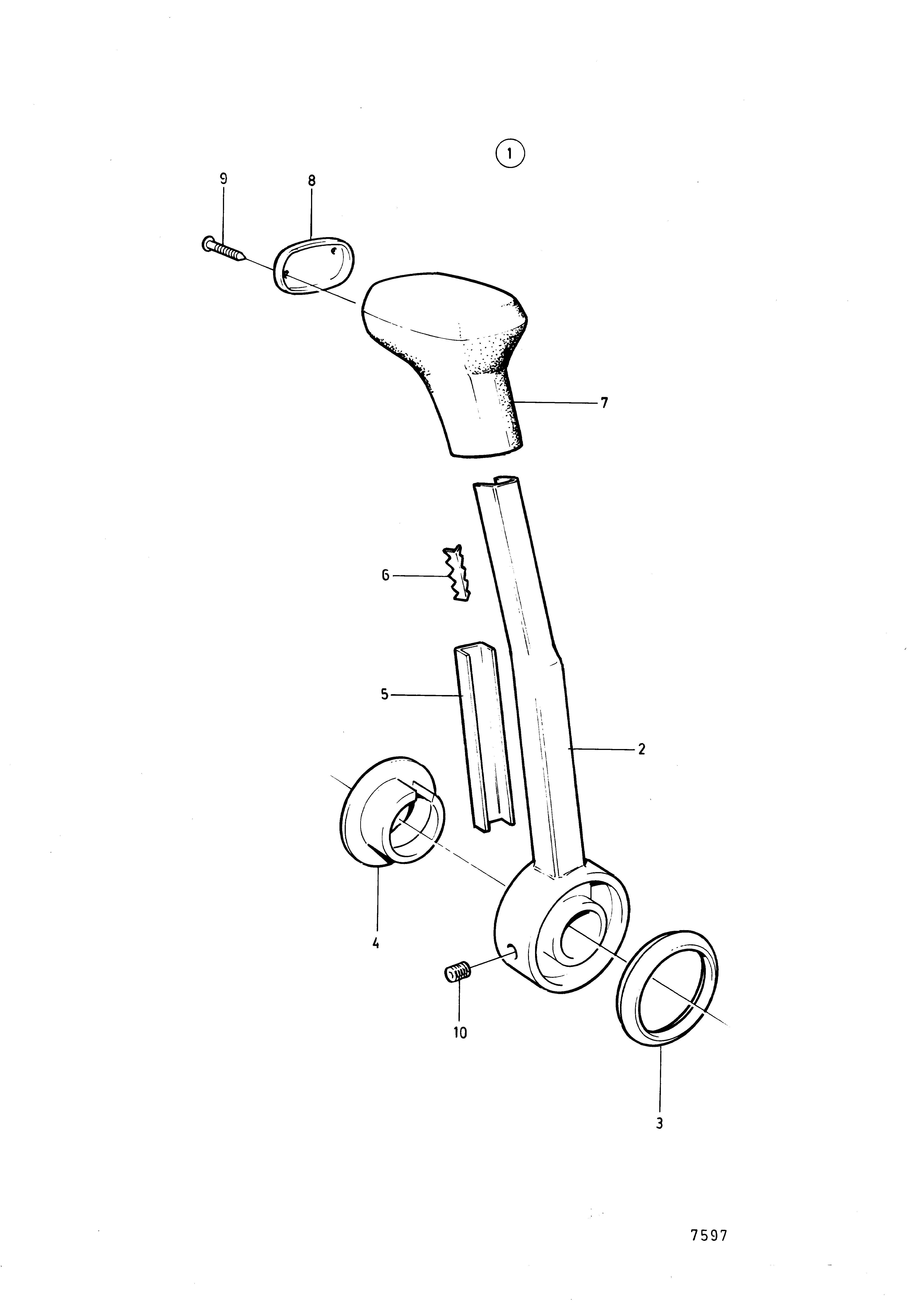

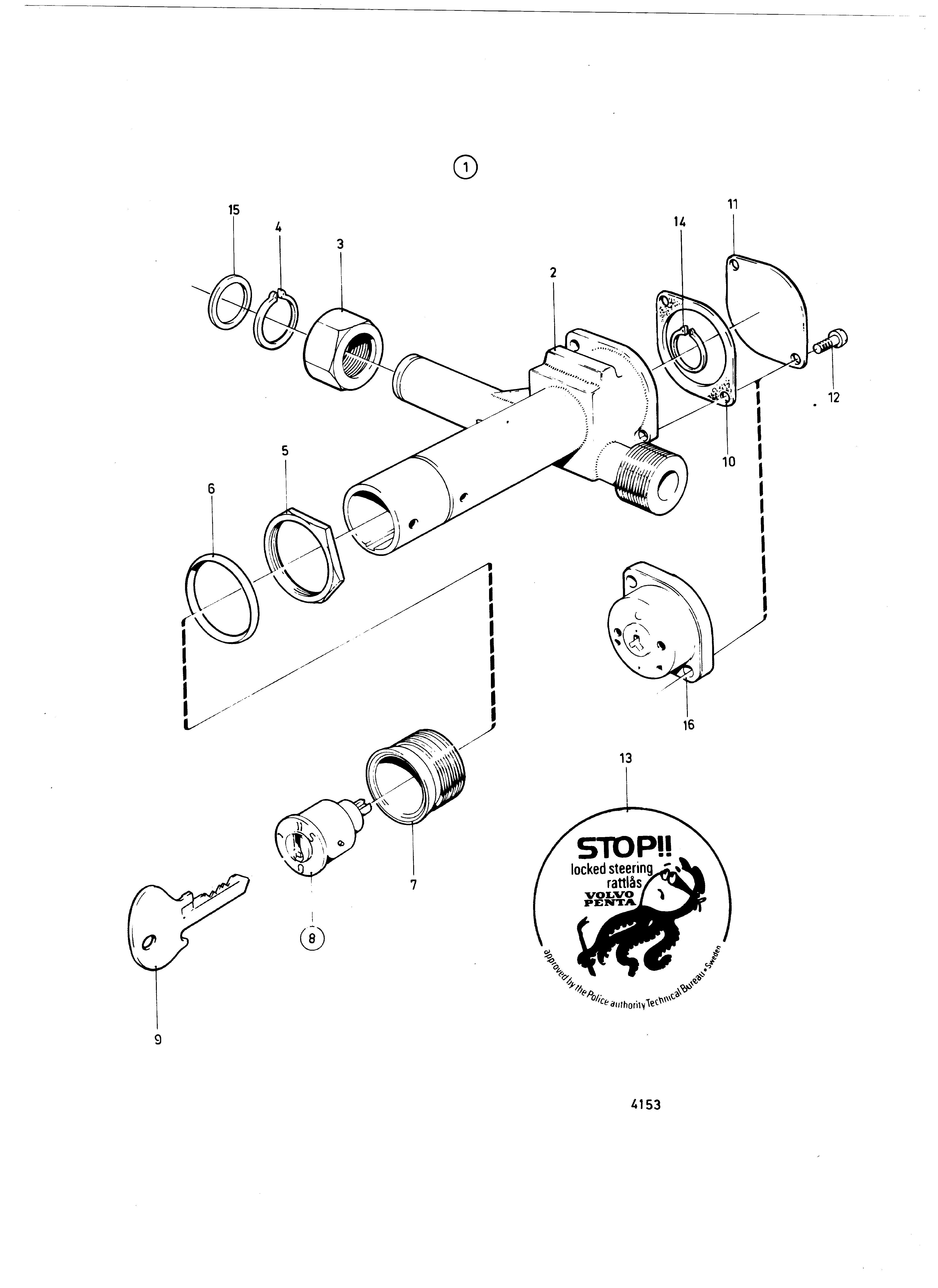

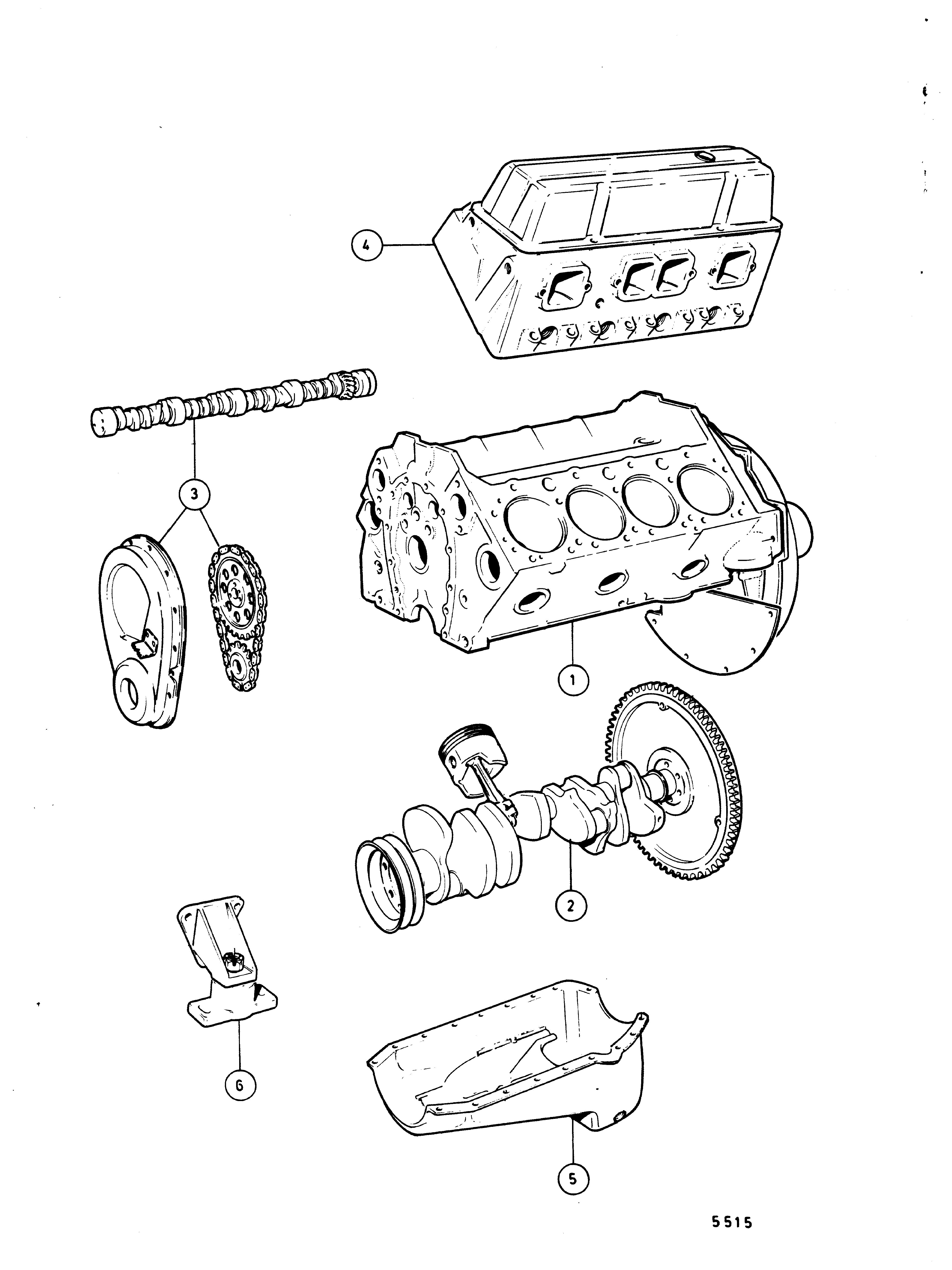

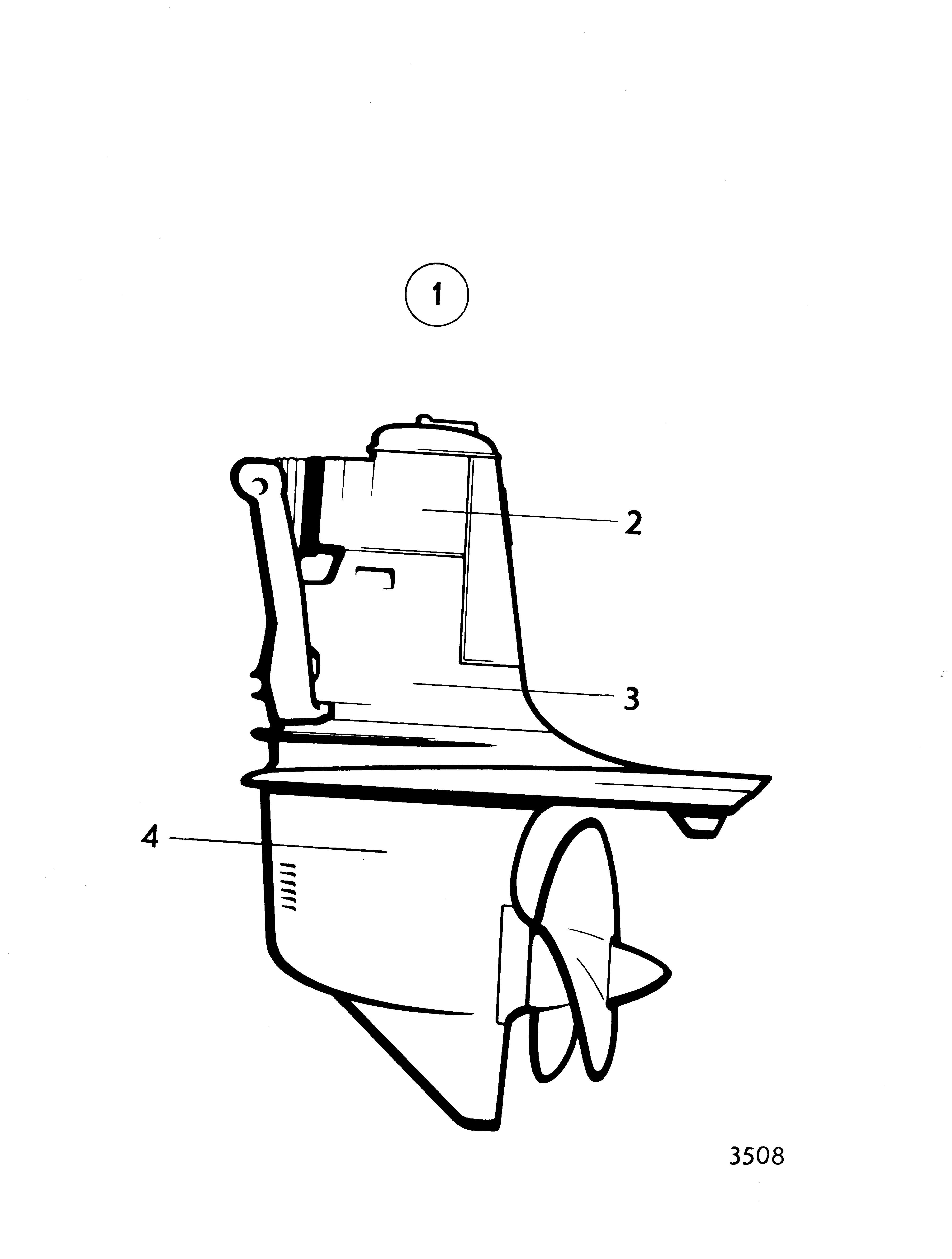

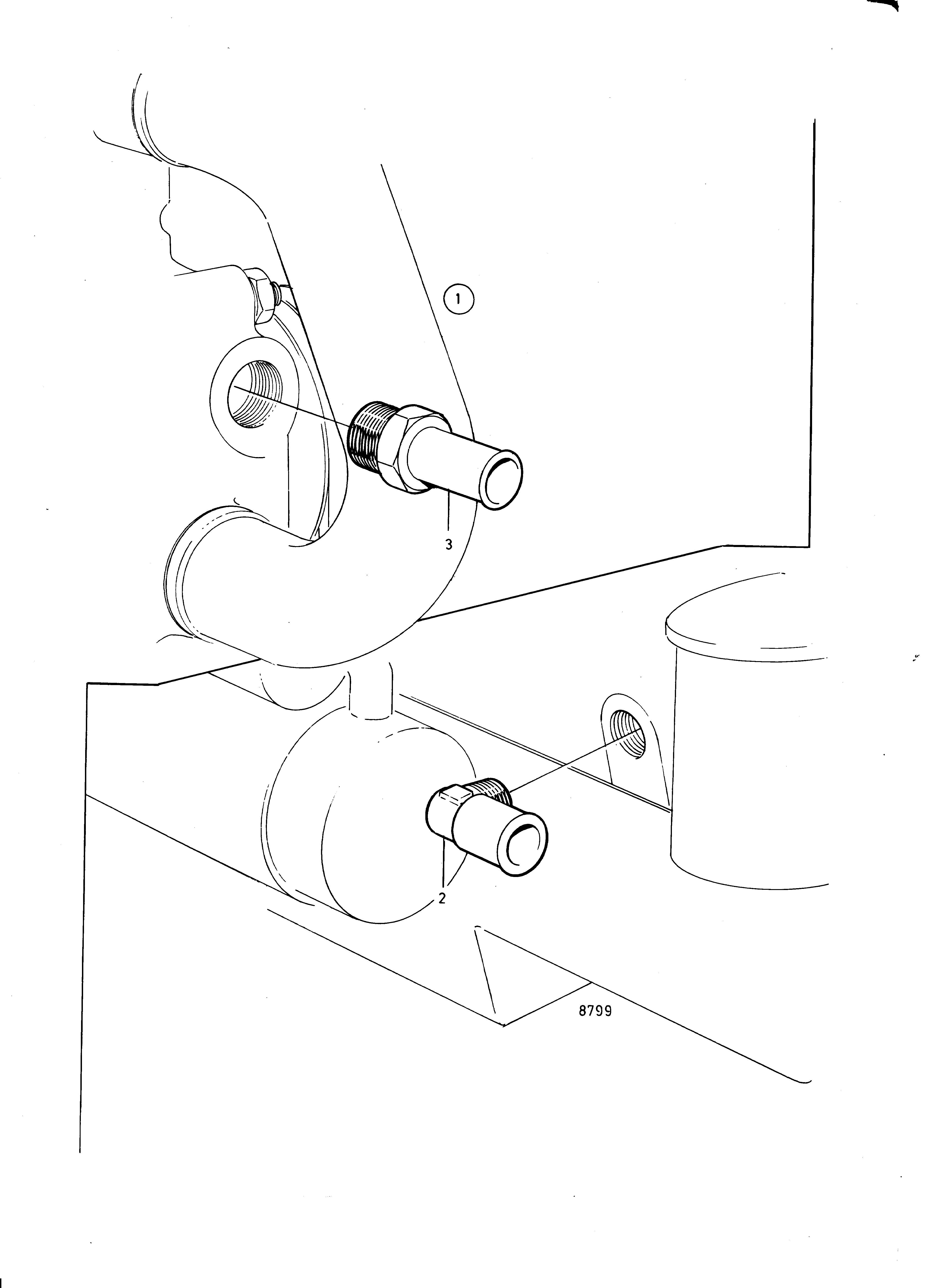

Select an exploded diagram for your Volvo penta aq271d inboard engine
Volvo penta aq271d
The Volvo penta aq271d is a gasoline-fuelled Inboard engine producing 275 HP, equivalent to 202 kW. As an 8-cylinder model, it is designed to propel recreational boats and certain vessels used for light commercial duties.
Its V8 architecture promotes balanced operation while helping to limit vibration on board. The compact design suits engine rooms where space is restricted, and the liquid-cooling system helps control operating temperature while the boat is underway.
Exploded diagrams provide a clear way to locate engine elements, including fuel, cooling, ignition and lubrication components. By comparing the installed parts with the diagrams, users can identify exact references and select compatible parts for servicing or repairing the Volvo penta aq271d.
Volvo penta aq271d engine specifications- Category: 8-cylinder for a marine engine built around eight cylinders
- Architecture: V8 to support smooth and balanced engine operation
- Power: 275 HP (202 kW) to meet the propulsion requirements of suitable boats
- Fuel: gasoline with a fuel system intended for this Inboard engine
- Cooling: liquid-cooled to help manage engine temperature during operation
View exploded diagrams Volvo penta aq271d
