Parts and exploded diagrams for Volvo penta aq271a engine
This page allows you to view the exploded diagrams for the Volvo penta aq271a Inboard engine, belonging to the 8-cylinder category, and easily identify the compatible parts for your engine.
Volvo Penta is a brand specialising in marine propulsion solutions. These exploded diagrams make it easier to identify the components and part numbers required to maintain and repair Inboard engines.
Select an exploded diagram for your Volvo penta aq271a inboard engine
Volvo penta aq271a
The Volvo penta aq271a is an 8-cylinder petrol Inboard engine with a total displacement of approximately 5.735 dm³. Its full-throttle operating range extends from 4,200 to 4,600 rpm.
Fuel is supplied by a four-barrel, two-stage carburettor combined with a breakerless electronic ignition system. Thermostatically controlled seawater cooling uses an impeller pump and a separate circulation pump to maintain an even temperature throughout the engine block.

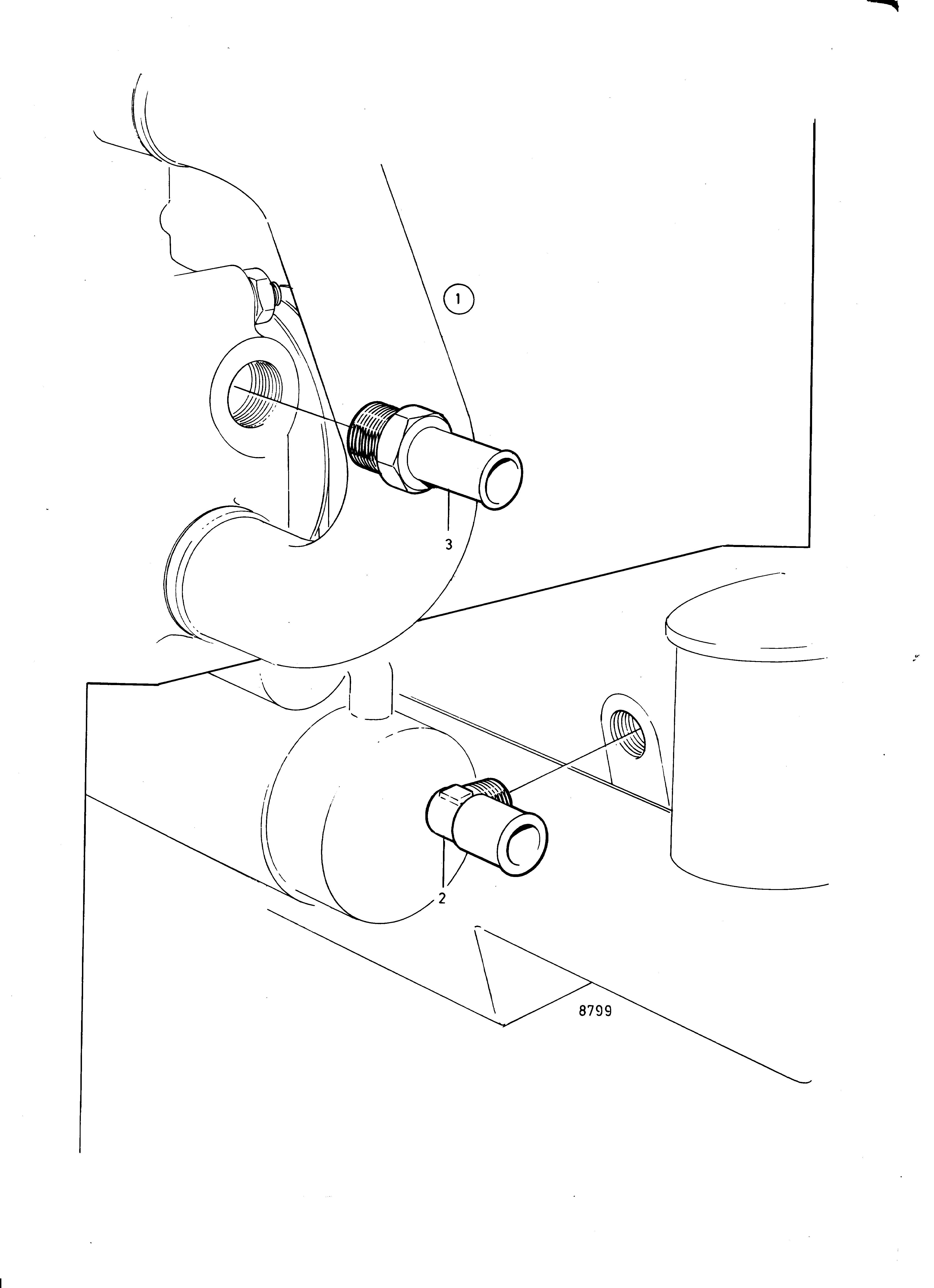

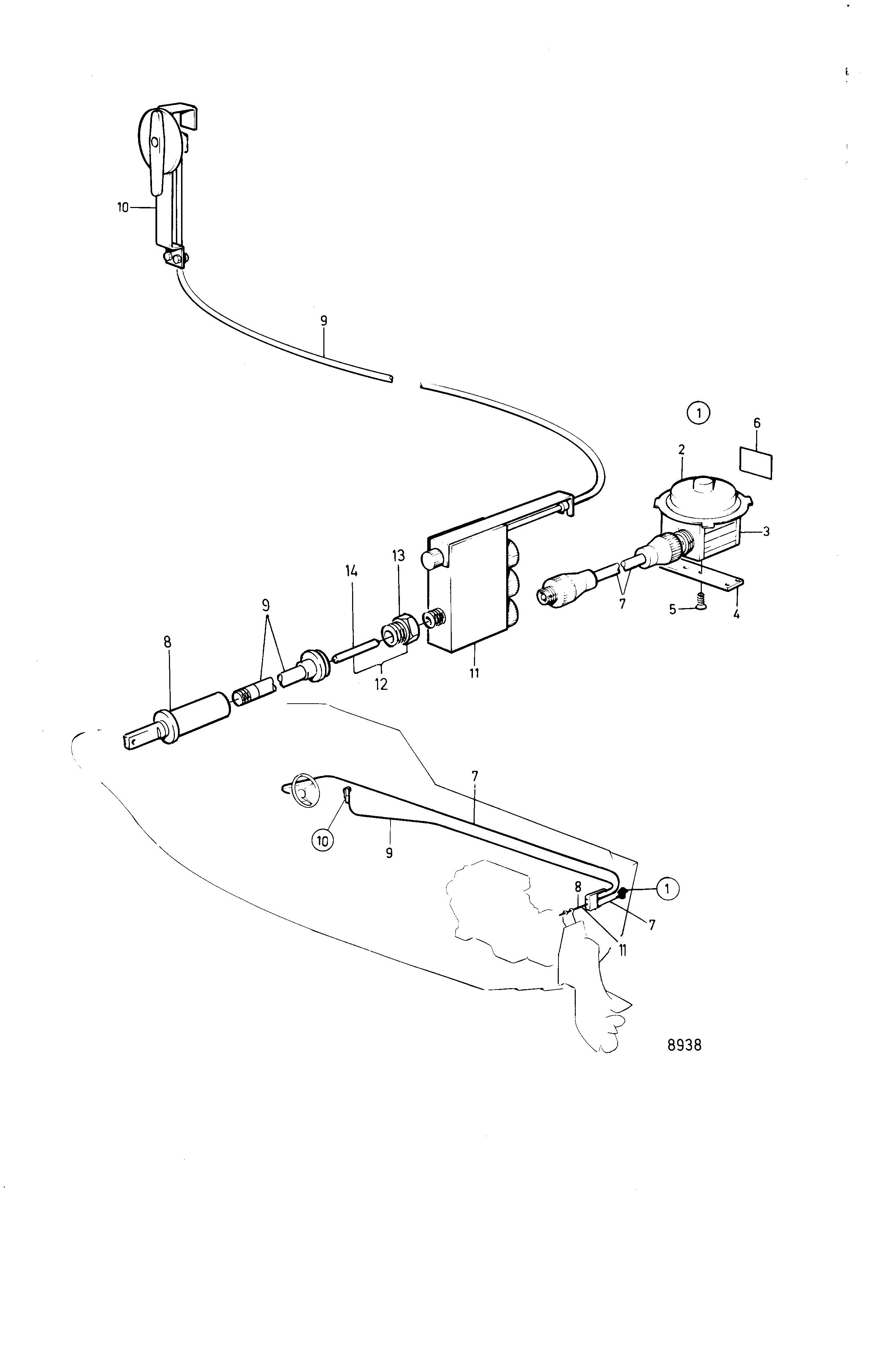

The exploded diagrams help locate carburettor, alternator, cylinder head, crankshaft and cooling-system components accurately. They simplify part-number identification and the selection of compatible parts required for engine servicing or repair.
Volvo penta aq271a engine specifications- Category: 8-cylinder, a confirmed configuration for this marine engine
- Total displacement: approximately 5.735 dm³, according to the engine block specifications
- Carburettor: four-barrel and two-stage, supplying the engine with fuel
- Breakerless electronic ignition, used to control the ignition system
- Seawater cooling, with thermostatic control and a circulation pump
View exploded diagrams Volvo penta aq271a
