Parts and exploded diagrams for Volvo penta aq170c engine
This page allows you to view the exploded diagrams for the Volvo penta aq170c Inboard engine, belonging to the 6-cylinder category, and easily identify the compatible parts for your engine.
Volvo Penta is a brand specialising in marine propulsion solutions. These exploded diagrams help identify the components and part references required for the maintenance and repair of Inboard engines.

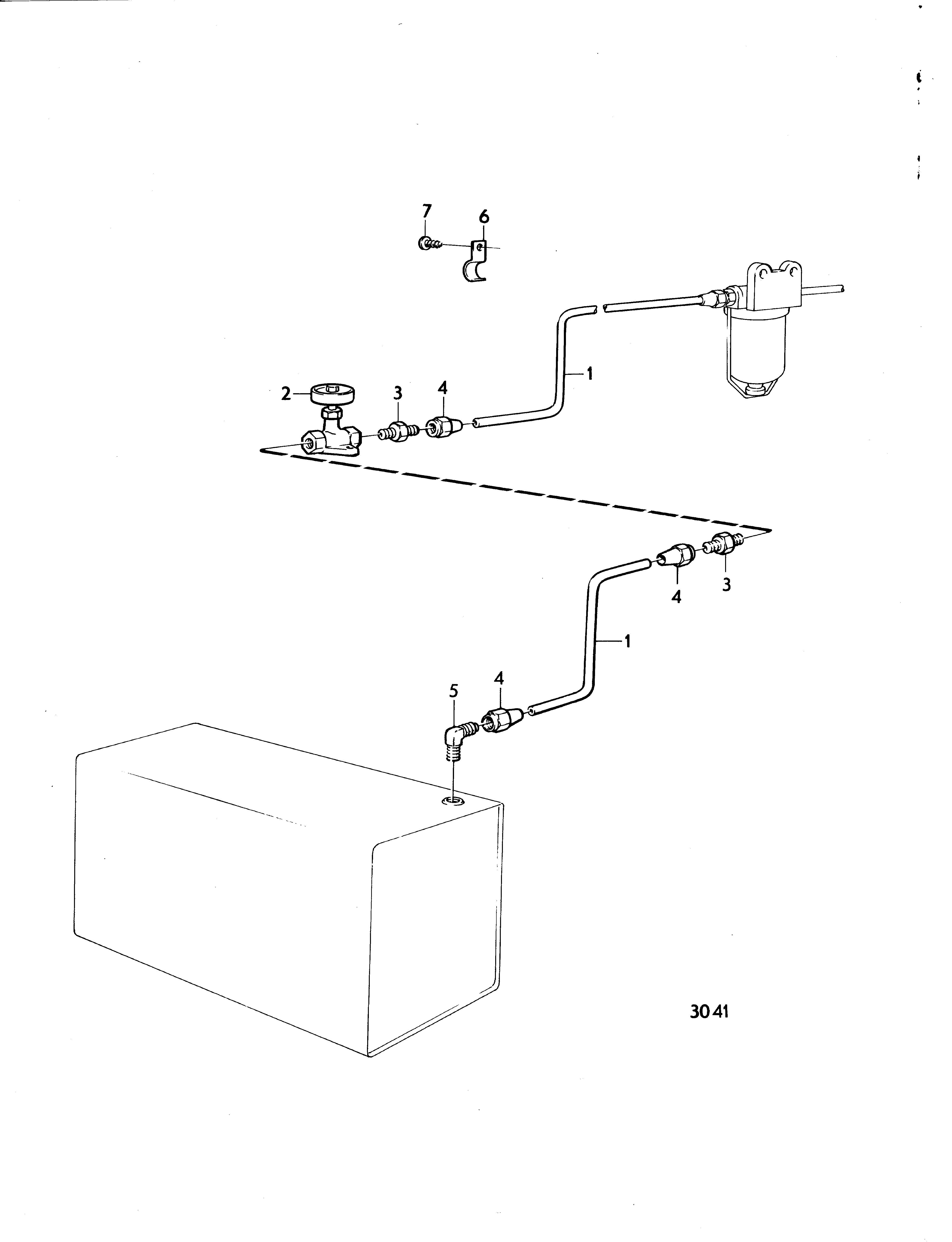

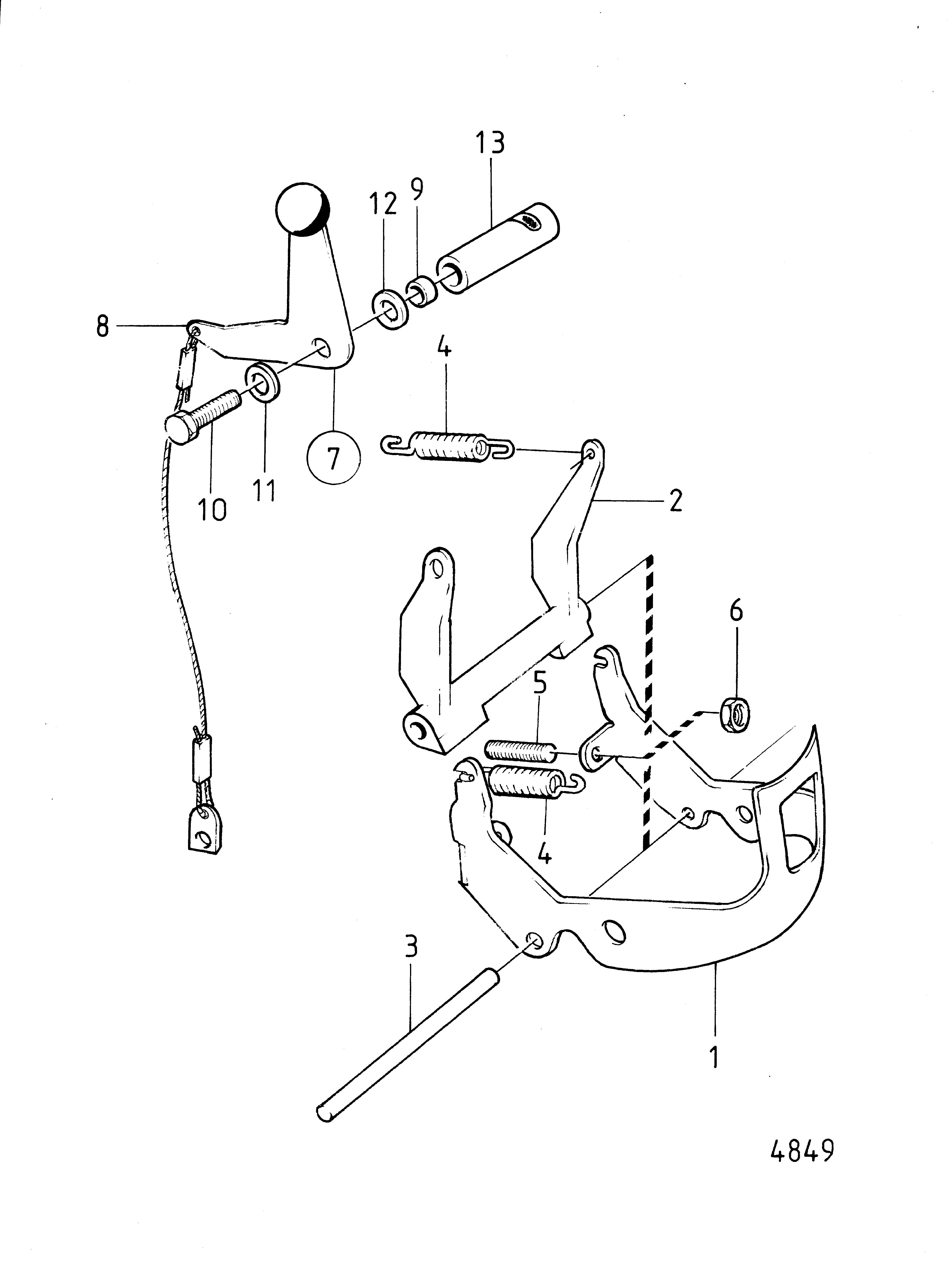

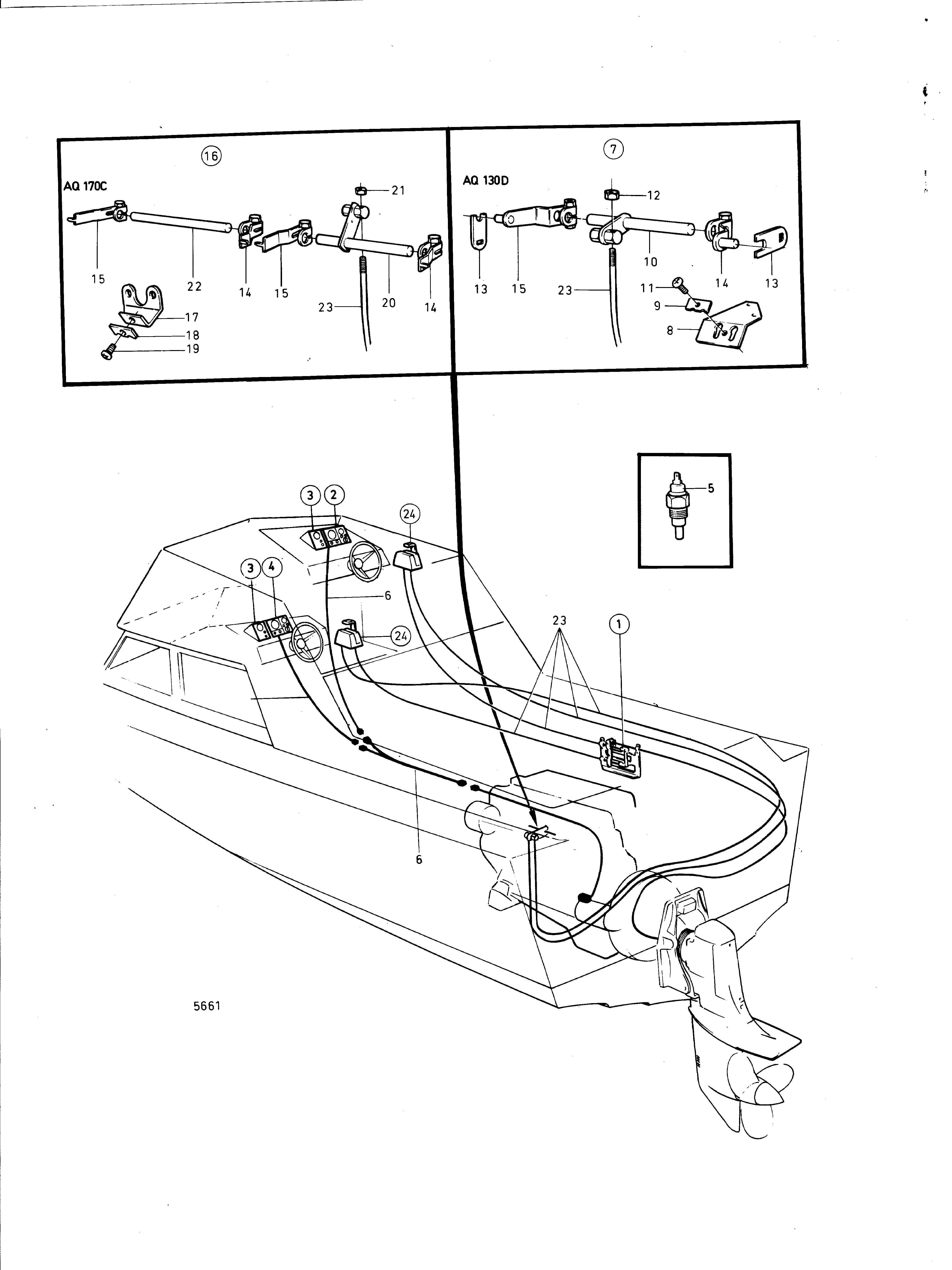

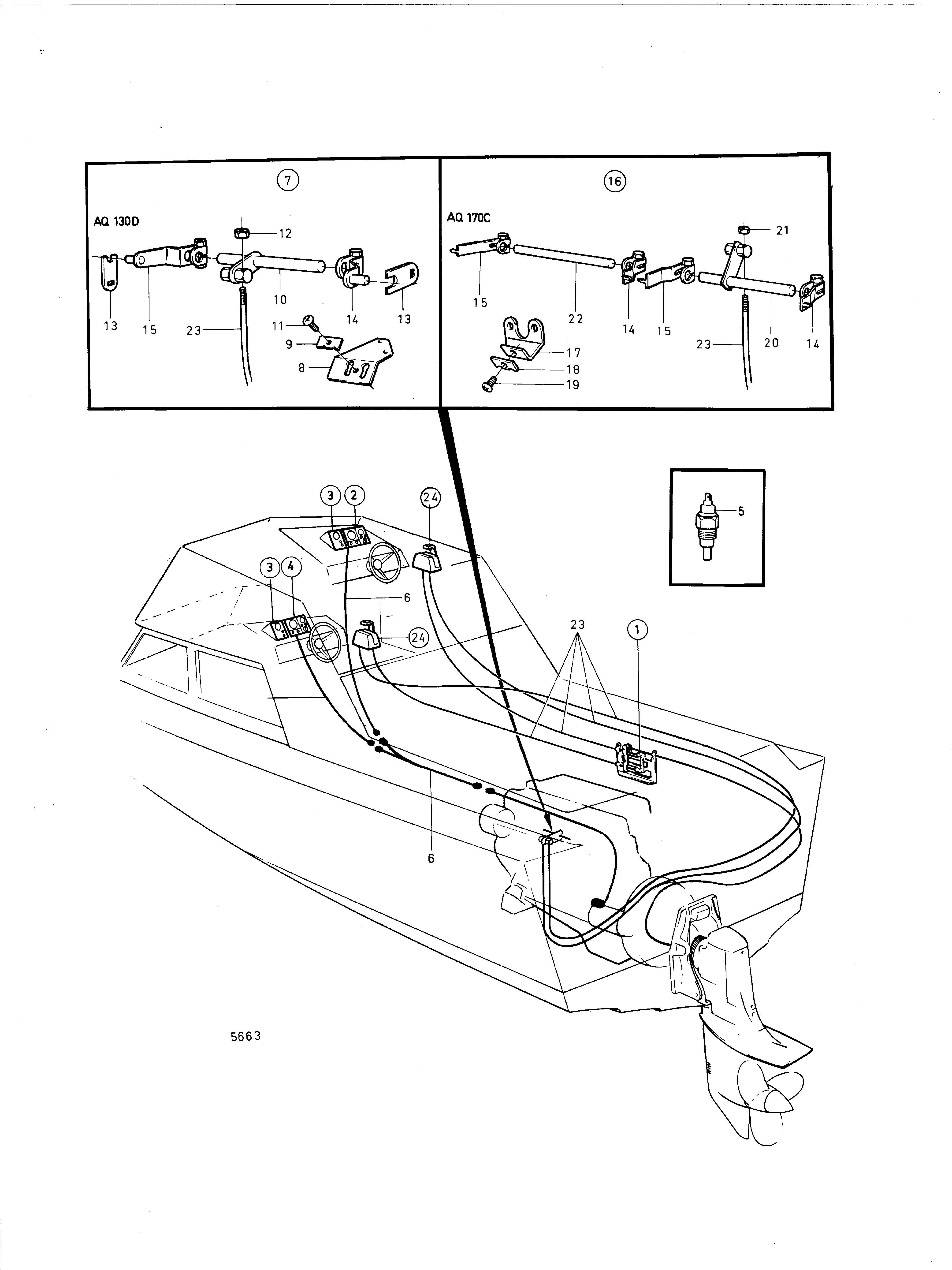

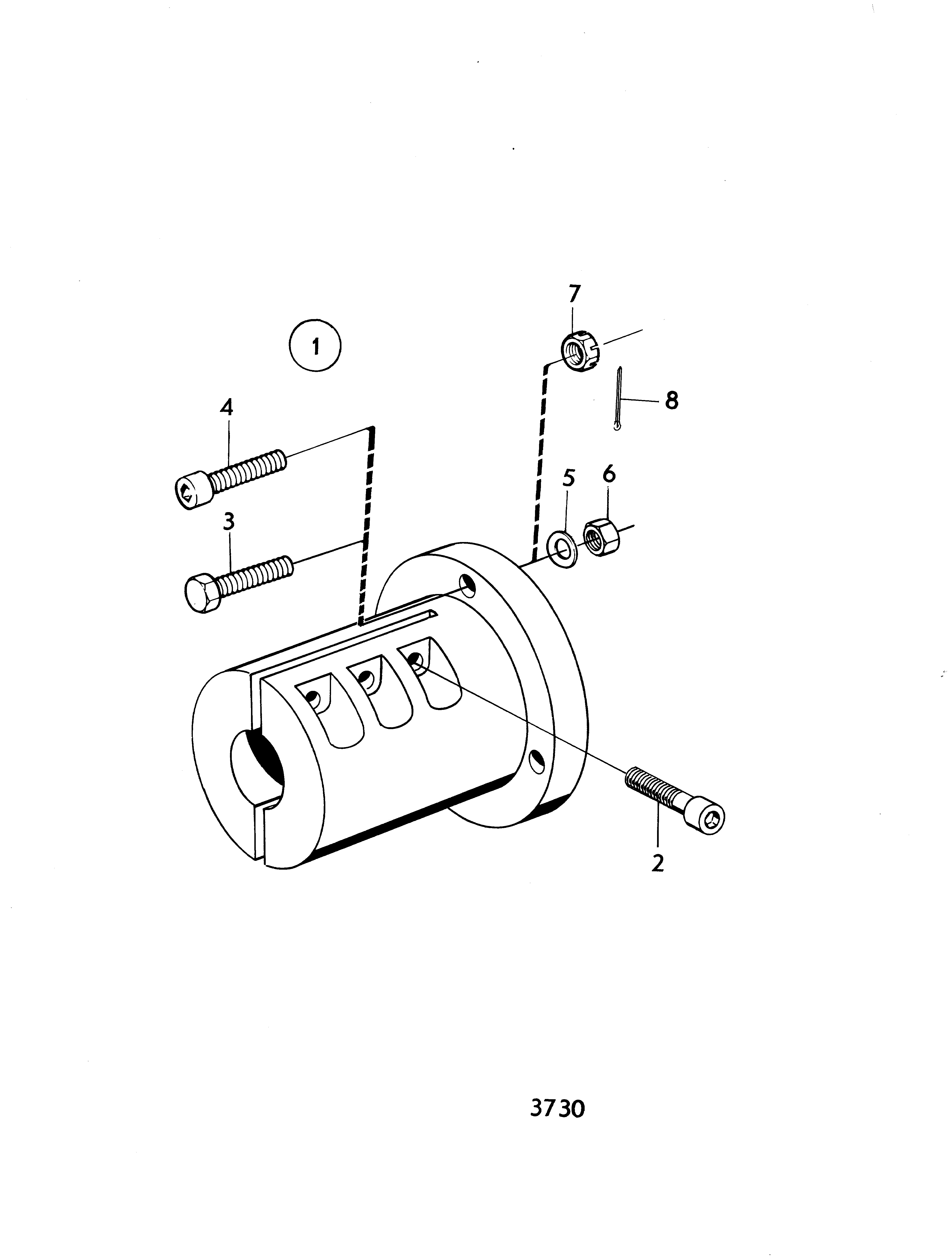

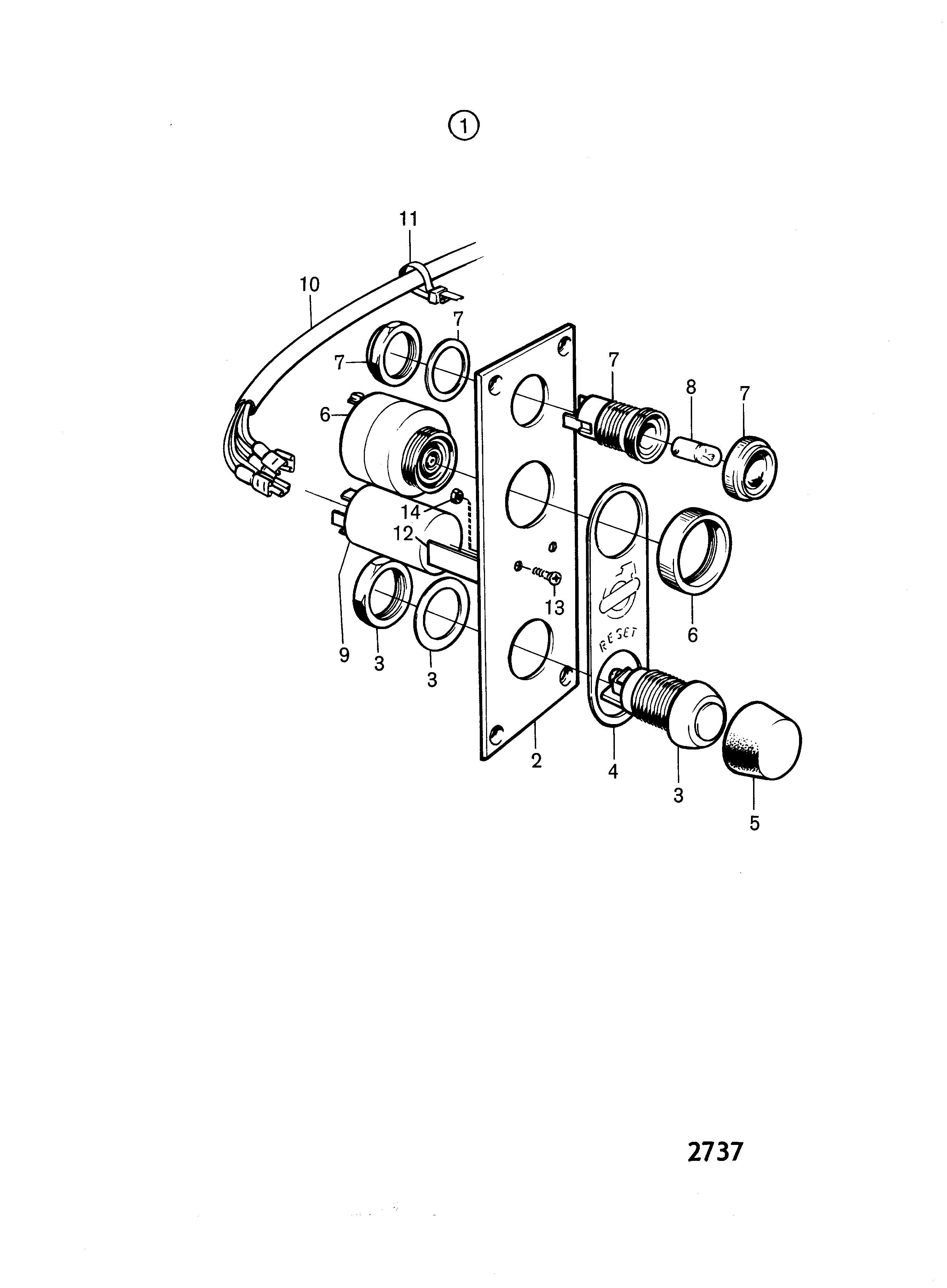

Select an exploded diagram for your Volvo penta aq170c inboard engine
Volvo penta aq170c
The Volvo penta aq170c is a gasoline-powered Inboard engine in the 6-cylinder category, produced between 1973 and 1978. Its four-stroke side-valve engine delivers 160 HP, or 117 kW at the crankshaft, while its inline cylinder arrangement is designed to provide smooth torque delivery during operation.
Developed for marine propulsion, this engine uses a back-extract transmission that allows direct coupling to the propeller shaft. Its Inboard installation integrates the propulsion unit within the hull, while the four-stroke operating cycle and gasoline fuel system reflect a design suited to marine applications of its period.
Exploded diagrams for the Volvo penta aq170c provide a practical way to understand the arrangement of its individual components before maintenance work begins. They make it easier to identify compatible parts and the correct references required for servicing or repair, including components associated with the engine and transmission.
Volvo penta aq170c engine specifications- Power: 160 HP (117 kW) at the crankshaft
- Category: 6-cylinder with an inline cylinder arrangement
- Fuel: gasoline used to power the engine
- Engine cycle: four-stroke side-valve according to the specified design
- Transmission: back-extract allowing coupling to the propeller shaft
View exploded diagrams Volvo penta aq170c
