Parts and exploded diagrams for Volvo penta 7.4gipncmce engine

This page allows you to view the exploded diagrams for the Volvo penta 7.4gipncmce Inboard engine, belonging to the 8-cylinder category, and easily identify the compatible parts for your engine.

Volvo Penta specialises in marine propulsion solutions. These exploded diagrams make it easier to identify the components and part numbers required for the maintenance and repair of Inboard engines.

Un doute? > contact us

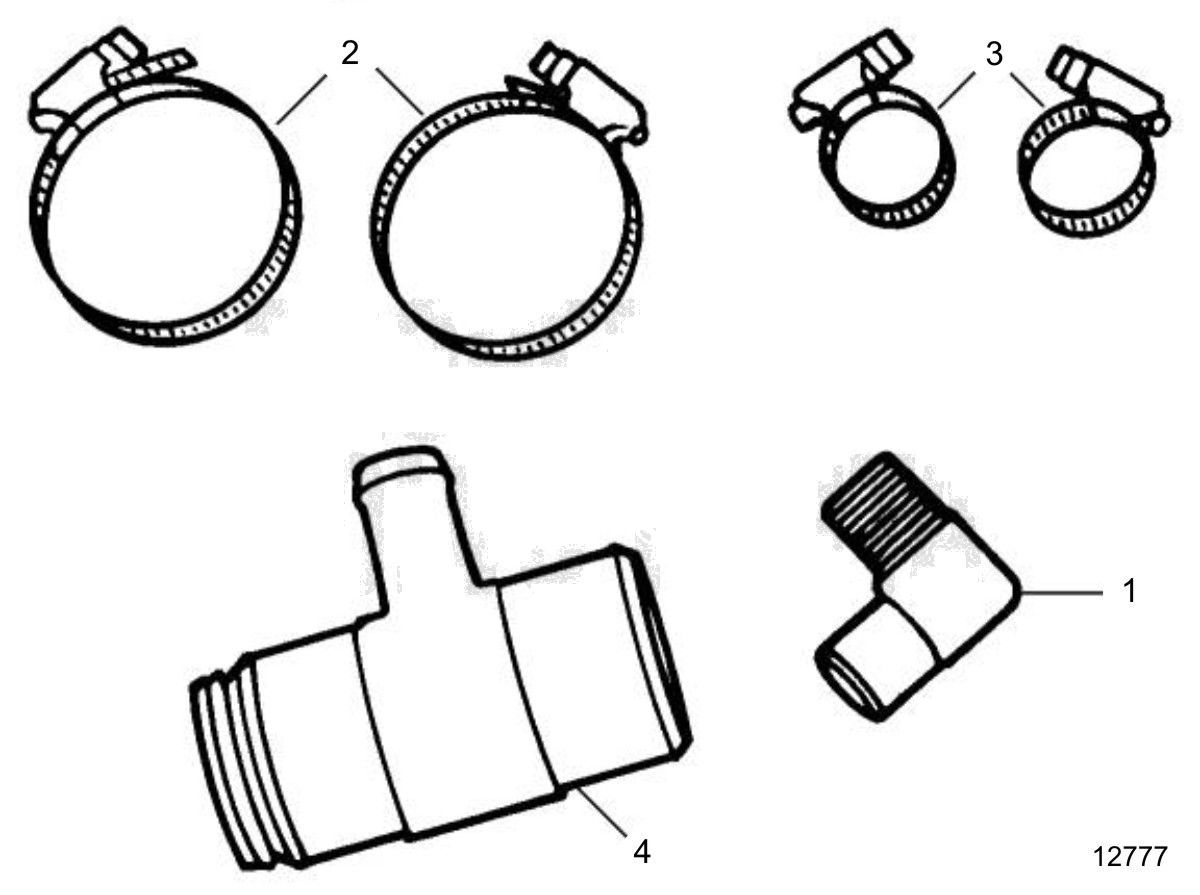

Select an exploded diagram for your Volvo penta 7.4gipncmce inboard engine

Volvo penta 7.4gipncmce

The Volvo penta 7.4gipncmce is an 8-cylinder gasoline-powered Inboard engine. It has a displacement of 7.4 litres, equivalent to 454 cubic inches, and a stated output of 320 HP.

This engine is based on a General Motors GM block and features a V8 architecture. Its Gi system uses electronic fuel injection to supply fuel to the engine.

The exploded diagrams show how its various assemblies are arranged before servicing begins. They simplify part-number identification and help users select the compatible components required to maintain or repair the Volvo penta 7.4gipncmce.

Volvo penta 7.4gipncmce engine specifications

V8 architecture: the specified eight-cylinder configuration of this engine
7.4-litre displacement: an engine capacity also stated as 454 cubic inches
320 HP output: the power rating given in the supplied specifications
Gi electronic injection: an electronic fuel injection system used to supply the engine
GM-based block: an engine design based on a General Motors block

View exploded diagrams Volvo penta 7.4gipncmce

View all compatible parts
