Parts and exploded diagrams for Volvo Penta 7.4gsiincc engine

This page allows you to view the exploded diagrams for the 7.4gsiincc Inboard engine, which belongs to the 8-cylinder category, and easily identify the parts compatible with your engine.

Volvo Penta specialises in marine engine and propulsion solutions. These exploded diagrams make it easier to identify the components and part numbers required to maintain and repair Inboard engines.

Un doute? > contact us

Select an exploded diagram for your Volvo Penta 7.4gsiincc inboard engine

7.4gsiincc

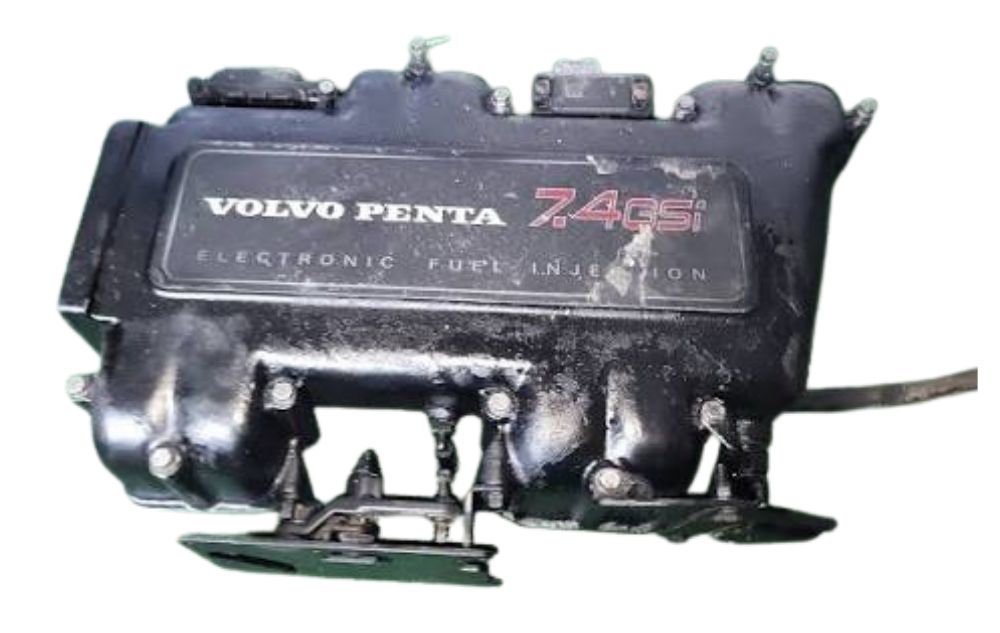

Designed for Inboard marine propulsion, the Volvo Penta 7.4gsiincc is an 8-cylinder engine. It runs on gasoline and combines a displacement of 7,400 cm³ with a maximum engine speed of 5,000 RPM.

Its fuel injection system manages the gasoline supply, while its dry weight of 548 kg provides important information for installation and handling operations. Its marine-oriented design is intended for the operating conditions encountered aboard boats.

Exploded diagrams provide a clear way to identify the engine assemblies before servicing begins. They help users locate components, check part numbers and choose compatible parts for the maintenance or repair of the 7.4gsiincc.

7.4gsiincc engine specifications

Category: 8-cylinder, confirming an engine configuration with eight cylinders
Displacement: 7,400 cm³, corresponding to a total capacity of 7.4 litres
Fuel: gasoline, with a fuel supply system designed for this marine engine
Maximum engine speed: 5,000 RPM, the stated upper operating speed
Dry weight: 548 kg, useful information for handling and installation
