Parts and exploded diagrams for Volvo penta 7.4glihub engine
This page allows you to view the exploded diagrams for the Volvo penta 7.4glihub Inboard engine, which belongs to the 8-cylinder category, and easily identify the compatible parts for your engine.
Volvo Penta specialises in marine propulsion solutions. These exploded diagrams make it easier to identify the components and part numbers required to maintain and repair Inboard engines.
Select an exploded diagram for your Volvo penta 7.4glihub inboard engine
Volvo penta 7.4glihub

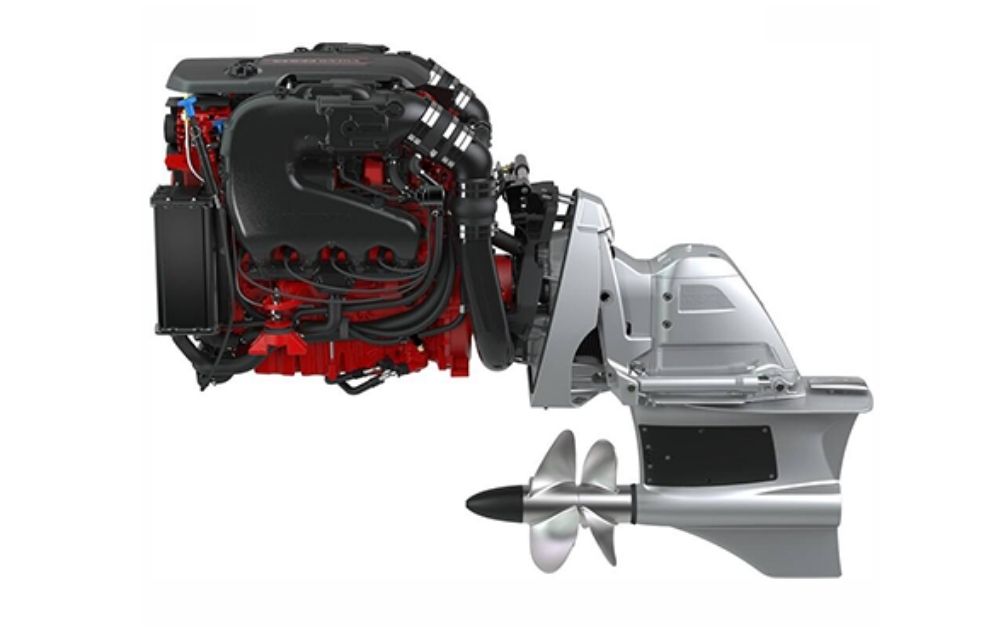

The Volvo penta 7.4glihub is an Inboard marine engine from the 8-cylinder category. Its stated output of 330 HP, equivalent to 246 kW, is produced from a total displacement of 7.40 l.
Its technical configuration combines a V8 layout with a bore and stroke of 108.0 mm x 101.6 mm. A compression ratio of 9.3:1 completes the confirmed specifications that can be used to recognise the engine before servicing.
By separating the engine into clearly identified assemblies, the exploded diagrams provide valuable guidance for maintenance and repair. They help users locate components, check their position and select compatible parts using the appropriate references.
Volvo penta 7.4glihub engine specifications- Category: 8-cylinder, indicating the confirmed number of engine cylinders
- Layout: V8, identifying the specified cylinder arrangement
- Displacement: 7.40 l, corresponding to the stated total engine capacity
- Output: 330 HP (246 kW), measured at the crankshaft
- Compression ratio: 9.3:1, helping distinguish this technical configuration
View exploded diagrams Volvo penta 7.4glihub
