Parts and exploded diagrams for Volvo penta 5.0flphue engine

This page allows you to view the exploded diagrams for the Volvo penta 5.0flphue Inboard engine, belonging to the 8-cylinder category, and easily identify compatible parts for your engine.

Volvo Penta is a brand specialising in marine propulsion solutions. These exploded diagrams make it easier to identify the components and references required for the maintenance and repair of Inboard engines.

Un doute? > contact us

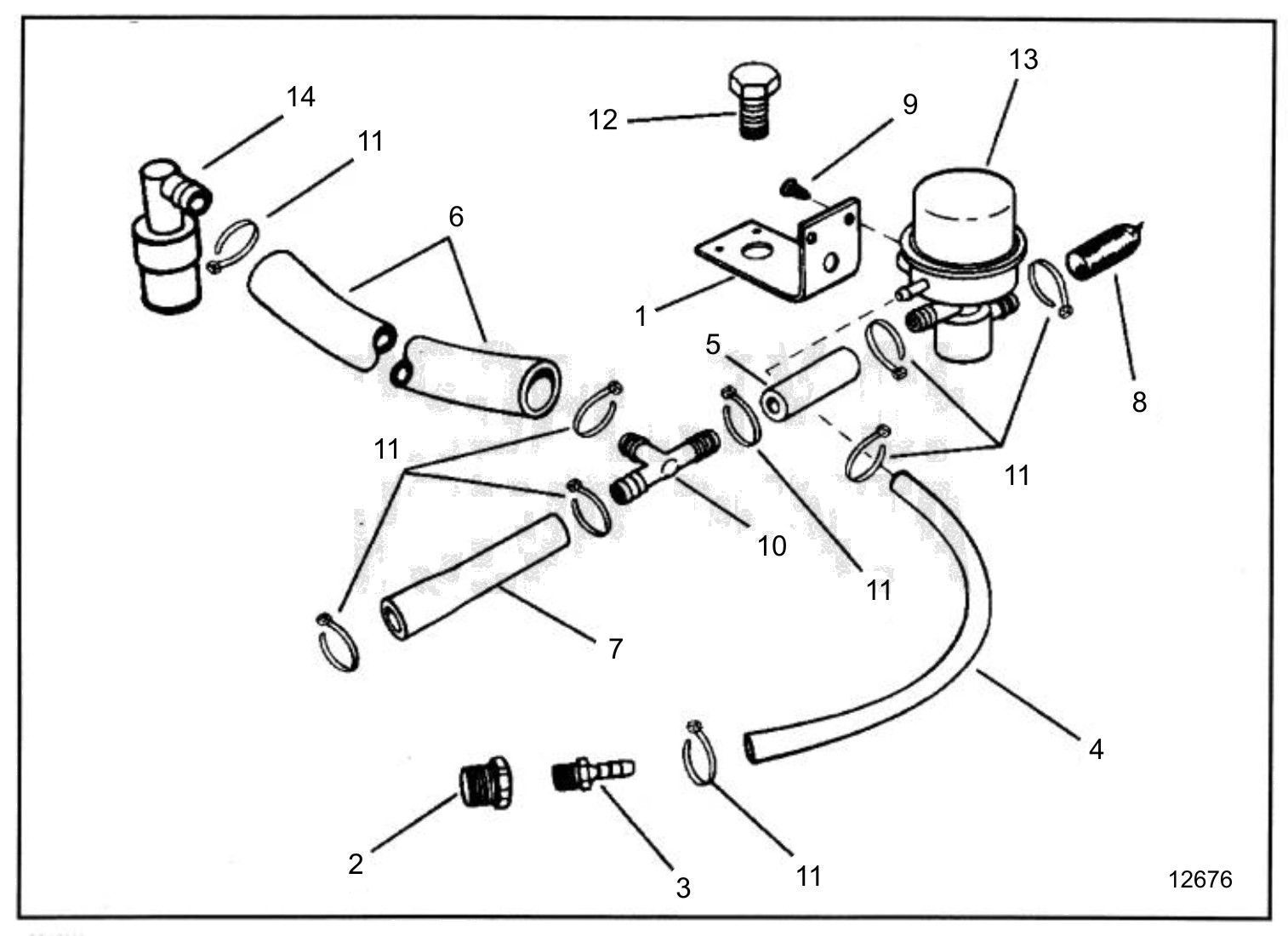

Select an exploded diagram for your Volvo penta 5.0flphue inboard engine

Volvo penta 5.0flphue

The Volvo penta 5.0flphue Inboard engine belongs to the 8-cylinder category. The available information associates it with a Ford V-8 configuration and a wide-open-throttle operating range of 4,200 to 4,600 rpm.

Listed from 1994 onwards, this engine is specified with a 1.66 gear ratio. Its crankcase capacity is given as 4.73 L, providing a useful reference when preparing maintenance work and determining the required lubricant quantity.

Exploded diagrams provide a clear view of the engine assemblies and help confirm the correct references before work begins. They make it easier to select compatible parts for servicing or repairing the Volvo penta 5.0flphue.

Volvo penta 5.0flphue engine specifications
