Parts and exploded diagrams for Volvo penta 2001ag engine
This page allows you to view the exploded diagrams for the Volvo penta 2001ag Inboard engine, belonging to the 1-cylinder category, and easily identify the compatible parts for your engine.
Volvo Penta is a brand specialising in marine propulsion solutions. These exploded diagrams make it easier to identify the components and references required for servicing and repairing Inboard engines.

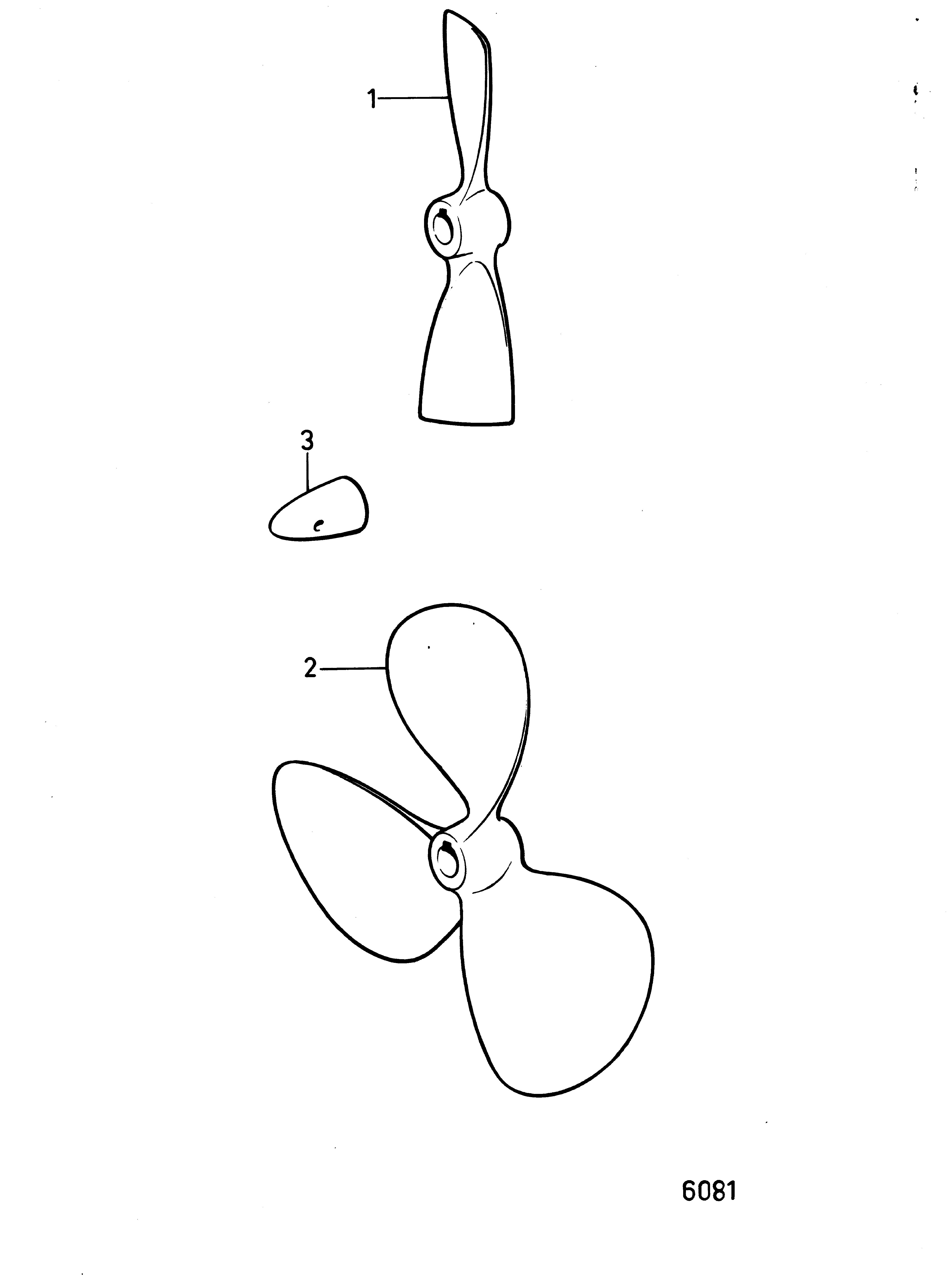

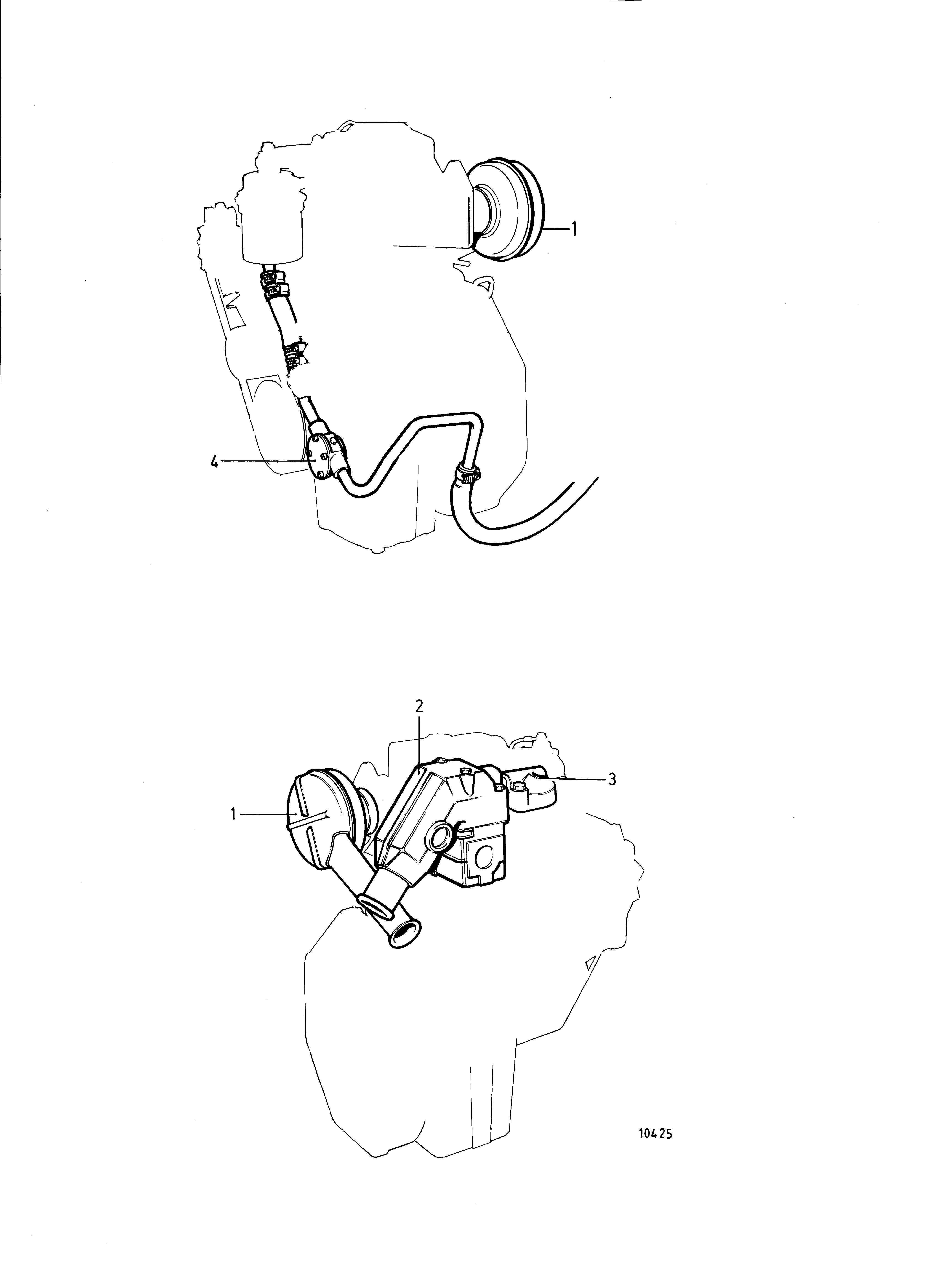

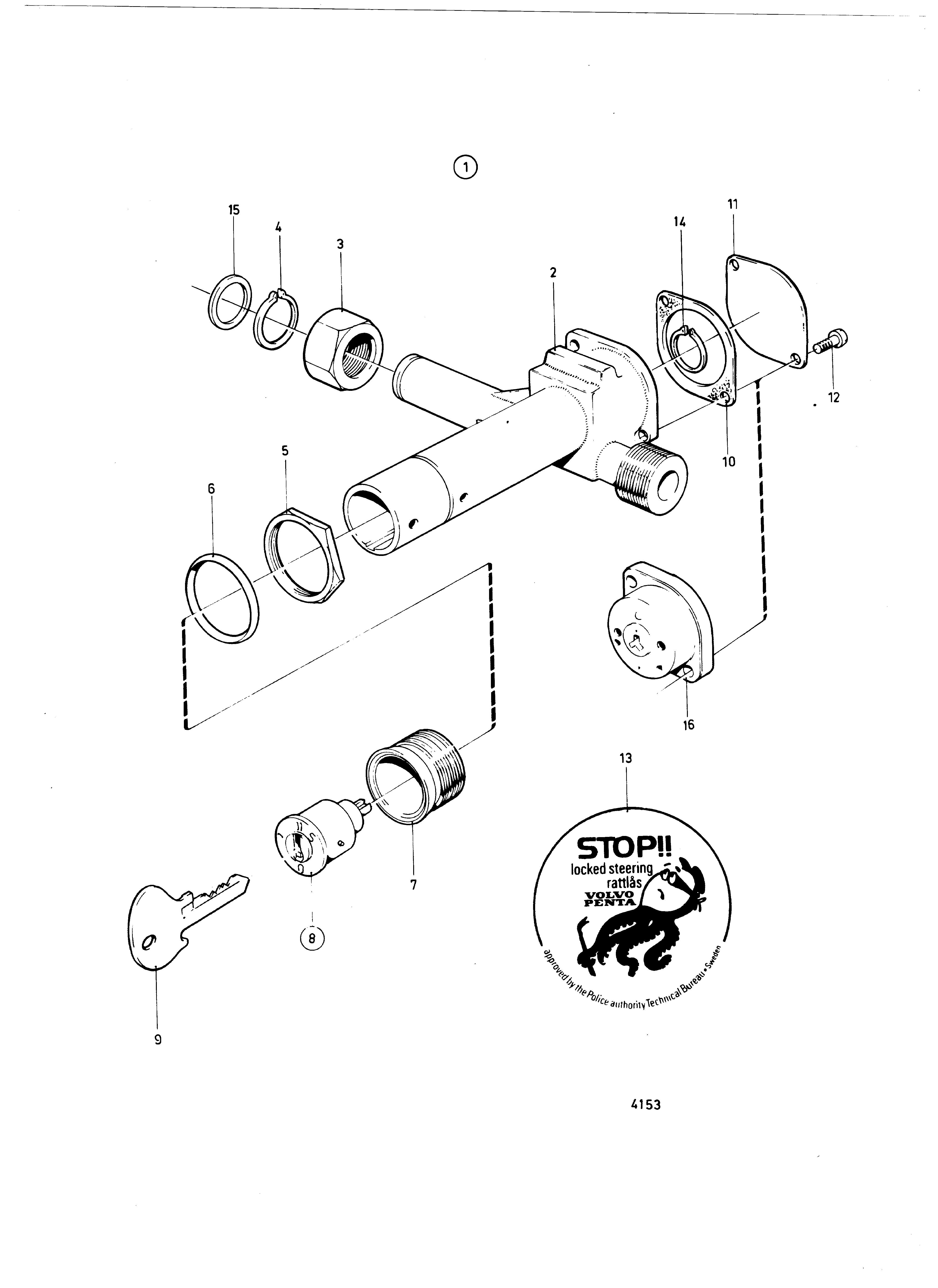

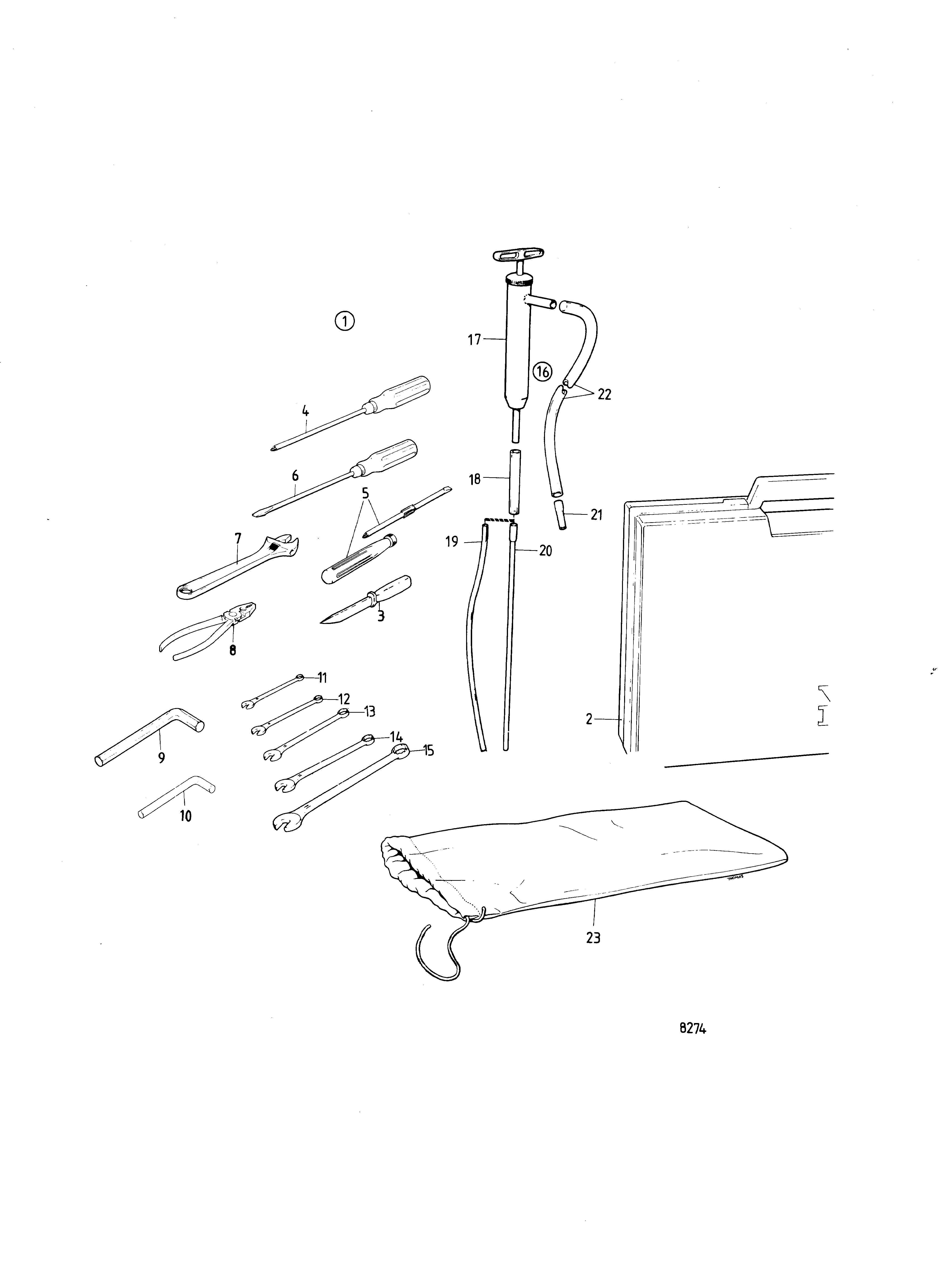

Select an exploded diagram for your Volvo penta 2001ag inboard engine
Volvo penta 2001ag
The Volvo penta 2001ag belongs to the 1-cylinder diesel Inboard engine category. The information supplied for this series describes a single-cylinder design producing 9 HP at 3200 rpm, manufactured between 1984 and 1993 and notably used as a marine engine for small sailing yachts.
Maintenance of this engine includes monitoring its lubrication and the components exposed to marine operating conditions. The stated engine oil capacity is 1.4 litres, with VDS3 or VDS4.5 oil grades specified. Where an MS2 reverse gear is fitted, its oil capacity is 0.85 litres. The exhaust elbow also deserves particular attention, as age and extended low-rpm running may encourage internal corrosion and carbon deposits.
The exploded diagrams for the Volvo penta 2001ag help locate individual assemblies before servicing and make compatible reference identification more straightforward. They can be used to find oil and fuel filters, drive belts, air filters, impellers, exhaust components and other suitable parts required for engine maintenance or repair.
Volvo penta 2001ag engine specifications- Configuration: 1-cylinder based on a single-cylinder design for this marine engine series
- Engine type: diesel Inboard intended for installation inside the boat
- Power: 9 HP at 3200 rpm according to the technical information provided
- Engine oil capacity: 1.4 litres with VDS3 or VDS4.5 grades specified
- MS2 reverse gear: 0.85-litre capacity for oil when this reverse gear is fitted
View exploded diagrams Volvo penta 2001ag
