Parts and exploded diagrams for Volvo penta md6a engine
This page allows you to view the exploded diagrams for the Volvo penta md6a Inboard engine, belonging to the 2-cylinder category, and easily identify compatible parts for your engine.
Volvo Penta is a brand specializing in marine propulsion solutions. These exploded diagrams make it easier to identify the components and references required for the maintenance and repair of Inboard engines.
Select an exploded diagram for your Volvo penta md6a inboard engine

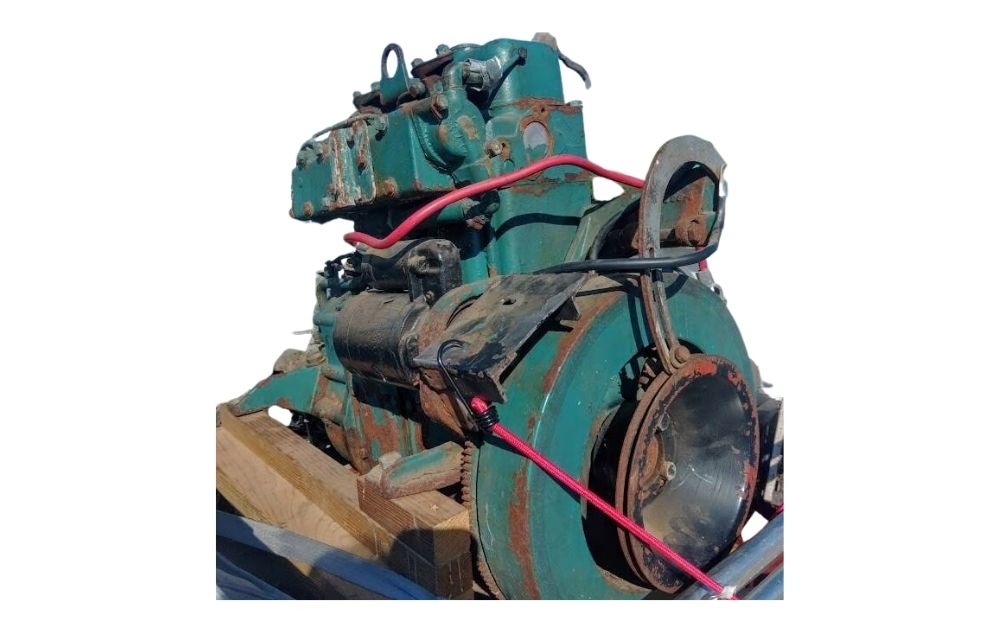

Volvo penta md6a
The Volvo penta md6a is a 4-stroke diesel marine Inboard engine in the 2-cylinder category. With an output of 10 HP and a displacement of 636 cm³, it combines a compact engine layout with characteristics suited in particular to small and medium-sized vessels.
Its design uses diesel fuel and includes a fuel injection pump, injectors and a fuel filter. A sea-water pump, thermostat and water-cooled exhaust manifold are also part of the engine equipment and are important components to consider during servicing operations.
Exploded diagrams for the Volvo penta md6a provide a clear way to locate its mechanical assemblies and individual components. They help identify compatible part references before maintenance or repair work and make it easier to select components that correspond precisely to the engine.
Volvo penta md6a engine specifications- Category: 2-cylinder, corresponding to the engine's two-cylinder configuration
- Output: 10 HP, delivered at the specified rated engine speed
- Displacement: 636 cm³, contributing to the engine's compact mechanical design
- Fuel: diesel, used by the engine's fuel supply and injection system
- Rated output speed: 2,400 rpm, the engine speed associated with the stated output
View exploded diagrams Volvo penta md6a
