Parts and exploded diagrams for Volvo penta md11c engine
This page allows you to view the exploded diagrams for the Volvo penta md11c Inboard engine, belonging to the 2-cylinder category, and easily identify compatible parts for your engine.
Volvo Penta is a brand specialising in marine propulsion solutions. These exploded diagrams make it easier to identify the components and references required for the maintenance and repair of Inboard engines.
Select an exploded diagram for your Volvo penta md11c inboard engine
Volvo penta md11c

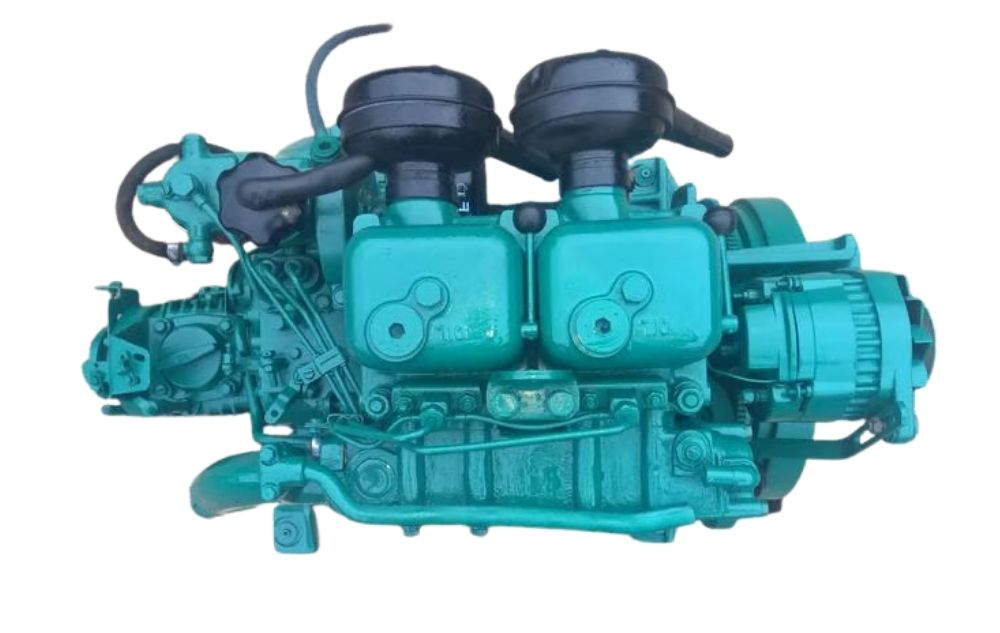

The Volvo penta md11c is a 2-cylinder Inboard marine diesel engine with a four-stroke cycle, natural aspiration and direct fuel injection. With a displacement of 1.12 litres, it produces approximately 23 HP (17 kW) at 2,500 rpm, with power delivered at the propeller shaft. Its mechanical design is particularly suited to auxiliary propulsion in sailing yachts and small displacement craft.
Its construction uses a cast-iron crankcase, cylinders and cylinder heads, together with replaceable cylinder liners, overhead valves and a fully mechanical fuel system without turbocharging or electronic engine controls. Originally, cooling is provided directly by seawater through a seawater pump and water-cooled exhaust system; depending on the installation, the engine can be paired with a conventional marine reverse gearbox or a Volvo Penta 110S saildrive.
For maintenance or repair work, exploded diagrams help locate the various assemblies and identify the relevant components before servicing begins. Consulting these diagrams makes it easier to find parts compatible with Volvo penta md11c and to check the references required for maintenance, replacement or overhaul operations.
Volvo penta md11c engine features- Category: 2-cylinder with a confirmed two-cylinder configuration for this engine
- Displacement: 1.12 litres for this marine diesel engine
- Power: approximately 23 HP (17 kW) at 2,500 rpm delivered at the propeller shaft
- Direct fuel injection combined with a fully mechanical fuel system
- Original direct seawater cooling using a seawater pump and water-cooled exhaust system
View exploded diagrams Volvo penta md11c
