Ref. DAM : DM_VE_MGS6456A

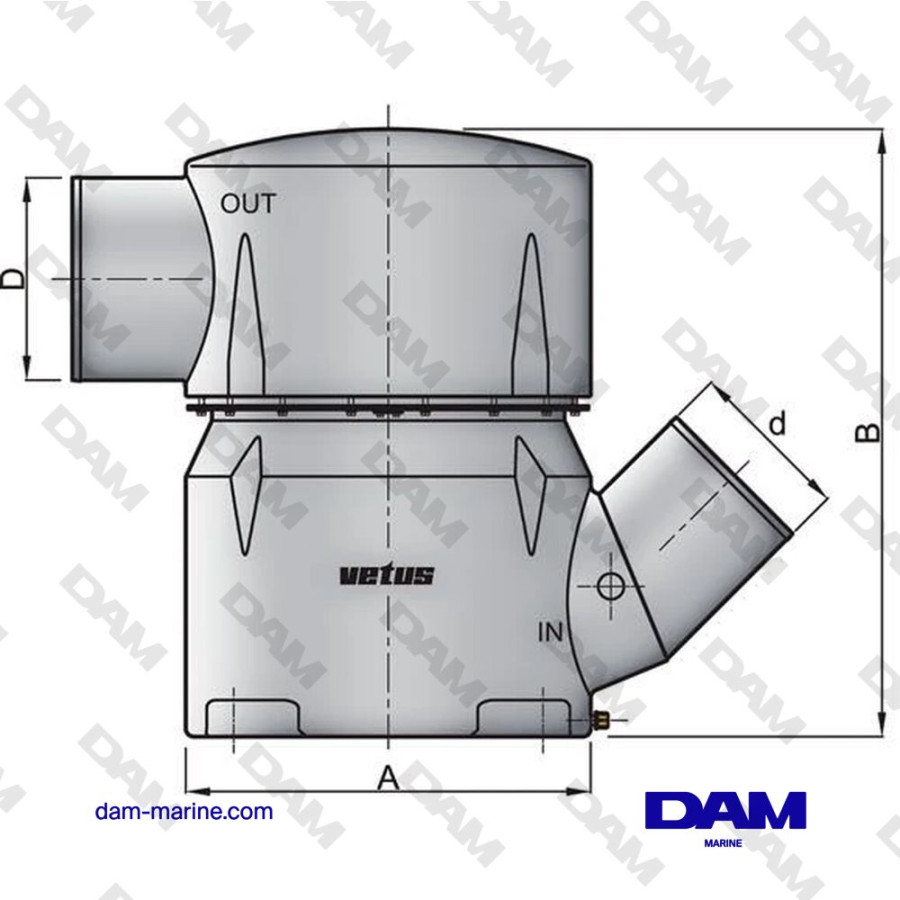

SYNTHETIC WATERLOCK, TYPE MGS, 152 MM INLET-45 DEGREES, 152 MM OUTLET

€1,035.50 VAT included

€862.92 VAT excluded

On demand

SYNTHETIC WATERLOCK, TYPE MGS, 152 MM INLET-45 DEGREES, 152 MM OUTLET

SYNTHETIC WATERLOCK, TYPE MGS, 152 MM INLET-45 DEGREES, 152 MM OUTLET

keyboard_arrow_left

keyboard_arrow_right

SYNTHETIC WATERLOCK, TYPE MGS, 152 MM INLET-45 DEGREES, 152 MM OUTLET

SYNTHETIC WATERLOCK, TYPE MGS, 152 MM INLET-45 DEGREES, 152 MM OUTLET

Pièce non en stock.

Demandez le délai de réapprovisionnement et le tarif en cliquant sur le bouton « Ask for a quote ».

Un conseiller traitera votre demande dans la journée.

On demand

€1,035.50 VAT included

€862.92 VAT excluded

Exhaust plug for water-injected exhaust systems, with rotating top. Made of corrosion-resistant synthetic materials. Excellent noise reduction.

Features :

• Excellent sound reduction

• Minimal back pressure

• Drain plug for winter storage

• Suitable for internal pipe diameters Ø 90, 102, 127, 152, 209 or 250 mm

• Capacities of 23, 75 or 130 liters

• Supplied with AISI 316 stainless steel clamping bands

• M12 thread purge

• Optional temperature sensor

Technical characteristics:

Capacity (liters): 75.

Water inlet pipe connection diameter (mm): 152.

Outlet pipe connection diameter (mm): 152.

Length (mm): 707.

Width (mm): 400.

Height (mm): 700.

Airlock position: Vertical.

% Noise Reduction: 25.

Read the detailed description

Quantity

Free quote with no obligation

Response within 24 business hours

Vérifier la compatibilité Identifiez votre moteur pour vérifier la compatibilité de ce produit

Full description

Exhaust plug for water-injected exhaust systems, with rotating top. Made of corrosion-resistant synthetic materials. Excellent noise reduction.

Features :

• Excellent sound reduction

• Minimal back pressure

• Drain plug for winter storage

• Suitable for internal pipe diameters Ø 90, 102, 127, 152, 209 or 250 mm

• Capacities of 23, 75 or 130 liters

• Supplied with AISI 316 stainless steel clamping bands

• M12 thread purge

• Optional temperature sensor

Technical characteristics:

Capacity (liters): 75.

Water inlet pipe connection diameter (mm): 152.

Outlet pipe connection diameter (mm): 152.

Length (mm): 707.

Width (mm): 400.

Height (mm): 700.

Airlock position: Vertical.

% Noise Reduction: 25.

VETUS : MGS6456A
VDM : VETMGS6456A
