Engine warning light on? Identify the signal, check the critical parts and choose the right diagnostic tools.
View diagnostic toolsA boat engine warning light indicates an anomaly, a mechanical risk or a fault detected by the engine electronics. The most important warning lights concern oil pressure, temperature, battery charging, injection, water in the fuel and engine sensors. A red light or audible alarm usually means reducing engine speed, then stopping the engine if the warning persists. A diagnostic tool suited to the engine helps read fault codes and guide the repair.
What does an illuminated boat engine warning light mean?
An illuminated boat engine warning light means that an engine component or operating system needs checking. It may be a simple alert, such as low battery voltage at ignition, or a more critical fault such as insufficient oil pressure or overheating.
On a recent engine, the warning light may also correspond to a fault code stored by the ECU. In that case, the dashboard gives the alert, but the exact cause is confirmed through mechanical checks, code reading or a diagnostic tool compatible with the engine brand.
What are the main warning lights to know on a boat?
The main alerts relate to lubrication, cooling, electrical charging, injection, fuel and sensors. Their appearance varies by brand, but the method stays the same: identify the system involved, assess urgency and act without delay.

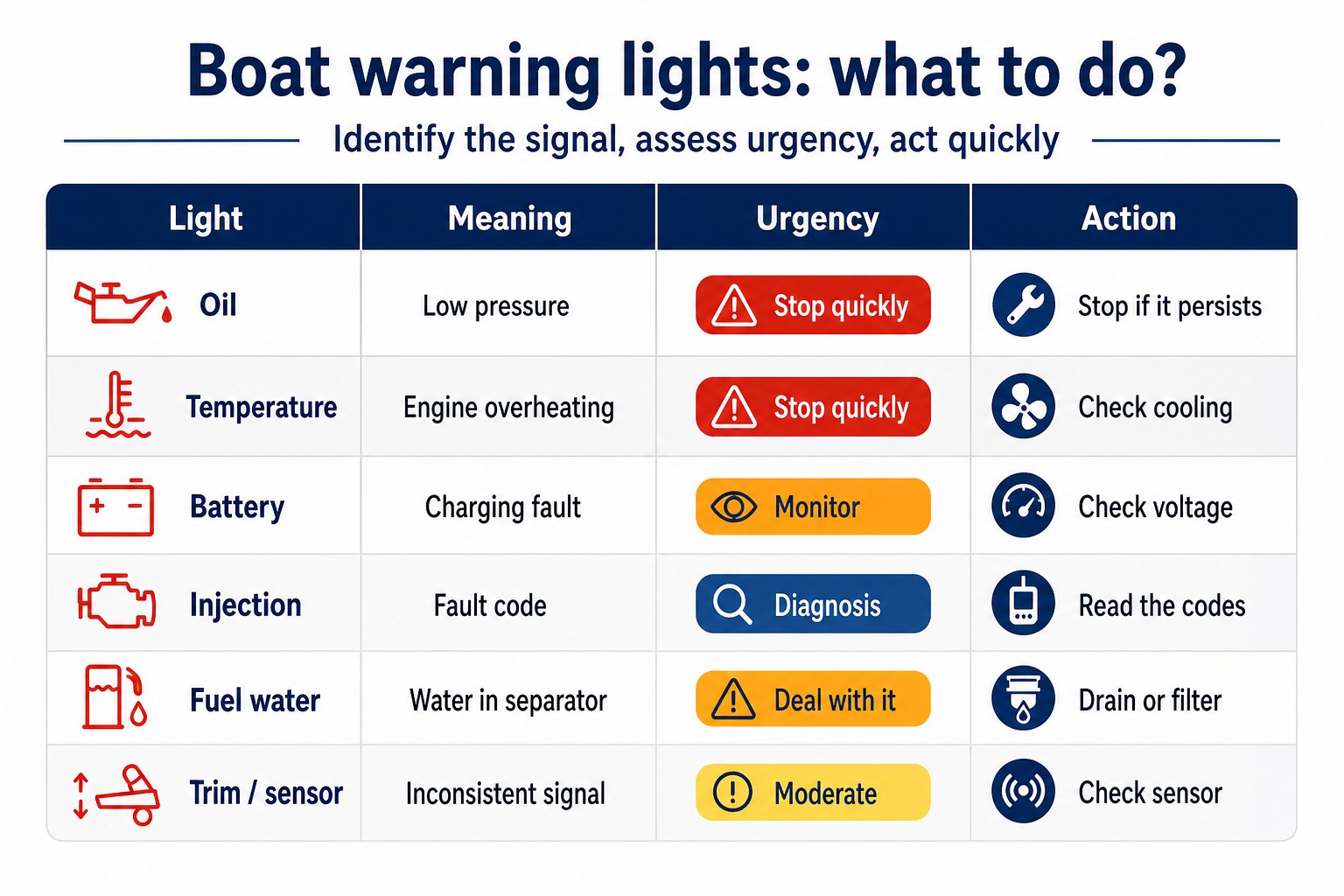

| Warning light | Likely meaning | Main risk | First action |
|---|---|---|---|
| Oil pressure | Low oil pressure, low level, faulty oil sender or lubrication issue. | Rapid wear, seizure, internal engine damage. | Reduce rpm, stop if it persists, check oil level. |
| Temperature / overheating | High engine temperature, lack of water flow, stuck thermostat, water pump or cooling circuit fault. | Overheating, gasket damage, deformation of engine parts. | Check water tell-tale, reduce engine load, stop if alarm continues. |
| Battery / charging | Low voltage, alternator, regulator, belt, battery or electrical connection to check. | Loss of charge, impossible restart, electrical failure on board. | Limit power consumers, check connections and battery voltage. |
| Injection / PGM-FI / engine | Fault detected by the injection system or engine ECU. | Limp mode, power loss, abnormal consumption, stalling. | Note engine behaviour and read fault codes with a compatible tool. |
| Water in fuel | Water present in the separator or fuel circuit. | Misfiring, corrosion, disturbed injection, engine stop. | Drain the separator, check fuel filter and fuel quality. |
| Diesel preheating | Normal preheating phase or glow plug fault if the warning persists. | Difficult starting, incomplete cold combustion. | Wait for normal switch-off, check glow plugs if needed. |
Which warning lights mean you should stop the engine?
Oil pressure and overheating warnings are the most critical. If they remain on with the engine running, reduce speed, secure the boat and stop the engine if the warning does not disappear quickly.
Temperature warning on? Read the dedicated guide to boat engine overheating.
Read the overheating guideHow do you diagnose a boat engine warning light?
Start by observing the colour of the light, whether it is steady or flashing, any audible alarm, engine speed, smoke, smell, temperature and battery voltage. Then confirm the fault with mechanical checks or a compatible diagnostic tool.
Which diagnostic tools should you choose for each engine?
Marine diagnostic tools use cables suited to the brand and connector of the engine. Always confirm compatibility with the model, year and serial number before ordering.
| Engine / use | DAM Marine product | Reference | Use |
|---|---|---|---|
| Base diagnostic | CABLE MARINE AM01 - PRINCIPAL | 3902358 | Choose the cable after checking engine brand, model, year and connector. |
| Base diagnostic CAN | CABLE MARINE AM01 - CAN | 3903008 | Choose the cable after checking engine brand, model, year and connector. |
| Yamaha / Selva | CABLE YAMAHA SELVA - AM06 | 3902413 | Choose the cable after checking engine brand, model, year and connector. |
| Suzuki 4 ways | CABLE SUZUKI 4V - AM22 | 3903560 | Choose the cable after checking engine brand, model, year and connector. |
| Mercury / Mariner 2 ways | CABLE MERCURY MARINER 2V - AM04 | 3902247 | Choose the cable after checking engine brand, model, year and connector. |
| Mercury / Mariner / Mercruiser 4 ways | CABLE MERCURY MARINER 4V - AM05 | 3902250 | Choose the cable after checking engine brand, model, year and connector. |
| Volvo Penta | CABLE VOLVO PENTA 6V - AM07 - AM40 | 3909234 | Choose the cable after checking engine brand, model, year and connector. |
| Yanmar | CABLE YANMAR - AM15 | 3902931 | Choose the cable after checking engine brand, model, year and connector. |
| Tohatsu | CABLE TOHATSU - AM30 | 3906219 | Choose the cable after checking engine brand, model, year and connector. |
| Evinrude | CABLE EVINRUDE - AM13 | 3902865 | Choose the cable after checking engine brand, model, year and connector. |
Which parts should be checked depending on the warning light?
A warning light points to a system rather than a single part. Depending on the alert, check oil senders, gauges, cooling parts, alternator, batteries and alarm sensors.
Oil sensors - Cooling system - Alternators - Instrumentation kits
What should you do depending on the warning light?
| Signal | Urgency | Recommended action | DAM Marine |
|---|---|---|---|
| Oil warning | Very high | Stop if it persists after checking the level. | Oil sensors |
| Temperature warning | Very high | Reduce load, check cooling, stop if alarm continues. | Thermostats |
| Battery warning | Medium to high | Check voltage, connections and alternator. | Batteries |
Frequently asked questions
Is it serious to run with an engine warning light on?
It can be. Oil and temperature warnings require immediate attention. Injection or battery warnings may allow you to reach shelter carefully, but they must not be ignored.
Does a diagnostic tool replace mechanical checks?
No. It helps read fault codes and target the search, but it does not replace checks of levels, voltage, cooling, connections, filters and wiring.
