Parts for Mercruiser D219 TURBO AC engine

Exploded views & spare parts

Easily find exploded views and compatible parts for your Mercruiser D219 TURBO AC engine.

If you have any doubt about a reference or a part, contact the DAM Marine team.

Exploded views for engine Mercruiser D219 TURBO AC

Click on the exploded view corresponding to the area of your engine to see all available parts.

AIR PURIFIER

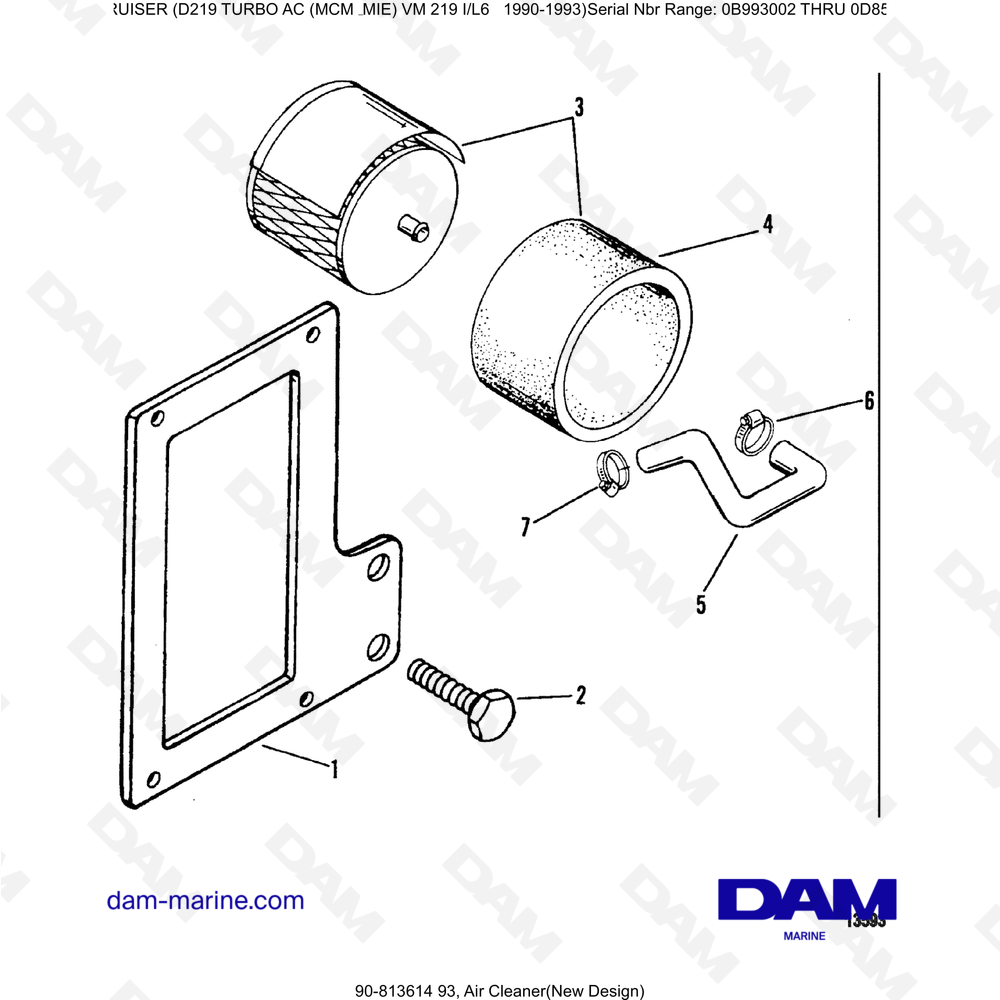

Exploded view: AIR PURIFIER for engine Mercruiser D219 TURBO AC.

View the parts for this view
ALTERNATOR

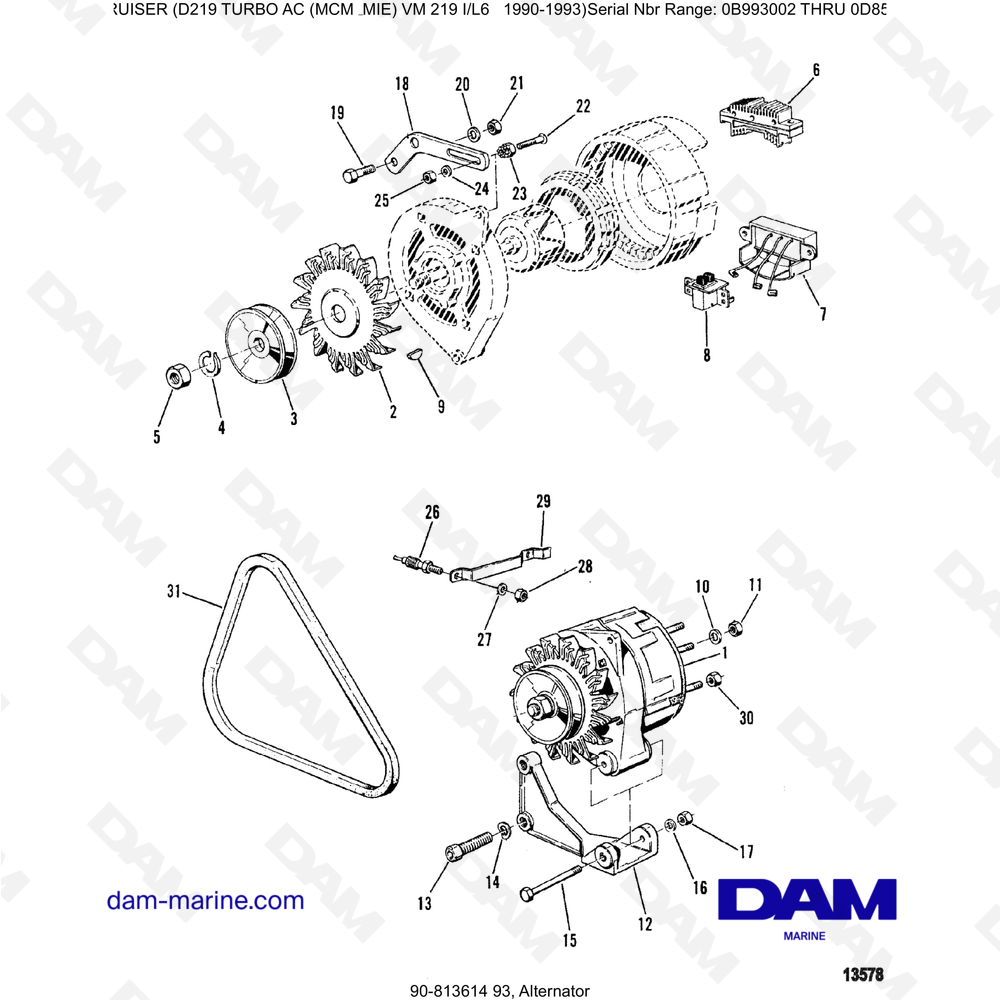

Exploded view: ALTERNATOR for engine Mercruiser D219 TURBO AC.

View the parts for this view

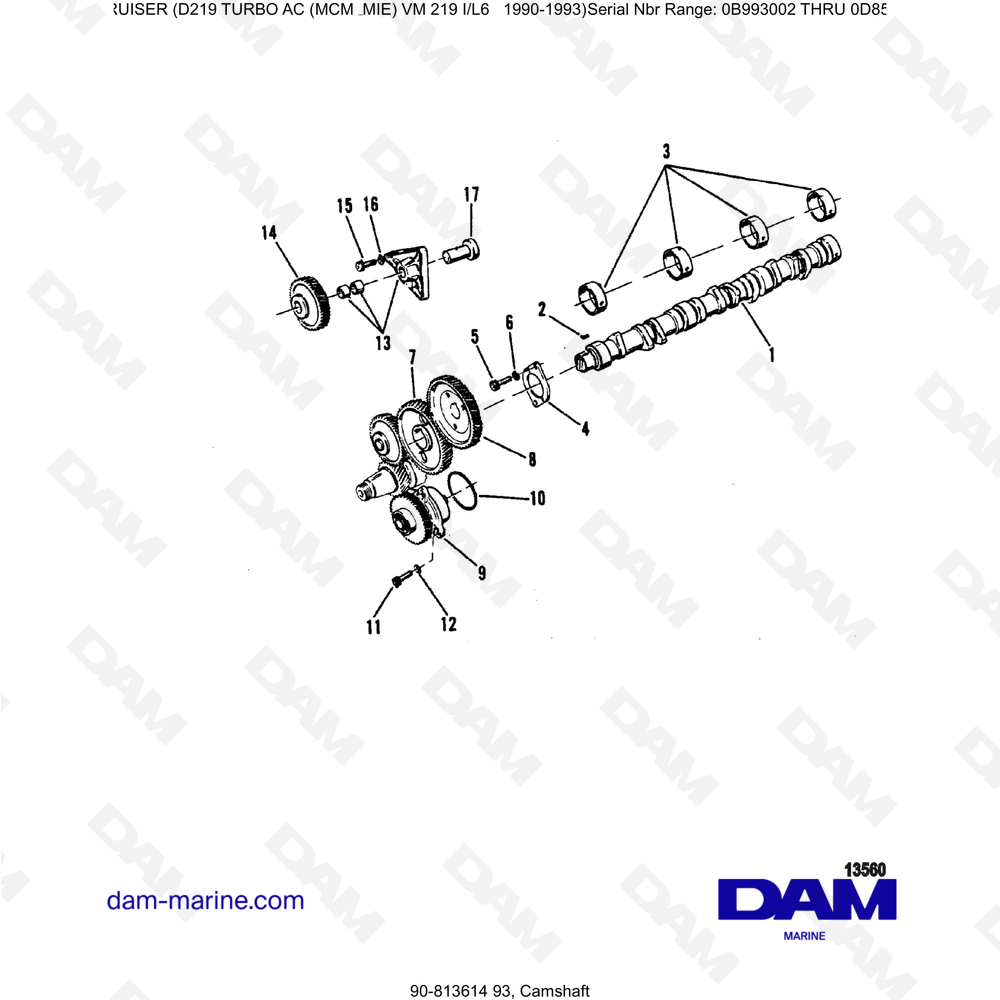

CAMSHAFT

Exploded view: CAMSHAFT for engine Mercruiser D219 TURBO AC.

View the parts for this view
CONNECTING ROD AND PISTON

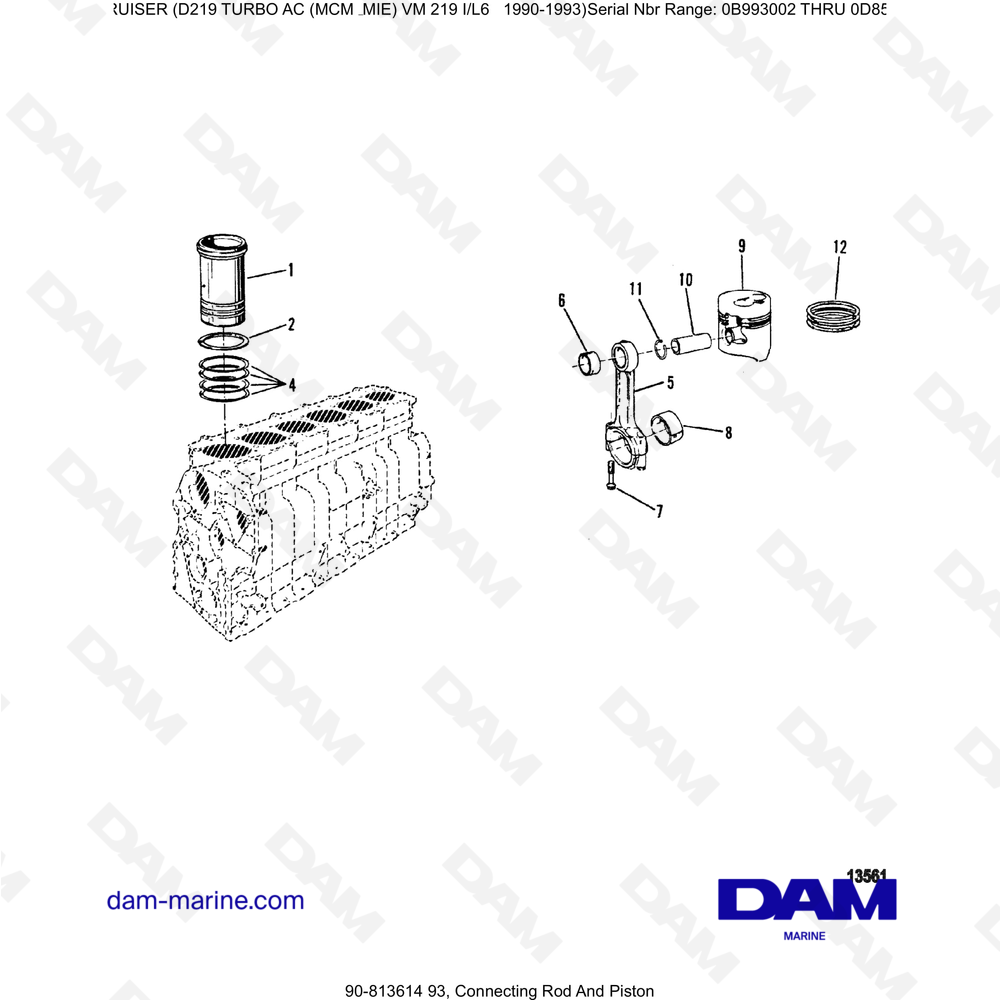

Exploded view: CONNECTING ROD AND PISTON for engine Mercruiser D219 TURBO AC.

View the parts for this view

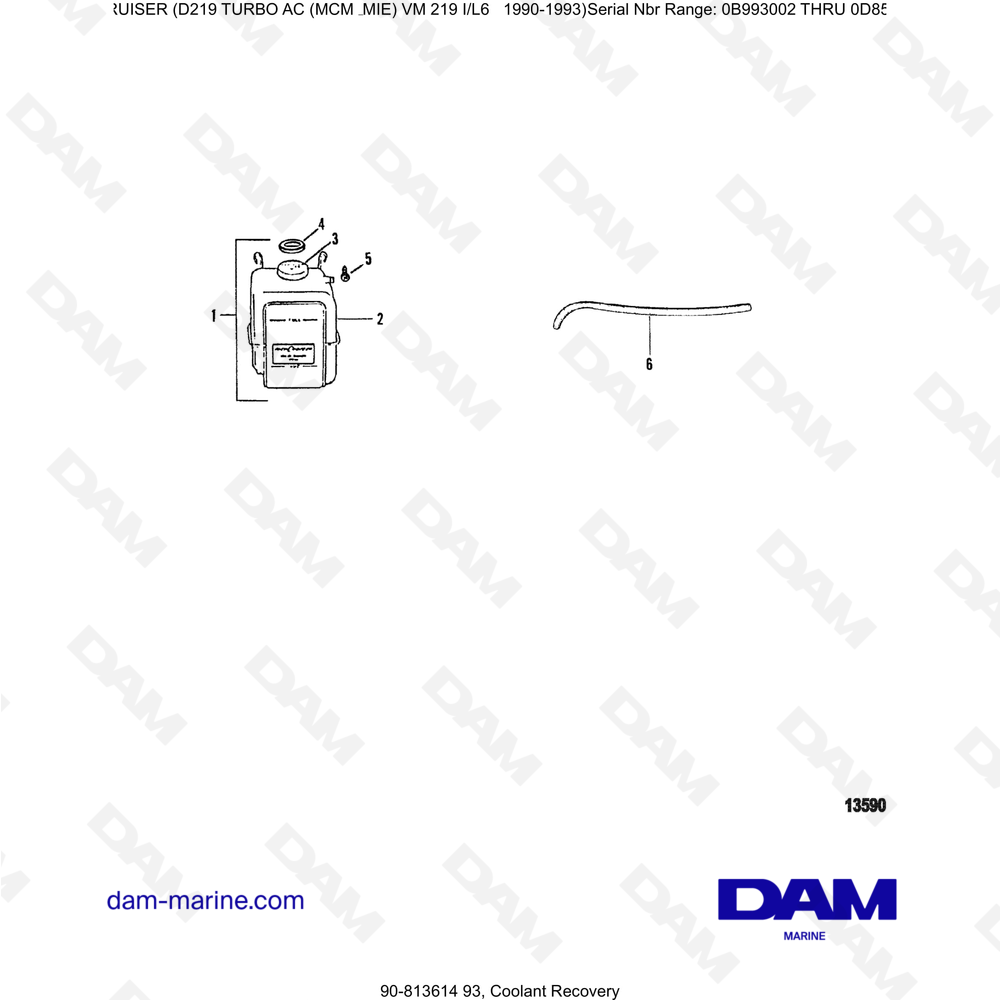

COOLANT RECOVERY

Exploded view: COOLANT RECOVERY for engine Mercruiser D219 TURBO AC.

View the parts for this view
COOLING WATER TANK

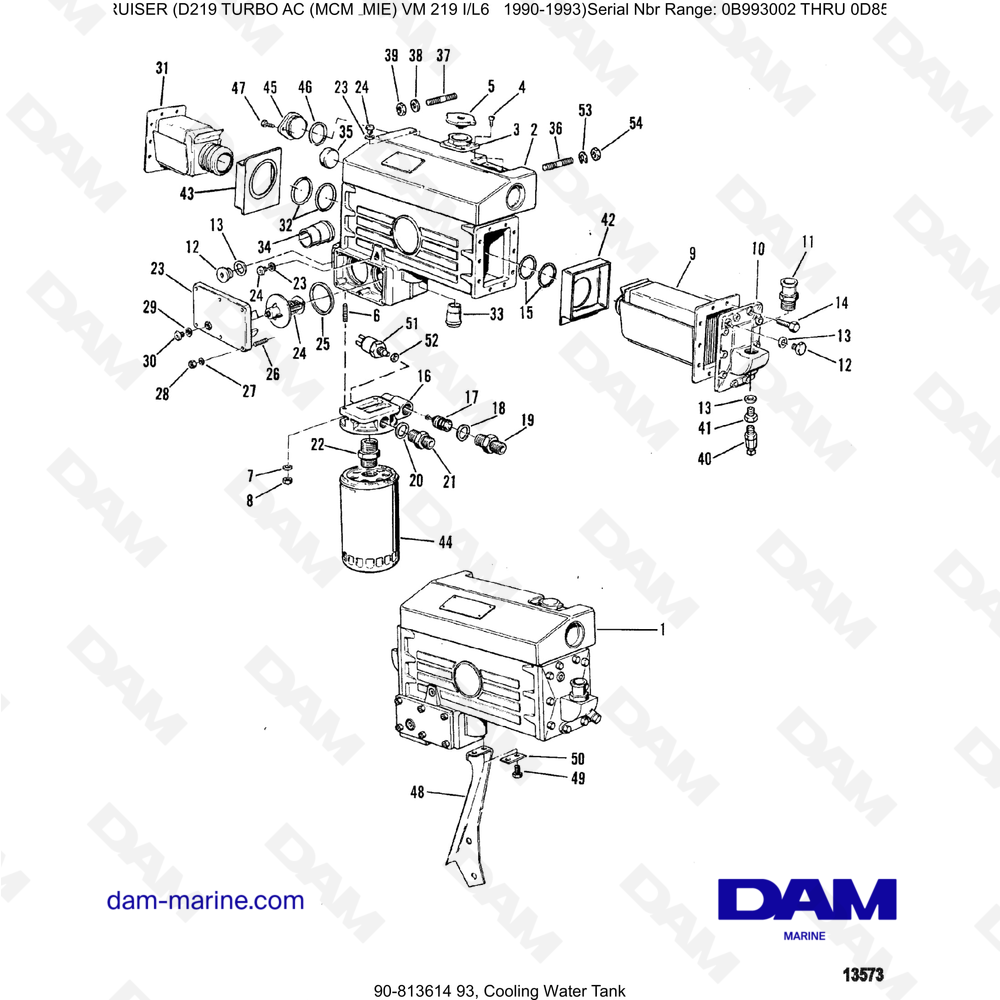

Exploded view: COOLING WATER TANK for engine Mercruiser D219 TURBO AC.

View the parts for this view
CRANKSHAFT

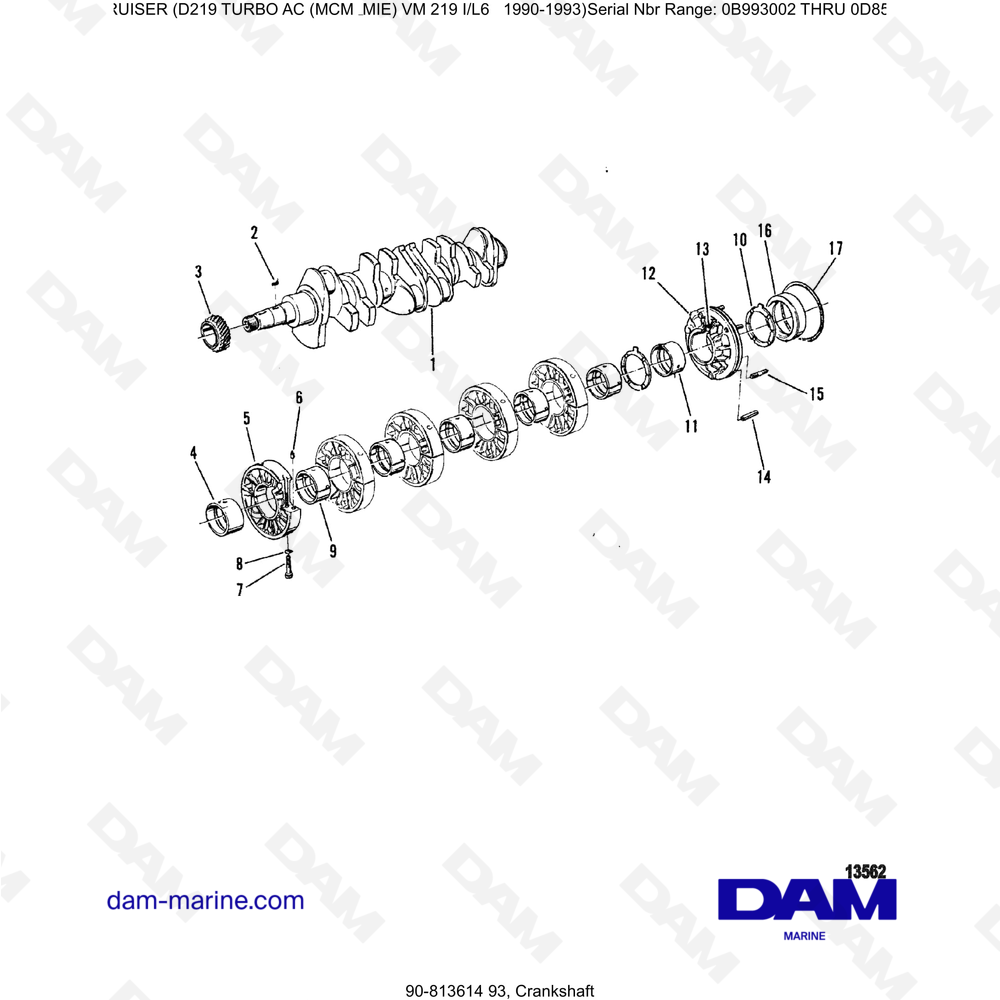

Exploded view: CRANKSHAFT for engine Mercruiser D219 TURBO AC.

View the parts for this view

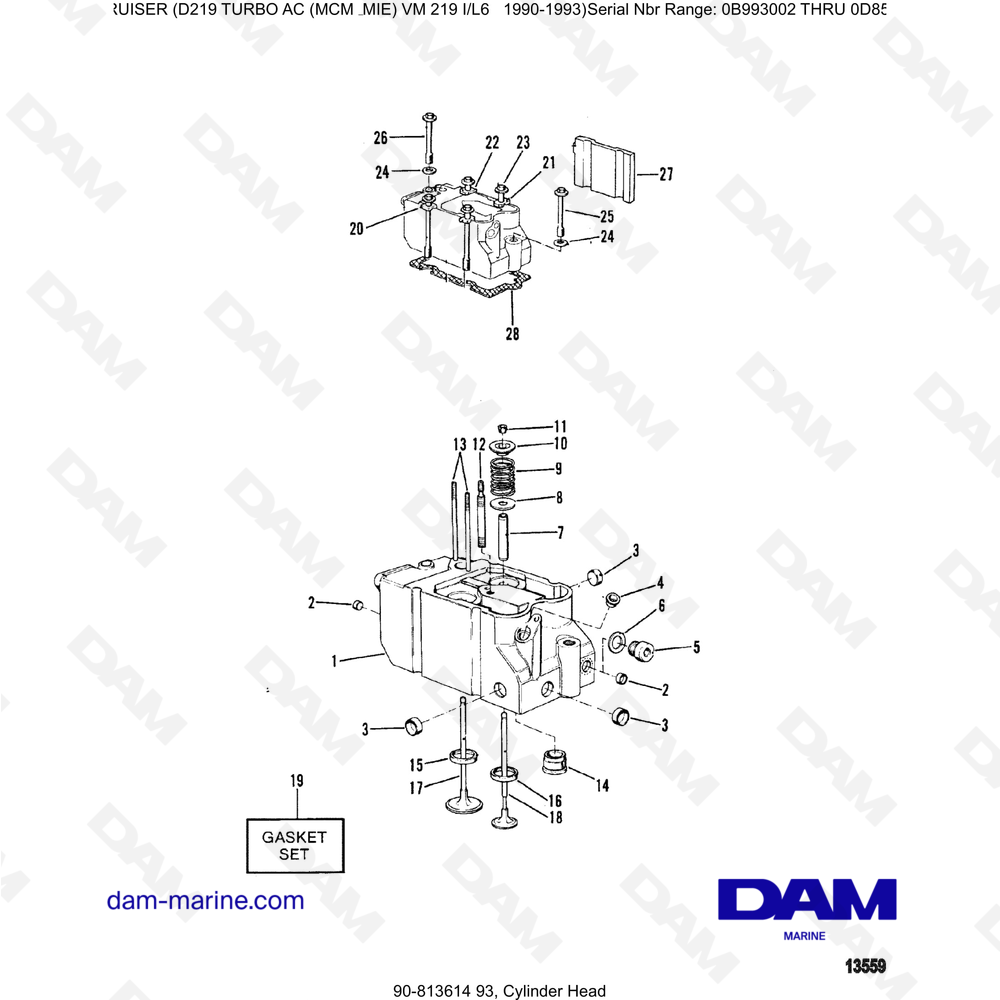

CYLINDER HEAD

Exploded view: CYLINDER HEAD for engine Mercruiser D219 TURBO AC.

View the parts for this view

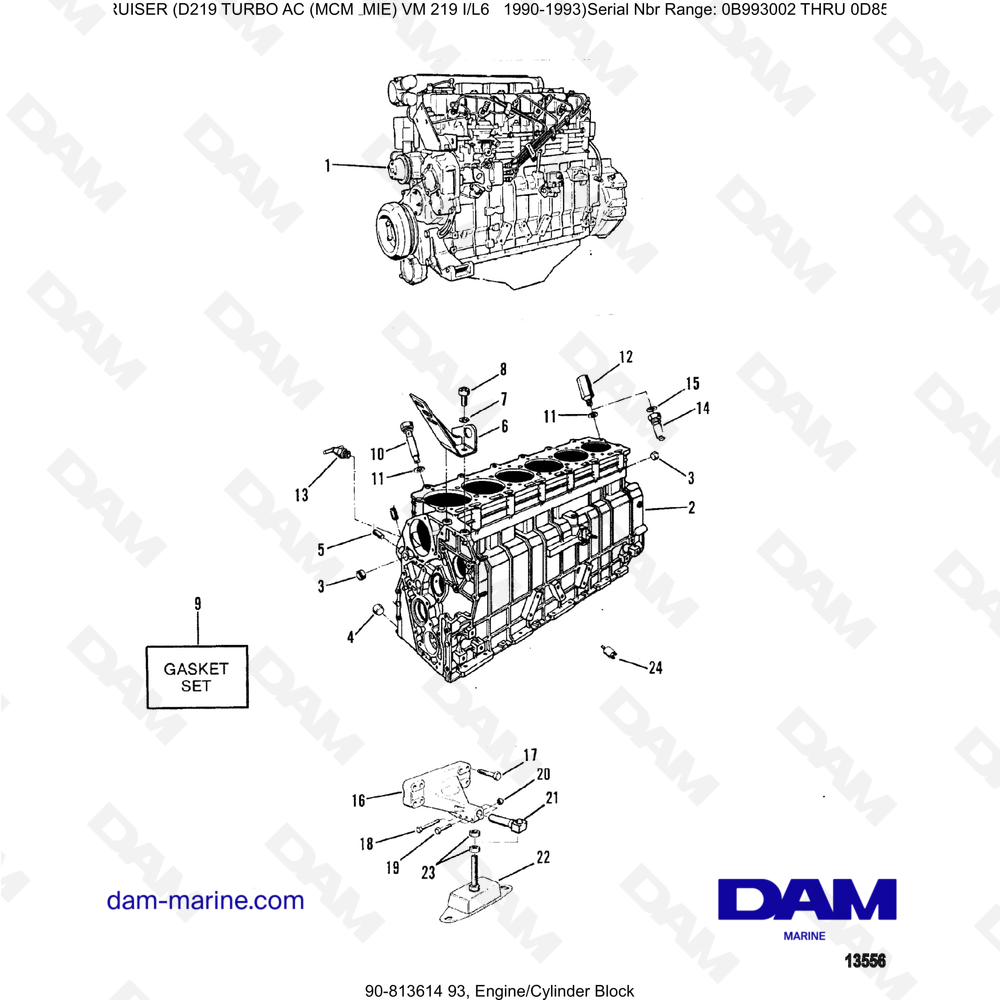

ENGINE BLOCK AND CYLINDERS

Exploded view: ENGINE BLOCK AND CYLINDERS for engine Mercruiser D219 TURBO AC.

View the parts for this view
EXHAUST MANIFOLD

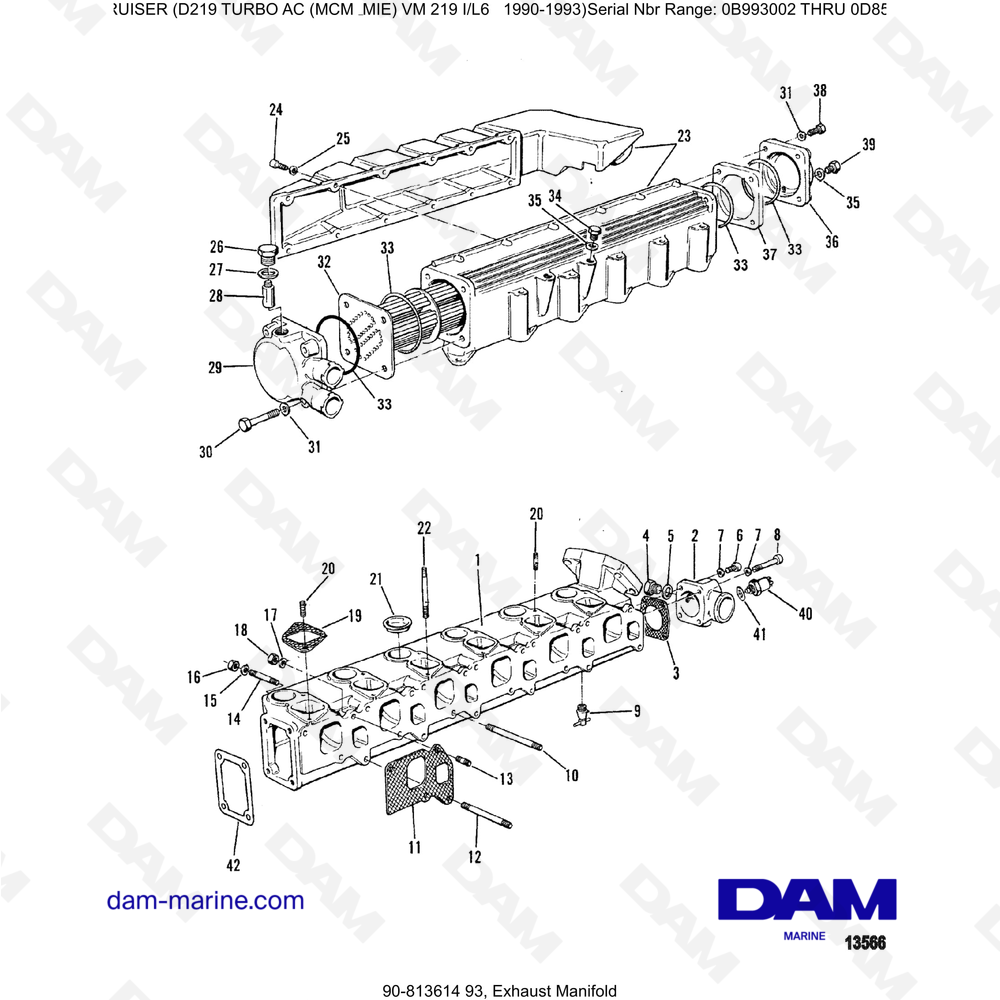

Exploded view: EXHAUST MANIFOLD for engine Mercruiser D219 TURBO AC.

View the parts for this view

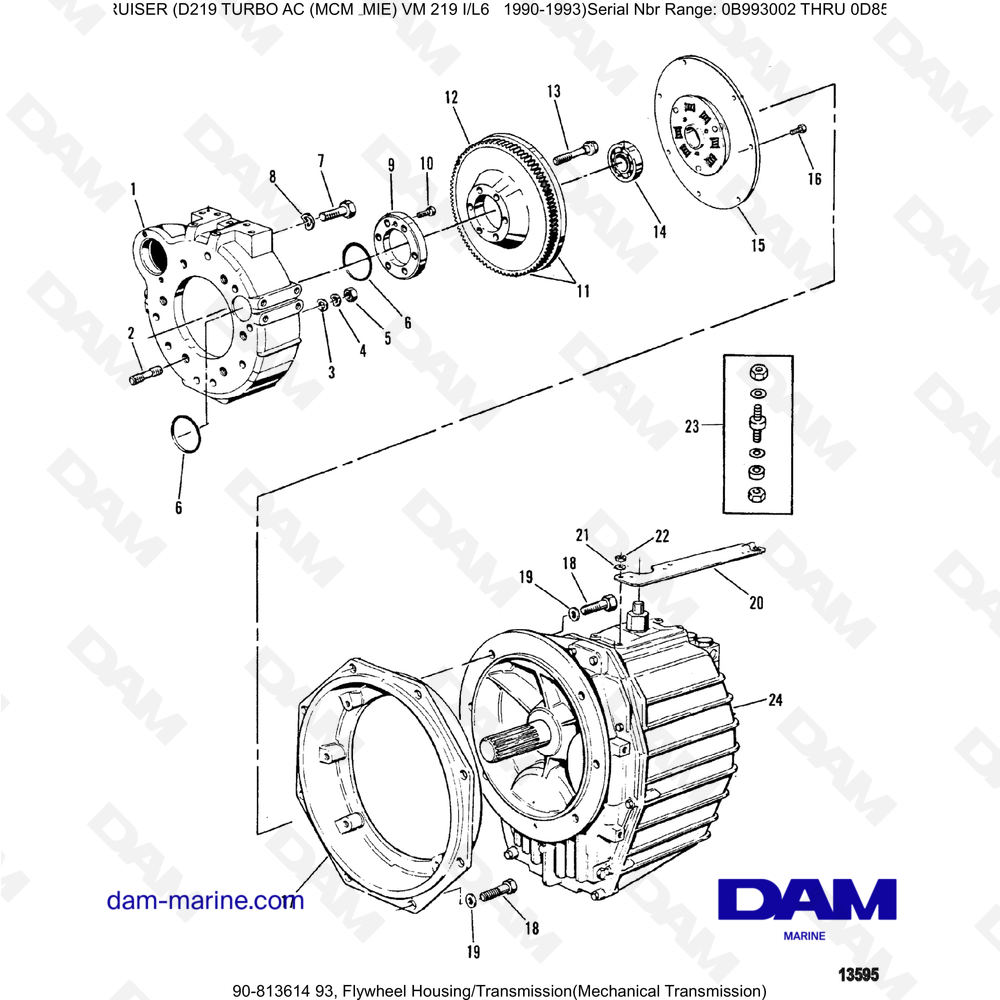

STEERING WHEEL COVER / TRANSMISSION (MECHANICAL)

Exploded view: STEERING WHEEL COVER / TRANSMISSION (MECHANICAL) for engine Mercruiser D219 TURBO AC.

View the parts for this view

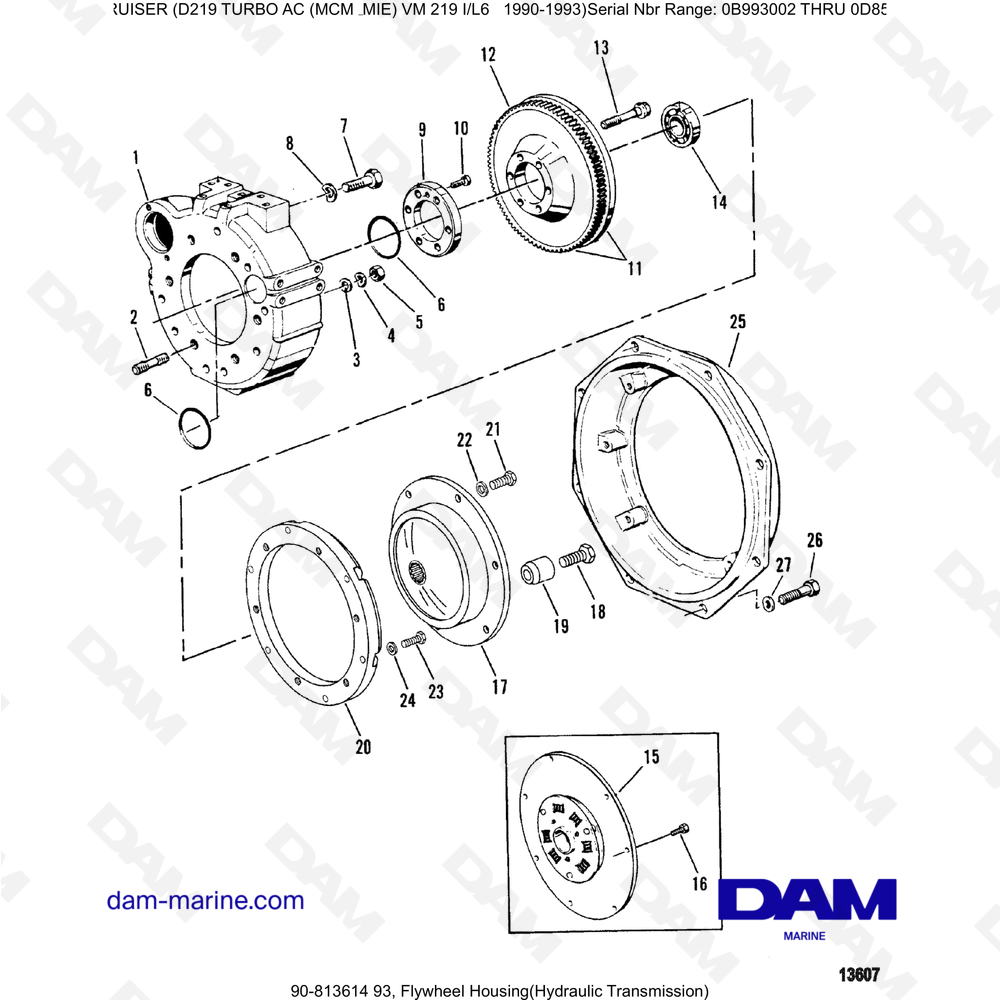

Flywheel housing (hydraulic)

Exploded view: Flywheel housing (hydraulic) for engine Mercruiser D219 TURBO AC.

View the parts for this view

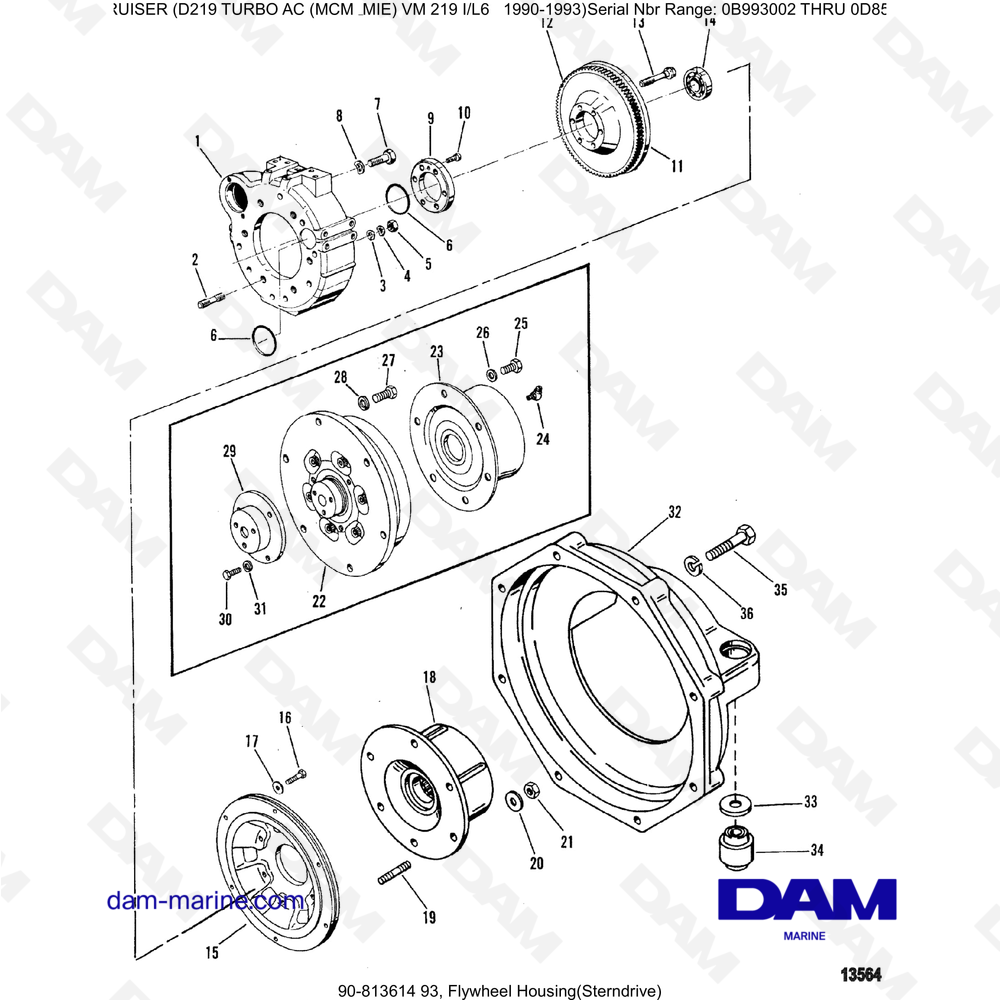

FLYWHEEL HOUSING (OFF-OUT DRIVE)

Exploded view: FLYWHEEL HOUSING (OFF-OUT DRIVE) for engine Mercruiser D219 TURBO AC.

View the parts for this view

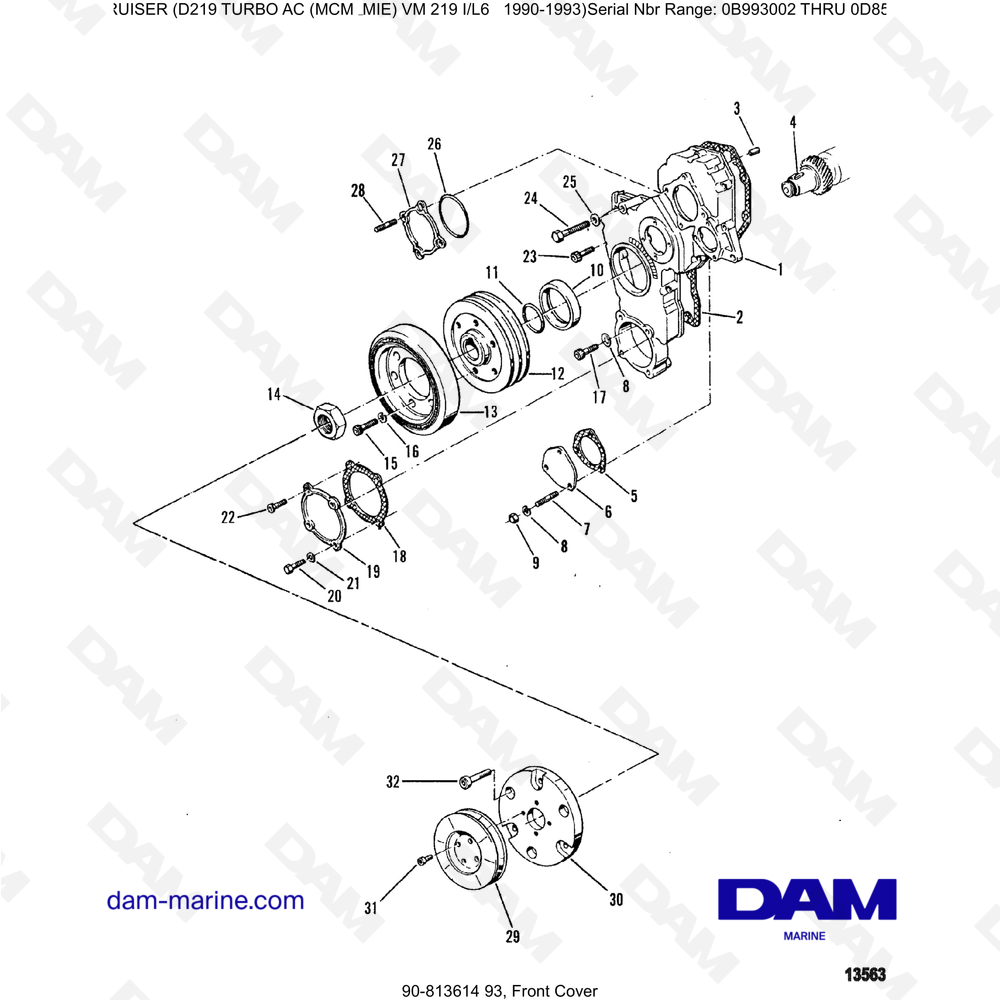

FRONT COVER

Exploded view: FRONT COVER for engine Mercruiser D219 TURBO AC.

View the parts for this view
FUEL FILTER

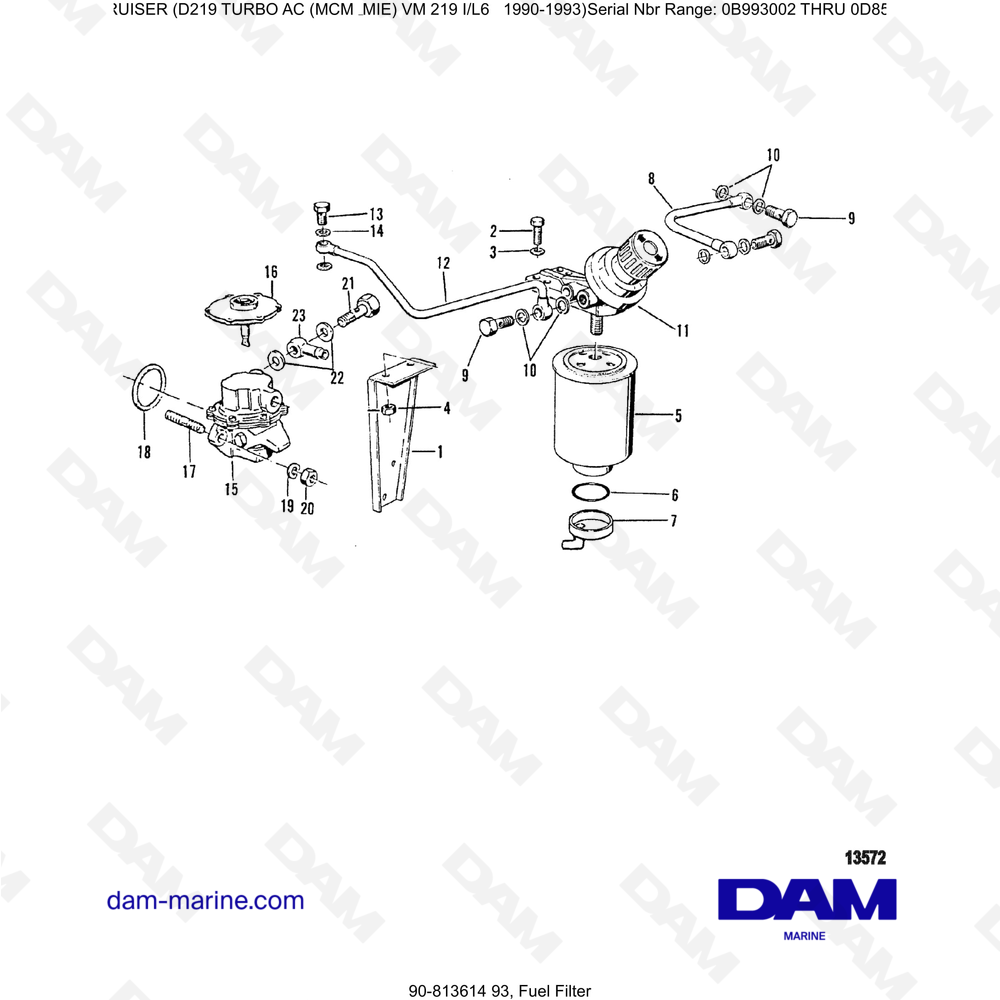

Exploded view: FUEL FILTER for engine Mercruiser D219 TURBO AC.

View the parts for this view
PIPES (5C)

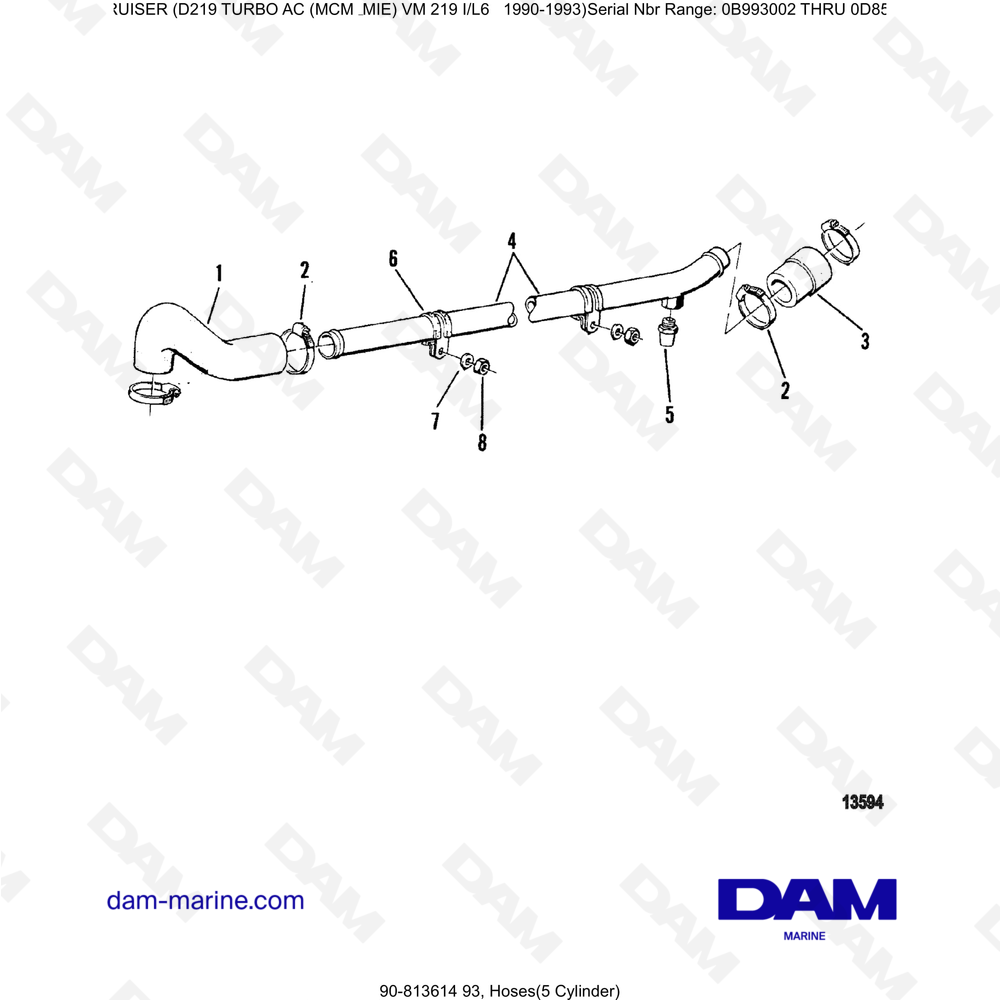

Exploded view: PIPES (5C) for engine Mercruiser D219 TURBO AC.

View the parts for this view
INJECTION NOZZLES / LINES

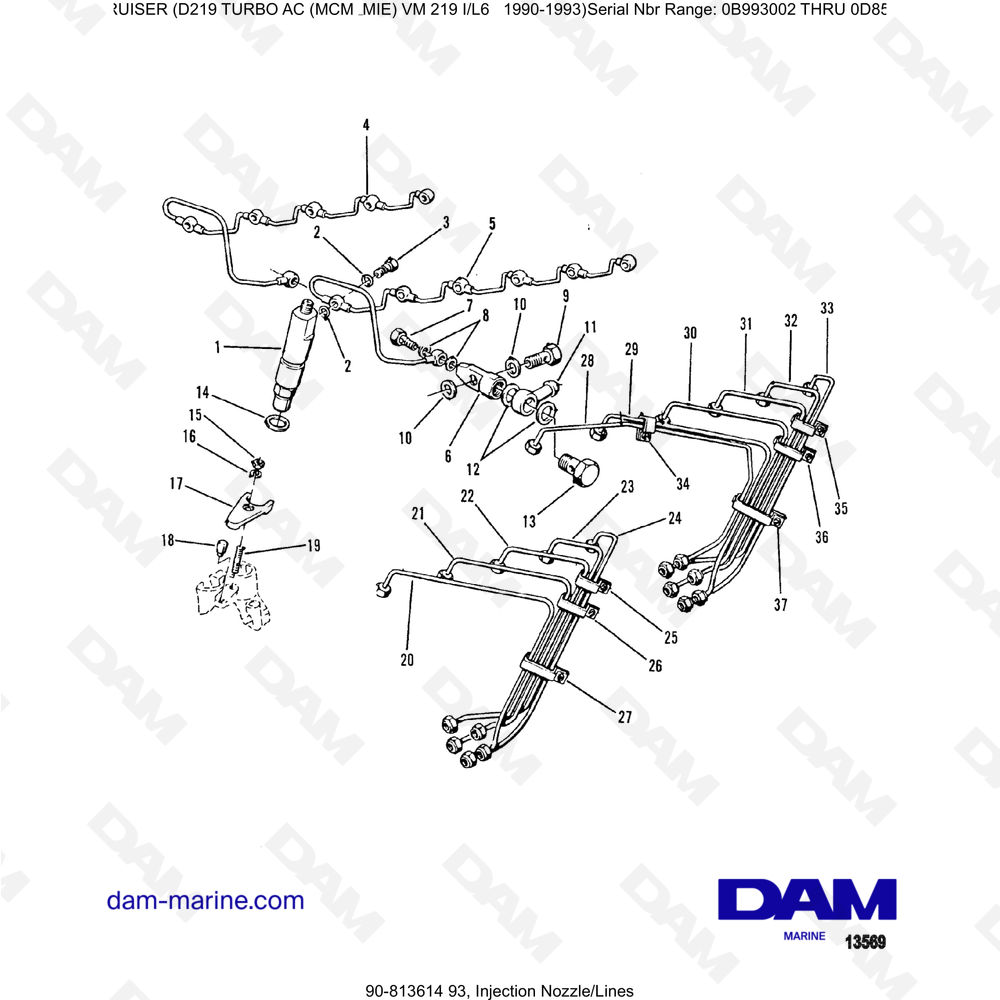

Exploded view: INJECTION NOZZLES / LINES for engine Mercruiser D219 TURBO AC.

View the parts for this view
INJECTION PUMP

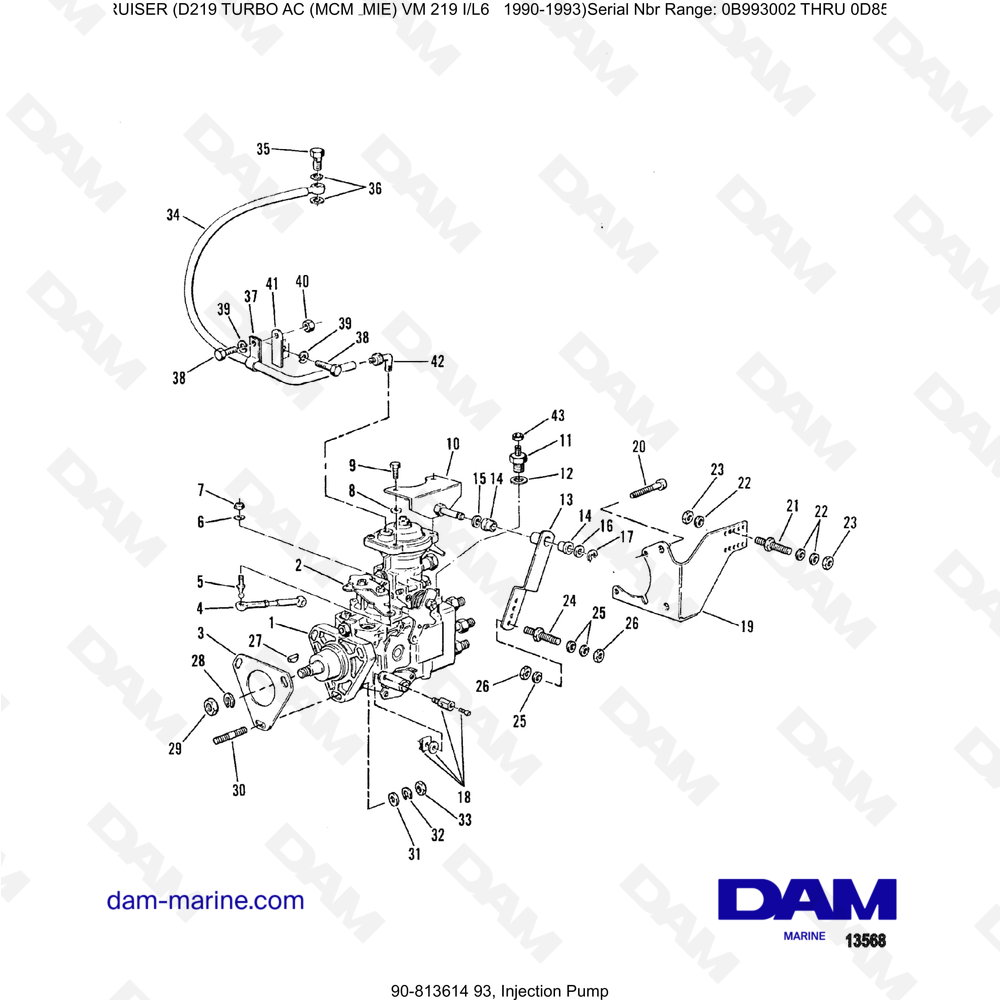

Exploded view: INJECTION PUMP for engine Mercruiser D219 TURBO AC.

View the parts for this view

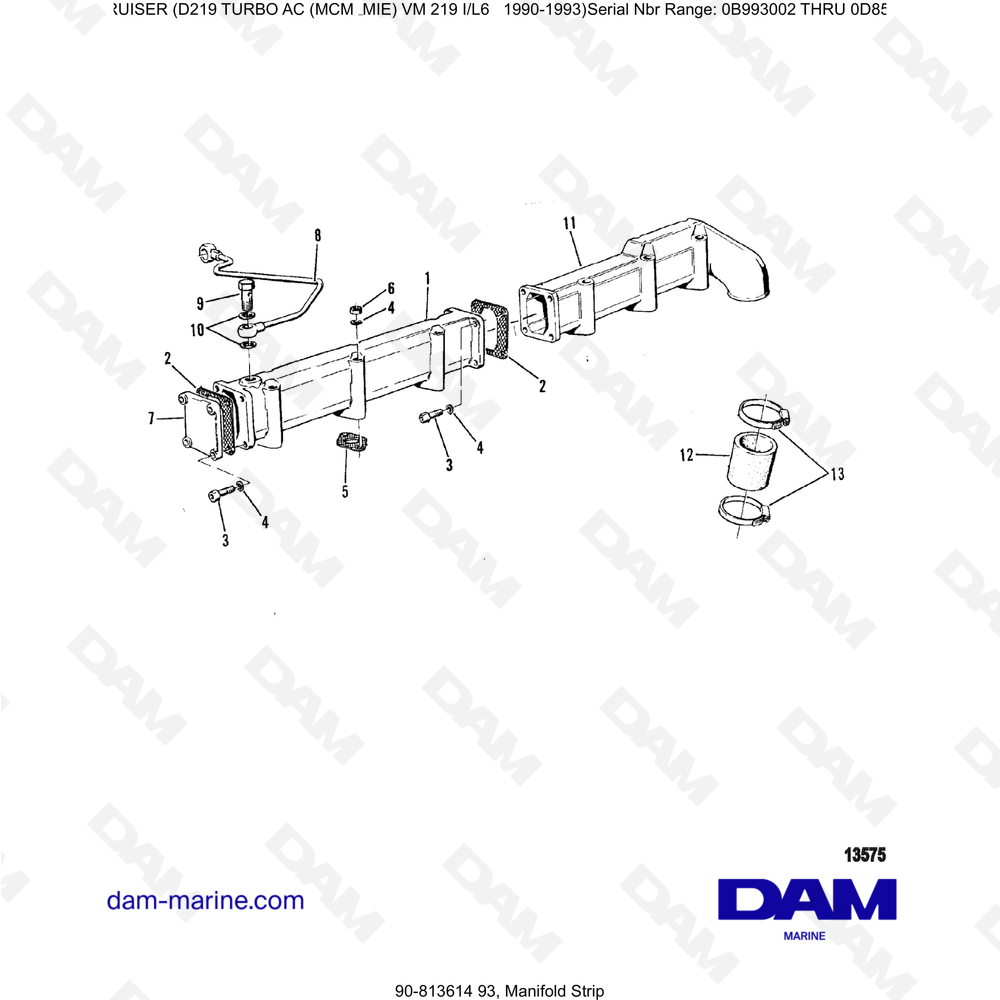

COLLECTIVE STRIP

Exploded view: COLLECTIVE STRIP for engine Mercruiser D219 TURBO AC.

View the parts for this view

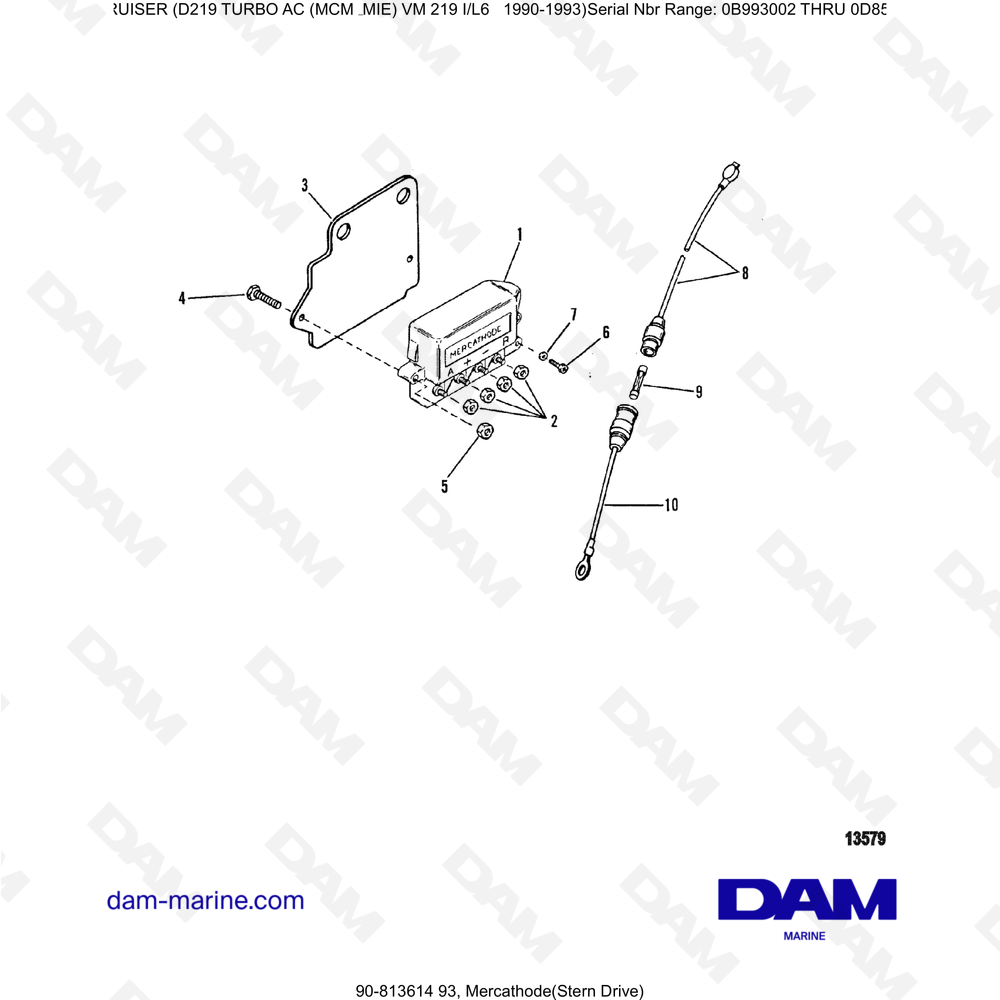

MERCATHODE

Exploded view: MERCATHODE for engine Mercruiser D219 TURBO AC.

View the parts for this view

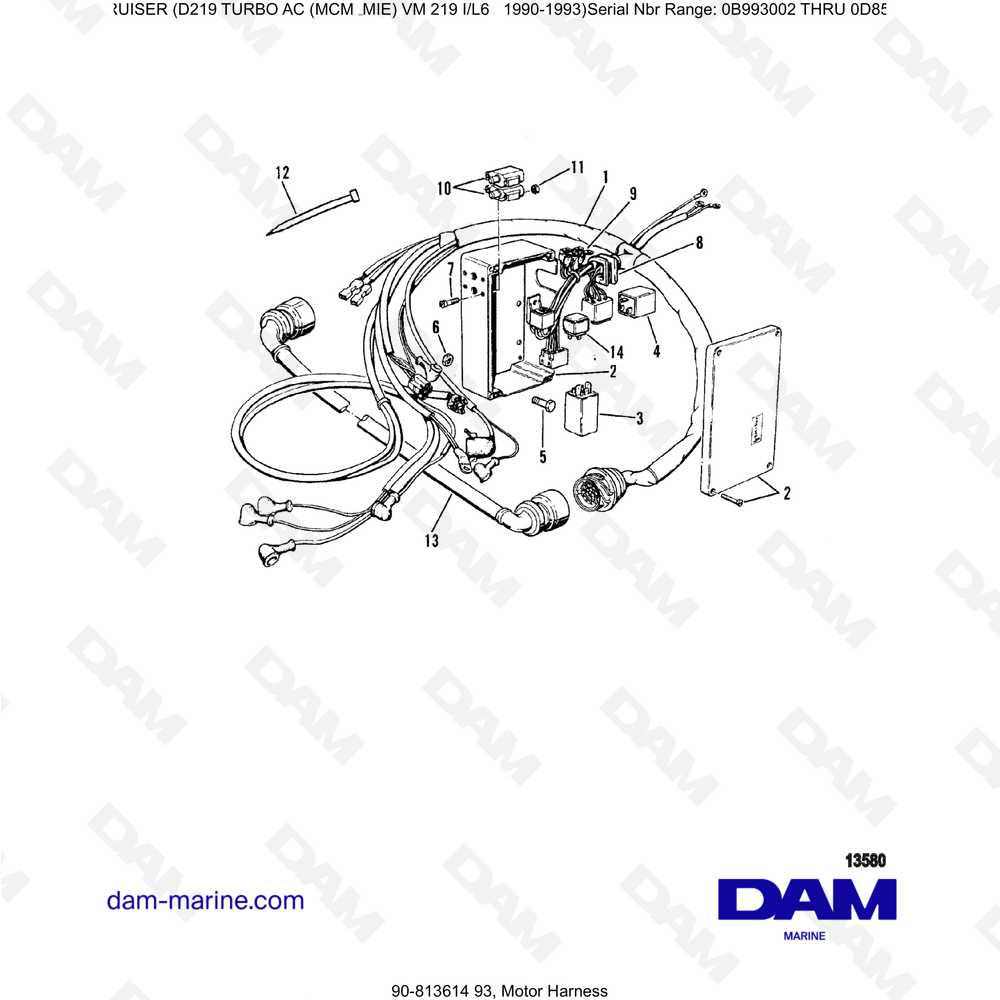

ENGINE HARNESS

Exploded view: ENGINE HARNESS for engine Mercruiser D219 TURBO AC.

View the parts for this view

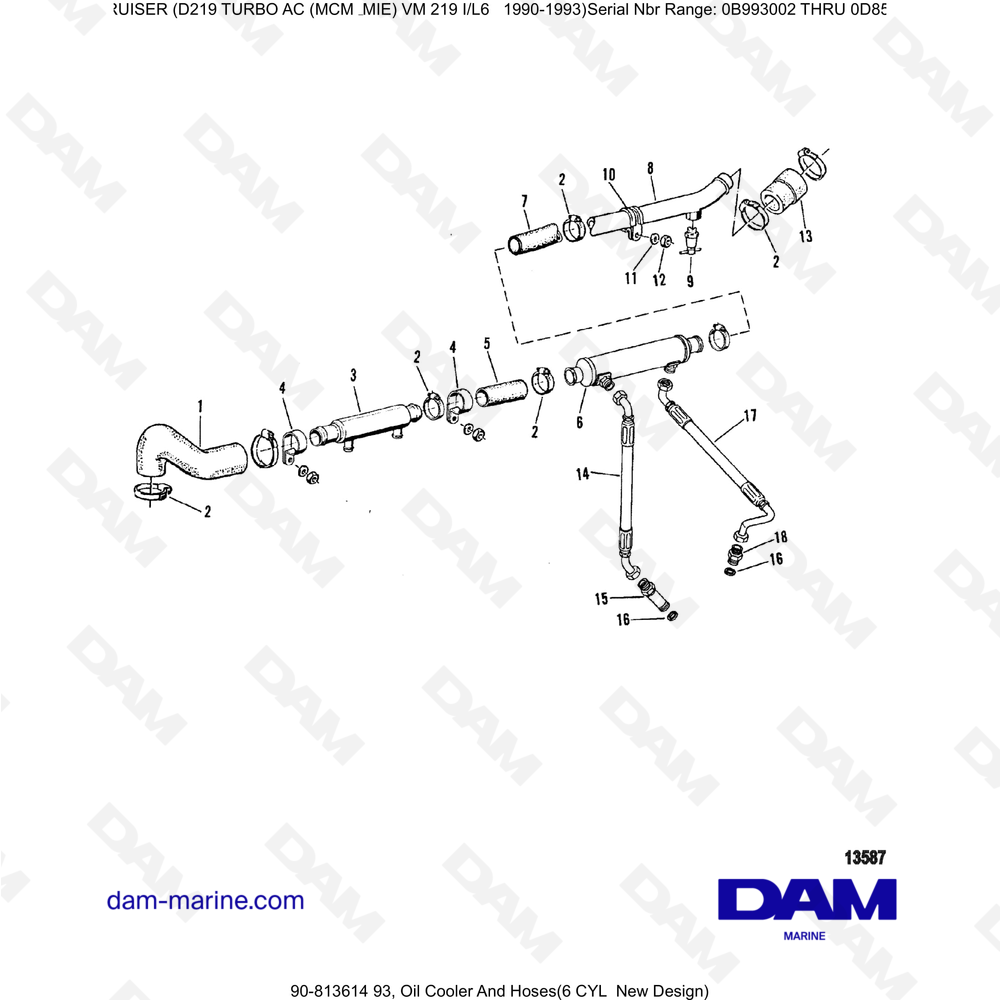

OIL COOLER AND HOSES

Exploded view: OIL COOLER AND HOSES for engine Mercruiser D219 TURBO AC.

View the parts for this view
MECHANICAL OIL COOLER

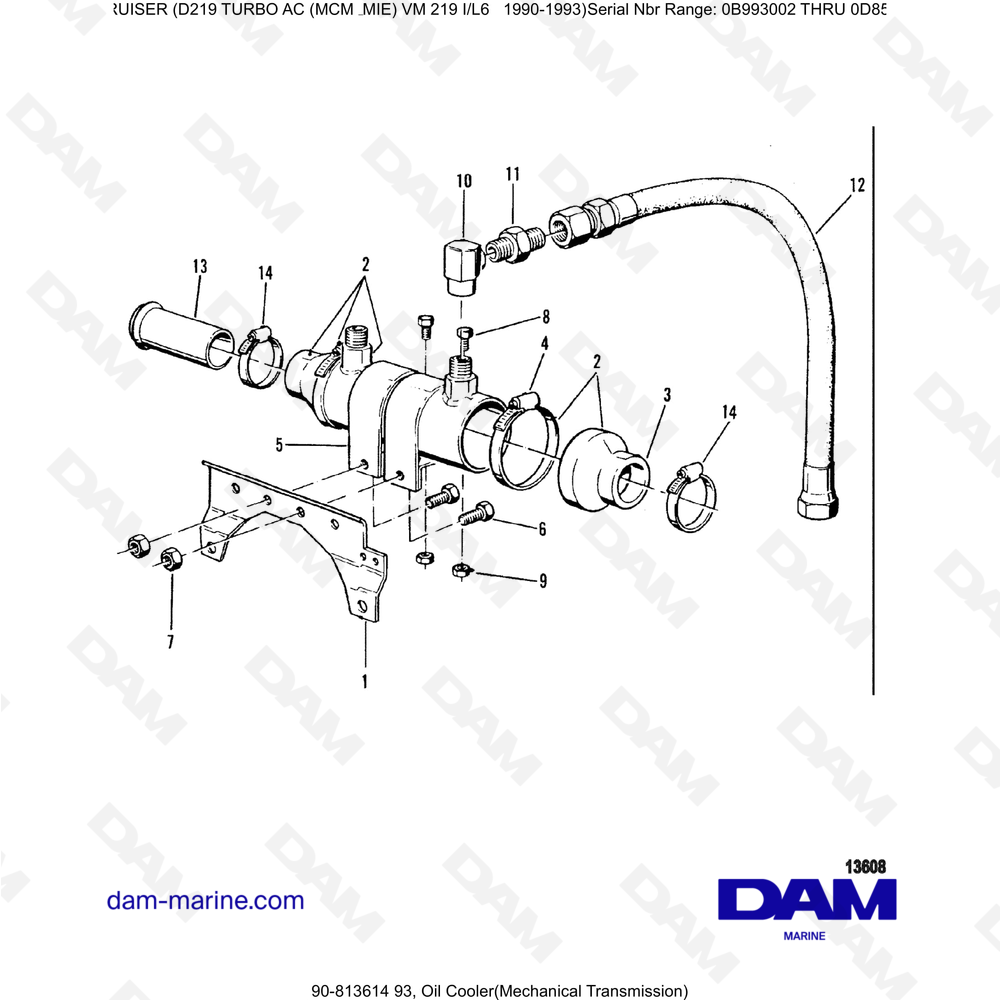

Exploded view: MECHANICAL OIL COOLER for engine Mercruiser D219 TURBO AC.

View the parts for this view
OIL LINES (5C)

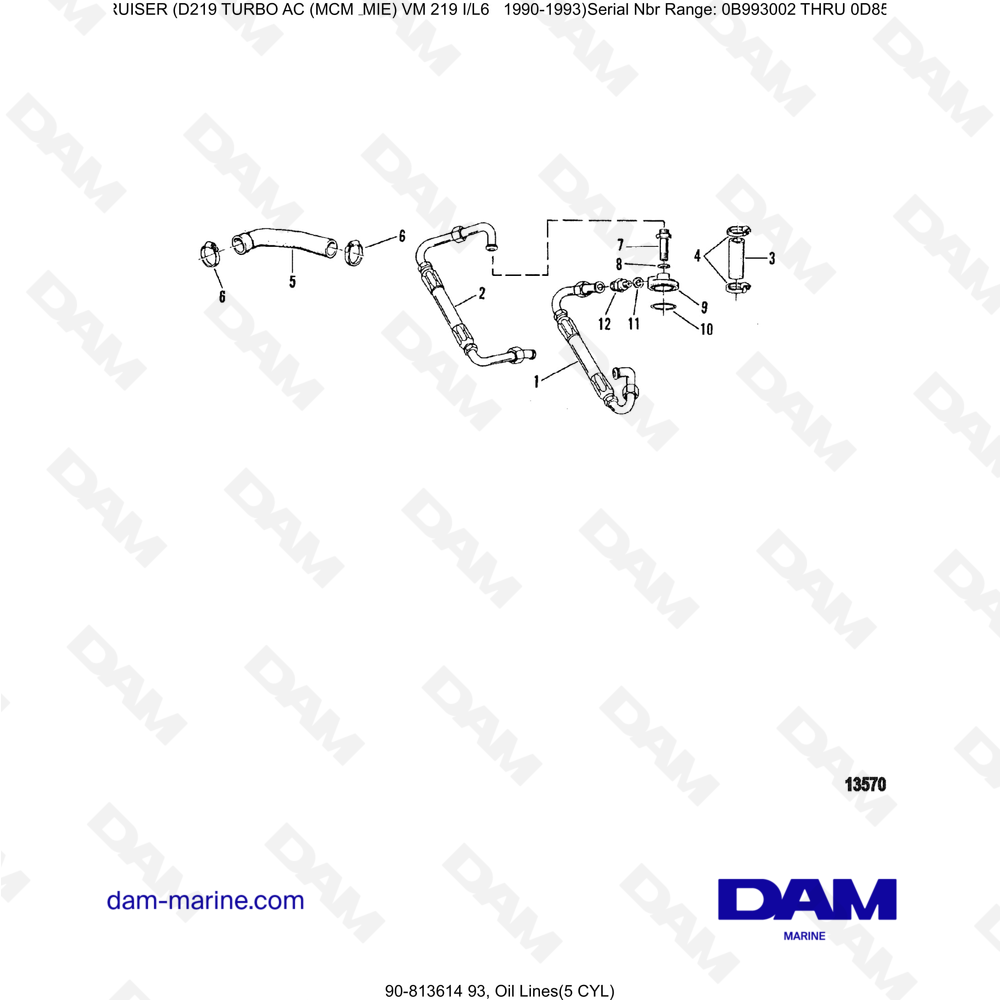

Exploded view: OIL LINES (5C) for engine Mercruiser D219 TURBO AC.

View the parts for this view

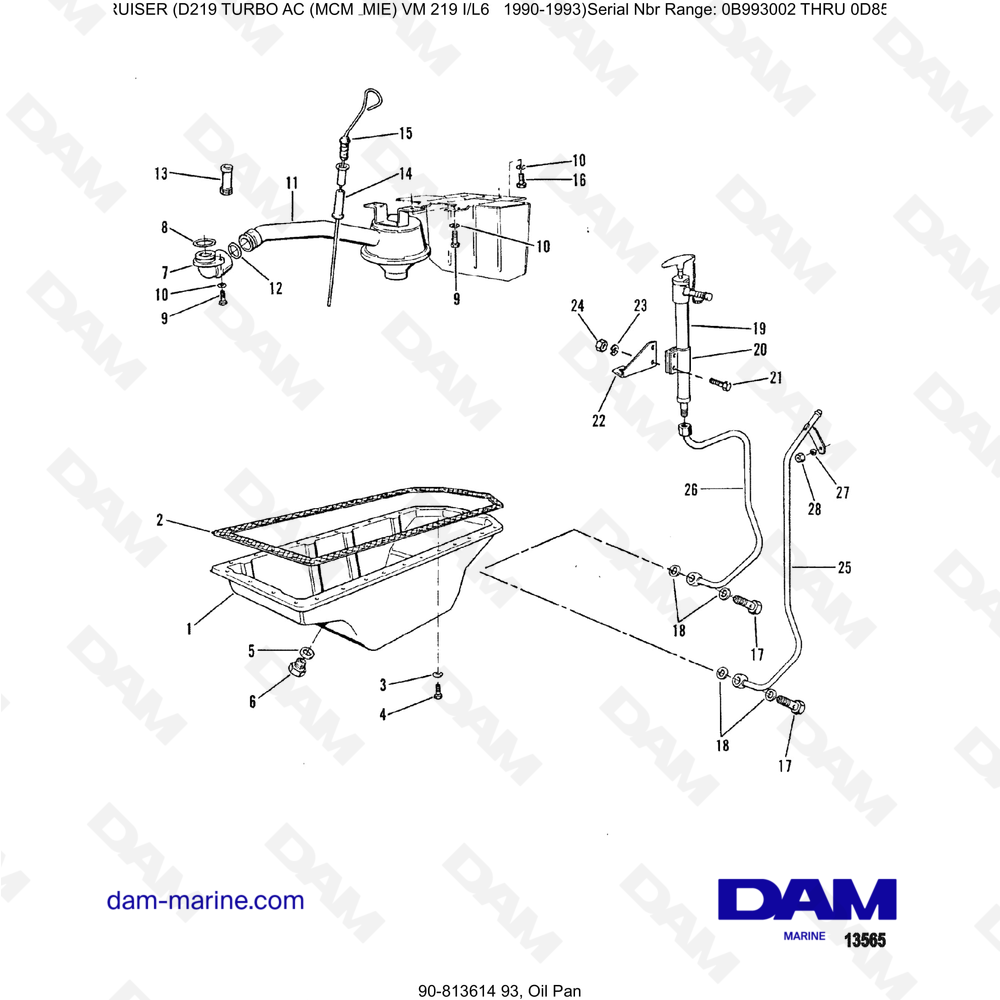

OIL PLATE

Exploded view: OIL PLATE for engine Mercruiser D219 TURBO AC.

View the parts for this view

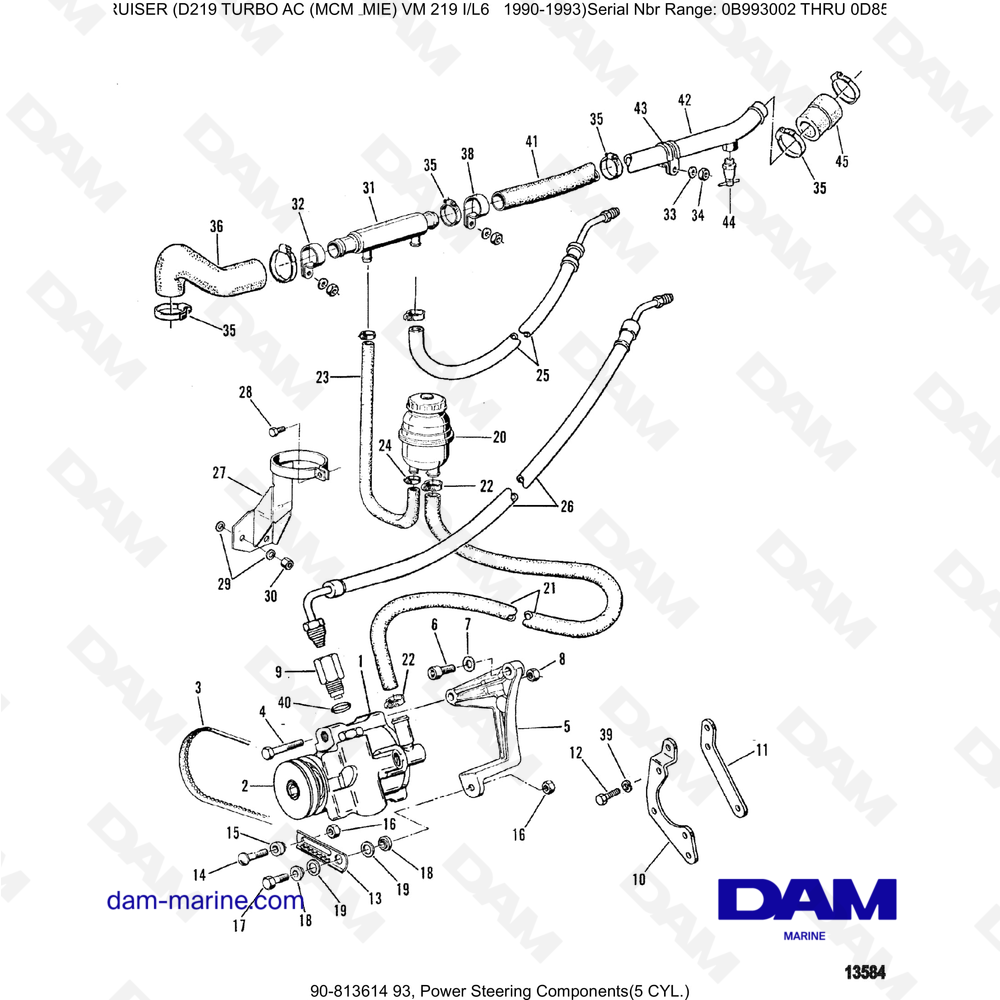

POWER STEERING COMPONENTS (5C)

Exploded view: POWER STEERING COMPONENTS (5C) for engine Mercruiser D219 TURBO AC.

View the parts for this view

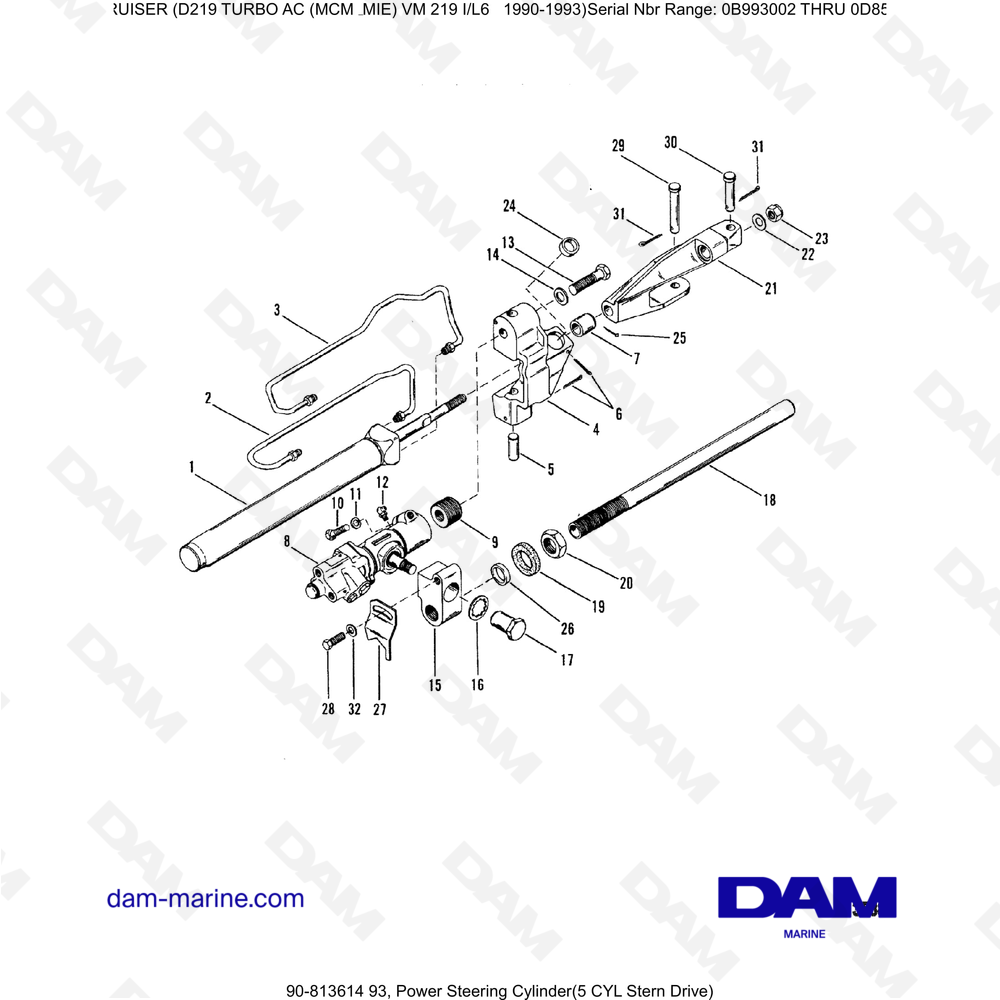

POWER STEERING CYLINDER

Exploded view: POWER STEERING CYLINDER for engine Mercruiser D219 TURBO AC.

View the parts for this view
ROCKER JOINT AND OIL LINES

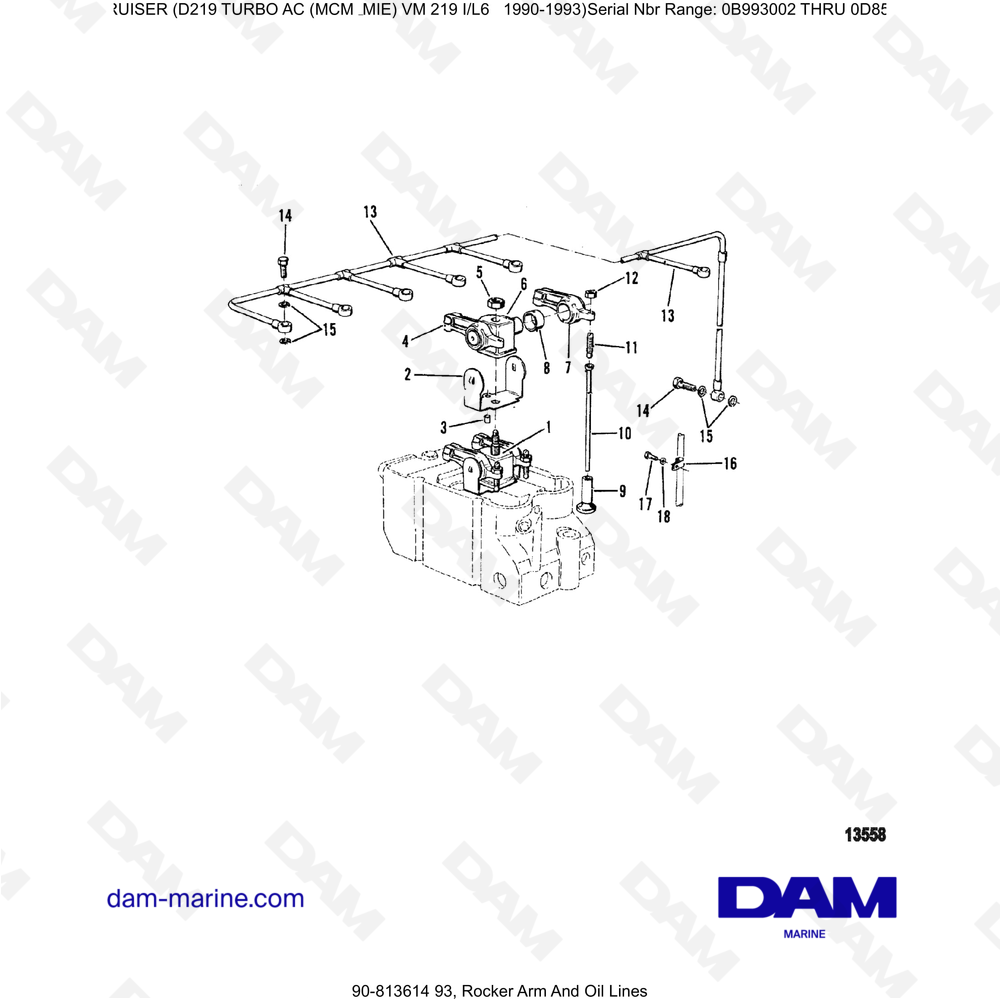

Exploded view: ROCKER JOINT AND OIL LINES for engine Mercruiser D219 TURBO AC.

View the parts for this view

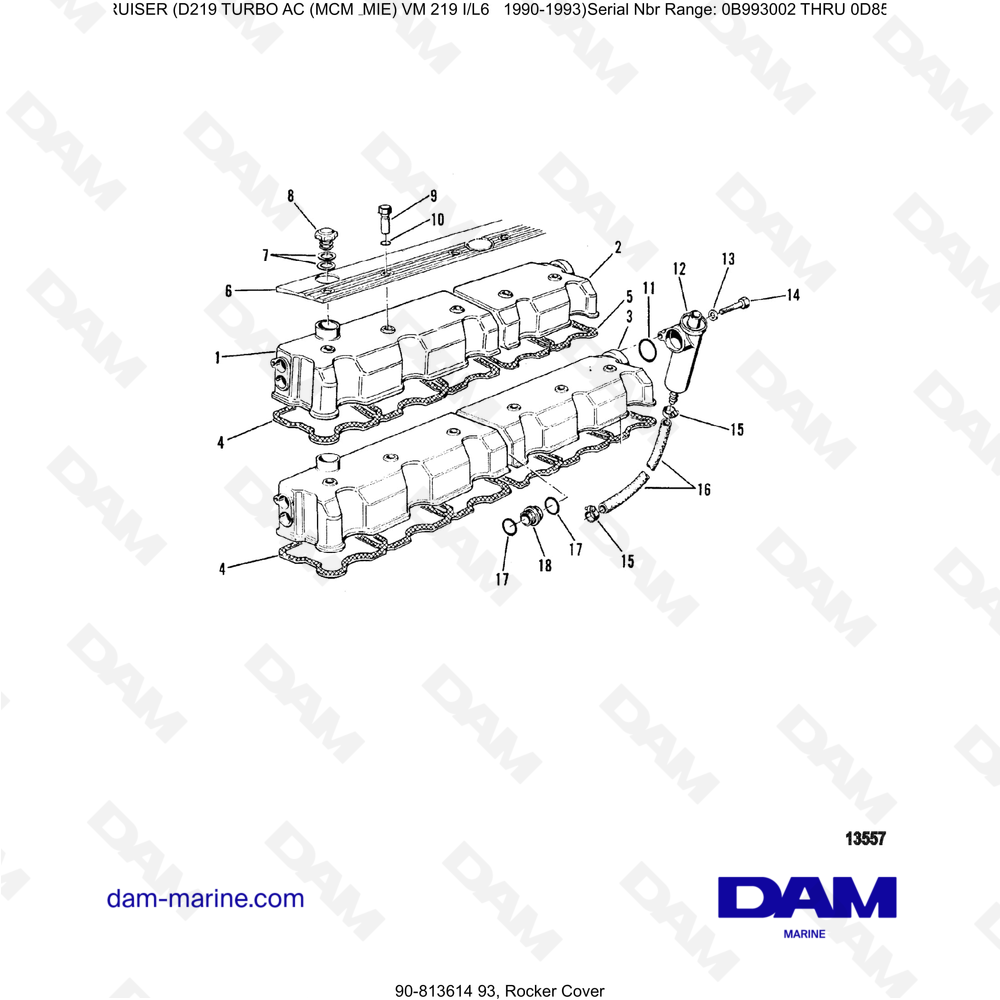

ROCKER'S LID

Exploded view: ROCKER'S LID for engine Mercruiser D219 TURBO AC.

View the parts for this view

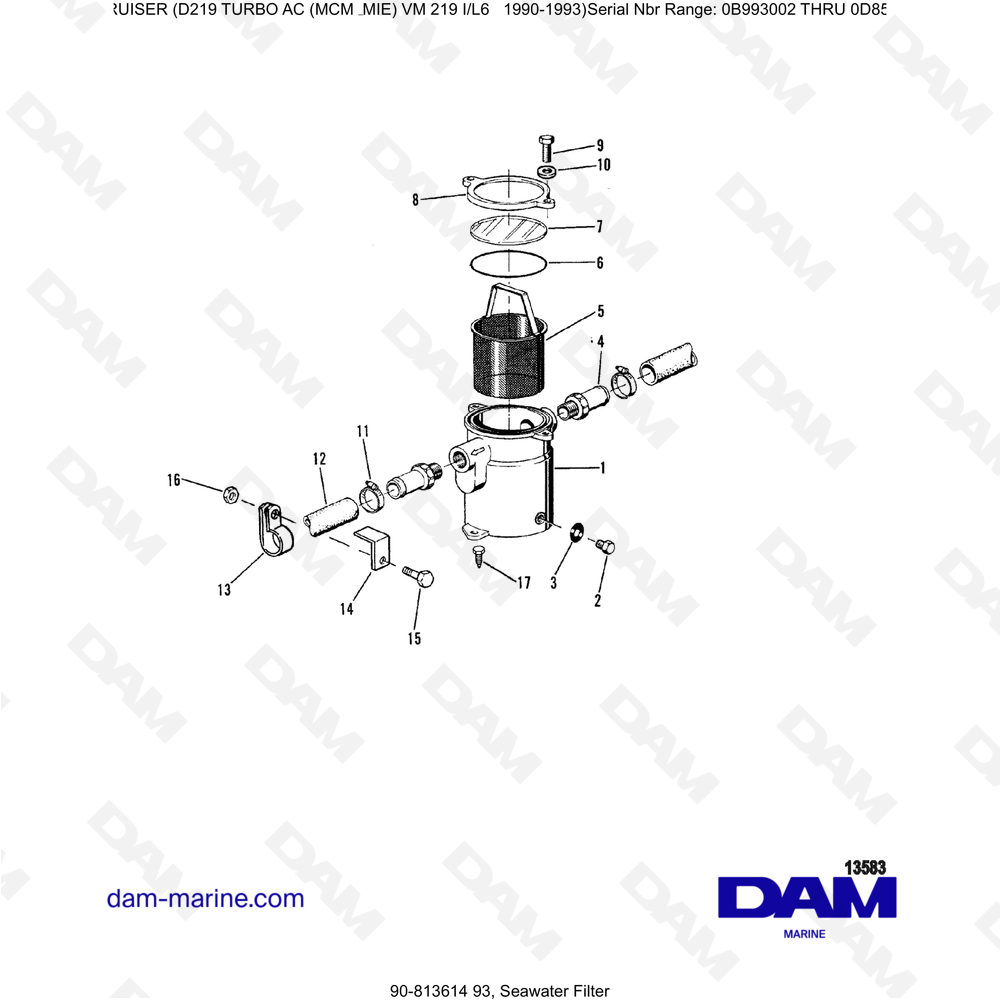

SEAWATER FILTER

Exploded view: SEAWATER FILTER for engine Mercruiser D219 TURBO AC.

View the parts for this view
SEA WATER PUMP (HYDRAULICS)

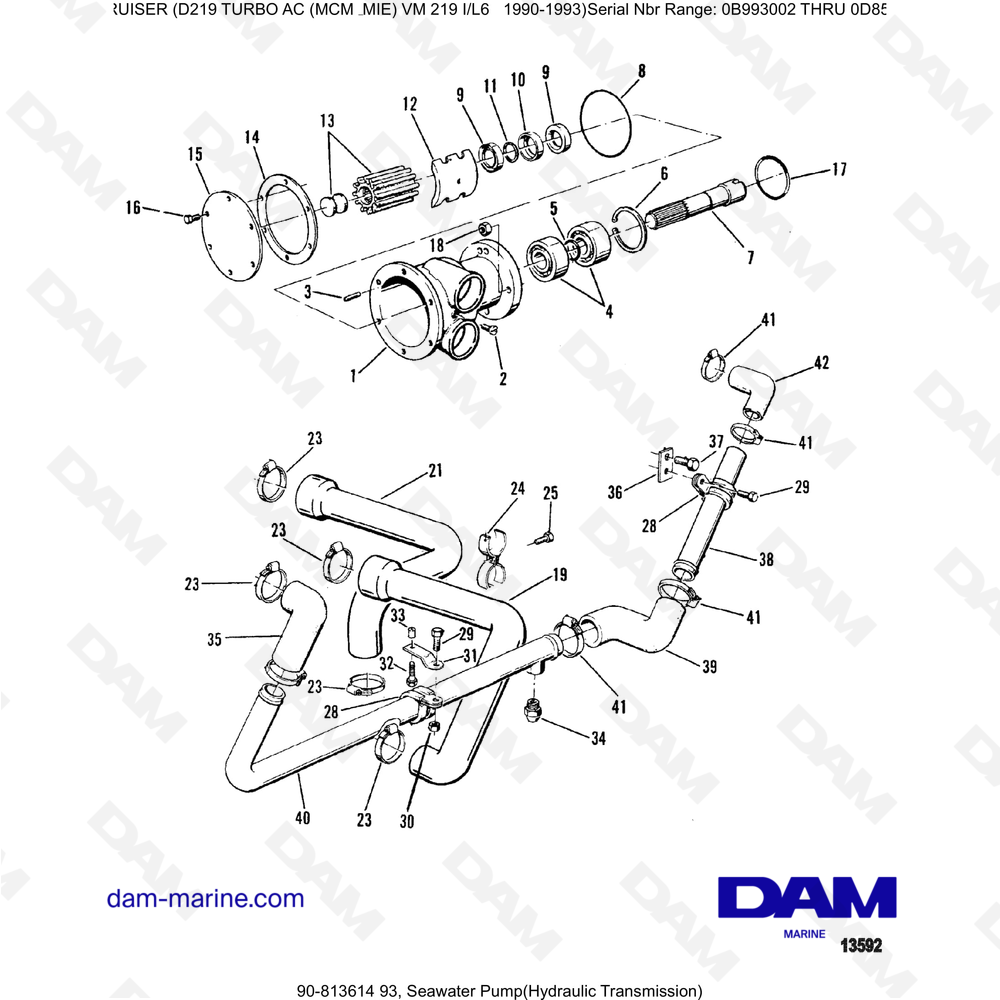

Exploded view: SEA WATER PUMP (HYDRAULICS) for engine Mercruiser D219 TURBO AC.

View the parts for this view

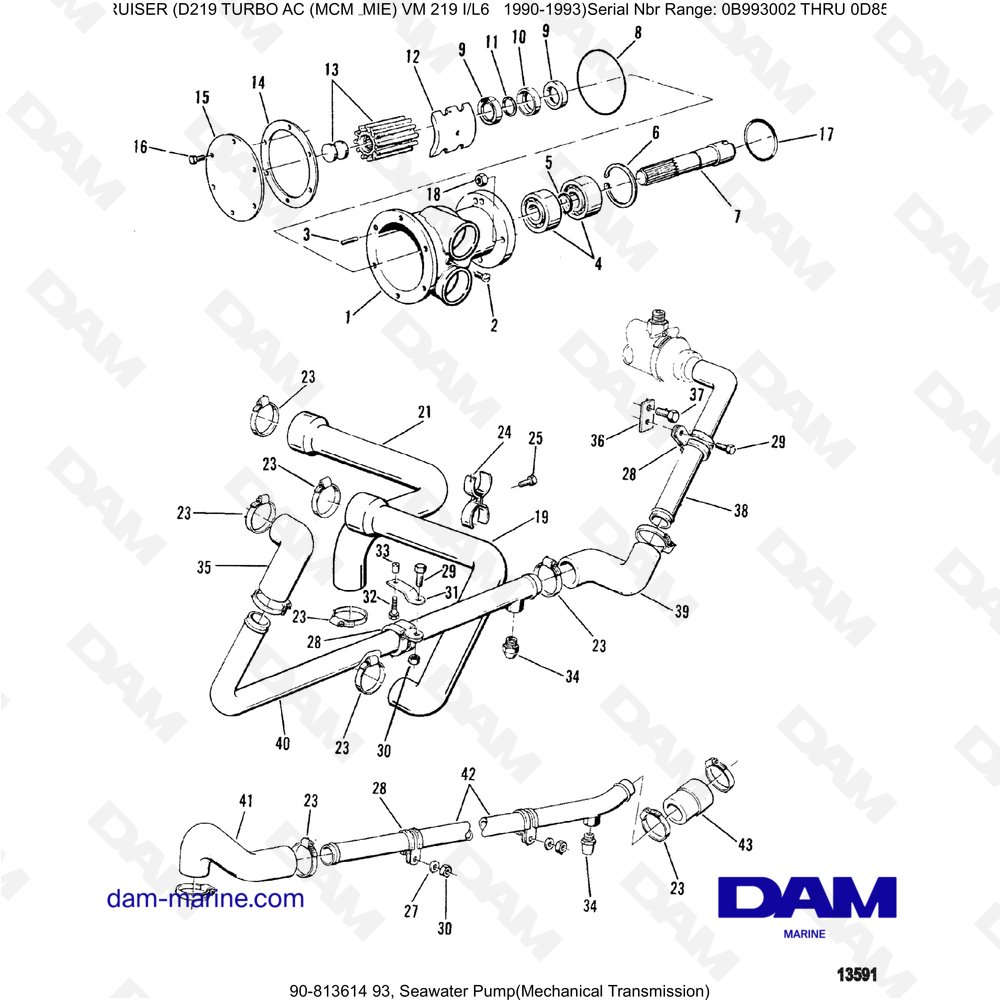

SEA WATER PUMP (MECHANICAL)

Exploded view: SEA WATER PUMP (MECHANICAL) for engine Mercruiser D219 TURBO AC.

View the parts for this view

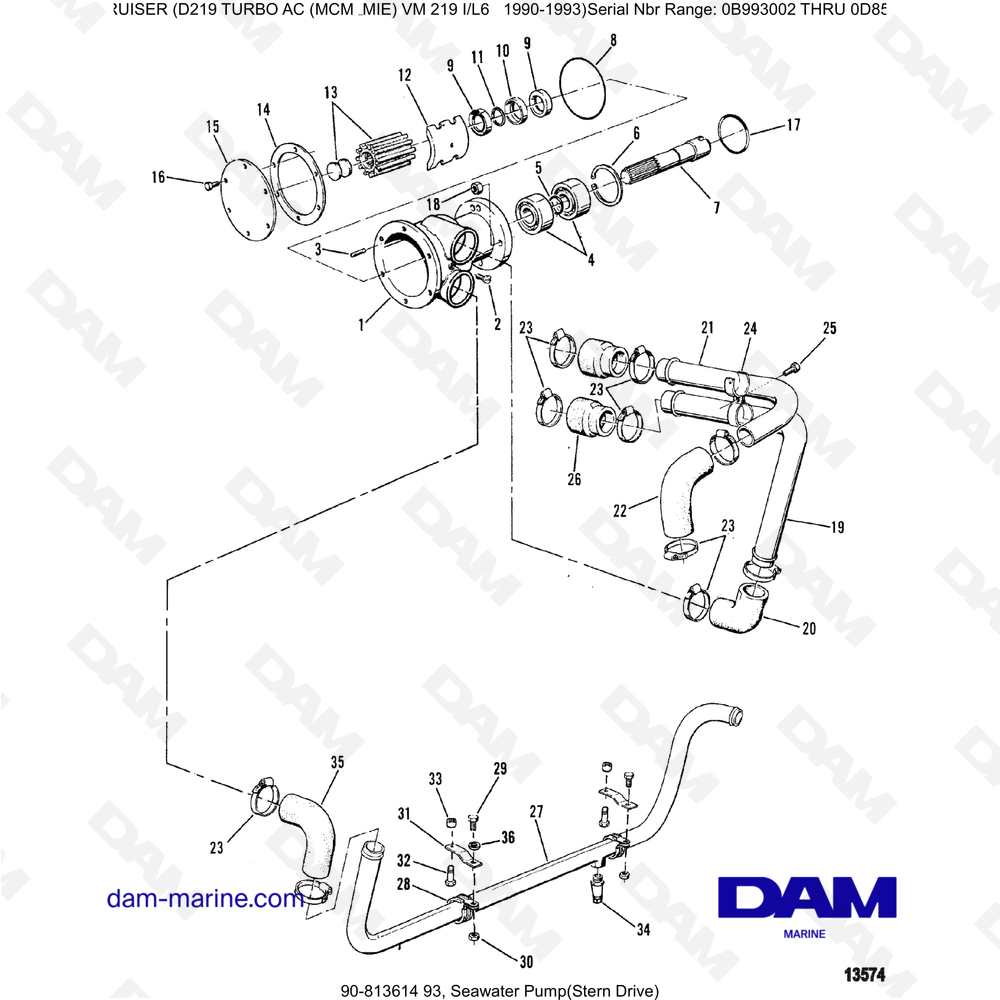

SEAWATER PUMP (MARINE PULLER)

Exploded view: SEAWATER PUMP (MARINE PULLER) for engine Mercruiser D219 TURBO AC.

View the parts for this view
GEAR SHIFT LEVER SUPPORT

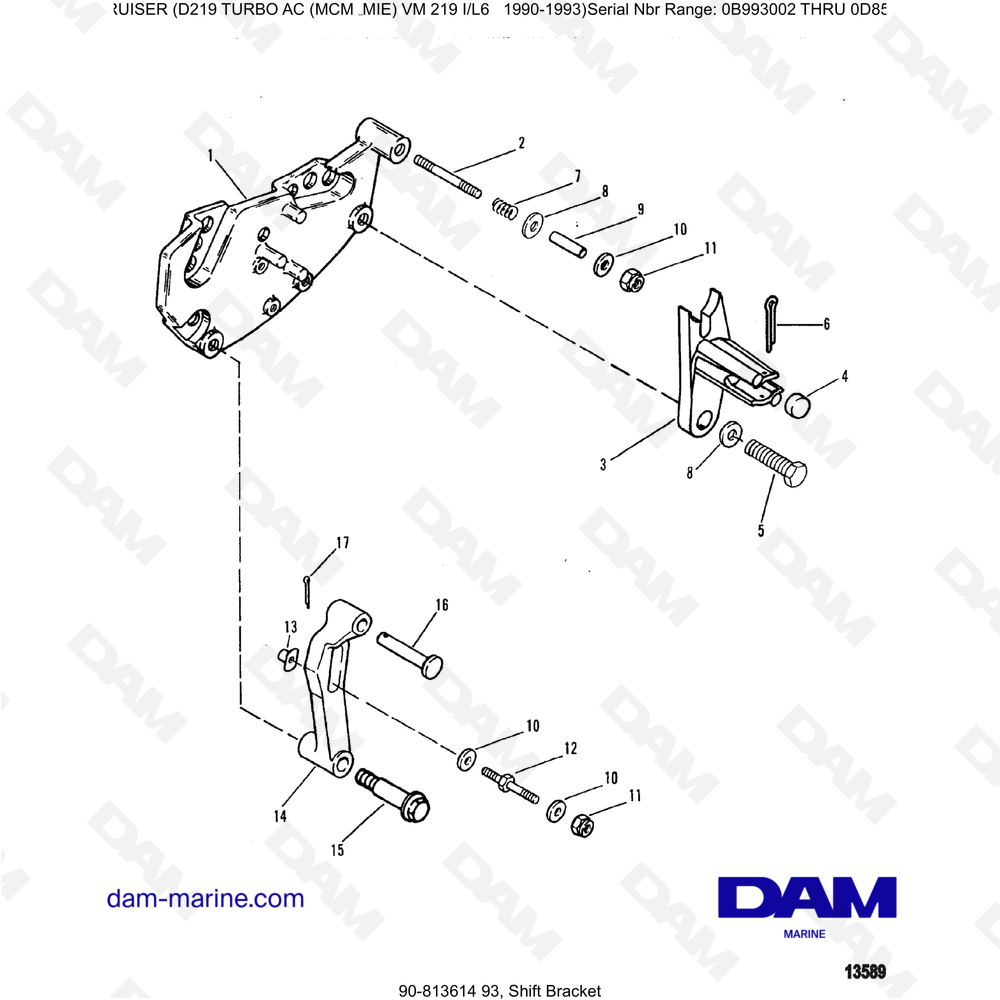

Exploded view: GEAR SHIFT LEVER SUPPORT for engine Mercruiser D219 TURBO AC.

View the parts for this view

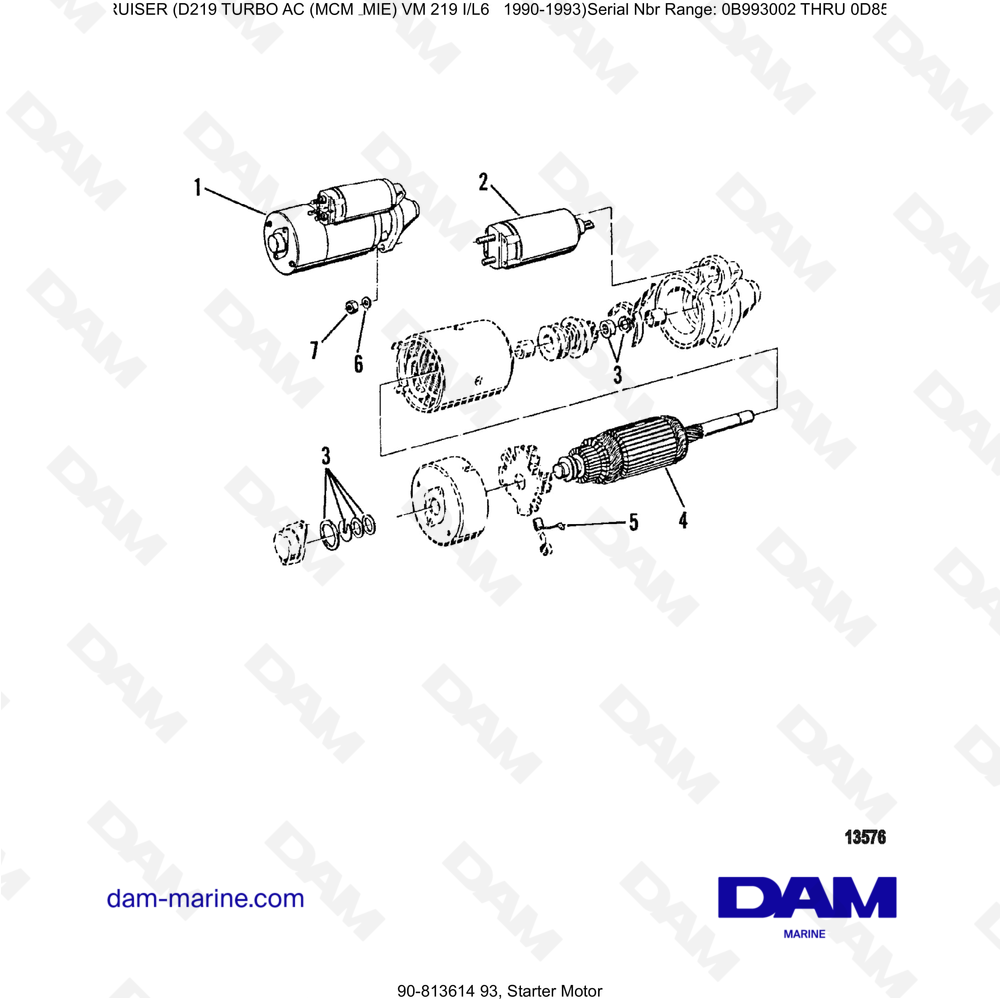

STARTER

Exploded view: STARTER for engine Mercruiser D219 TURBO AC.

View the parts for this view

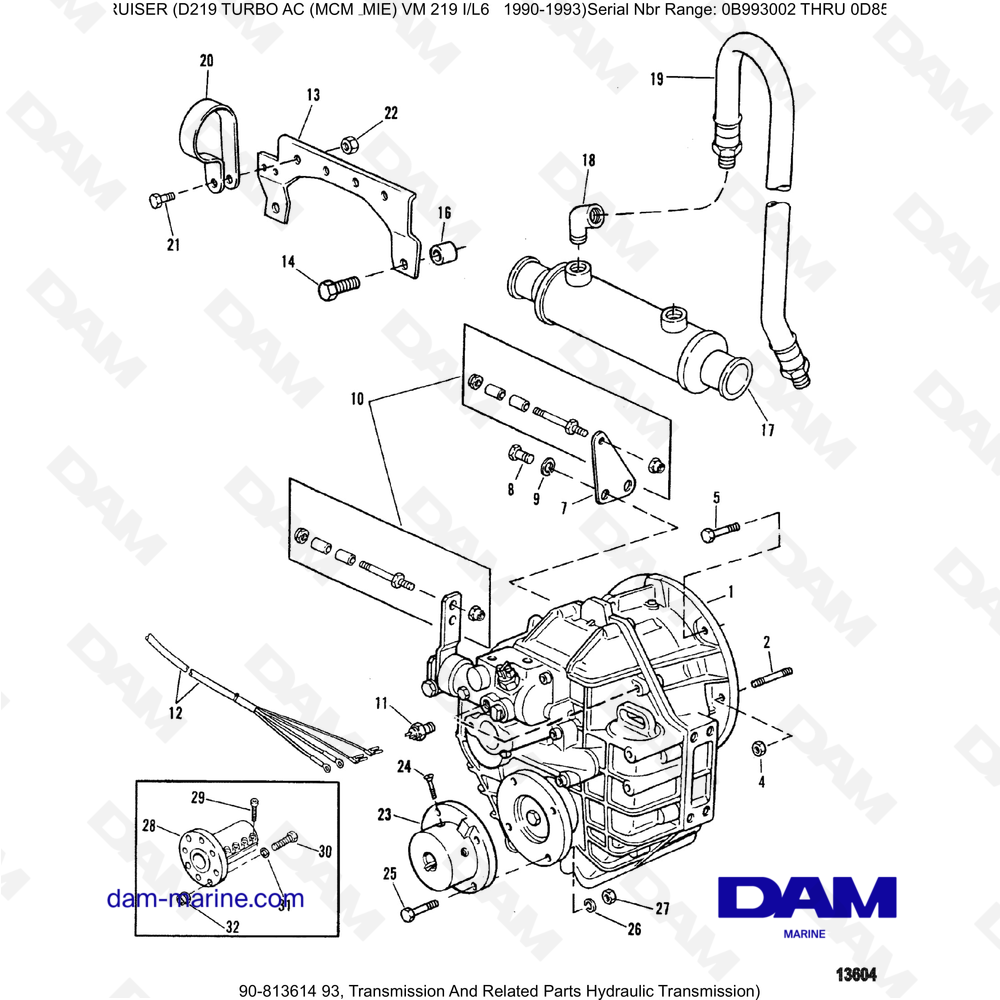

HYDRAULIC TRANSMISSION AND ASSOCIATED PARTS

Exploded view: HYDRAULIC TRANSMISSION AND ASSOCIATED PARTS for engine Mercruiser D219 TURBO AC.

View the parts for this view

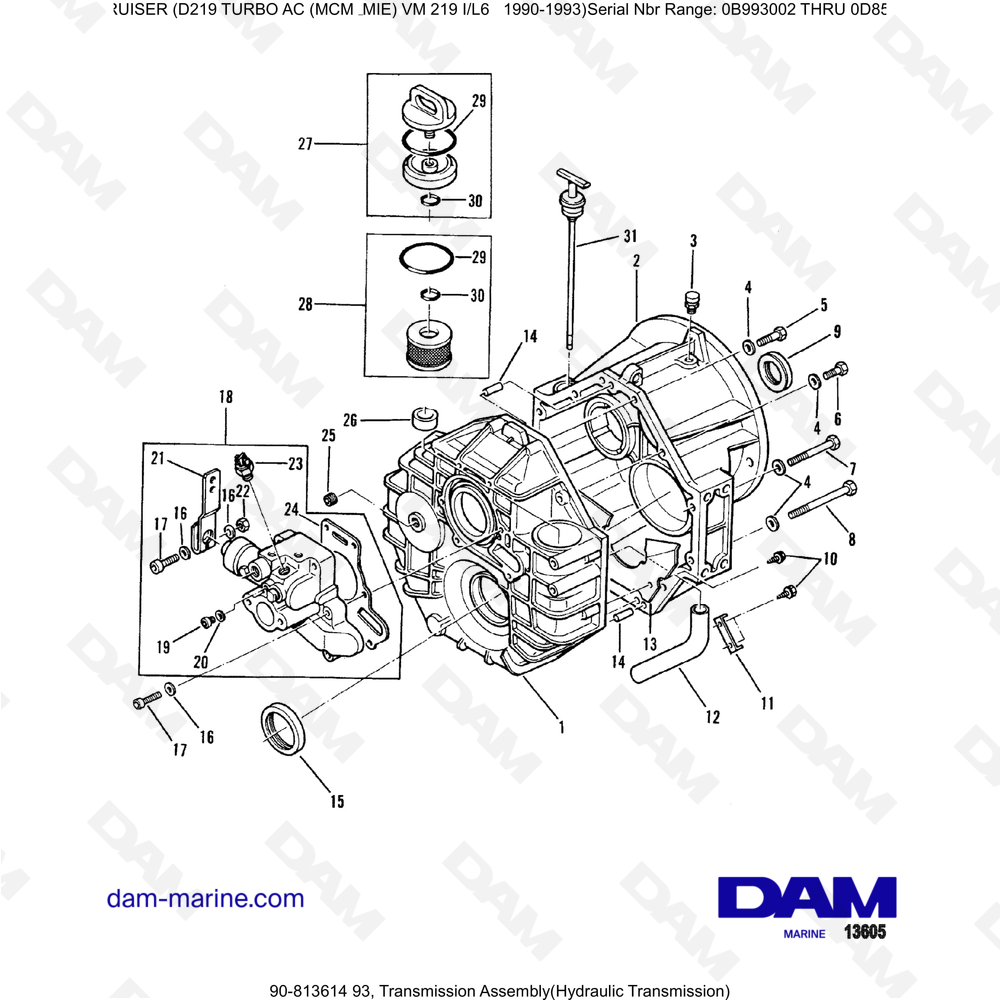

TRANSMISSION ASSEMBLY (HYDRAULIC)

Exploded view: TRANSMISSION ASSEMBLY (HYDRAULIC) for engine Mercruiser D219 TURBO AC.

View the parts for this view
TRANSMISSION ASSEMBLY (HYDRAULIC)

Exploded view: TRANSMISSION ASSEMBLY (HYDRAULIC) for engine Mercruiser D219 TURBO AC.

View the parts for this view

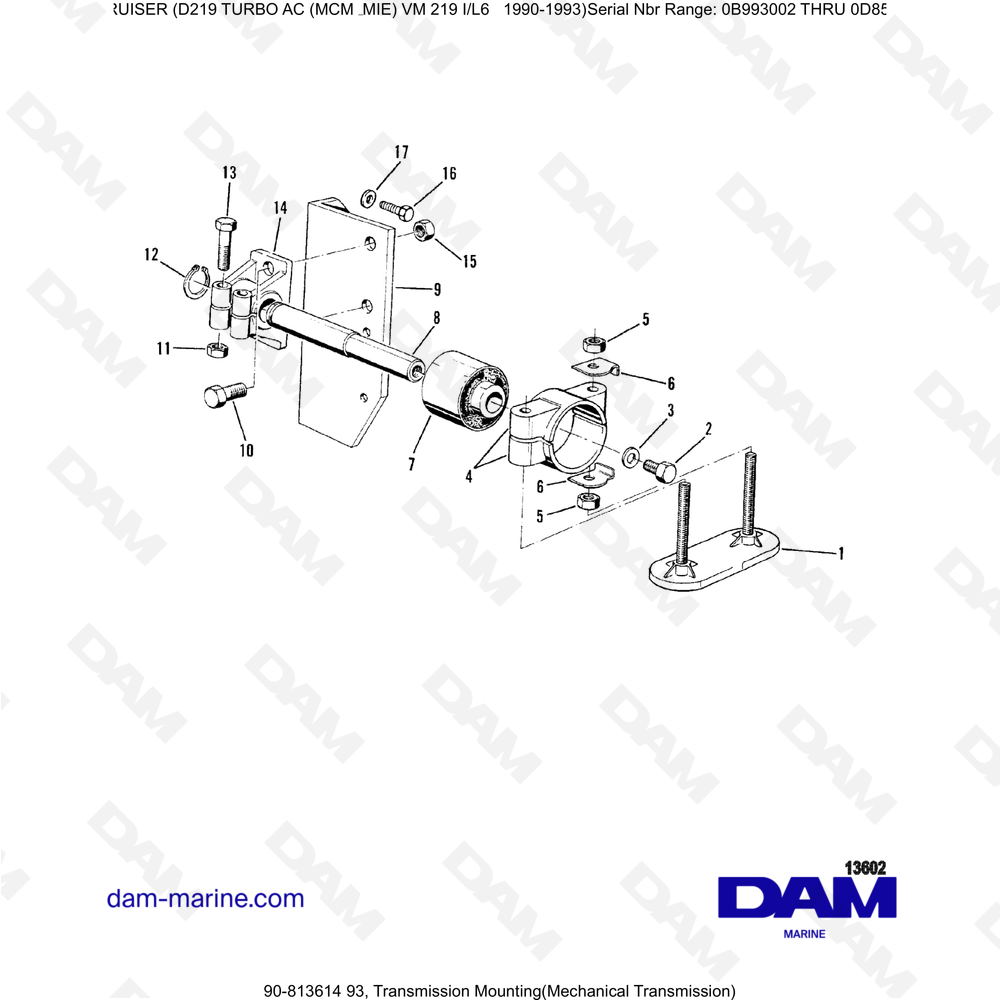

TRANSMISSION (MECHA) ASSEMBLY

Exploded view: TRANSMISSION (MECHA) ASSEMBLY for engine Mercruiser D219 TURBO AC.

View the parts for this view
TURBOCHARGER / EXHAUST ELBOW

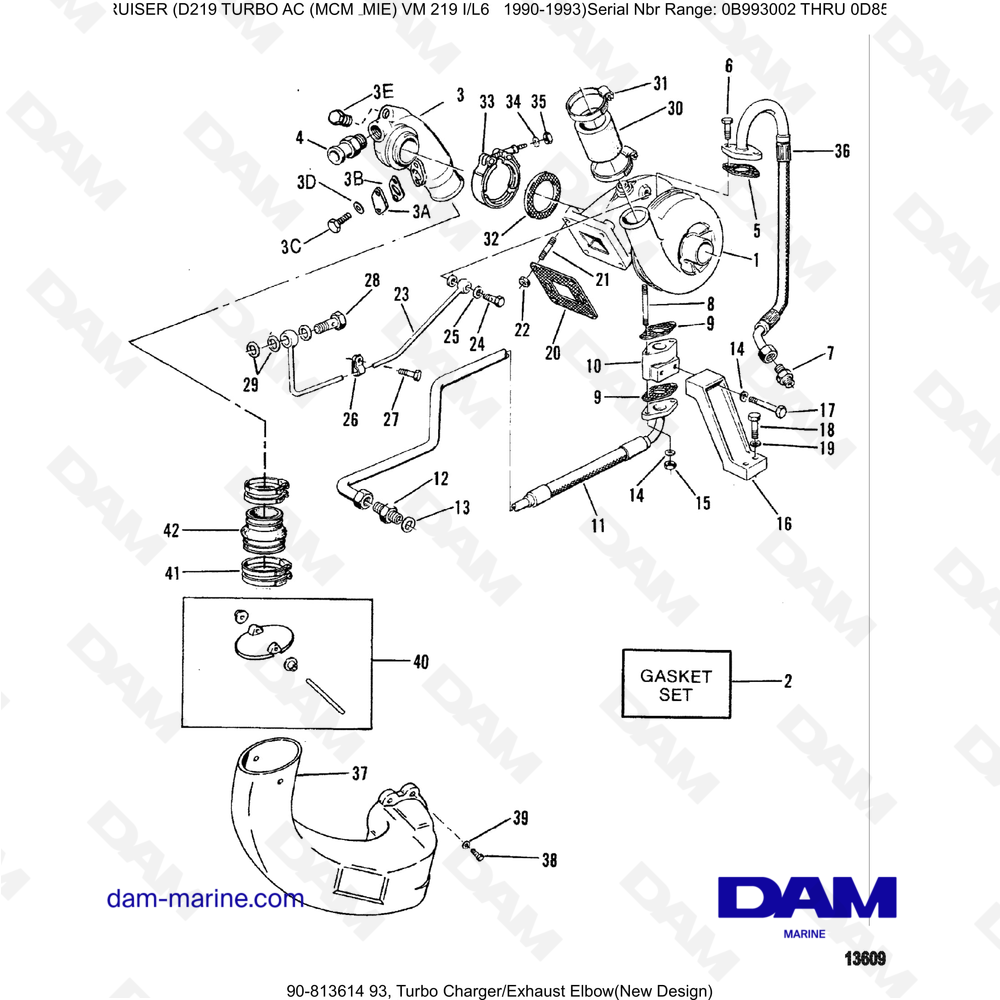

Exploded view: TURBOCHARGER / EXHAUST ELBOW for engine Mercruiser D219 TURBO AC.

View the parts for this view
WATER PUMP

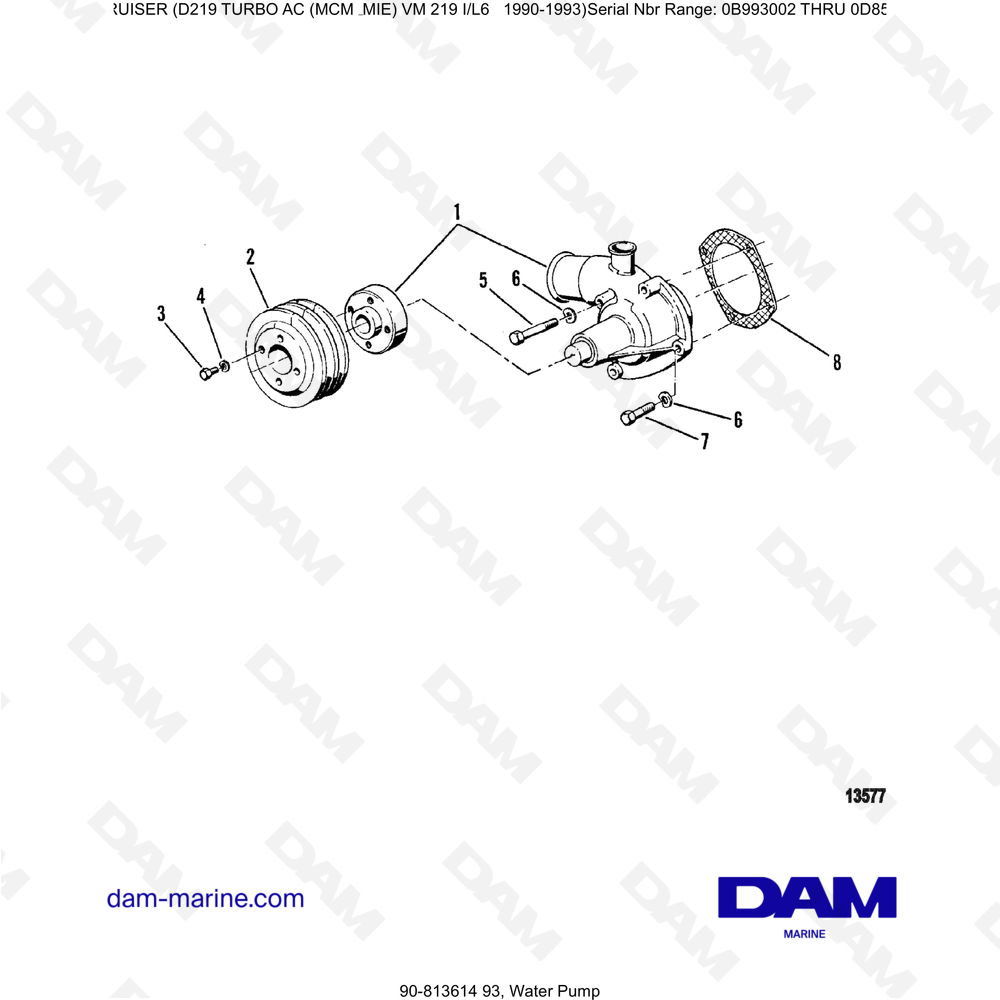

Exploded view: WATER PUMP for engine Mercruiser D219 TURBO AC.

View the parts for this view
