ANODE ALU BLISTER YAMAHA
Anode plate for outboard motor Yamaha, 2 and 4 time.
Dimensions: 65X25x14mm
Anode plate for outboard motor Yamaha, 2 and 4 time.
Dimensions: 65X25x14mm
A cube anode for Yamaha engine base from 25 to 60HP, 2 and 4 strokes.
Dimensions: 35x26x23mm
Applications:
- 40 and 50 cv, 2 time.
- F25, 30, 40, 50 and 60 cv, 4 time.
Included in kit 10490A.

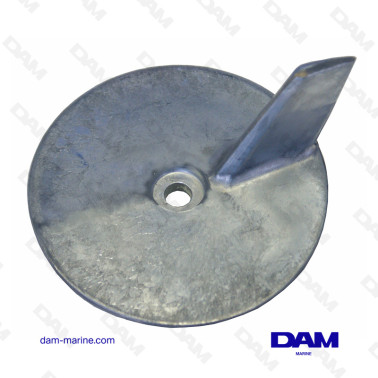

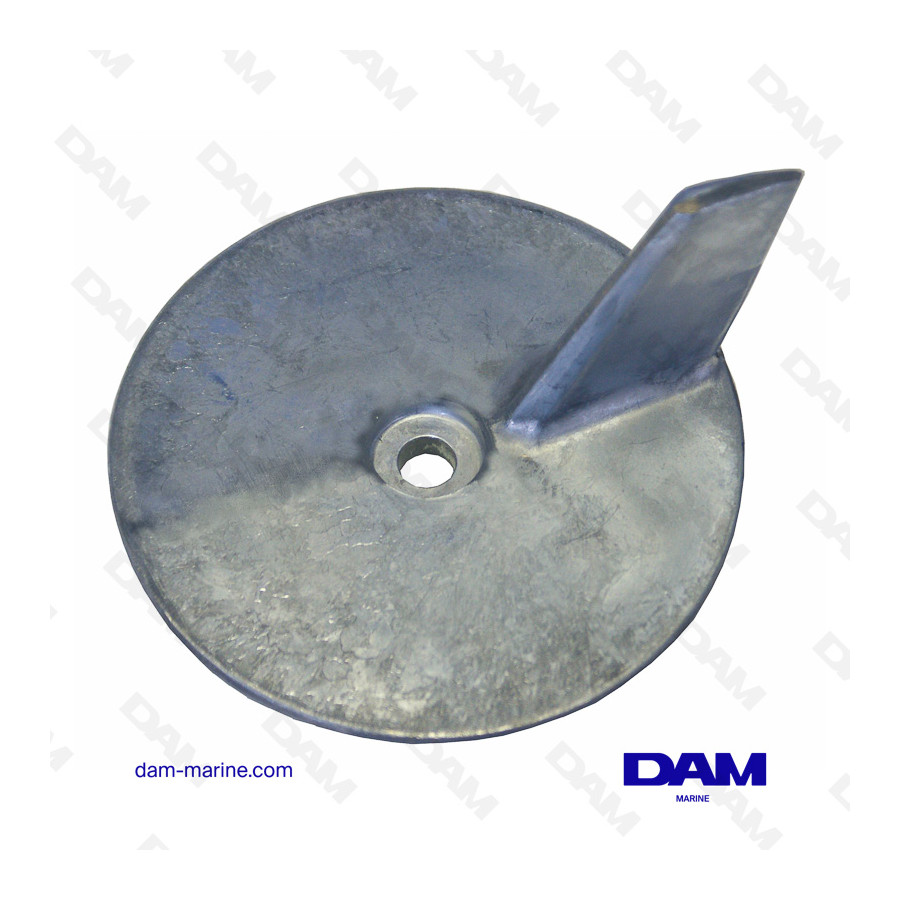

Drift anode for Yamaha and Honda outboard motors from 20 to 50 hp.
Applications:
- 20 hp, 2-stroke from 1996 and 1997
- 25 hp, 30 hp and 40 hp, 2-stroke from 1984
- 50hp, 2 and 4 stroke from 1984.
Included in kit: 10470A.
Anode for YAMAHA outboard motor base
Main applications:
- 115 hp 2 and 4 stroke from 1984
- 130 hp 2-stroke from 1988 to 2004
- 150, 175 and 225 hp 2-stroke from 1984 to 1987

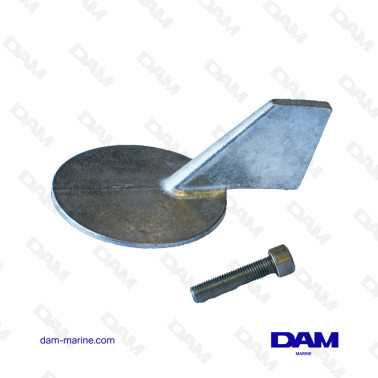

Anode dérive pour moteur hors bord Yamaha : 2 Temps 60, 70, 75, 80, 85, 90CV.
Dimension :
Diamètre (Ø) : 90 mm
Hauteur (h) : 48 mm
Hauteur (h1) : 9 mm
hauteur (h2) : 19 mm
Carp tail anode for Yamaha outboard motor from 150 to 225HP, 2 and 4 strokes, diameter 100m:
2 Stroke: 150A, 150C, 150F, 150G, 175A, 175B, 175D, 200A, 200B, 200C, 200F, 200G, 225A, 225B, 225D, Z150P, Z150Q, Z175G, Z200N, Z200P
4-stroke: F150A, F150B, F150D, F150F, F175A, F200F, F200G

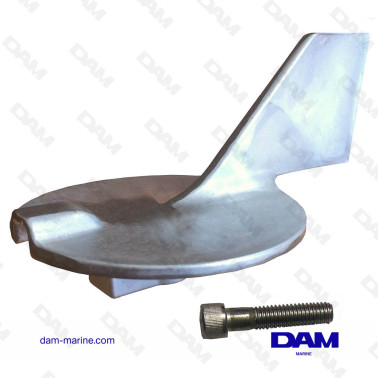

Anode dérive pour moteurs hors bord Yamaha de F50 à F100 HP 4 temps.
Dimension :
Diamètre : 92 mm
Longueur total : 140 mm
Hauteur : 76 mm
Engine head anode for outboard engine Yamaha 75 to 350HP after 2006 4 following times:
Applications:
- F75, F90,
- F115 and LF115, F150 and LF150
- F200, LF225, F250, LF250
- F300 and LF300
- F350
For front head anodes 2006 please refer to the reference 10146A.

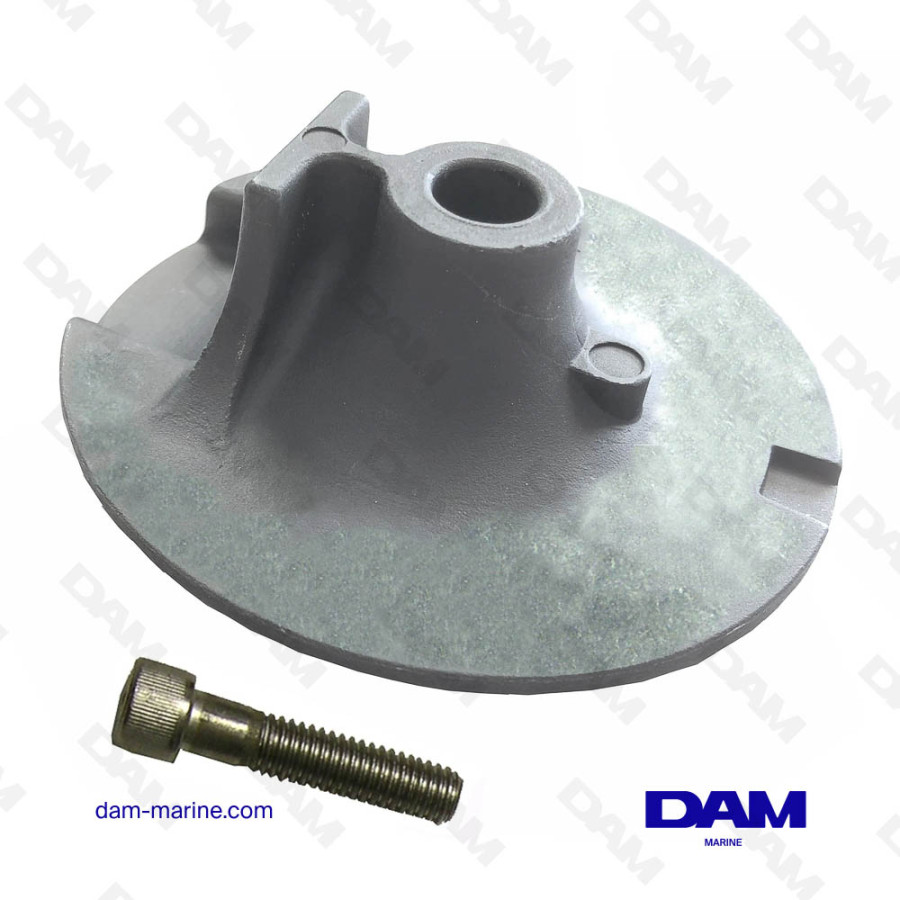

Flat anode for outboard engine base Yamaha F200 to F350 after 2006 4 following times:
- F200
- F225
- F250
- F275
- F300
- F350
Diameter : 87mm
Included in kit 10492A.
Puck anode for off-board engines Yamaha, 2 time, from 40 to 115HP
Applications:
2 Time: 25B, 40H, 50D, 50G, 50H, 55B, 60F, 70B, 70C, 80A, 90A
4 Time : FT25B, F30A, F30B, F40B, F40F, F50A, F50F, F80C
Diameter 24mm
Anode pad for Yamaha off-board motor from 8 to 250HP.
Dimensions: 64x25x14mm
Included in kit 10490A.
Anode for outboard engine trim Yamaha and Suzuki:
Suzuki : DT90, DT100, DT150, DT175, D200, DT225
Yamaha : 115A, 140A, 150A, 175, 200A, 220A
Dimensions: 48x24x23mm
Anode barbar for Yamaha engine trim from 25 to 100cv, 2 and 4 strokes
Applications:
- 25 to 90cv, 2 time
- F80 and F100, 4 time.
Dimensions: 200x35mm
Included in kit: 10187A
Anode barreau en zinc pour moteurs hors bord Yamaha de 80 à 350HP suivants :
2 temps : 100A, 115B, 115C, 130B, 140A, 140B, 150A, 150C, 150F, 150G, D150H, 175A, 175B, 175D, 175F, 200A, 200B, 200C, ProV 200, 200F, 200G, 225A, 225D, 225F, 225G, 250A, 250B, 250G
2 temps HPDI: Z150P, Z150Q, Z175G, Z175H, Z200N, Z200P, Z250D, Z250F, Z300A
4 temps : F80C, F100B, F115A, F150A, F150B, F150D, F200A, F200C, F225A, F225B, F225C, F225F, F250A, F250B, F250D, F300A, F300B, F350A
Inclus dans kit :10494A - 10183A - 10184A - 10186A
Dimensions: 200x47x15mm
Included in kits 10491A and 10492A
Anode for outboard engine Yamaha 40 to 50HP:
Dimensions: 80x60x30mm
Applications:
- 40cv, 2 time
- F40, F45 and F50 from 1995
