Yanmar 6by-260z

Ver todas las piezas compatibles

Vistas explosionadas

search
FIG 1. CYLINDER BLOCK
FIG 1. CYLINDER BLOCK
Ver la vista explosionada
FIG 10. INTAKE MANIFOLD
FIG 10. INTAKE MANIFOLD
Ver la vista explosionada
FIG 11. TURBOCHARGER & AIR FILTER
FIG 11. TURBOCHARGER & AIR FILTER
Ver la vista explosionada

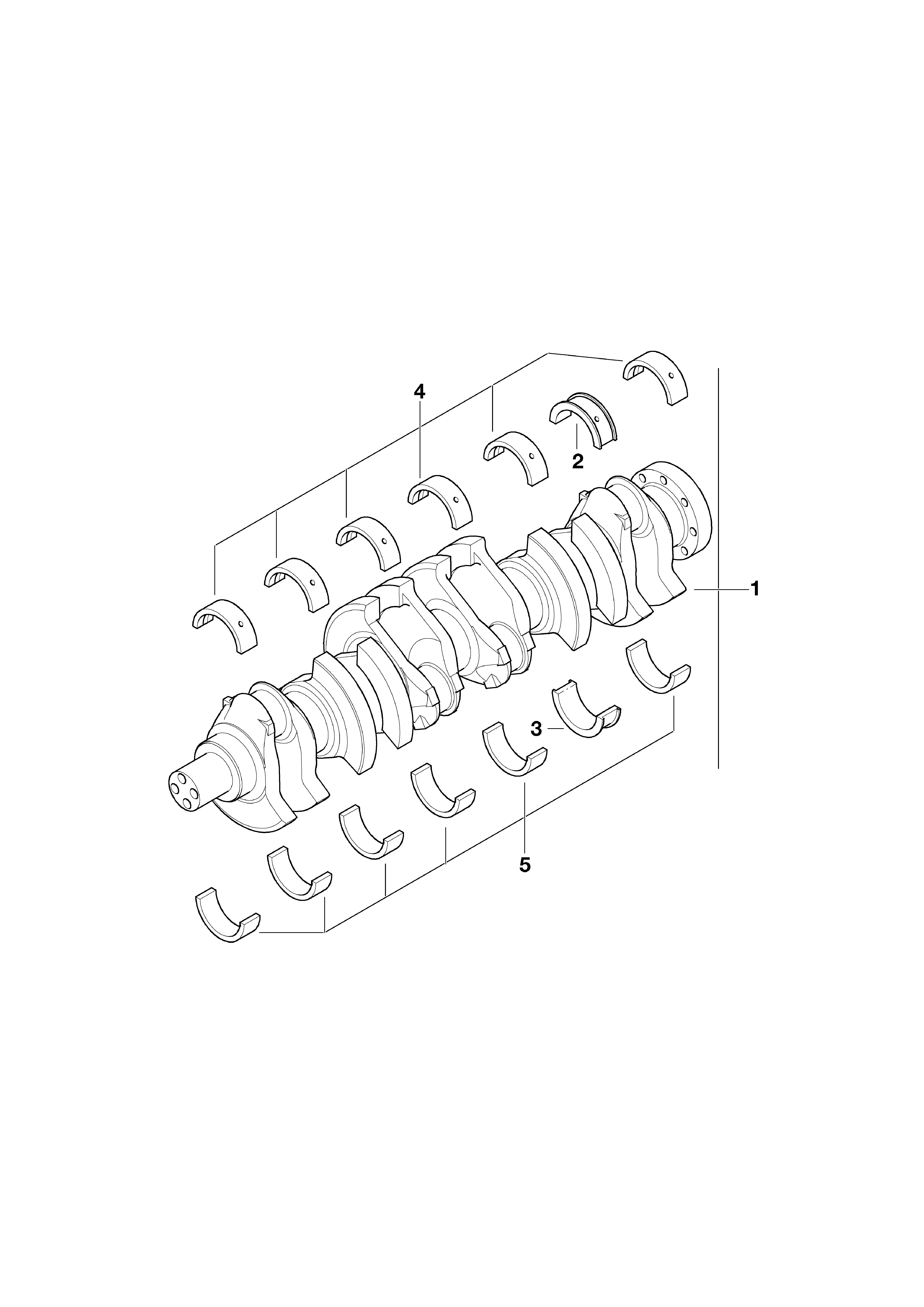

FIG 12. CRANKSHAFT with BEARING SHELLS
FIG 12. CRANKSHAFT with BEARING SHELLS
Ver la vista explosionada

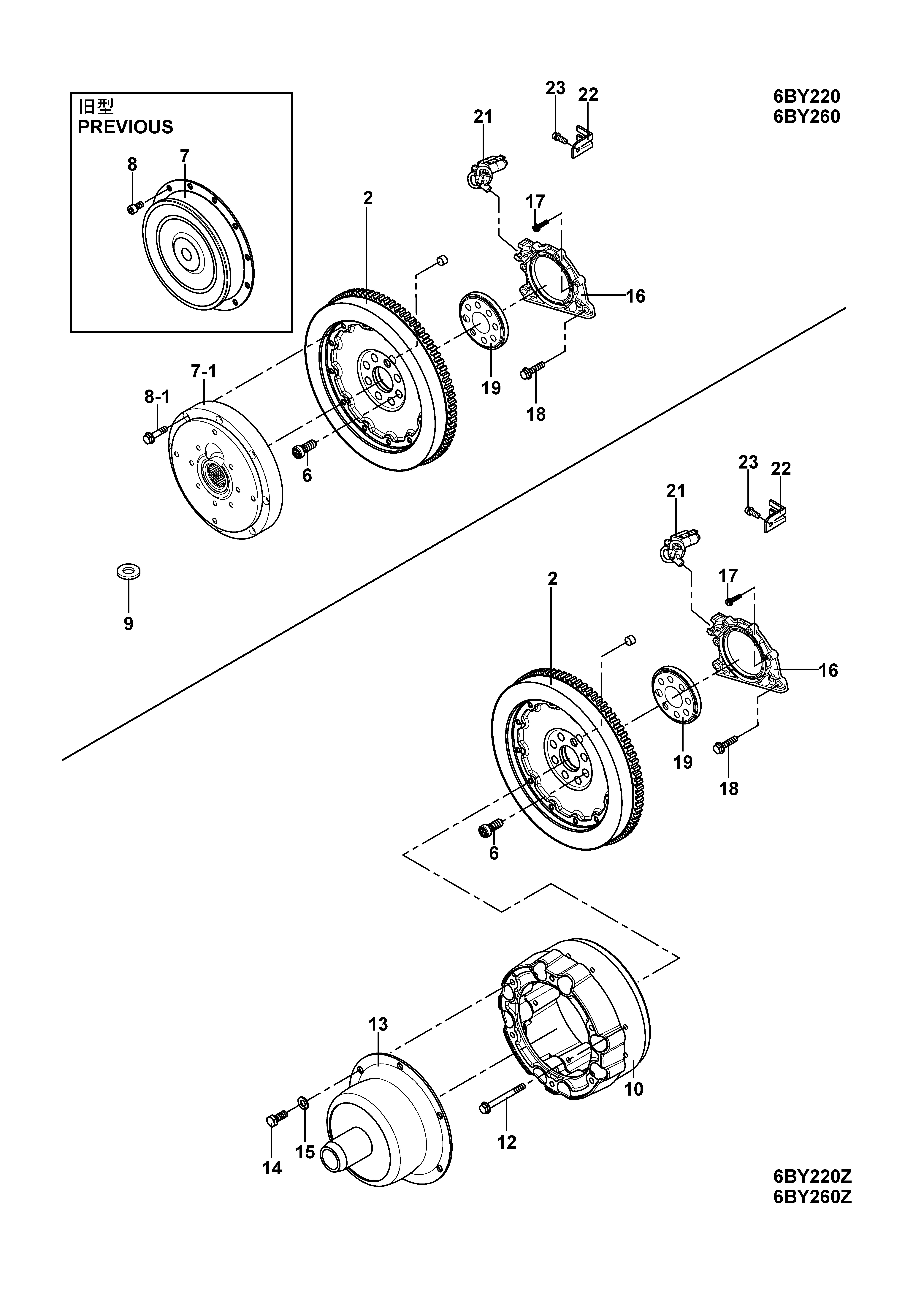

FIG 13. FLYWHEEL " CYL.MOUNTING PARTS
FIG 13. FLYWHEEL " CYL.MOUNTING PARTS
Ver la vista explosionada
FIG 14. PISTON & CONNECTING ROD
FIG 14. PISTON & CONNECTING ROD
Ver la vista explosionada

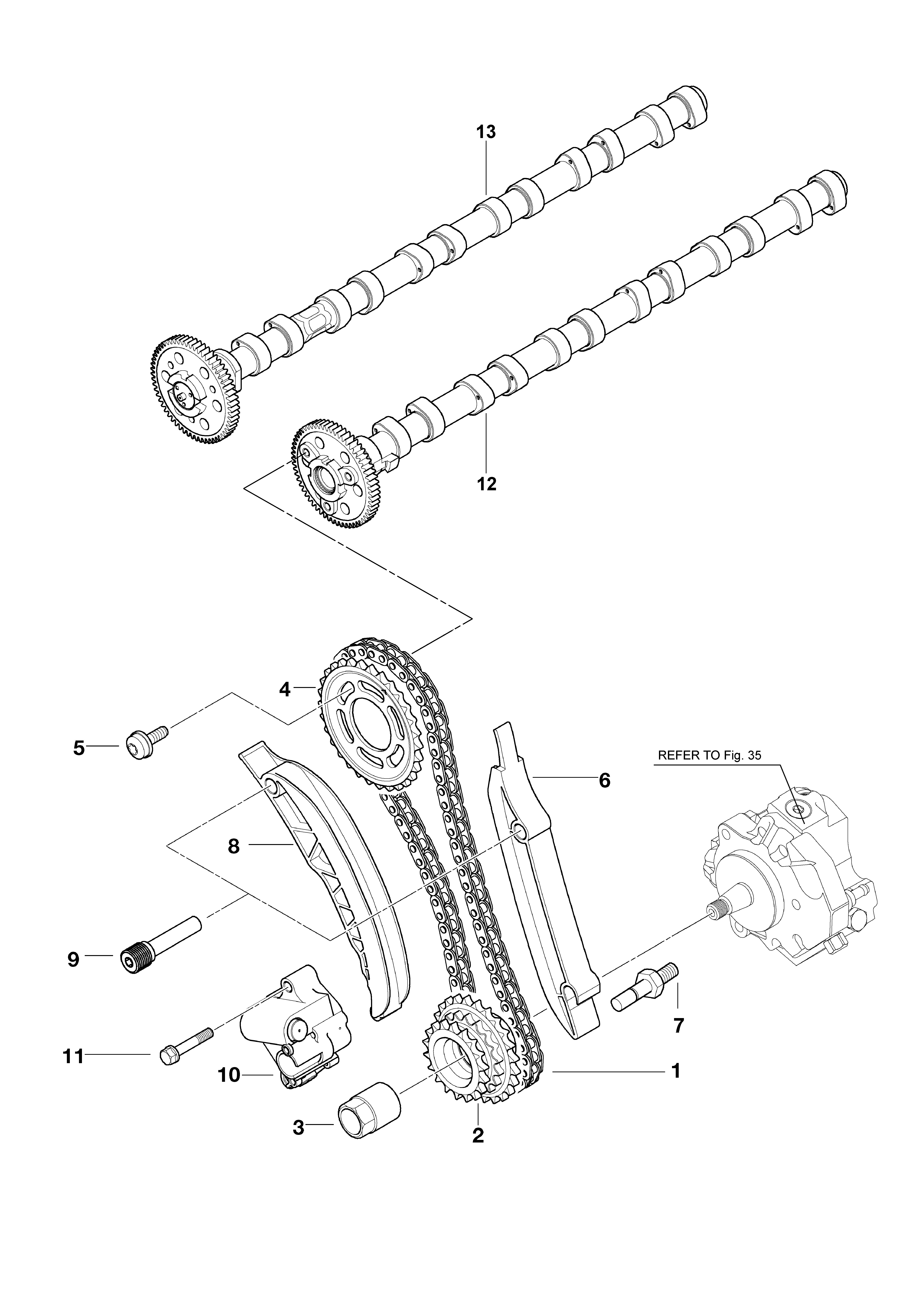

FIG 16. TIMING GEAR TIMING CHAIN TOP
FIG 16. TIMING GEAR TIMING CHAIN TOP
Ver la vista explosionada

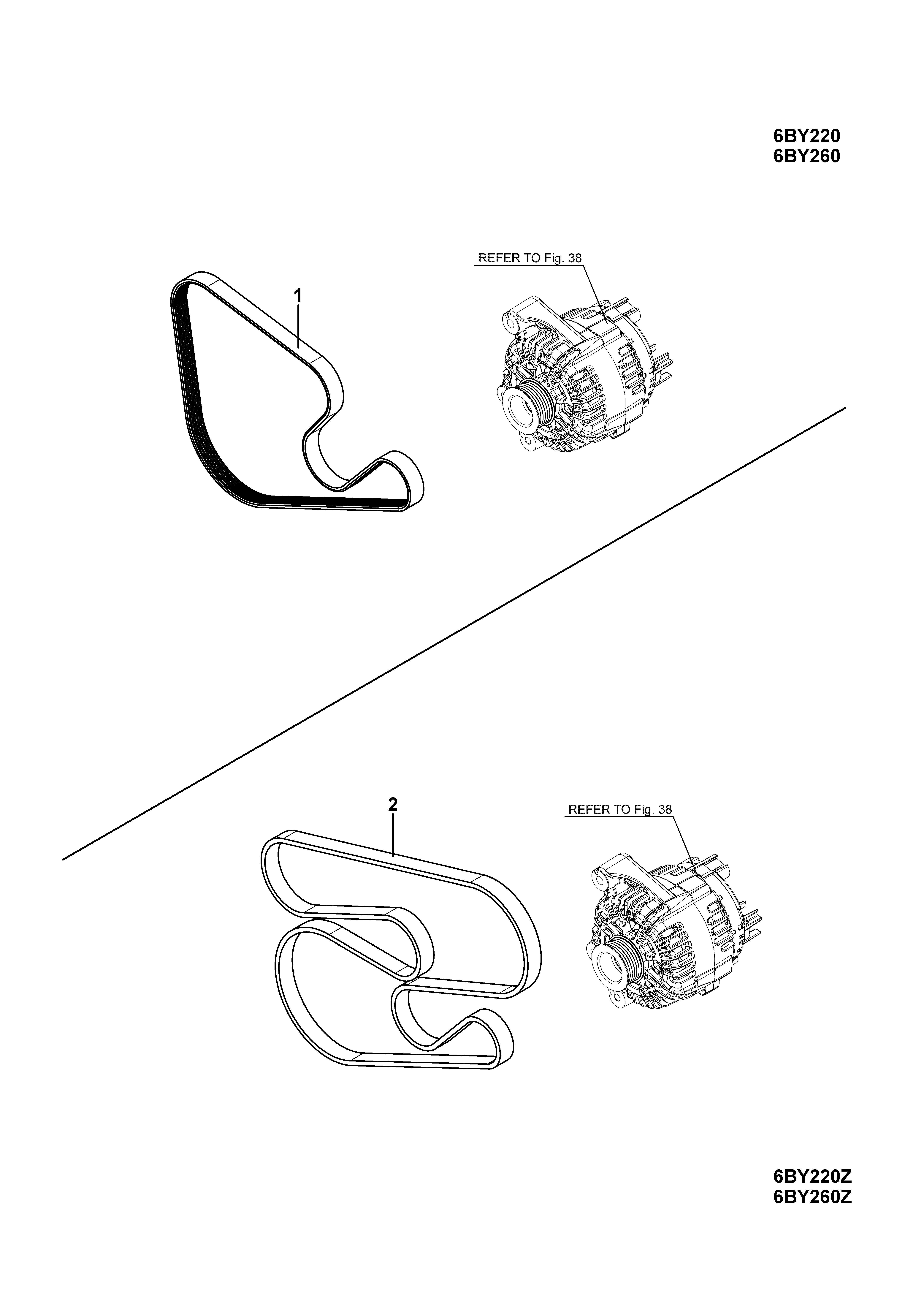

FIG 17. V-BELT
FIG 17. V-BELT
Ver la vista explosionada
FIG 18. LUB.OIL PUMP
FIG 18. LUB.OIL PUMP
Ver la vista explosionada
FIG 19. LUB.OIL FILTER
FIG 19. LUB.OIL FILTER
Ver la vista explosionada
FIG 2. LOWER TIMING CASE/BELT W PUMP
FIG 2. LOWER TIMING CASE/BELT W PUMP
Ver la vista explosionada
FIG 20. ROTARY PUMP (OPTION)
FIG 20. ROTARY PUMP (OPTION)
Ver la vista explosionada
FIG 21. LUB.OILPIPE (TURBOCHARGER)
FIG 21. LUB.OILPIPE (TURBOCHARGER)
Ver la vista explosionada
FIG 22. AIR COOLER
FIG 22. AIR COOLER
Ver la vista explosionada
FIG 23. AIR COOLER (INNER PARTS)
FIG 23. AIR COOLER (INNER PARTS)
Ver la vista explosionada
FIG 24.
FIG 24.
Ver la vista explosionada
FIG 25. COOLING SEA WATER PUMP
FIG 25. COOLING SEA WATER PUMP
Ver la vista explosionada
FIG 26. HEAT EXCHANGER
FIG 26. HEAT EXCHANGER
Ver la vista explosionada
FIG 27. HEAT EXCHANGER (INNER PARTS)
FIG 27. HEAT EXCHANGER (INNER PARTS)
Ver la vista explosionada
FIG 28. HOSE, FW PUMP
FIG 28. HOSE, FW PUMP
Ver la vista explosionada
FIG 29. MIXING ELBOW
FIG 29. MIXING ELBOW
Ver la vista explosionada

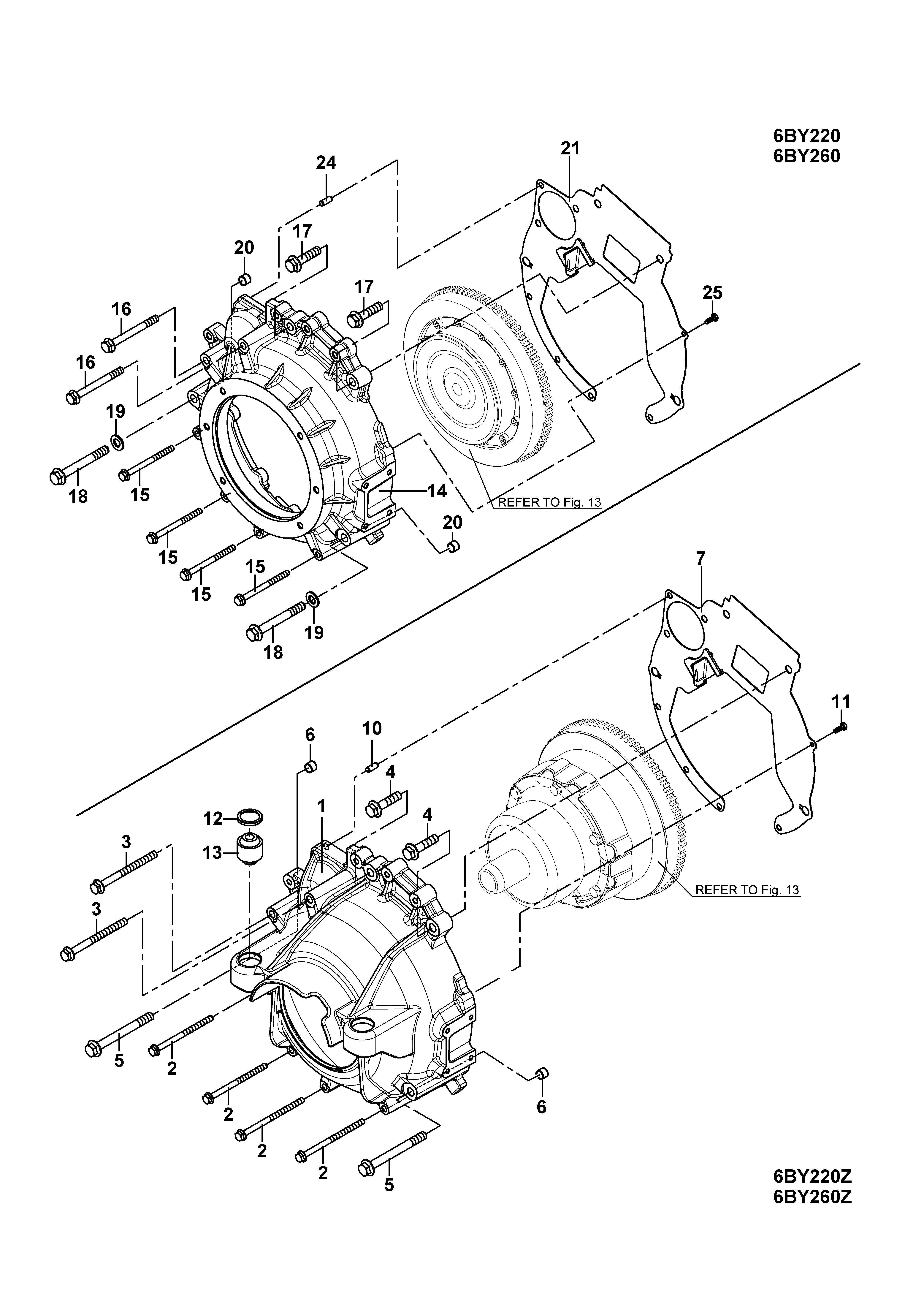

FIG 3. FLYWHEEL HOUSING
FIG 3. FLYWHEEL HOUSING
Ver la vista explosionada

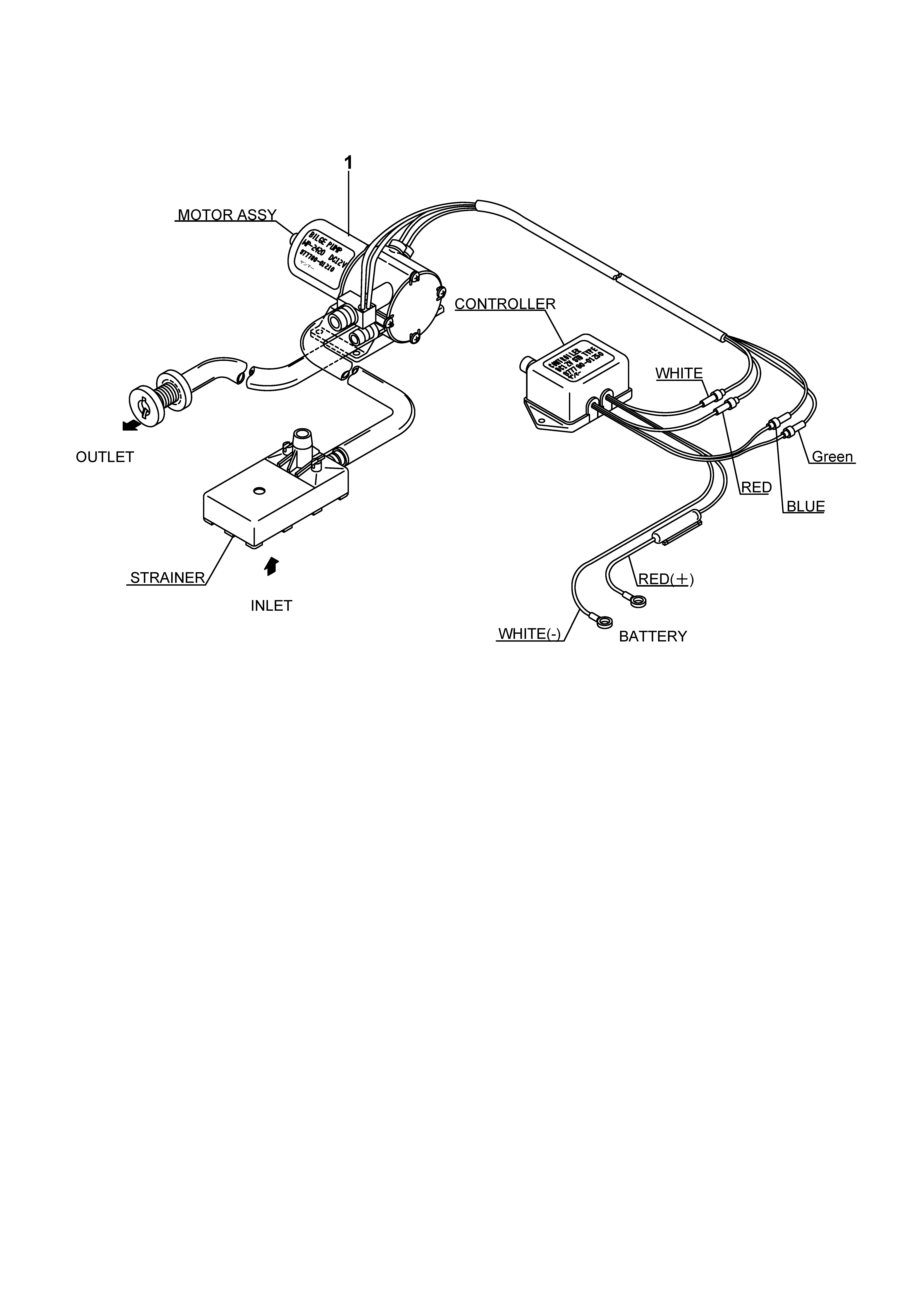

FIG 30. BILGE PUMP (OPTION)
FIG 30. BILGE PUMP (OPTION)
Ver la vista explosionada
FIG 31. STEERING OIL COOLER
FIG 31. STEERING OIL COOLER
Ver la vista explosionada
FIG 32. STEERING PUMP/PIPE
FIG 32. STEERING PUMP/PIPE
Ver la vista explosionada
FIG 33. FUEL OIL FILTER/PIPE
FIG 33. FUEL OIL FILTER/PIPE
Ver la vista explosionada
FIG 34. PUMP, FUEL LOW
FIG 34. PUMP, FUEL LOW
Ver la vista explosionada
FIG 35. PUMP/INJECTOR
FIG 35. PUMP/INJECTOR
Ver la vista explosionada
FIG 36. FUEL FILTER
FIG 36. FUEL FILTER
Ver la vista explosionada
FIG 37.
FIG 37.
Ver la vista explosionada
FIG 38. ALTERNATOR
FIG 38. ALTERNATOR
Ver la vista explosionada

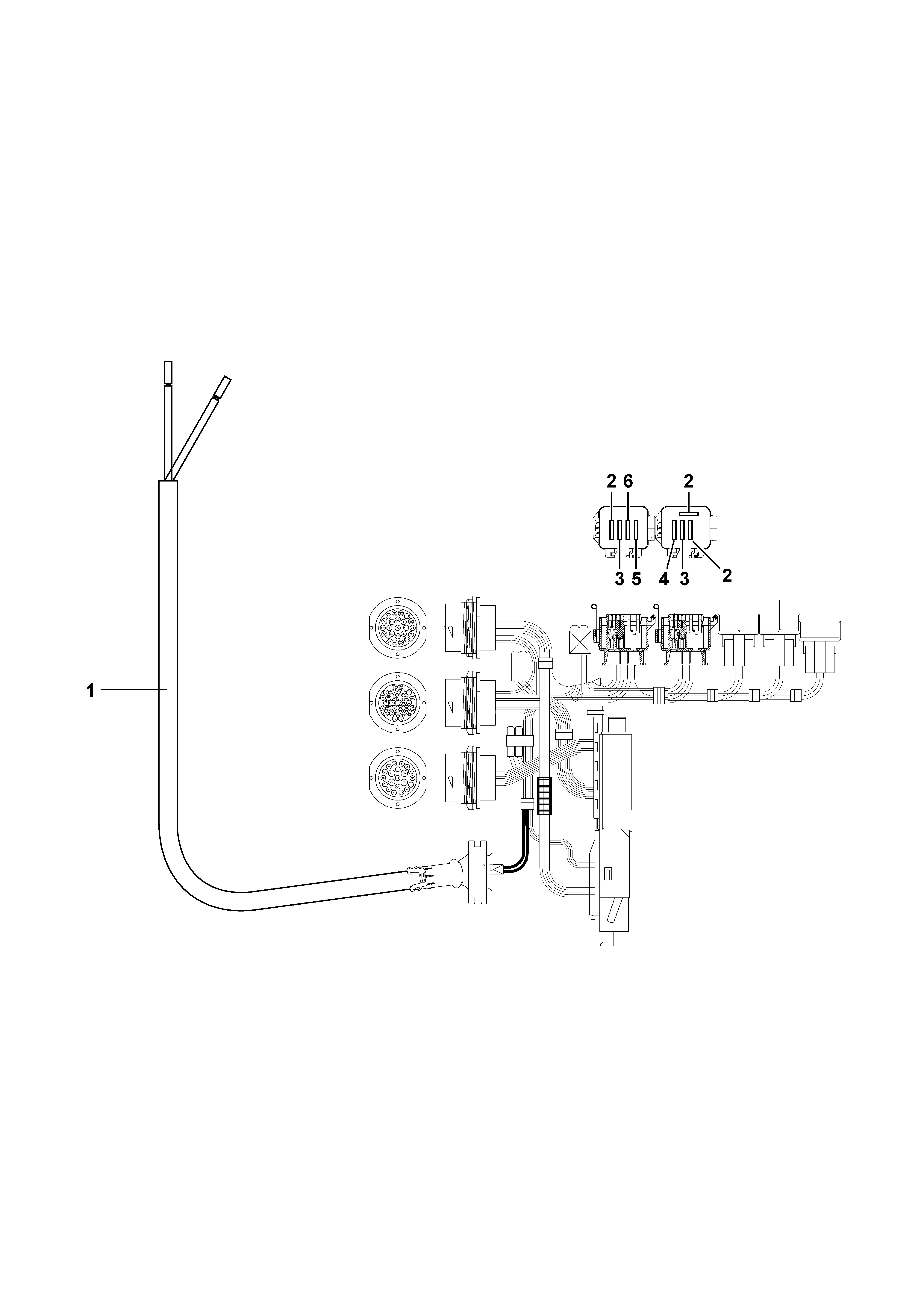

FIG 39. WIRE HARNESS (ECU)
FIG 39. WIRE HARNESS (ECU)
Ver la vista explosionada
FIG 4. OIL PAN/LUB. OIL SUMP
FIG 4. OIL PAN/LUB. OIL SUMP
Ver la vista explosionada

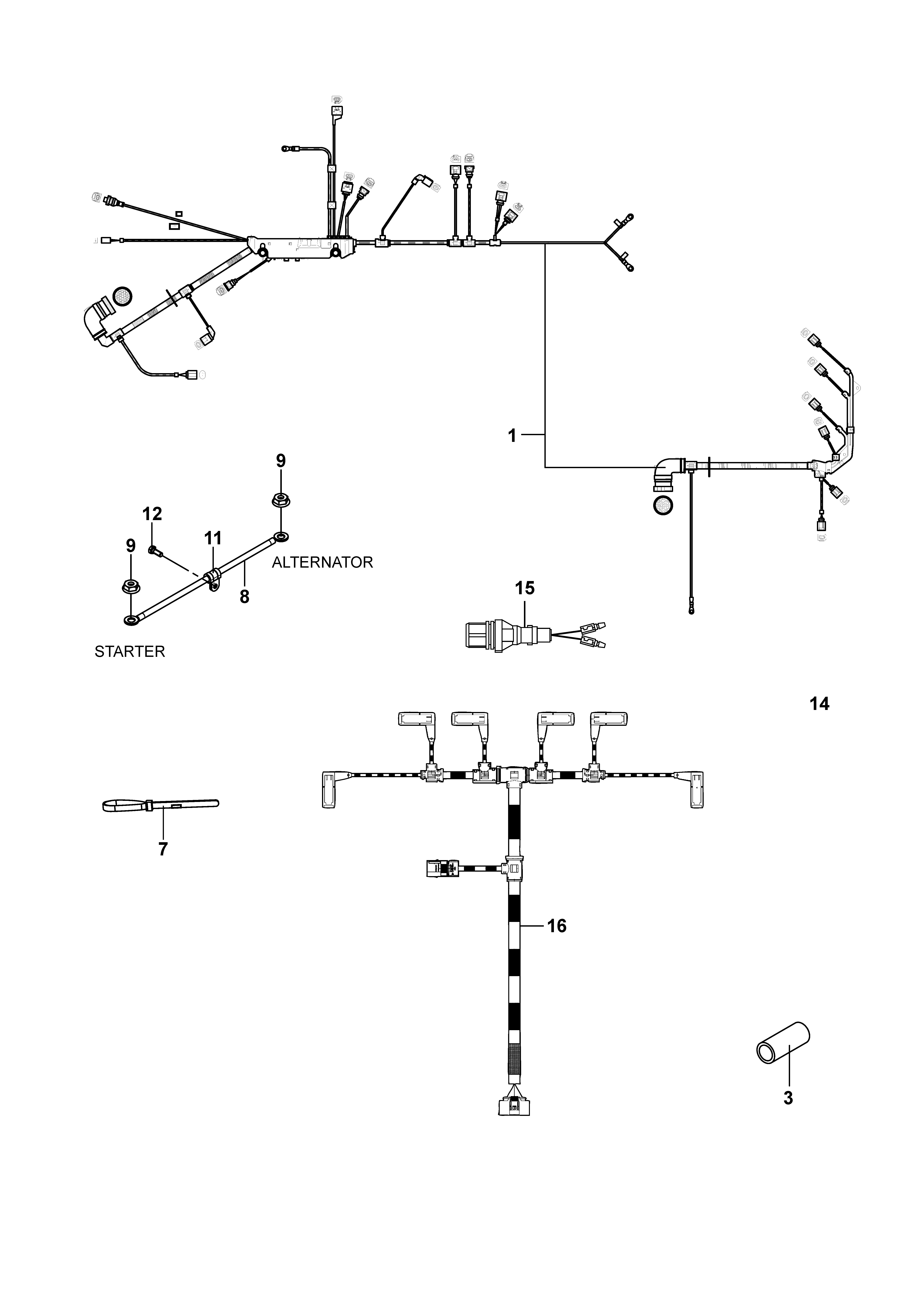

FIG 40. WIRE HARNESS
FIG 40. WIRE HARNESS
Ver la vista explosionada

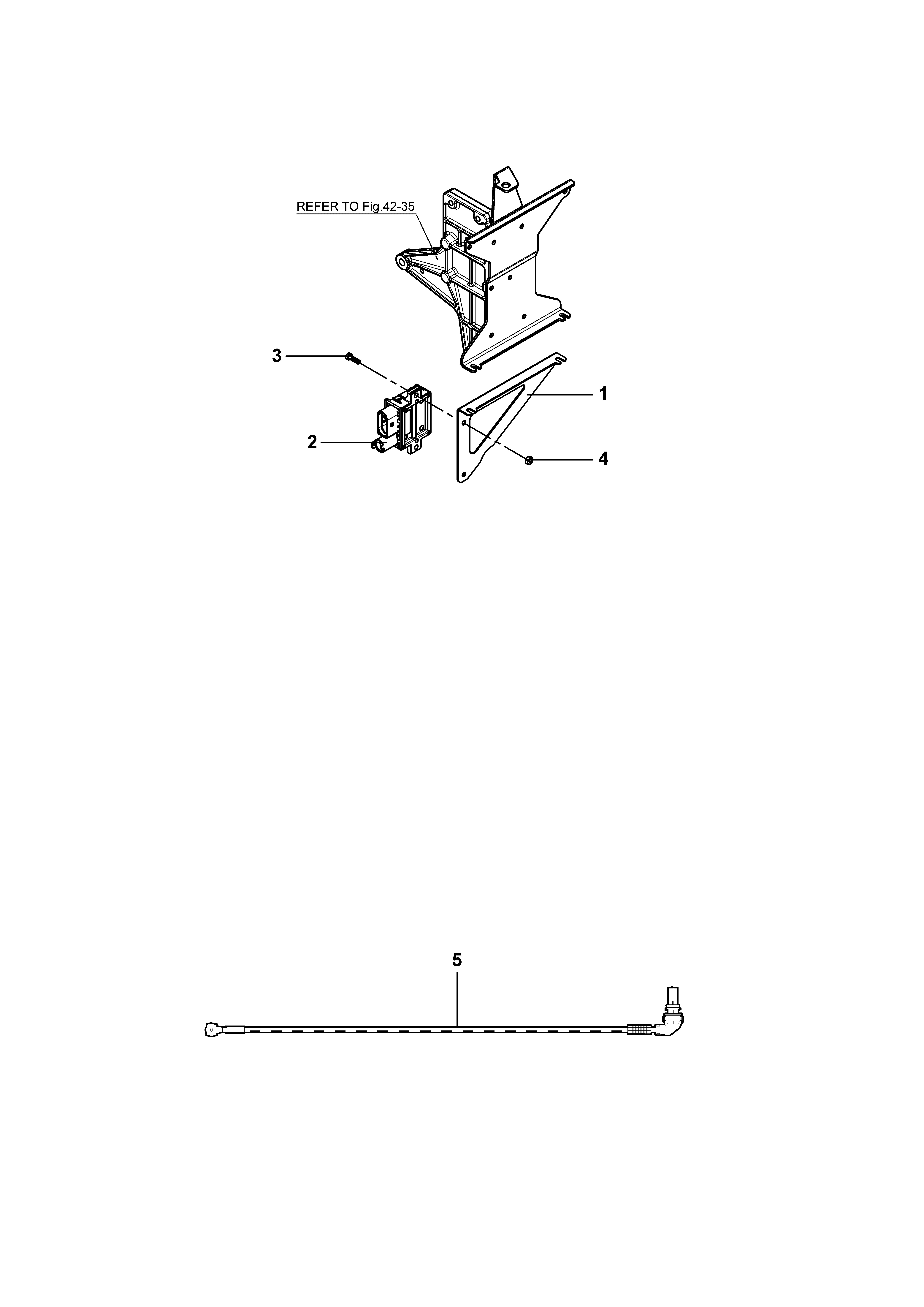

FIG 41. AIR HEATER (OPTION)
FIG 41. AIR HEATER (OPTION)
Ver la vista explosionada
FIG 42. ECU
FIG 42. ECU
Ver la vista explosionada
FIG 43. TOP COVER
FIG 43. TOP COVER
Ver la vista explosionada
FIG 5.
FIG 5.
Ver la vista explosionada
FIG 6. LABEL
FIG 6. LABEL
Ver la vista explosionada
FIG 7. CYL.HEAD/VALVE TRAIN-CAMSHAFT
FIG 7. CYL.HEAD/VALVE TRAIN-CAMSHAFT
Ver la vista explosionada
FIG 8. CYL.HEAD ATTACHED/GLOW PLUG
FIG 8. CYL.HEAD ATTACHED/GLOW PLUG
Ver la vista explosionada
FIG 9.
FIG 9.
Ver la vista explosionada
P/DAMPER
P/DAMPER
Ver la vista explosionada
