Yanmar 2gm20f

Ver todas las piezas compatibles

Vistas explosionadas

search

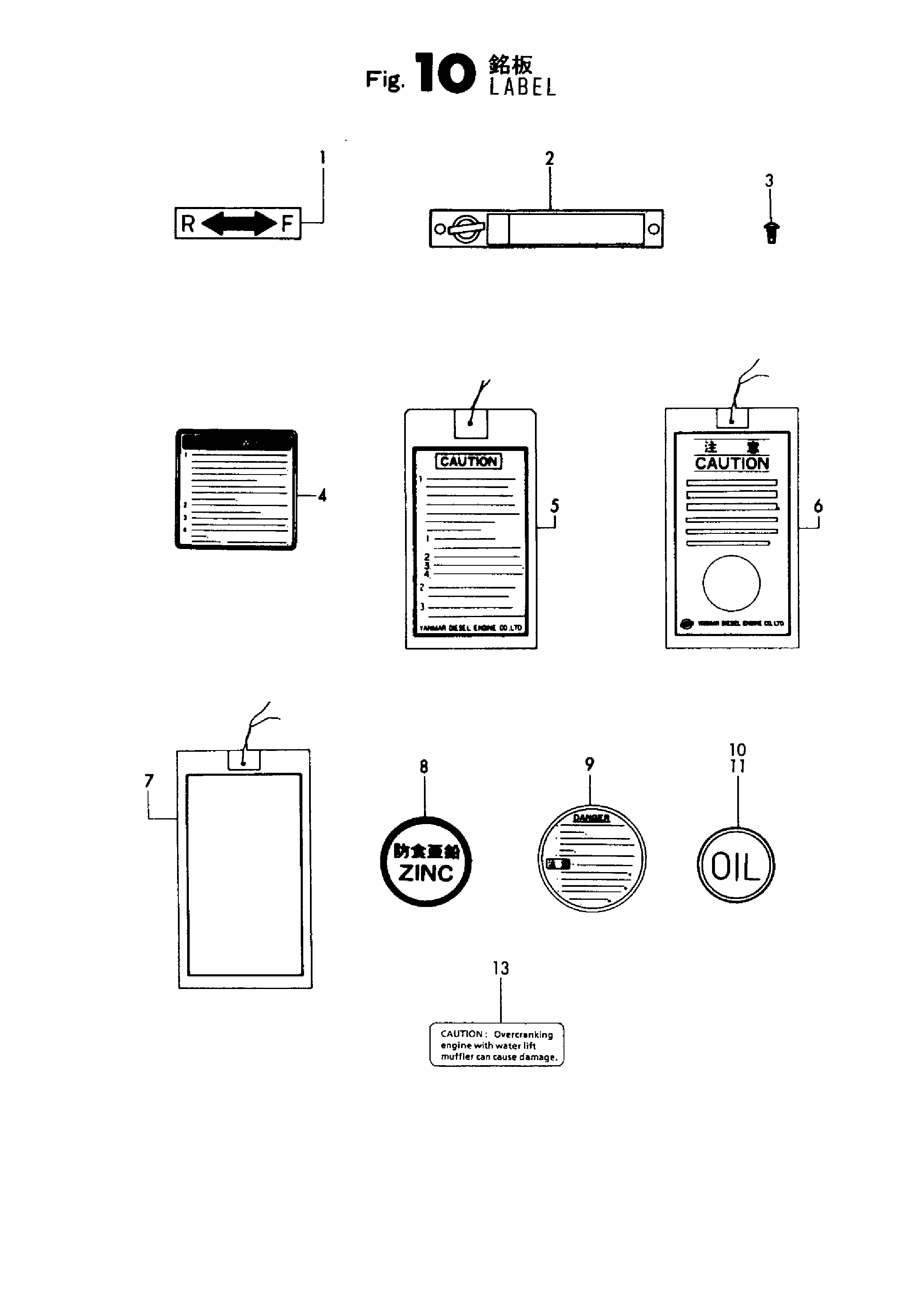

FIG 10. LABEL
FIG 10. LABEL
Ver la vista explosionada
FIG 116. (52A)FUEL PIPE (FROM 1997.09)
FIG 116. (52A)FUEL PIPE (FROM 1997.09)
Ver la vista explosionada

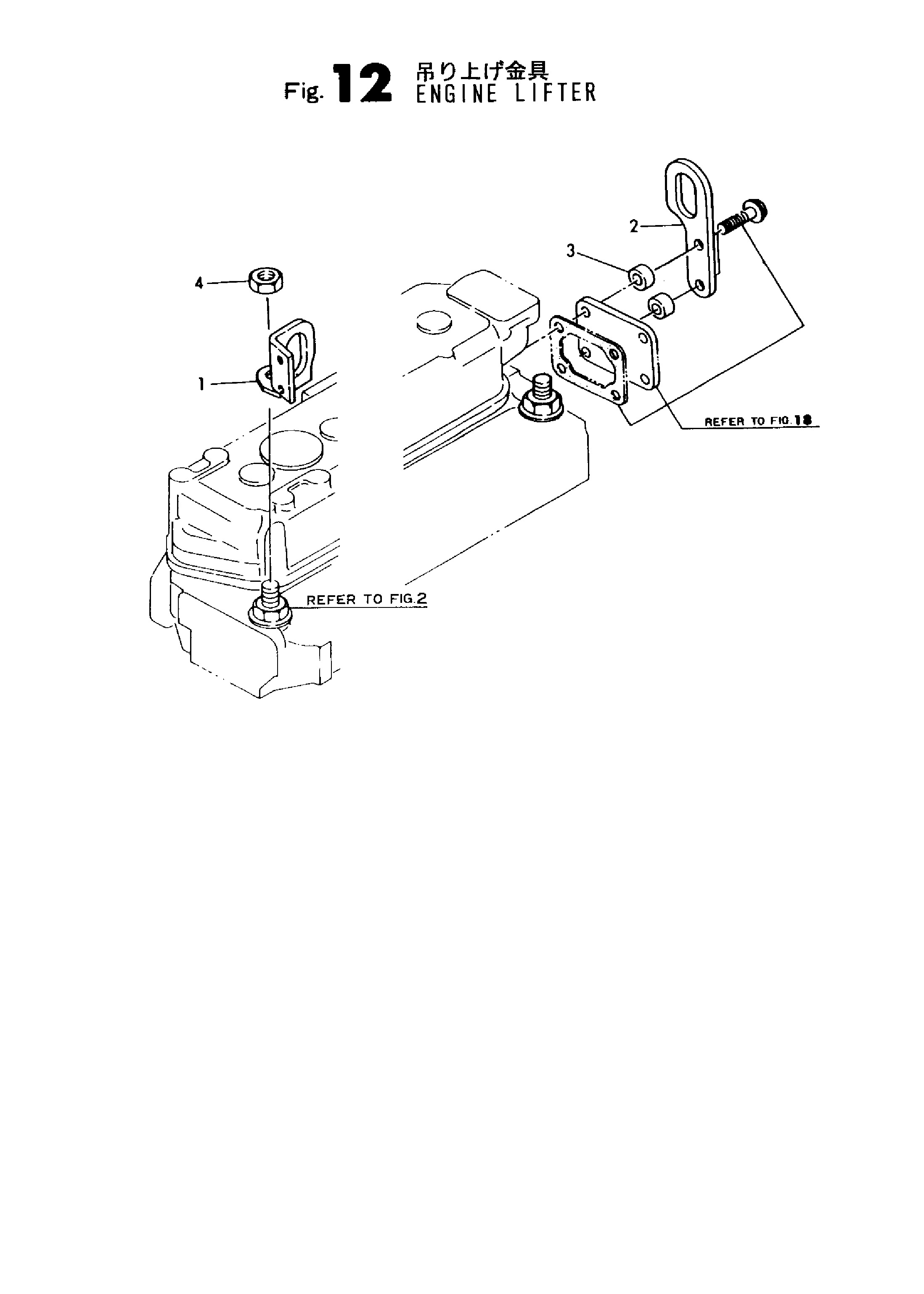

FIG 12. ENGINE LIFTER
FIG 12. ENGINE LIFTER
Ver la vista explosionada
FIG 13.
FIG 13.
Ver la vista explosionada
FIG 15.
FIG 15.
Ver la vista explosionada
FIG 18. CYLINDER HEAD
FIG 18. CYLINDER HEAD
Ver la vista explosionada
FIG 19. BONNET
FIG 19. BONNET
Ver la vista explosionada
FIG 2. CYLINDER BLOCK
FIG 2. CYLINDER BLOCK
Ver la vista explosionada
FIG 20. AIR INTAKE SILENCER
FIG 20. AIR INTAKE SILENCER
Ver la vista explosionada
FIG 22. MIXING ELBOW
FIG 22. MIXING ELBOW
Ver la vista explosionada
FIG 24. CAMSHAFT
FIG 24. CAMSHAFT
Ver la vista explosionada
FIG 25. CRANKSHAFT " FLYWHEEL
FIG 25. CRANKSHAFT " FLYWHEEL
Ver la vista explosionada
FIG 26. PISTON
FIG 26. PISTON
Ver la vista explosionada
FIG 27.
FIG 27.
Ver la vista explosionada
FIG 28. LUB.OIL PUMP
FIG 28. LUB.OIL PUMP
Ver la vista explosionada
FIG 29. LUB.OIL DIPSTICK
FIG 29. LUB.OIL DIPSTICK
Ver la vista explosionada
FIG 30. LUB.OIL STRAINER
burst_mode
Ver la vista explosionada

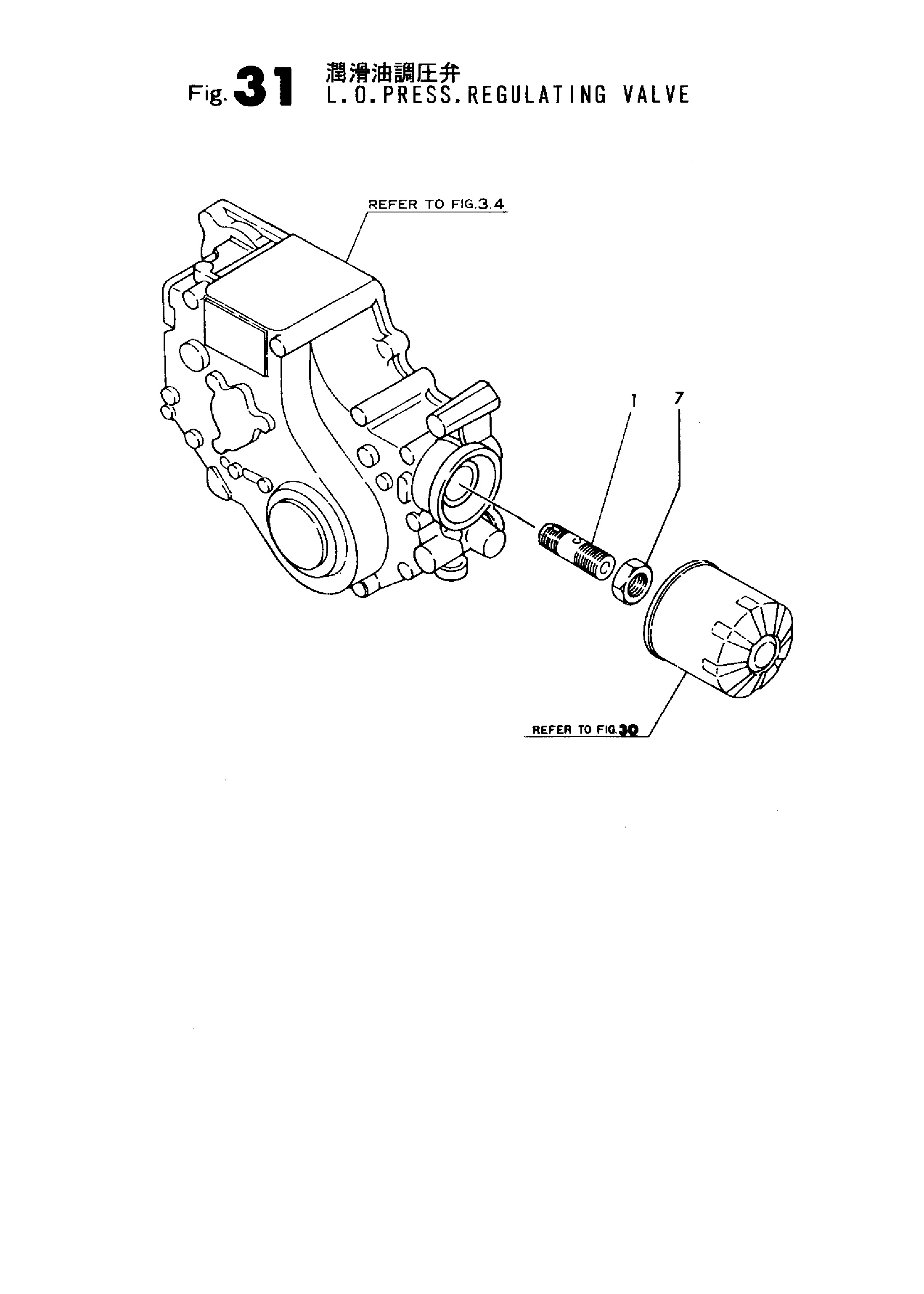

FIG 31. L.O.PREES.REGULAING VALVE
FIG 31. L.O.PREES.REGULAING VALVE
Ver la vista explosionada
FIG 32. LUB.OIL PIPE
FIG 32. LUB.OIL PIPE
Ver la vista explosionada
FIG 34.
FIG 34.
Ver la vista explosionada
FIG 35. PUMP DE AGUA FRESH
FIG 35. PUMP DE AGUA FRESH
Ver la vista explosionada
FIG 36. COOLING FRESH WATER COOLER
FIG 36. COOLING FRESH WATER COOLER
Ver la vista explosionada
FIG 37. SUBTACK
FIG 37. SUBTACK
Ver la vista explosionada
FIG 4. CASA GEAR
FIG 4. CASA GEAR
Ver la vista explosionada
FIG 40. COOLING WATER PIPE
FIG 40. COOLING WATER PIPE
Ver la vista explosionada
FIG 42. THERMOSTAT
FIG 42. THERMOSTAT
Ver la vista explosionada
FIG 44. FUEL INJECTION PUMP
FIG 44. FUEL INJECTION PUMP
Ver la vista explosionada
FIG 45.
FIG 45.
Ver la vista explosionada
FIG 46. FUEL INJECTION VALVE
FIG 46. FUEL INJECTION VALVE
Ver la vista explosionada
FIG 48. FUEL STRAINER
FIG 48. FUEL STRAINER
Ver la vista explosionada
FIG 5. LUB.OIL SUMP
FIG 5. LUB.OIL SUMP
Ver la vista explosionada
FIG 50. FUEL INJECTION PIPE
FIG 50. FUEL INJECTION PIPE
Ver la vista explosionada
FIG 52. FUEL PIPE (TO 1997.08)
FIG 52. FUEL PIPE (TO 1997.08)
Ver la vista explosionada
FIG 53. FUEL PIPE (RETURN)
FIG 53. FUEL PIPE (RETURN)
Ver la vista explosionada
FIG 54.
FIG 54.
Ver la vista explosionada
FIG 55. REMOTE CONTROL DEVICE
FIG 55. REMOTE CONTROL DEVICE
Ver la vista explosionada

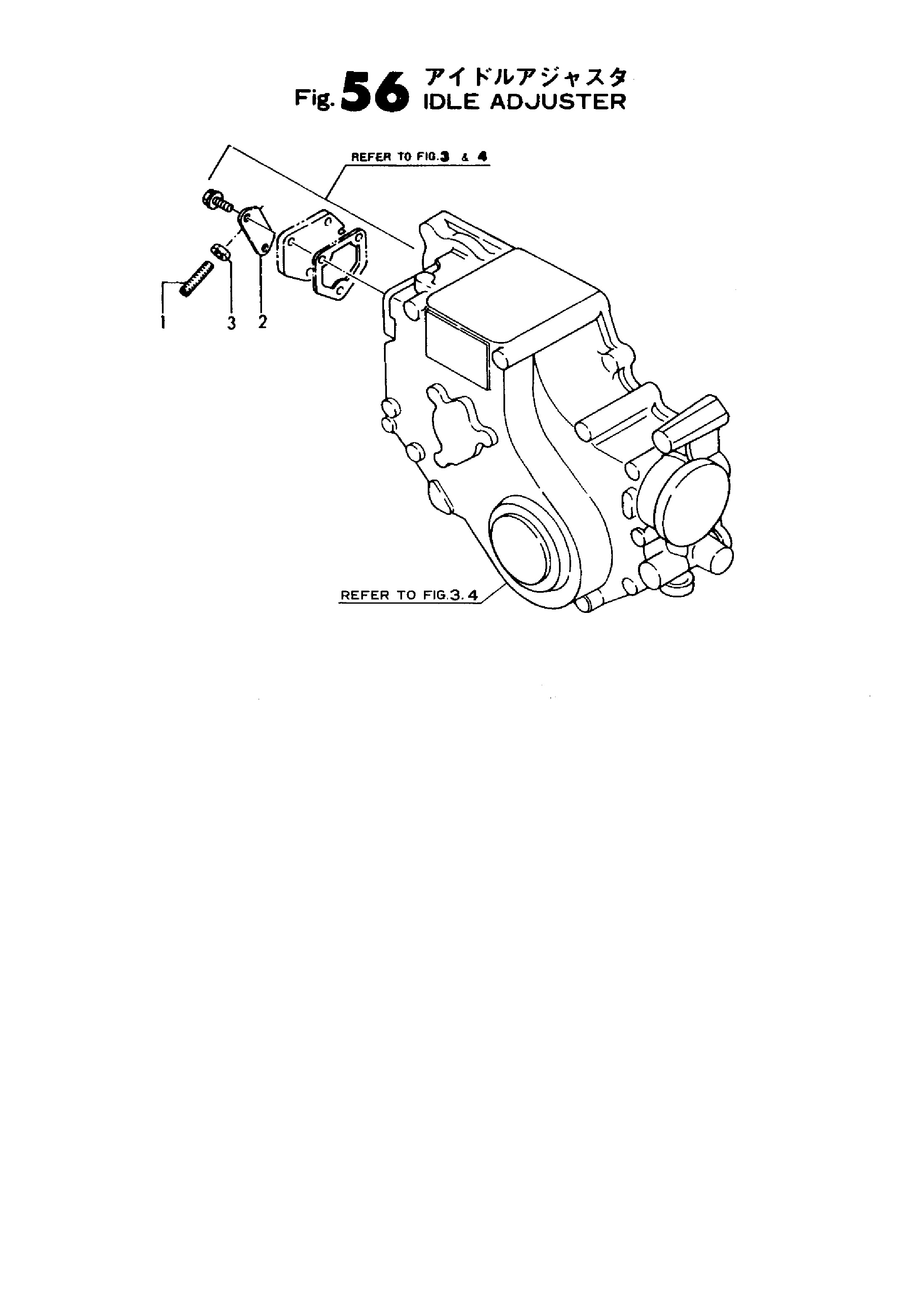

FIG 56. IDLE ADJUSTER
FIG 56. IDLE ADJUSTER
Ver la vista explosionada
FIG 57. FUEL CONTROL DEVICE
FIG 57. FUEL CONTROL DEVICE
Ver la vista explosionada
FIG 58.
FIG 58.
Ver la vista explosionada
FIG 6. FLYWHEEL HOUSING
FIG 6. FLYWHEEL HOUSING
Ver la vista explosionada
FIG 60. SPEED REMOTE CONTROL
FIG 60. SPEED REMOTE CONTROL
Ver la vista explosionada
FIG 62.
FIG 62.
Ver la vista explosionada
FIG 64.
FIG 64.
Ver la vista explosionada

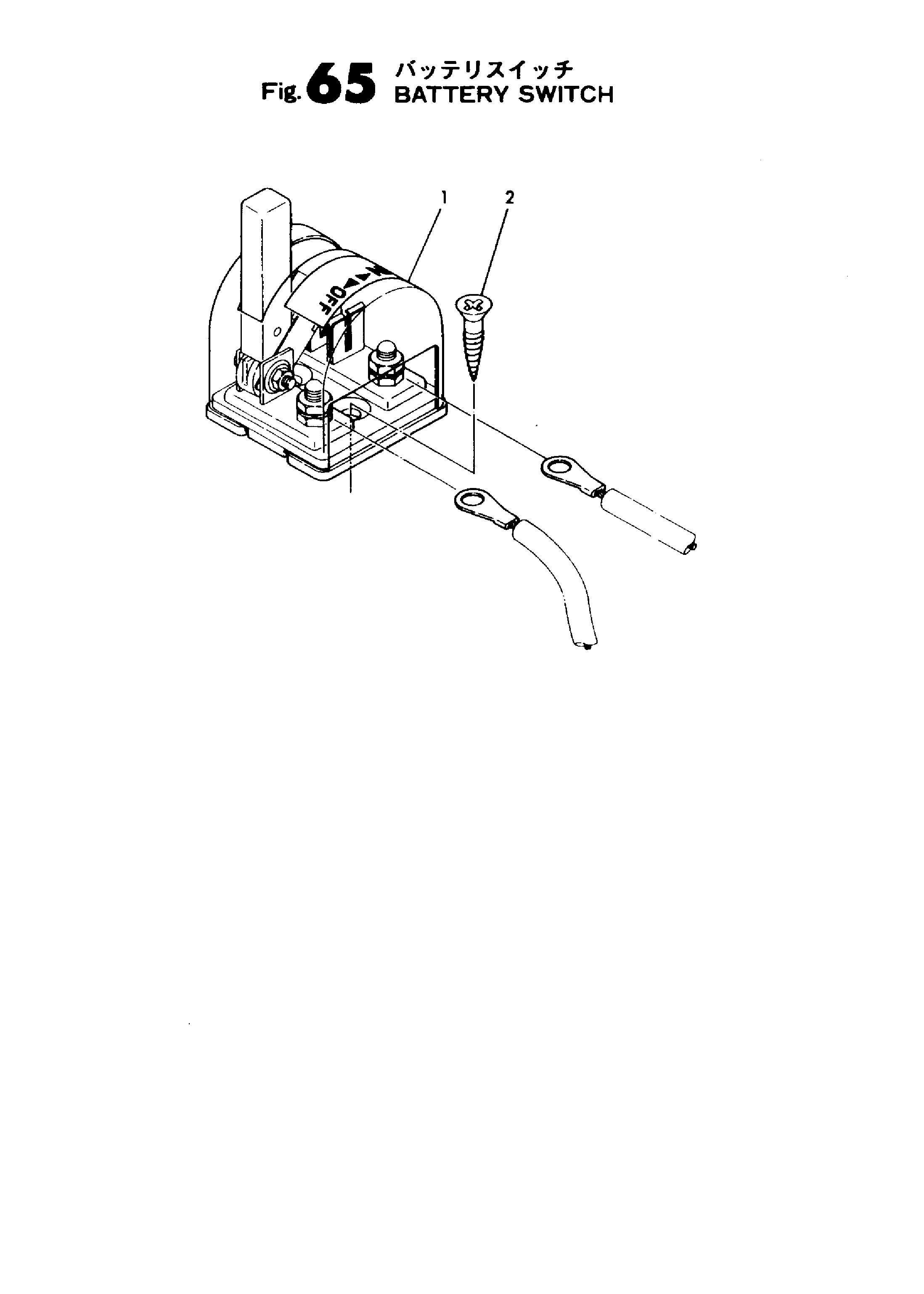

FIG 65. BATTERY SWITCH
FIG 65. BATTERY SWITCH
Ver la vista explosionada
FIG 66. WIRE HARNESS
FIG 66. WIRE HARNESS
Ver la vista explosionada
FIG 67. CLUTCH " DAMPER DISC
FIG 67. CLUTCH " DAMPER DISC
Ver la vista explosionada
FIG 70. CLUTCH REMOTE CONTROL
FIG 70. CLUTCH REMOTE CONTROL
Ver la vista explosionada
FIG 71. INSTRUMENT PANEL (A-TYPE)
FIG 71. INSTRUMENT PANEL (A-TYPE)
Ver la vista explosionada

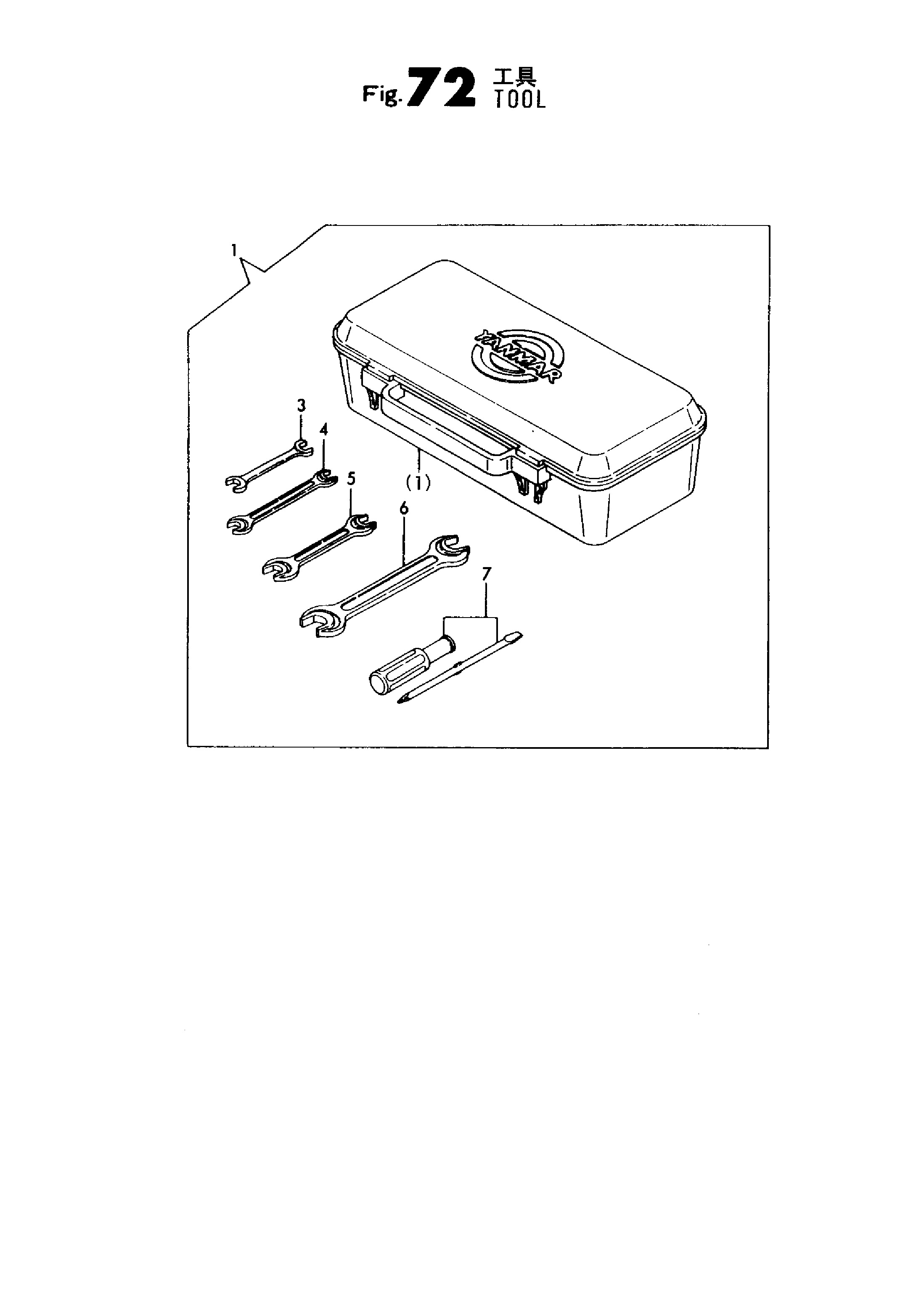

FIG 72.
FIG 72.
Ver la vista explosionada
FIG 73.
FIG 73.
Ver la vista explosionada
FIG 74. GENERATOR COMPONENT PART
FIG 74. GENERATOR COMPONENT PART
Ver la vista explosionada
FIG 76. MIXING ELBOW (OPTIONAL)
FIG 76. MIXING ELBOW (OPTIONAL)
Ver la vista explosionada
FIG 77. LUB.OIL WASTE PUMP (OPTIONAL)
FIG 77. LUB.OIL WASTE PUMP (OPTIONAL)
Ver la vista explosionada

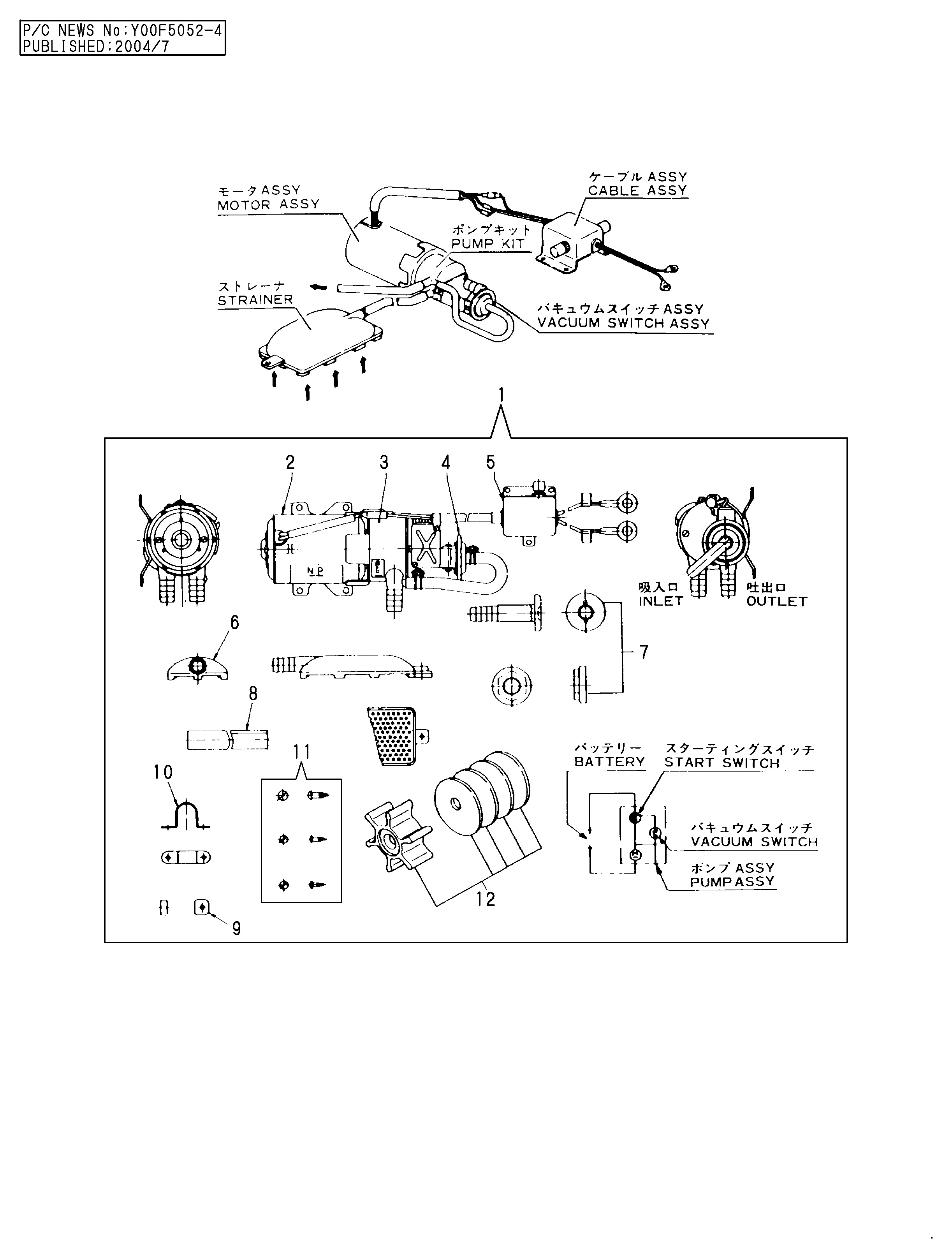

FIG 78. ELECTRIC BILGE PUMP(12,OPTIONA
FIG 78. ELECTRIC BILGE PUMP(12,OPTIONA
Ver la vista explosionada
FIG 79. KINGSTON COCK (OPTIONAL)
FIG 79. KINGSTON COCK (OPTIONAL)
Ver la vista explosionada
FIG 8. MAIN METAL
FIG 8. MAIN METAL
Ver la vista explosionada
FIG 80. FUEL TANK (OPTIONAL)
FIG 80. FUEL TANK (OPTIONAL)
Ver la vista explosionada
FIG 81. ENGINE STOP CABLE (OPTIONAL)
FIG 81. ENGINE STOP CABLE (OPTIONAL)
Ver la vista explosionada
FIG 82. TAPER COUPLING (OPTIONAL)
FIG 82. TAPER COUPLING (OPTIONAL)
Ver la vista explosionada
FIG 83. COUPLING (OPTIONAL)
FIG 83. COUPLING (OPTIONAL)
Ver la vista explosionada
FIG 84. STRAIGHT COUPLING (OPTIONAL)
FIG 84. STRAIGHT COUPLING (OPTIONAL)
Ver la vista explosionada
FIG 85. SLIT COUPLING (OPTIONAL)
FIG 85. SLIT COUPLING (OPTIONAL)
Ver la vista explosionada
FIG 86. SINGLE LEVER CONTROL (OPTIONAL)
FIG 86. SINGLE LEVER CONTROL (OPTIONAL)
Ver la vista explosionada
FIG 87. INSTRUMENT PANEL(B-TYPE) (OPTION)
FIG 87. INSTRUMENT PANEL(B-TYPE) (OPTION)
Ver la vista explosionada

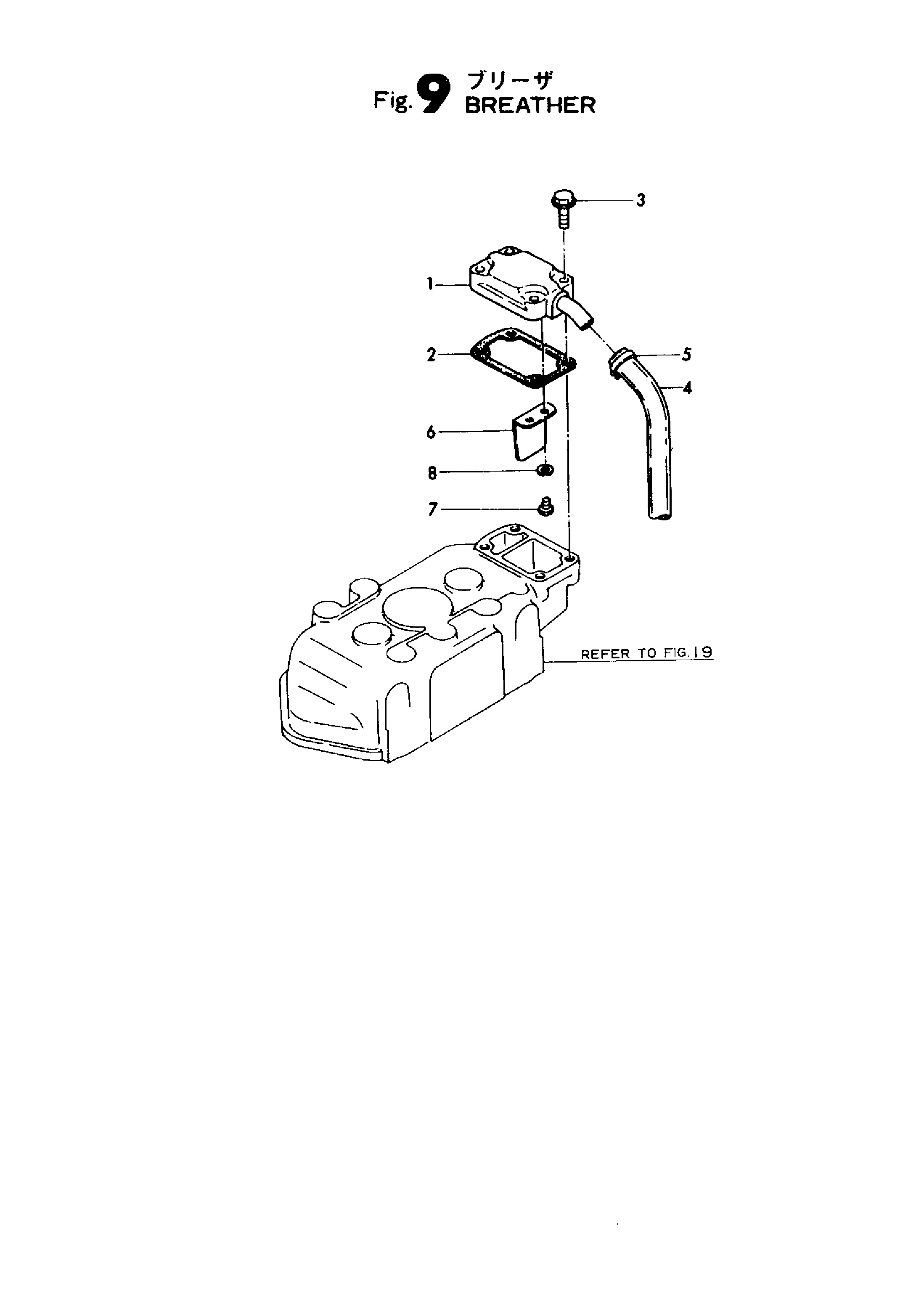

FIG 9.
FIG 9.
Ver la vista explosionada
FIG 90. EXTENSION WIRE (OPTIONAL)
FIG 90. EXTENSION WIRE (OPTIONAL)
Ver la vista explosionada
FIG 91. SPECIAL TOOL (OPTIONAL)
FIG 91. SPECIAL TOOL (OPTIONAL)
Ver la vista explosionada
FIG 93. (OPTIONAL)
FIG 93. (OPTIONAL)
Ver la vista explosionada
FIG 94. GASKET SET (OPTIONAL)
FIG 94. GASKET SET (OPTIONAL)
Ver la vista explosionada
