Ref. DAM : DM_VE_MITSTEUN

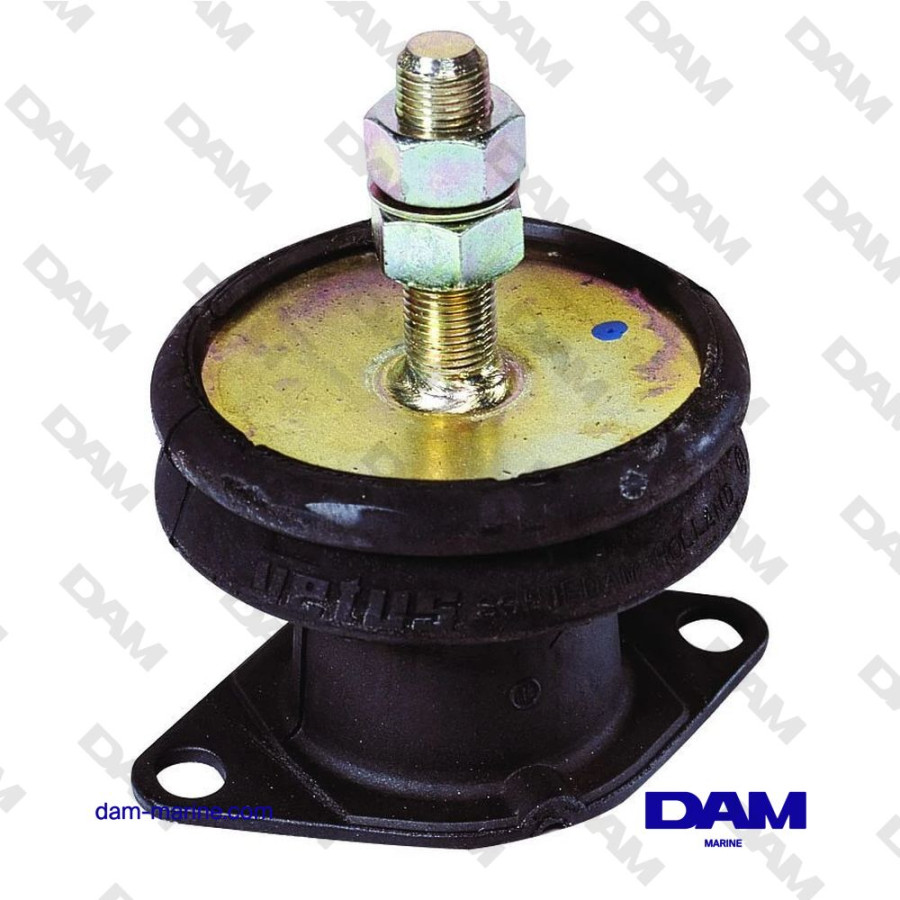

HYDRAULIC MOTOR SUPPORT (EACH) - SHORE 45

348.5 €348.50 VAT included
€290.42 VAT excluded
On demand
HYDRAULIC MOTOR SUPPORT (EACH) - SHORE 45
HYDRAULIC MOTOR SUPPORT (EACH) - SHORE 45
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
HYDRAULIC MOTOR SUPPORT (EACH) - SHORE 45
HYDRAULIC MOTOR SUPPORT (EACH) - SHORE 45
Previous
Next

Pièce non en stock.

Demandez le délai de réapprovisionnement et le tarif en cliquant sur le bouton « Ask for a quote ».

Un conseiller traitera votre demande dans la journée.

On demand
348.5 €348.50 VAT included
€290.42 VAT excluded

For marine diesel engines from 18 to 26 kW (25-35 hp).

This HYDRO DAMPER is a combination of a classic rubber-metal damper and a hydraulic damper. Its vibration and noise reduction is truly astonishing. The maximum static load per support is 60 kg and the maximum thrust is 50 kg.

Stiffness ratio:

Vertical: 1

Lateral: 1

Longitudinal: 1

Minimum load (Static): 25Kg

Minimum Compression (Static): 1.3 mm

Maximum load (Static + Dynamic): 67 Kg

Maximum Compression (Static + Dynamic): 4.5mm

Shore 45

Read the detailed description
Quantity
Vérifier la compatibilité Identifiez votre moteur pour vérifier la compatibilité de ce produit Vérifier la compatibilité

For marine diesel engines from 18 to 26 kW (25-35 hp).

This HYDRO DAMPER is a combination of a classic rubber-metal damper and a hydraulic damper. Its vibration and noise reduction is truly astonishing. The maximum static load per support is 60 kg and the maximum thrust is 50 kg.

Stiffness ratio:

Vertical: 1

Lateral: 1

Longitudinal: 1

Minimum load (Static): 25Kg

Minimum Compression (Static): 1.3 mm

Maximum load (Static + Dynamic): 67 Kg

Maximum Compression (Static + Dynamic): 4.5mm

Shore 45

  • VETUS : MITSTEUN
  • VDM : VETMITSTEUN
