Ref. DAM : DM_VE_LMX340

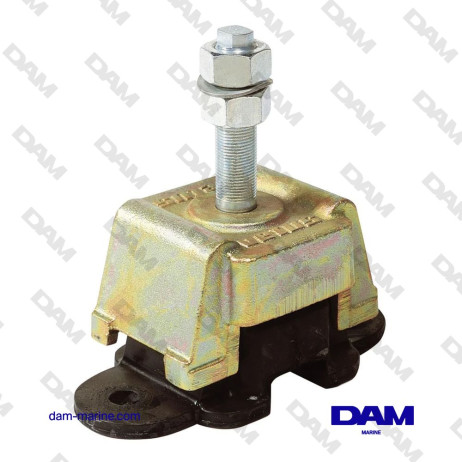

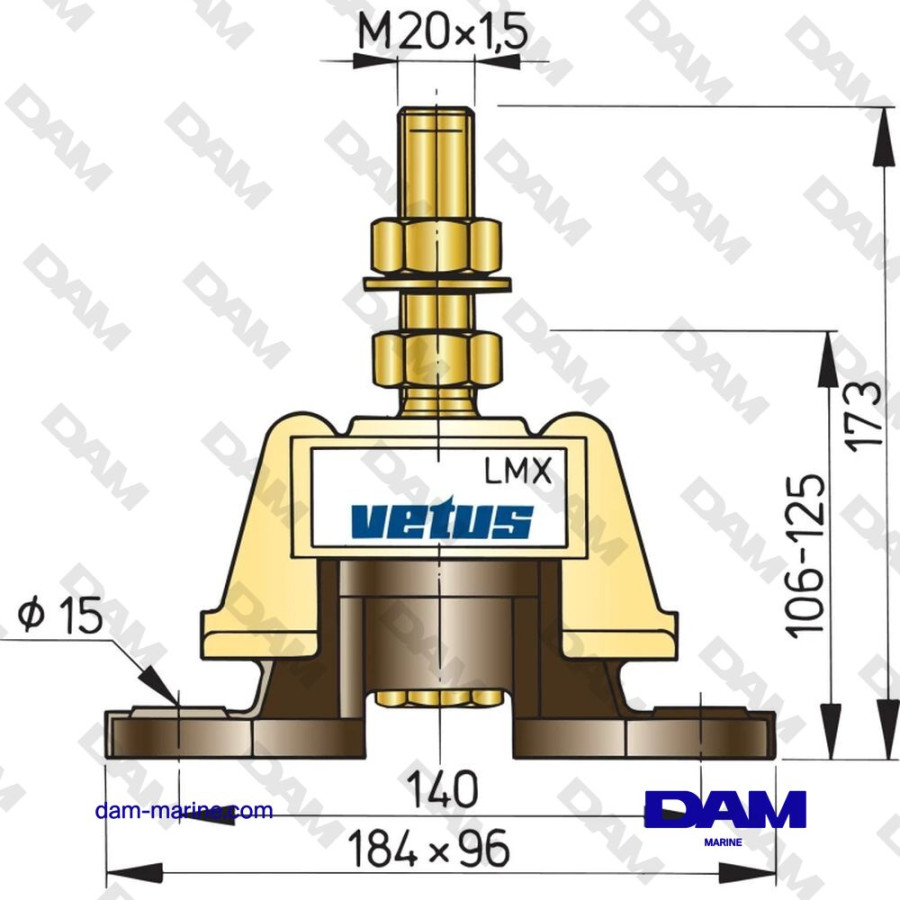

FLEXIBLE ENGINE SUPPORT TYPE LMX340 (EACH) - SHORE 55

278 €278.00 VAT included
€231.67 VAT excluded
On demand
FLEXIBLE ENGINE SUPPORT TYPE LMX340 (EACH) - SHORE 55
FLEXIBLE ENGINE SUPPORT TYPE LMX340 (EACH) - SHORE 55
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
FLEXIBLE ENGINE SUPPORT TYPE LMX340 (EACH) - SHORE 55
FLEXIBLE ENGINE SUPPORT TYPE LMX340 (EACH) - SHORE 55
Previous
Next

Pièce non en stock.

Demandez le délai de réapprovisionnement et le tarif en cliquant sur le bouton « Ask for a quote ».

Un conseiller traitera votre demande dans la journée.

On demand
278 €278.00 VAT included
€231.67 VAT excluded

For marine diesel engines from 70 to 350 kW (95-480 hp).

This type was designed with particular regard to the power-to-weight ratio of modern diesel engines. The weight of an engine, in relation to its thrust, has become lower. The LMX type guarantees optimal vibration damping, even at idle. It has very high horizontal and rear rigidity, which allows acceptance

of a considerable thrust.

Vibration damping in horizontal turns is also excellent.

Stiffness ratio:

Vertical: 1

Lateral: 1

Longitudinal: 7

Minimum load (Static): 205Kg

Minimum Compression (Static): 3 mm

Maximum load (Static + Dynamic): 340 Kg

Maximum compression (Static + Dynamic): 5mm

Shore 55

Read the detailed description
Quantity
Vérifier la compatibilité Identifiez votre moteur pour vérifier la compatibilité de ce produit Vérifier la compatibilité

For marine diesel engines from 70 to 350 kW (95-480 hp).

This type was designed with particular regard to the power-to-weight ratio of modern diesel engines. The weight of an engine, in relation to its thrust, has become lower. The LMX type guarantees optimal vibration damping, even at idle. It has very high horizontal and rear rigidity, which allows acceptance

of a considerable thrust.

Vibration damping in horizontal turns is also excellent.

Stiffness ratio:

Vertical: 1

Lateral: 1

Longitudinal: 7

Minimum load (Static): 205Kg

Minimum Compression (Static): 3 mm

Maximum load (Static + Dynamic): 340 Kg

Maximum compression (Static + Dynamic): 5mm

Shore 55

  • VETUS : LMX340
  • VDM : VETLMX340
Un doute ?  > contact us
