Ref. DAM : DM_VE_HY230

HY230 TYPE ENGINE MOUNT (EACH) - SHORE 60

110.5 €110.50 VAT included
€92.08 VAT excluded
On demand

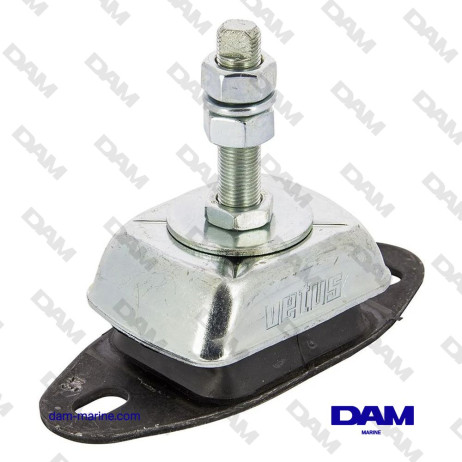

HY230 TYPE ENGINE MOUNT (EACH) - SHORE 60
zoom_in

Pièce non en stock.

Demandez le délai de réapprovisionnement et le tarif en cliquant sur le bouton « Ask for a quote ».

Un conseiller traitera votre demande dans la journée.

On demand
110.5 €110.50 VAT included
€92.08 VAT excluded

For heavy duty engines with 4 or more cylinders.

This type is extremely suitable for use with marine diesel engines in the power range between 30 and 125 kW (40-170 hp), due to low stiffness combined with high rigidity in the longitudinal direction.

Stiffness ratio:

Vertical: 1

Lateral: 1.2

Longitudinal: 3.5

Minimum load (static): 92 kg

Minimum Compression (Static): 2 mm

Maximum load (Static + Dynamic): 230 Kg

Maximum compression (Static + Dynamic): 5mm

Shore 60

Read the detailed description
Quantity
Vérifier la compatibilité Identifiez votre moteur pour vérifier la compatibilité de ce produit Vérifier la compatibilité

For heavy duty engines with 4 or more cylinders.

This type is extremely suitable for use with marine diesel engines in the power range between 30 and 125 kW (40-170 hp), due to low stiffness combined with high rigidity in the longitudinal direction.

Stiffness ratio:

Vertical: 1

Lateral: 1.2

Longitudinal: 3.5

Minimum load (static): 92 kg

Minimum Compression (Static): 2 mm

Maximum load (Static + Dynamic): 230 Kg

Maximum compression (Static + Dynamic): 5mm

Shore 60

  • VETUS : HY230
  • VDM : VETHY230
Un doute ?  > contact us
