Ref. DAM : DM_VE_MGS5455A

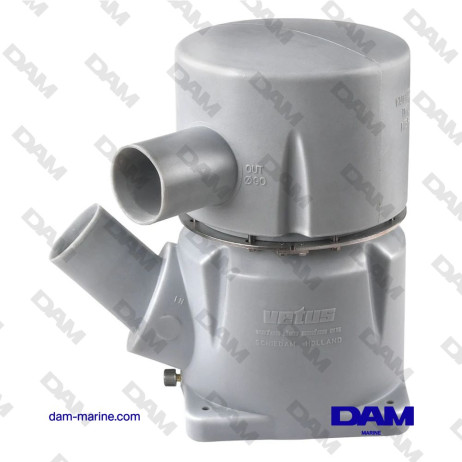

SYNTHETIC WATERLOCK, TYPE MGS, 127 MM INLET-45 DEGREES, 127 MM OUTLET

1035.5 €1,035.50 VAT included
€862.92 VAT excluded
On demand
SYNTHETIC WATERLOCK, TYPE MGS, 127 MM INLET-45 DEGREES, 127 MM OUTLET
SYNTHETIC WATERLOCK, TYPE MGS, 127 MM INLET-45 DEGREES, 127 MM OUTLET
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
SYNTHETIC WATERLOCK, TYPE MGS, 127 MM INLET-45 DEGREES, 127 MM OUTLET
SYNTHETIC WATERLOCK, TYPE MGS, 127 MM INLET-45 DEGREES, 127 MM OUTLET
Previous
Next

Pièce non en stock.

Demandez le délai de réapprovisionnement et le tarif en cliquant sur le bouton « Ask for a quote ».

Un conseiller traitera votre demande dans la journée.

On demand
1035.5 €1,035.50 VAT included
€862.92 VAT excluded

Exhaust plug for water-injected exhaust systems, with rotating top. Made of corrosion-resistant synthetic materials. Excellent noise reduction.

Features :

• Excellent sound reduction

• Minimal back pressure

• Drain plug for winter storage

• Suitable for internal pipe diameters Ø 90, 102, 127, 152, 209 or 250 mm

• Capacities of 23, 75 or 130 liters

• Supplied with AISI 316 stainless steel clamping bands

• M12 thread purge

• Optional temperature sensor

Technical characteristics:

Capacity (liters): 75.

Water inlet pipe connection diameter (mm): 127.

Outlet pipe connection diameter (mm): 127.

Length (mm): 707.

Width (mm): 400.

Height (mm): 700.

Airlock position: Vertical.

% Noise Reduction: 25.

Read the detailed description
Quantity
Vérifier la compatibilité Identifiez votre moteur pour vérifier la compatibilité de ce produit Vérifier la compatibilité

Exhaust plug for water-injected exhaust systems, with rotating top. Made of corrosion-resistant synthetic materials. Excellent noise reduction.

Features :

• Excellent sound reduction

• Minimal back pressure

• Drain plug for winter storage

• Suitable for internal pipe diameters Ø 90, 102, 127, 152, 209 or 250 mm

• Capacities of 23, 75 or 130 liters

• Supplied with AISI 316 stainless steel clamping bands

• M12 thread purge

• Optional temperature sensor

Technical characteristics:

Capacity (liters): 75.

Water inlet pipe connection diameter (mm): 127.

Outlet pipe connection diameter (mm): 127.

Length (mm): 707.

Width (mm): 400.

Height (mm): 700.

Airlock position: Vertical.

% Noise Reduction: 25.

  • VETUS : MGS5455A
  • VDM : VETMGS5455A
