Ref. DAM : DM_VE_ALA46TL

ALTUS TRAPEZE TYPE 46TL HOOD (CUTOUT DIMENSIONS 464 X 607 X 378 MM)

629.5 €629.50 VAT included
€524.58 VAT excluded
On demand
ALTUS TRAPEZE TYPE 46TL HOOD (CUTOUT DIMENSIONS 464 X 607 X 378 MM)
ALTUS TRAPEZE TYPE 46TL HOOD (CUTOUT DIMENSIONS 464 X 607 X 378 MM)
ALTUS TRAPEZE TYPE 46TL HOOD (CUTOUT DIMENSIONS 464 X 607 X 378 MM)
ALTUS TRAPEZE TYPE 46TL HOOD (CUTOUT DIMENSIONS 464 X 607 X 378 MM)
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
ALTUS TRAPEZE TYPE 46TL HOOD (CUTOUT DIMENSIONS 464 X 607 X 378 MM)
ALTUS TRAPEZE TYPE 46TL HOOD (CUTOUT DIMENSIONS 464 X 607 X 378 MM)
ALTUS TRAPEZE TYPE 46TL HOOD (CUTOUT DIMENSIONS 464 X 607 X 378 MM)
ALTUS TRAPEZE TYPE 46TL HOOD (CUTOUT DIMENSIONS 464 X 607 X 378 MM)
Previous
Next

Pièce non en stock.

Demandez le délai de réapprovisionnement et le tarif en cliquant sur le bouton « Ask for a quote ».

Un conseiller traitera votre demande dans la journée.

On demand
629.5 €629.50 VAT included
€524.58 VAT excluded

Trapezoidal hatches made with a robust 21mm high aluminium profile, with an anodised frame and suitable for design category A and location zone II.

The acrylic is 10mm thick and comes in a “dark smoke” color.

These hatches come with adjusters that are stylish and easy to use, allowing the lid to be held open at almost any angle up to 90°.

The ALTUS type can be mounted on the deck and opened from

inside and outside. It has a ventilation position and can be completely waterproof.

Features :

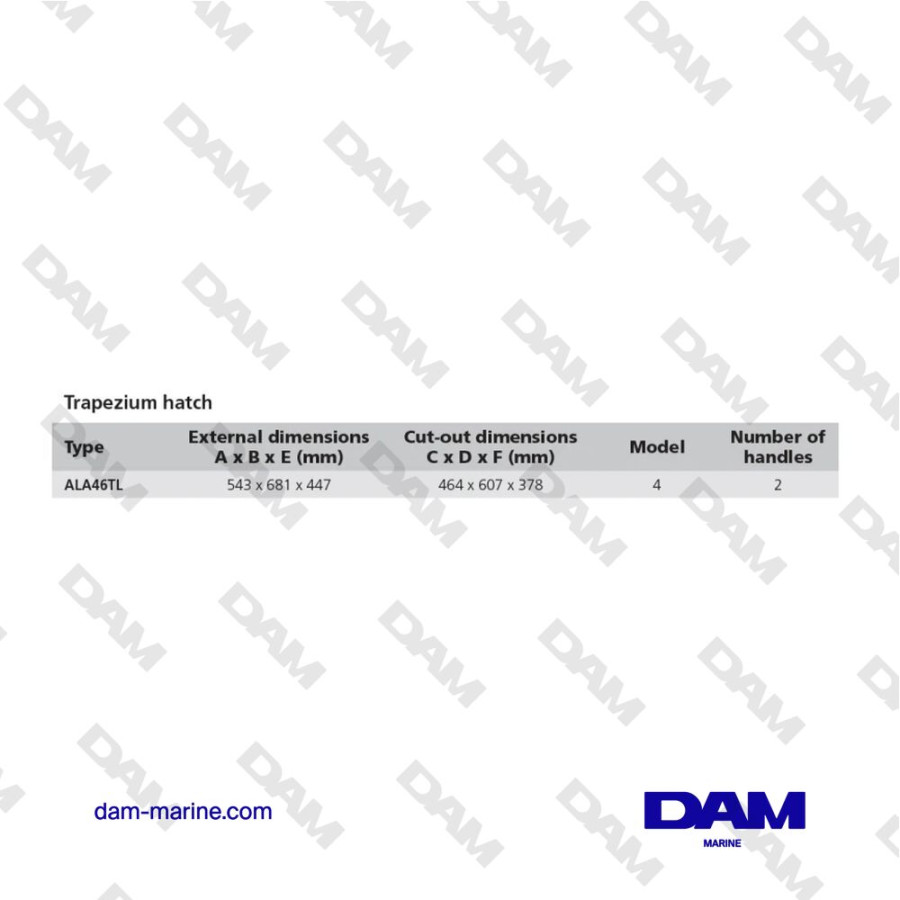

External dimensions A x BXE (in mm): 543 x 681 x 447.

Cutout dimensions C x DXF (in mm): 464 x 607 x 378

Number of handles: 2.

Shape: Trapezoidal.

Friction hinges: No.

Read the detailed description
Quantity
Vérifier la compatibilité Identifiez votre moteur pour vérifier la compatibilité de ce produit Vérifier la compatibilité

Trapezoidal hatches made with a robust 21mm high aluminium profile, with an anodised frame and suitable for design category A and location zone II.

The acrylic is 10mm thick and comes in a “dark smoke” color.

These hatches come with adjusters that are stylish and easy to use, allowing the lid to be held open at almost any angle up to 90°.

The ALTUS type can be mounted on the deck and opened from

inside and outside. It has a ventilation position and can be completely waterproof.

Features :

External dimensions A x BXE (in mm): 543 x 681 x 447.

Cutout dimensions C x DXF (in mm): 464 x 607 x 378

Number of handles: 2.

Shape: Trapezoidal.

Friction hinges: No.

  • VETUS : ALA46TL
  • VDM : VETALA46TL
