Ref. DAM : DM_VE_HYDRF24

GROUP 24 VS, PRESSURE TANK CONTENTS 8 L, WITH PRESSURE REGULATOR

857.5 €857.50 VAT included
€714.58 VAT excluded
On demand
GROUP 24 VS, PRESSURE TANK CONTENTS 8 L, WITH PRESSURE REGULATOR
GROUP 24 VS, PRESSURE TANK CONTENTS 8 L, WITH PRESSURE REGULATOR
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
GROUP 24 VS, PRESSURE TANK CONTENTS 8 L, WITH PRESSURE REGULATOR
GROUP 24 VS, PRESSURE TANK CONTENTS 8 L, WITH PRESSURE REGULATOR
Previous
Next

Pièce non en stock.

Demandez le délai de réapprovisionnement et le tarif en cliquant sur le bouton « Ask for a quote ».

Un conseiller traitera votre demande dans la journée.

On demand
857.5 €857.50 VAT included
€714.58 VAT excluded

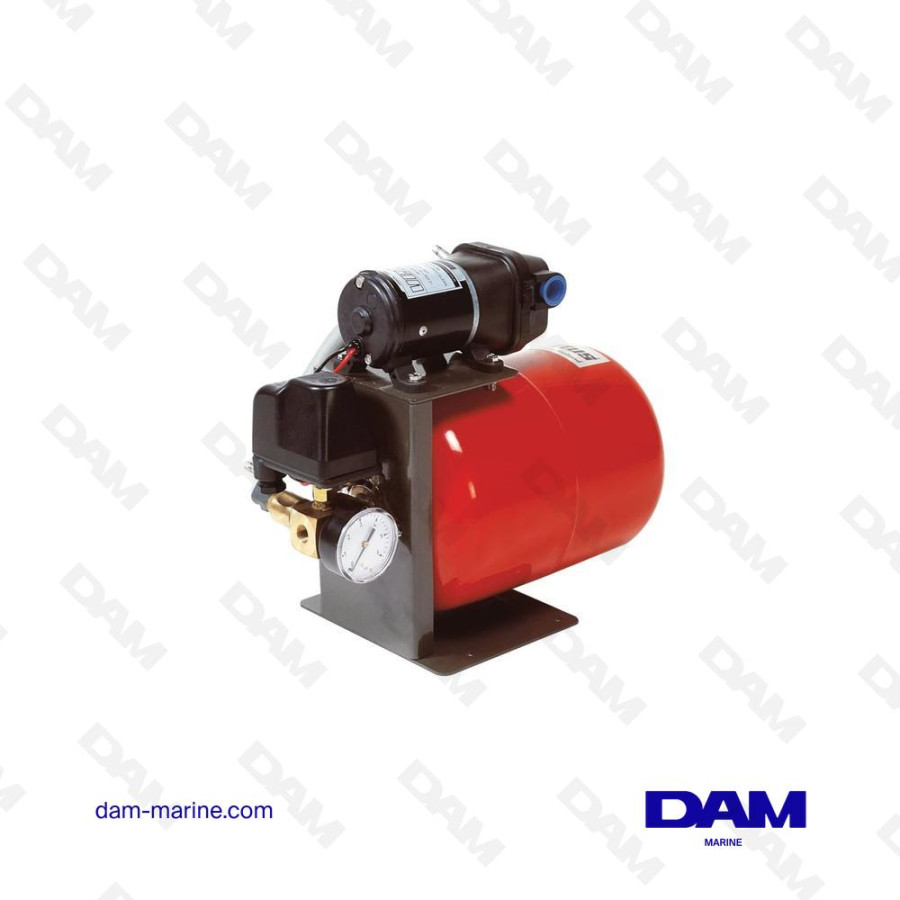

This pressurized water system ensures a constant flow in the boat's freshwater circuit. It is comparable to a domestic tap water system. The tank and its pressurized membrane relieve the pump motor by saving it from having to start each time water is drawn. This system ensures a constant water flow, saving energy and minimizing noise.

They have an adjustable pressure switch, a pressure gauge (manometer) and a non-return valve.

The pressurized water units of HF type systems meet EMC requirements.

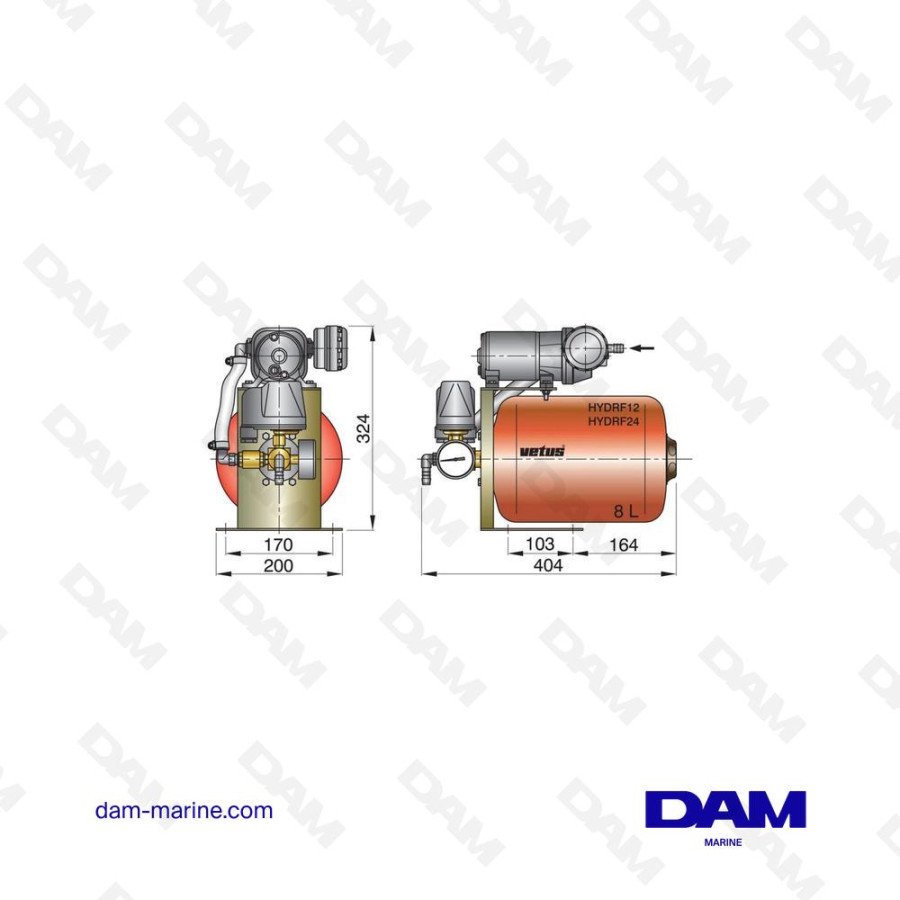

Features :

Width (mm): 200.

Height (mm): 324.

Length (mm): 404.

Voltage (V): 24.

Capacity (liters/min): 12.5.

Tank capacity (liters): 8.

Weight (kg): 8.2.

Pipe connection diameter (mm): 13.

Max. pressure (bar): 2.5.

Max. suction height (m): 3.

Read the detailed description
Quantity
Vérifier la compatibilité Identifiez votre moteur pour vérifier la compatibilité de ce produit Vérifier la compatibilité

This pressurized water system ensures a constant flow in the boat's freshwater circuit. It is comparable to a domestic tap water system. The tank and its pressurized membrane relieve the pump motor by saving it from having to start each time water is drawn. This system ensures a constant water flow, saving energy and minimizing noise.

They have an adjustable pressure switch, a pressure gauge (manometer) and a non-return valve.

The pressurized water units of HF type systems meet EMC requirements.

Features :

Width (mm): 200.

Height (mm): 324.

Length (mm): 404.

Voltage (V): 24.

Capacity (liters/min): 12.5.

Tank capacity (liters): 8.

Weight (kg): 8.2.

Pipe connection diameter (mm): 13.

Max. pressure (bar): 2.5.

Max. suction height (m): 3.

  • VETUS : HYDRF24
  • VDM : VETHYDRF24
