Ref. DAM : DM_VE_DWSC12012

COMPLETE DRINKING WATER TANK SYSTEM, 120L, WITH 13.5L/MIN PUMP

596 €596.00 VAT included
€496.67 VAT excluded
On demand
COMPLETE DRINKING WATER TANK SYSTEM, 120L, WITH 13.5L/MIN PUMP
COMPLETE DRINKING WATER TANK SYSTEM, 120L, WITH 13.5L/MIN PUMP
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
COMPLETE DRINKING WATER TANK SYSTEM, 120L, WITH 13.5L/MIN PUMP
COMPLETE DRINKING WATER TANK SYSTEM, 120L, WITH 13.5L/MIN PUMP
Previous
Next

Pièce non en stock.

Demandez le délai de réapprovisionnement et le tarif en cliquant sur le bouton « Ask for a quote ».

Un conseiller traitera votre demande dans la journée.

On demand
596 €596.00 VAT included
€496.67 VAT excluded

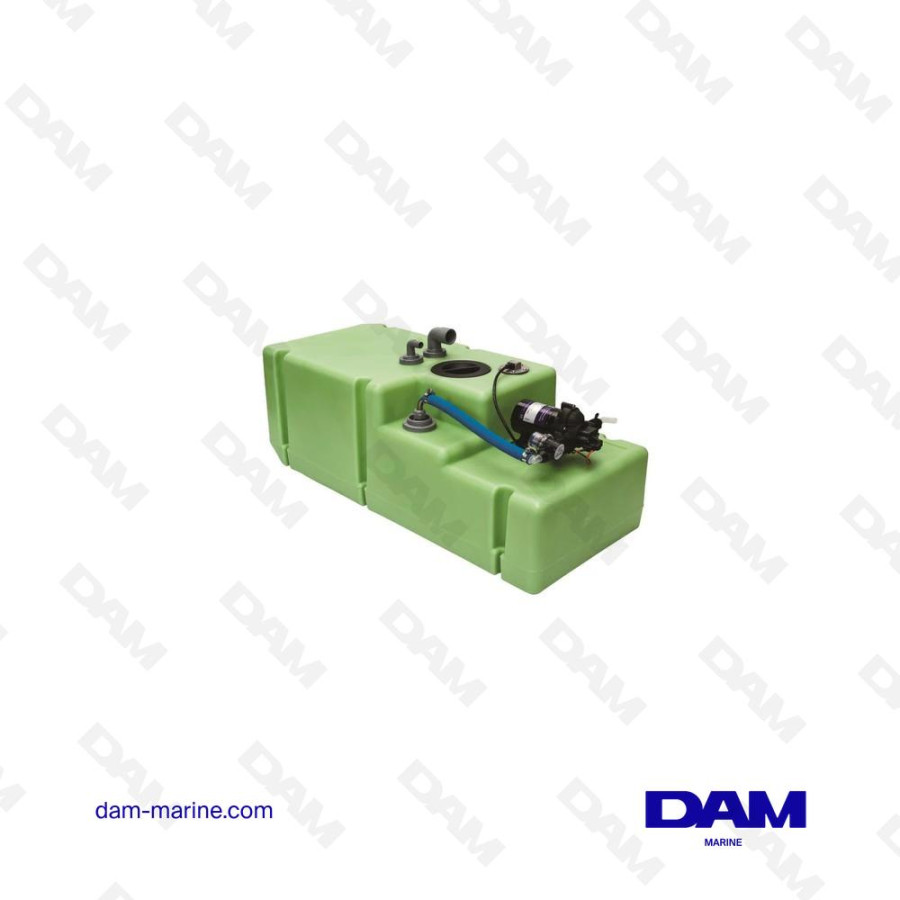

This high-quality synthetic tank for drinking water is supplied with an electric pump that automatically starts when the pressure in the system drops (for example, when a tap is opened).

Installing a DWS tank saves valuable time, as all that's required is connecting the pipes and power supply. This high-end drinking water system offers a high degree of ease of use.

An inspection cover for cleaning the inside of the tank is also fitted.

All fittings for the 38mm suction and 16mm vent diameter filler pipe are supplied pre-installed, along with a filter in the suction line and a float sensor for connecting a level gauge.

Features :

Tank volume (liter): 120.

Voltage: (v): 12.

Filling diameter (mm): 38.

Event Diameter (mm): 16.

Drain diameter (mm): 13.

Pump flow rate (l/min): 13.2

Pressure (Bar): 3.10.

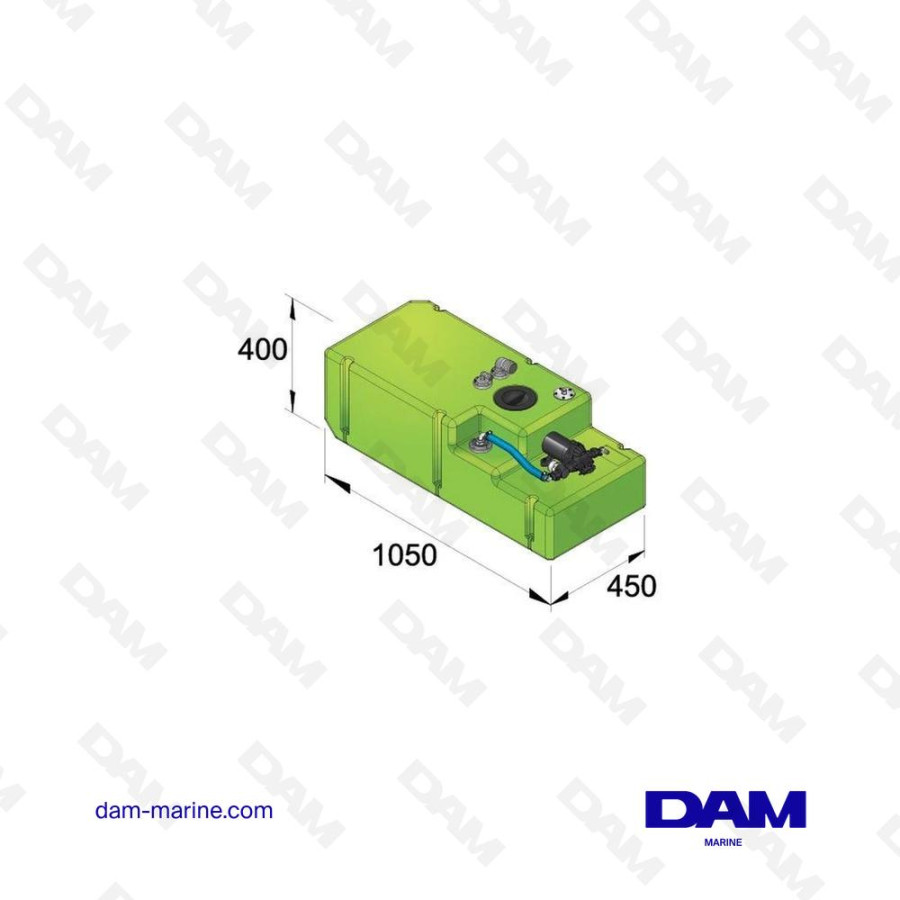

Length (mm): 1050.

Depth (mm): 450.

Height (mm): 400.

Read the detailed description
Quantity
Vérifier la compatibilité Identifiez votre moteur pour vérifier la compatibilité de ce produit Vérifier la compatibilité

This high-quality synthetic tank for drinking water is supplied with an electric pump that automatically starts when the pressure in the system drops (for example, when a tap is opened).

Installing a DWS tank saves valuable time, as all that's required is connecting the pipes and power supply. This high-end drinking water system offers a high degree of ease of use.

An inspection cover for cleaning the inside of the tank is also fitted.

All fittings for the 38mm suction and 16mm vent diameter filler pipe are supplied pre-installed, along with a filter in the suction line and a float sensor for connecting a level gauge.

Features :

Tank volume (liter): 120.

Voltage: (v): 12.

Filling diameter (mm): 38.

Event Diameter (mm): 16.

Drain diameter (mm): 13.

Pump flow rate (l/min): 13.2

Pressure (Bar): 3.10.

Length (mm): 1050.

Depth (mm): 450.

Height (mm): 400.

  • VETUS : DWSC12012
  • VDM : VETDWSC12012
