Ref. DAM : SP8006

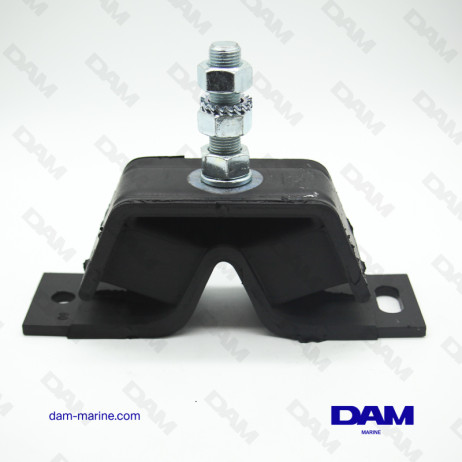

ENGINE MOUNT 200 - SHORE 70

90 €90.00 VAT included
€75.00 VAT excluded
Disponible
ENGINE MOUNT 200 - SHORE 70
ENGINE MOUNT 200 - SHORE 70
ENGINE MOUNT 200 - SHORE 70
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
ENGINE MOUNT 200 - SHORE 70
ENGINE MOUNT 200 - SHORE 70
ENGINE MOUNT 200 - SHORE 70
Previous
Next
Livraison express → Monday 02 June
|
Livraison classique → Wednesday 04 June
Commandez dans les
00 h 00 m 00 s
Disponible
90 €90.00 VAT included
€75.00 VAT excluded

Engine mount for Yanmar with the following features:

- Length: 205mm

- Width: 60mm

- Total height: 147mm

- Body height: 75mm

- Threaded rod: M16 X 1.5

- Center distance: 173mm

- Note on rubber 200

- Maximum load 150 kg

- Shore 70

Read the detailed description
Quantity
Vérifier la compatibilité Identifiez votre moteur pour vérifier la compatibilité de ce produit Vérifier la compatibilité

Engine mount for Yanmar with the following features:

- Length: 205mm

- Width: 60mm

- Total height: 147mm

- Body height: 75mm

- Threaded rod: M16 X 1.5

- Center distance: 173mm

- Note on rubber 200

- Maximum load 150 kg

- Shore 70

  • YANMAR : 129670-08350
  • YANMAR : 129670-08351
  • YANMAR : 129470-08350
  • CROM : 924007
  • AMC : 148006
  • ELLEBOGEN : ELLEBOGEN 200
