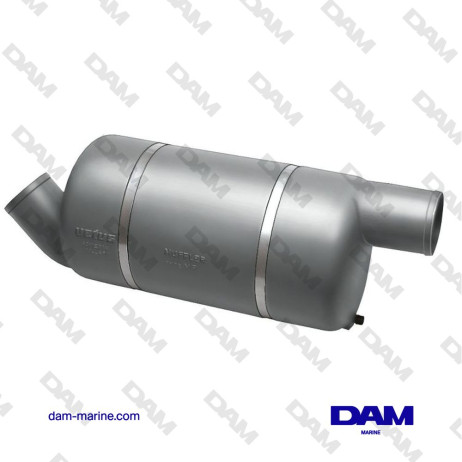

MF125 SYNTHETIC SILENCER, Ø 125 MM (EXCL. SWING VALVE)

This system is perfect for fast boats with powerful engines without space available for installing a waterlock and/or gooseneck. By using one of these compact silencers, you significantly reduce exhaust noise with minimal back pressure. All parts are made of synthetic materials, corrosion-free and

light.

Transom fittings for this system are available in stainless steel (AISI 316) or reinforced black plastic.

The MV type waterlock and transom fitting are equipped with a non-return valve that prevents seawater from circulating into the engine.

Features

• For pipe diameters Ø 100 mm

• Supplied with AISI 316 stainless steel mounting brackets for silencers

• Temperature sensor for raw water alarm is optional (recommended)

Trident Flex 121°C wet exhaust pipe features a double jacket for increased durability, providing a larger pinch-free bend radius than standard standards.

Hose with a smooth surface for better tightening of the clamps.

Sold by the linear meter.

Standards: SAE J2006-R2, ABYC, NMMA P-1, Lloyd's

This system is perfect for fast boats with powerful engines without space available for installing a waterlock and/or gooseneck. By using one of these compact silencers, you significantly reduce exhaust noise with minimal back pressure. All parts are made of synthetic materials, corrosion-free and

light.

Transom fittings for this system are available in stainless steel (AISI 316) or reinforced black plastic.

Features

• For pipe diameters Ø 90 mm

• Supplied with AISI 316 stainless steel mounting brackets for silencers

• Temperature sensor for raw water alarm is optional (recommended)

This system is perfect for fast boats with powerful engines without space available for installing a waterlock and/or gooseneck. By using one of these compact silencers, you significantly reduce exhaust noise with minimal back pressure. All parts are made of synthetic materials, corrosion-free and

light.

Transom fittings for this system are available in stainless steel (AISI 316) or reinforced black plastic.

Features

• For pipe diameters Ø 100 mm

• Supplied with AISI 316 stainless steel mounting brackets for silencers

• Temperature sensor for raw water alarm is optional (recommended)

This system is perfect for fast boats with powerful engines without space available for installing a waterlock and/or gooseneck. By using one of these compact silencers, you significantly reduce exhaust noise with minimal back pressure. All parts are made of synthetic materials, corrosion-free and

light.

Transom fittings for this system are available in stainless steel (AISI 316) or reinforced black plastic.

Features

• For pipe diameters Ø 150 mm

• Supplied with AISI 316 stainless steel mounting brackets for silencers

• Temperature sensor for raw water alarm is optional (recommended)

This system is perfect for fast boats with powerful engines without space available for installing a waterlock and/or gooseneck. By using one of these compact silencers, you significantly reduce exhaust noise with minimal back pressure. All parts are made of synthetic materials, corrosion-free and

light.

Transom fittings for this system are available in stainless steel (AISI 316) or reinforced black plastic.

The MV type waterlock and transom fitting are equipped with a non-return valve that prevents seawater from circulating into the engine.

Features

• For pipe diameters Ø 90 mm

• Supplied with AISI 316 stainless steel mounting brackets for silencers

• Temperature sensor for raw water alarm is optional (recommended)

This system is perfect for fast boats with powerful engines without space available for installing a waterlock and/or gooseneck. By using one of these compact silencers, you significantly reduce exhaust noise with minimal back pressure. All parts are made of synthetic materials, corrosion-free and

light.

Transom fittings for this system are available in stainless steel (AISI 316) or reinforced black plastic.

The MV type waterlock and transom fitting are equipped with a non-return valve that prevents seawater from circulating into the engine.

Features

• For pipe diameters Ø 125 mm

• Supplied with AISI 316 stainless steel mounting brackets for silencers

• Temperature sensor for raw water alarm is optional (recommended)

This system is perfect for fast boats with powerful engines without space available for installing a waterlock and/or gooseneck. By using one of these compact silencers, you significantly reduce exhaust noise with minimal back pressure. All parts are made of synthetic materials, corrosion-free and

light.

Transom fittings for this system are available in stainless steel (AISI 316) or reinforced black plastic.

The MV type waterlock and transom fitting are equipped with a non-return valve that prevents seawater from circulating into the engine.

Features

• For pipe diameters Ø 150 mm

• Supplied with AISI 316 stainless steel mounting brackets for silencers

• Temperature sensor for raw water alarm is optional (recommended)

Exhaust temperature alarm probe, two probes available for VETUS mounting.

Use the XHSM sensor in VETUS waterlocks with a pre-installed connection.

Use the XHSH type sensor for mounting in the exhaust pipe

Note: Temperature sensors and alarm unit must be ordered separately. In the case of a

twin-engine installation, 2 sensors can be connected to one alarm unit.
