Ref. DAM : DM_VE_P102574

VERTICAL WINDLASS MIXED CHAIN/ROPE RC10-8 - 24V CW - 1000 W - 100TDC CHAIN

2095 €2,095.00 VAT included
€1,745.83 VAT excluded
On demand
VERTICAL WINDLASS MIXED CHAIN/ROPE RC10-8 - 24V CW - 1000 W - 100TDC CHAIN
VERTICAL WINDLASS MIXED CHAIN/ROPE RC10-8 - 24V CW - 1000 W - 100TDC CHAIN
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
VERTICAL WINDLASS MIXED CHAIN/ROPE RC10-8 - 24V CW - 1000 W - 100TDC CHAIN
VERTICAL WINDLASS MIXED CHAIN/ROPE RC10-8 - 24V CW - 1000 W - 100TDC CHAIN
Previous
Next

Pièce non en stock.

Demandez le délai de réapprovisionnement et le tarif en cliquant sur le bouton « Ask for a quote ».

Un conseiller traitera votre demande dans la journée.

On demand
2095 €2,095.00 VAT included
€1,745.83 VAT excluded

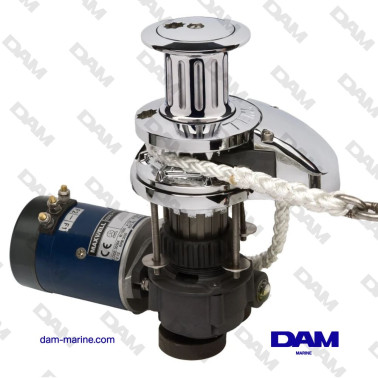

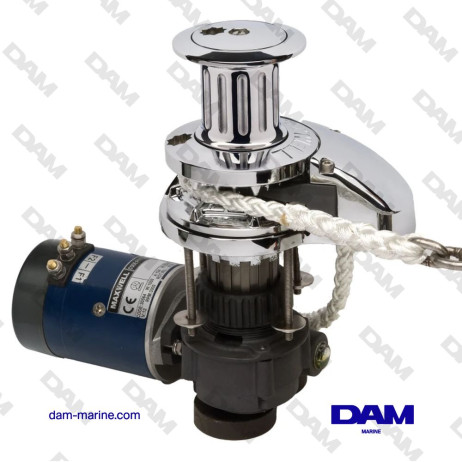

The RC10-8 series in stainless steel (AISI 316) incorporates a chrome-plated bronze tray, designed to effortlessly retrieve and deploy 8mm chain spliced onto 14mm or 16mm 8-strand (braided) cable.

The RC10 series is manufactured from marine grade 316 stainless steel (AISI 316) and chrome-plated bronze for long-lasting durability. The robust stainless steel (AISI 316) pressure arm, combined with the unique rope/chain gypsy, is designed to effectively grip the splice between the rope and chain, giving the RC10 an unmatched level of performance. A stylish low-profile version and a stainless steel (AISI 316) fluted capstan drum version are available. The RC10 series also works effectively with all chain windlasses for those who desire a low-profile, stylish windlass on their foredeck.

The simple two-piece installation saves time and money and allows for easy retrofitting without disassembling the windlass. The unique spacer tube design allows installation on virtually any deck thickness, plus the multiple mounting positions and self-aligning gearbox ensure optimal gearbox and motor placement in virtually any installation situation. There is also the ability to completely dismantle the topworks using only the supplied handle and an Allen key. The huge through-deck hawse chute ensures easy entry and exit of the cable/chain in and out of the anchor locker. The cone-type clutch/brake mechanism allows for manual 'free-fall' anchoring. The sealed oil bath and marine-grade hard-anodized alloy gearbox provide maximum efficiency with a precision worm and worm wheel.

Features :

Rope (in mm): 14-16.

Rope/Chain: Rope/Chain.

Drum: Yes.

Motor (in W): 1000.

Weight (in kg): 19.

Maximum traction/lift (in kg): 700.

Short chain link (in mm): 8.

Chain (in mm): 8.

Vertical/Horizontal: Vertical.

Voltage (in V): 24.

Read the detailed description
Quantity
Vérifier la compatibilité Identifiez votre moteur pour vérifier la compatibilité de ce produit Vérifier la compatibilité

The RC10-8 series in stainless steel (AISI 316) incorporates a chrome-plated bronze tray, designed to effortlessly retrieve and deploy 8mm chain spliced onto 14mm or 16mm 8-strand (braided) cable.

The RC10 series is manufactured from marine grade 316 stainless steel (AISI 316) and chrome-plated bronze for long-lasting durability. The robust stainless steel (AISI 316) pressure arm, combined with the unique rope/chain gypsy, is designed to effectively grip the splice between the rope and chain, giving the RC10 an unmatched level of performance. A stylish low-profile version and a stainless steel (AISI 316) fluted capstan drum version are available. The RC10 series also works effectively with all chain windlasses for those who desire a low-profile, stylish windlass on their foredeck.

The simple two-piece installation saves time and money and allows for easy retrofitting without disassembling the windlass. The unique spacer tube design allows installation on virtually any deck thickness, plus the multiple mounting positions and self-aligning gearbox ensure optimal gearbox and motor placement in virtually any installation situation. There is also the ability to completely dismantle the topworks using only the supplied handle and an Allen key. The huge through-deck hawse chute ensures easy entry and exit of the cable/chain in and out of the anchor locker. The cone-type clutch/brake mechanism allows for manual 'free-fall' anchoring. The sealed oil bath and marine-grade hard-anodized alloy gearbox provide maximum efficiency with a precision worm and worm wheel.

Features :

Rope (in mm): 14-16.

Rope/Chain: Rope/Chain.

Drum: Yes.

Motor (in W): 1000.

Weight (in kg): 19.

Maximum traction/lift (in kg): 700.

Short chain link (in mm): 8.

Chain (in mm): 8.

Vertical/Horizontal: Vertical.

Voltage (in V): 24.

  • VETUS : P102574
  • VDM : MAXP102574
  • VDM : VETP102574
