Ref. DAM : ASDV

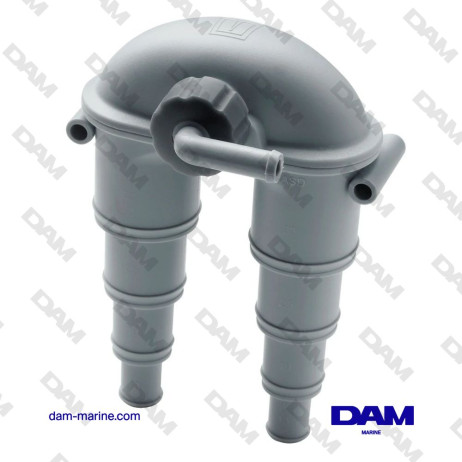

ANTI-SIPHON ELBOW TYPE ASD 13/19/25/32 MM WITH VALVE

126 €126.00 VAT included
€105.00 VAT excluded
Disponible
ANTI-SIPHON ELBOW TYPE ASD 13/19/25/32 MM WITH VALVE
ANTI-SIPHON ELBOW TYPE ASD 13/19/25/32 MM WITH VALVE
ANTI-SIPHON ELBOW TYPE ASD 13/19/25/32 MM WITH VALVE
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
ANTI-SIPHON ELBOW TYPE ASD 13/19/25/32 MM WITH VALVE
ANTI-SIPHON ELBOW TYPE ASD 13/19/25/32 MM WITH VALVE
ANTI-SIPHON ELBOW TYPE ASD 13/19/25/32 MM WITH VALVE
Previous
Next
Livraison express → Wednesday 11 June
|
Livraison classique → Friday 13 June
Commandez dans les
00 h 00 m 00 s
Disponible
126 €126.00 VAT included
€105.00 VAT excluded

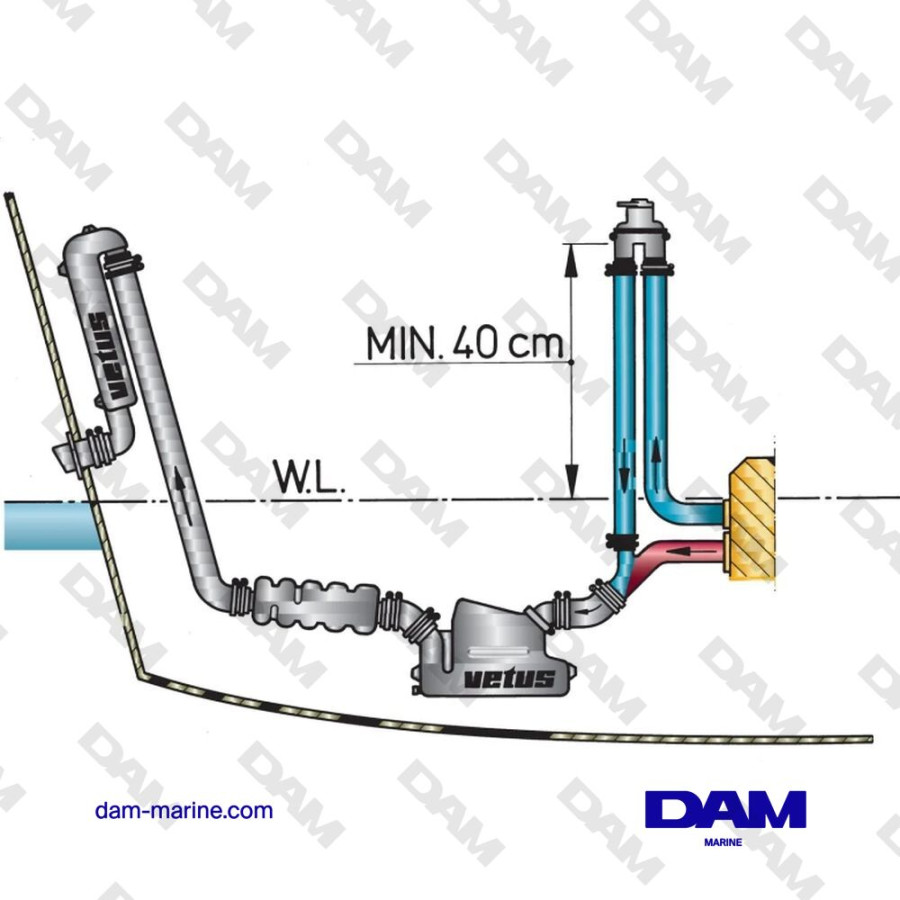

Anti-siphon elbow without valve and with hose. Supplied with ventilation pipe, connection 13 - 32 mm.

Can be used as a drainage system or toilet.

Interchangeable with the AIRVENT type and have the same fixing center distances.

Comes complete with fitting, hose clamps and 2m of hose. Non-valve anti-siphon elbows must be fitted with a ventilation pipe.

The air vent fitting rotates 360°. (Includes a 2 m hose and skin fittings). In addition, the valve can be serviced without removing the vent from the wall and no tools are required for this. For replacement, a set of 5 valves is available as a spare part.

A 13 mm diameter flexible hose can be directly connected to the elbow connections

Can be connected to pipes with inner diameters of 13, 19, 25 and 32 mm.

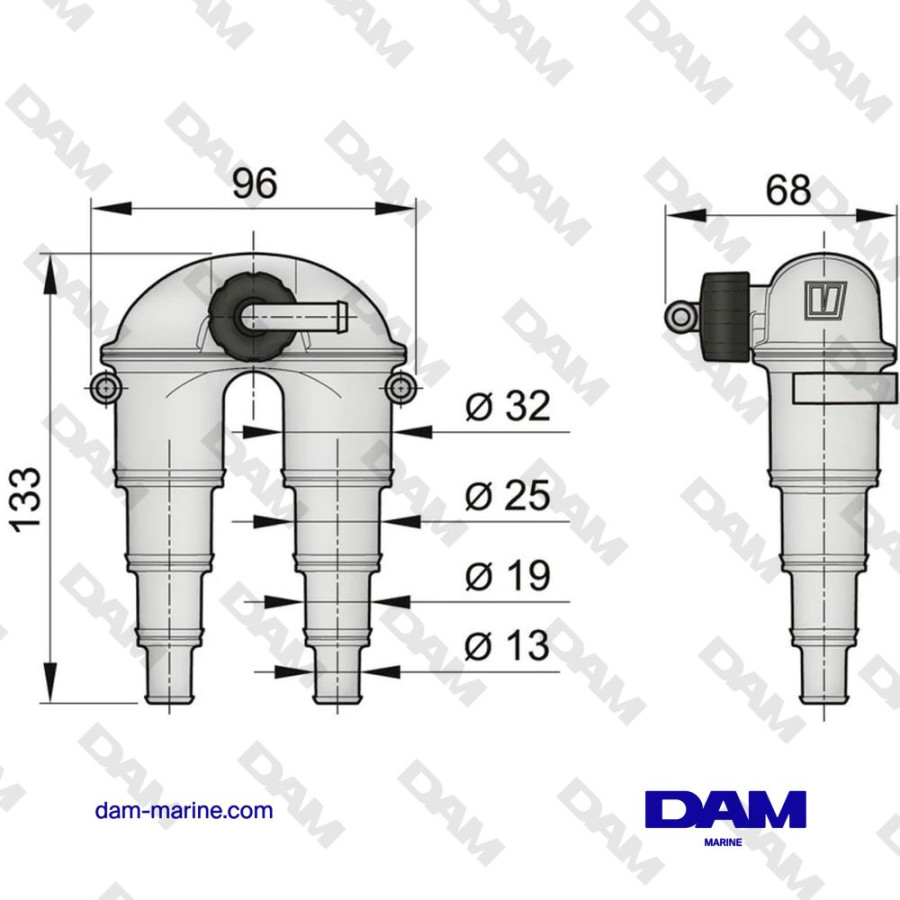

Size :

Width (mm): 68.

Length (mm): 96.

Height (mm): 133.

Read the detailed description
Quantity
Vérifier la compatibilité Identifiez votre moteur pour vérifier la compatibilité de ce produit Vérifier la compatibilité

Anti-siphon elbow without valve and with hose. Supplied with ventilation pipe, connection 13 - 32 mm.

Can be used as a drainage system or toilet.

Interchangeable with the AIRVENT type and have the same fixing center distances.

Comes complete with fitting, hose clamps and 2m of hose. Non-valve anti-siphon elbows must be fitted with a ventilation pipe.

The air vent fitting rotates 360°. (Includes a 2 m hose and skin fittings). In addition, the valve can be serviced without removing the vent from the wall and no tools are required for this. For replacement, a set of 5 valves is available as a spare part.

A 13 mm diameter flexible hose can be directly connected to the elbow connections

Can be connected to pipes with inner diameters of 13, 19, 25 and 32 mm.

Size :

Width (mm): 68.

Length (mm): 96.

Height (mm): 133.

  • VETUS : ASDV
  • VDM : VETASDV
