Ref. DAM : DM_VE_LIB3755L

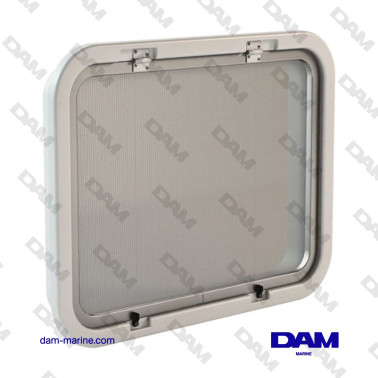

LIBERO DECK COVER TYPE 37, RADIUS 55 MM (CUT OUT SIZE 500 X 370 MM)

560.5 €560.50 VAT included
€467.08 VAT excluded
On demand
LIBERO DECK COVER TYPE 37, RADIUS 55 MM (CUT OUT SIZE 500 X 370 MM)
LIBERO DECK COVER TYPE 37, RADIUS 55 MM (CUT OUT SIZE 500 X 370 MM)
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
LIBERO DECK COVER TYPE 37, RADIUS 55 MM (CUT OUT SIZE 500 X 370 MM)
LIBERO DECK COVER TYPE 37, RADIUS 55 MM (CUT OUT SIZE 500 X 370 MM)
Previous
Next

Pièce non en stock.

Demandez le délai de réapprovisionnement et le tarif en cliquant sur le bouton « Ask for a quote ».

Un conseiller traitera votre demande dans la journée.

On demand
560.5 €560.50 VAT included
€467.08 VAT excluded

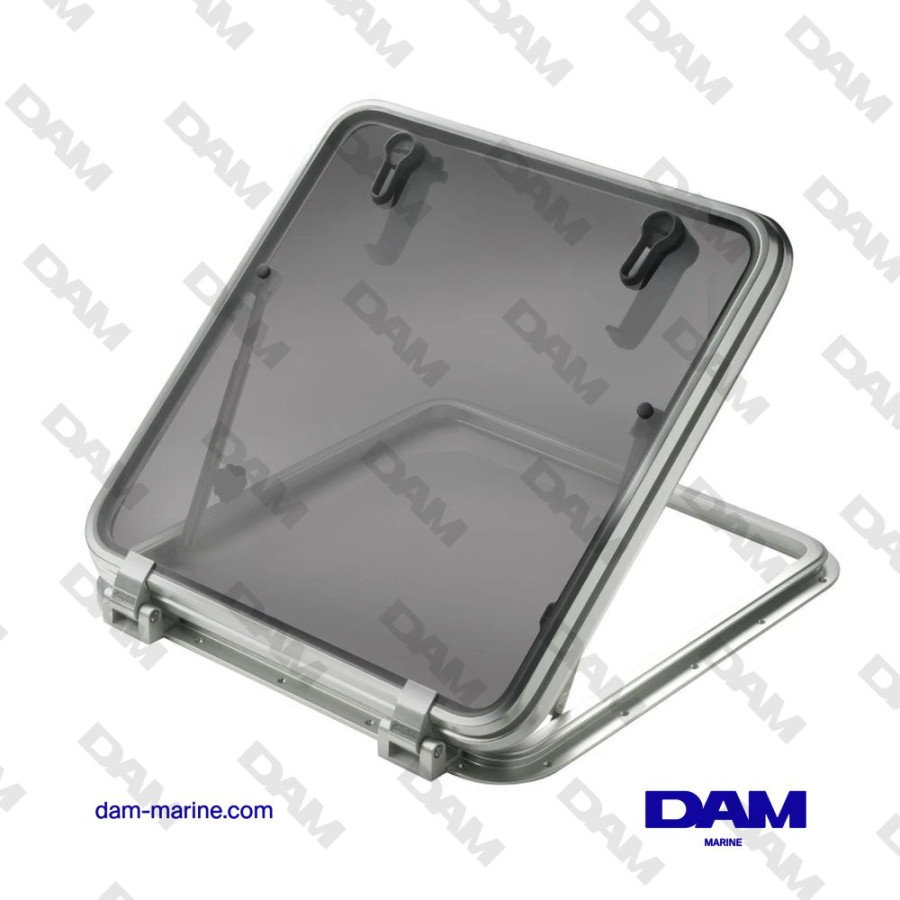

Deck hatches - Type LIBERO (AII).

These hatches feature a hand polished and anodized aluminum frame with a 32 or 55mm corner radius and a 10mm dark colored acrylic cover.

The deck hatches and escape hatches come with adjustment devices to hold the cover open at almost any angle up to 90º.

A special friction hinge allows the ventilation hatches to stay open at any angle up to 180º.

The LIBERO type is suitable for design category A, zone II.

Features :

Number of handles: 2.

Shape: Square.

Panel opening: Framed.

Friction hinges: Yes.

External dimensions A x B (in mm): 560 x 430.

Cut-out dimensions C x D (in mm): 500 x 370.

Cutting radius R (in mm): 55.

Read the detailed description
Quantity
Vérifier la compatibilité Identifiez votre moteur pour vérifier la compatibilité de ce produit Vérifier la compatibilité

Deck hatches - Type LIBERO (AII).

These hatches feature a hand polished and anodized aluminum frame with a 32 or 55mm corner radius and a 10mm dark colored acrylic cover.

The deck hatches and escape hatches come with adjustment devices to hold the cover open at almost any angle up to 90º.

A special friction hinge allows the ventilation hatches to stay open at any angle up to 180º.

The LIBERO type is suitable for design category A, zone II.

Features :

Number of handles: 2.

Shape: Square.

Panel opening: Framed.

Friction hinges: Yes.

External dimensions A x B (in mm): 560 x 430.

Cut-out dimensions C x D (in mm): 500 x 370.

Cutting radius R (in mm): 55.

  • VETUS : LIB3755L
  • VDM : VETLIB3755L
